| Model NO. | JSKJ-ESS-DC5000-A |
| Nominal Voltage | 1331.2V |
| Nominal Capacity | 3768ah |
| Rated Energy | Expandable to 100mwh+ |
| Cycle Life | 8000 |
| Cell Type | LFP Battery |
| Cooling Method | Liquid + Air Cooling Dual Thermal Management |
| Waterproof Design | IP54 (Outdoor Durability) |
| System Architecture | Triple Fire Protection + Triple BMS |
| Standard Charge/Discharge Current | 1884A/1884A |

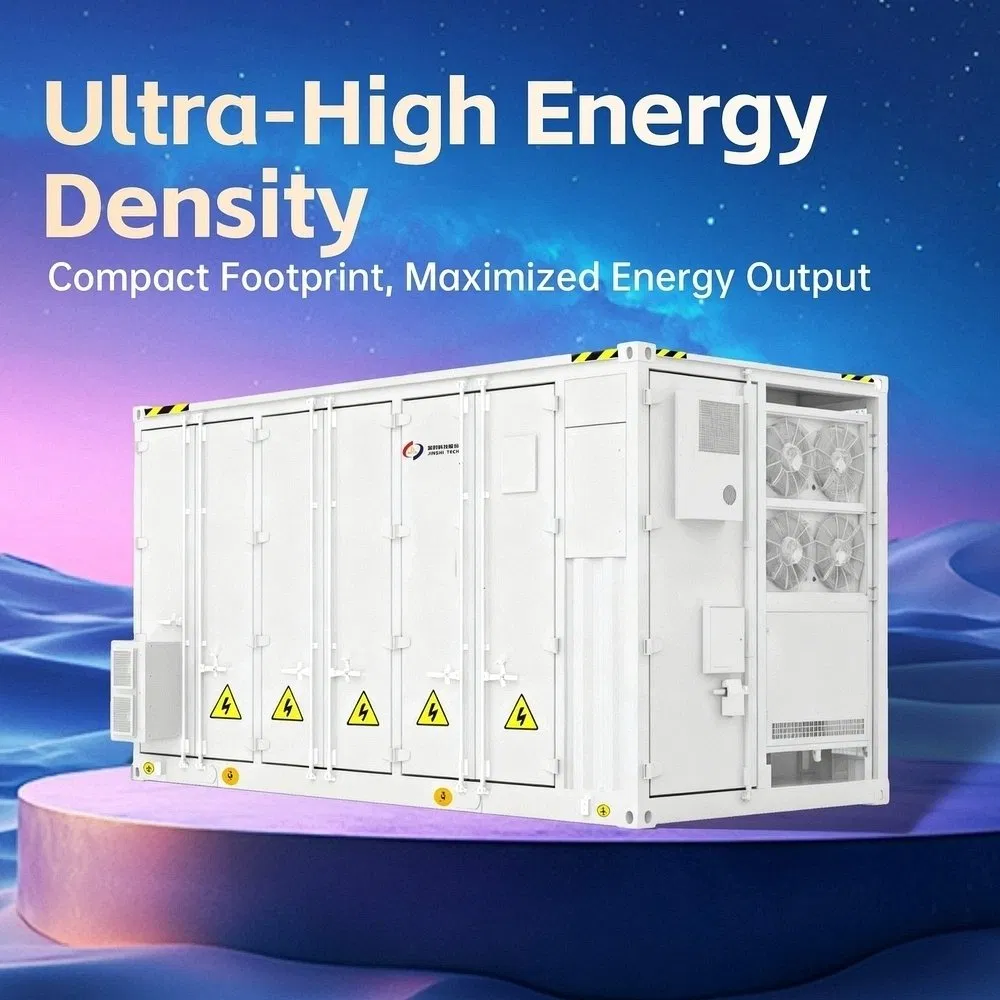

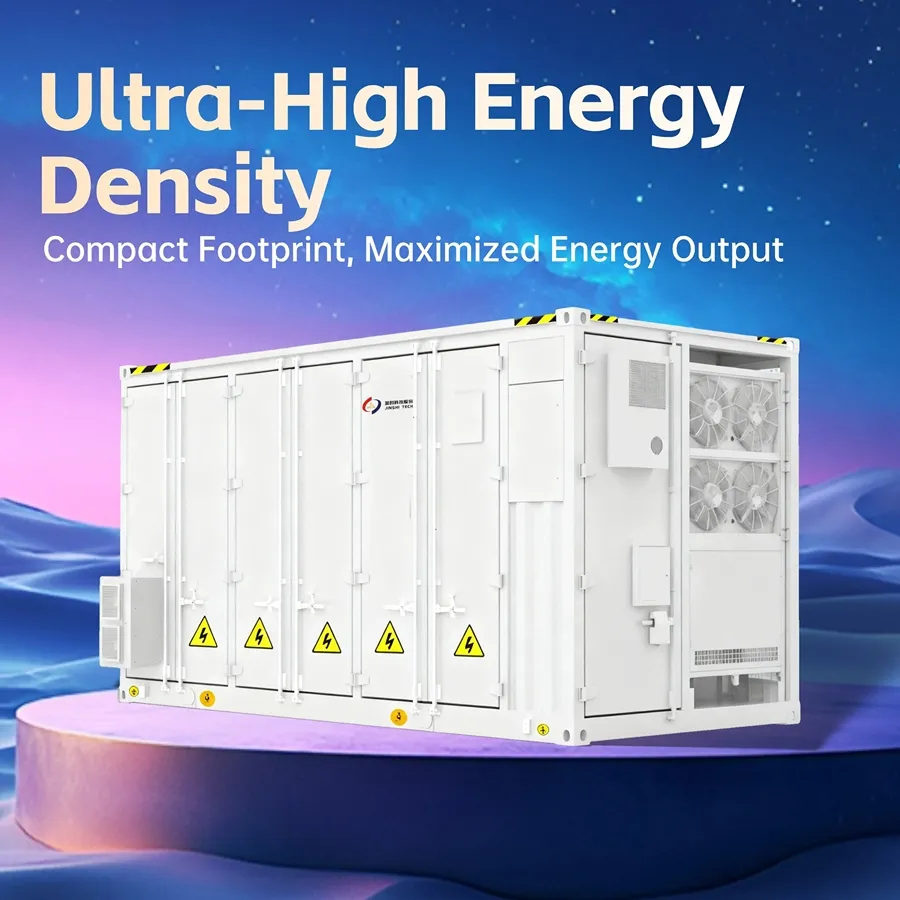

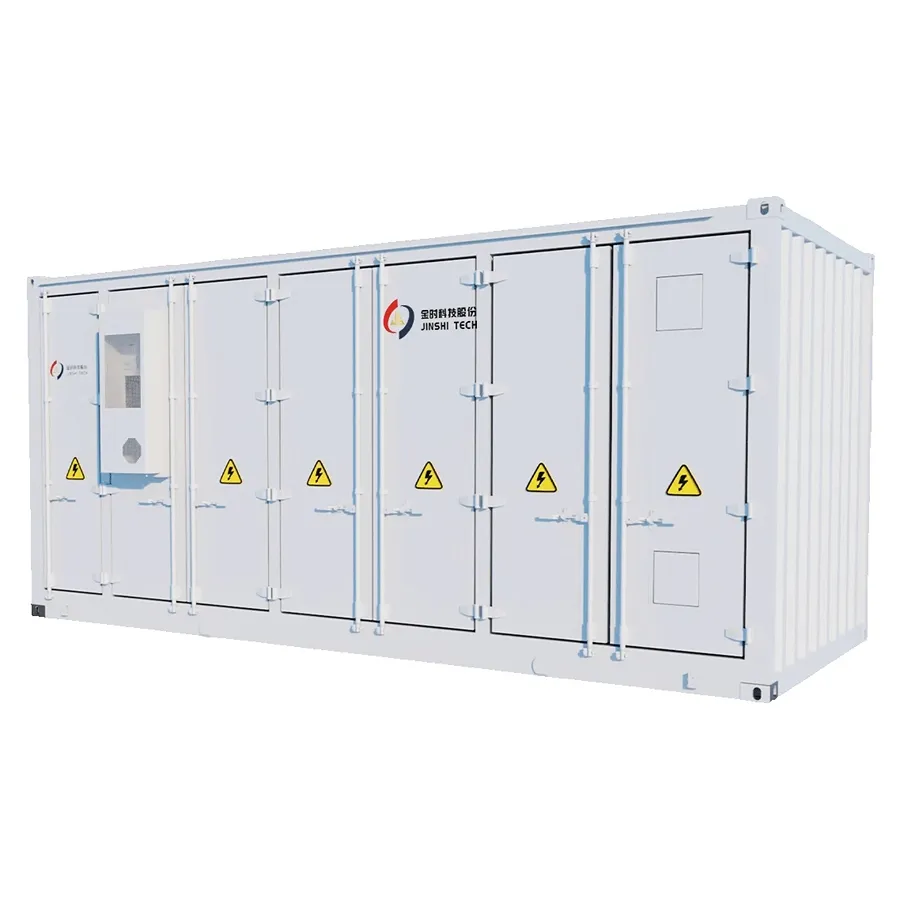

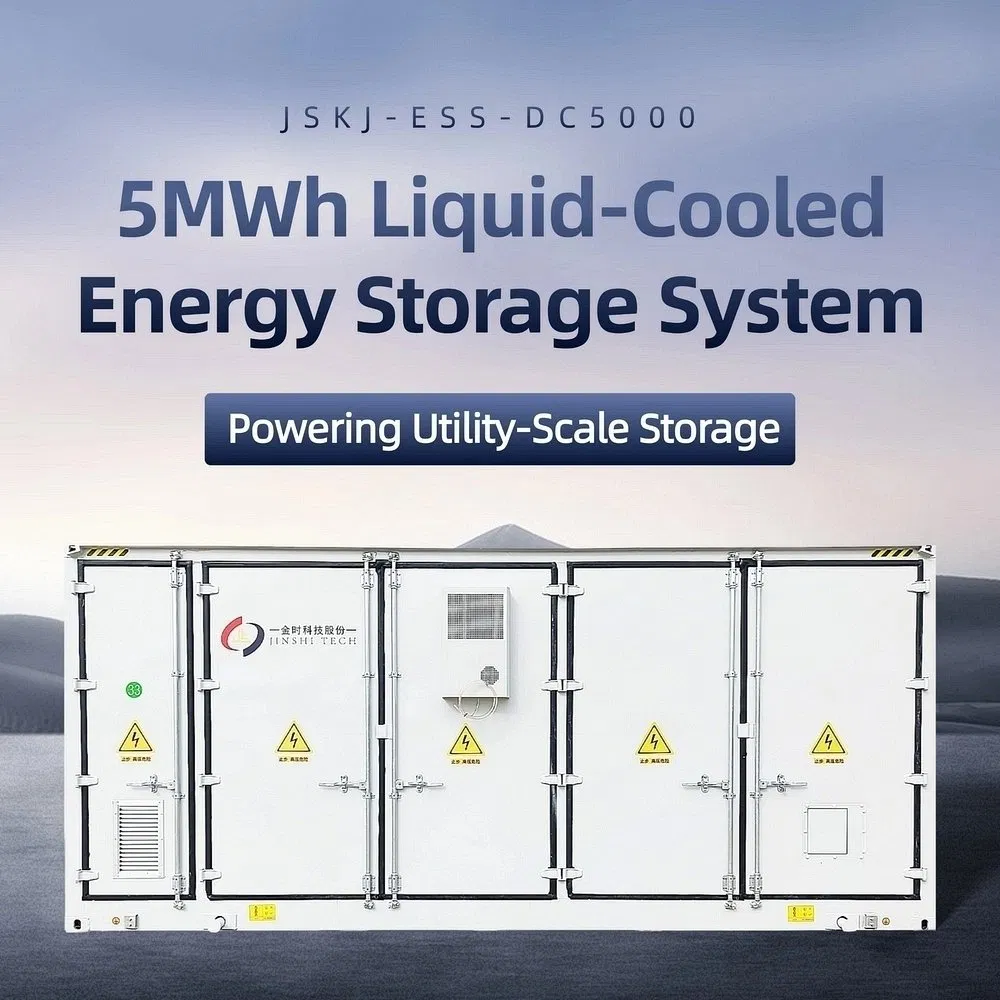

5MWH BATTERY STORAGE CONTAINER
The 5MWh liquid-cooled system enhances energy density by 30% and extends battery life by 50% via AI-driven thermal management. Ideal for grid-side peak shaving, frequency regulation, and industrial energy arbitrage.
24/7 BMS (Battery Management System) Monitoring with real-time sensors for Temp, CO, and Smoke.
Supports advanced fire suppression agents including NOVEC 1230 and Liquid Nitrogen.
Multi-cabinet parallel connection allows for easy scalability and modular deployment.

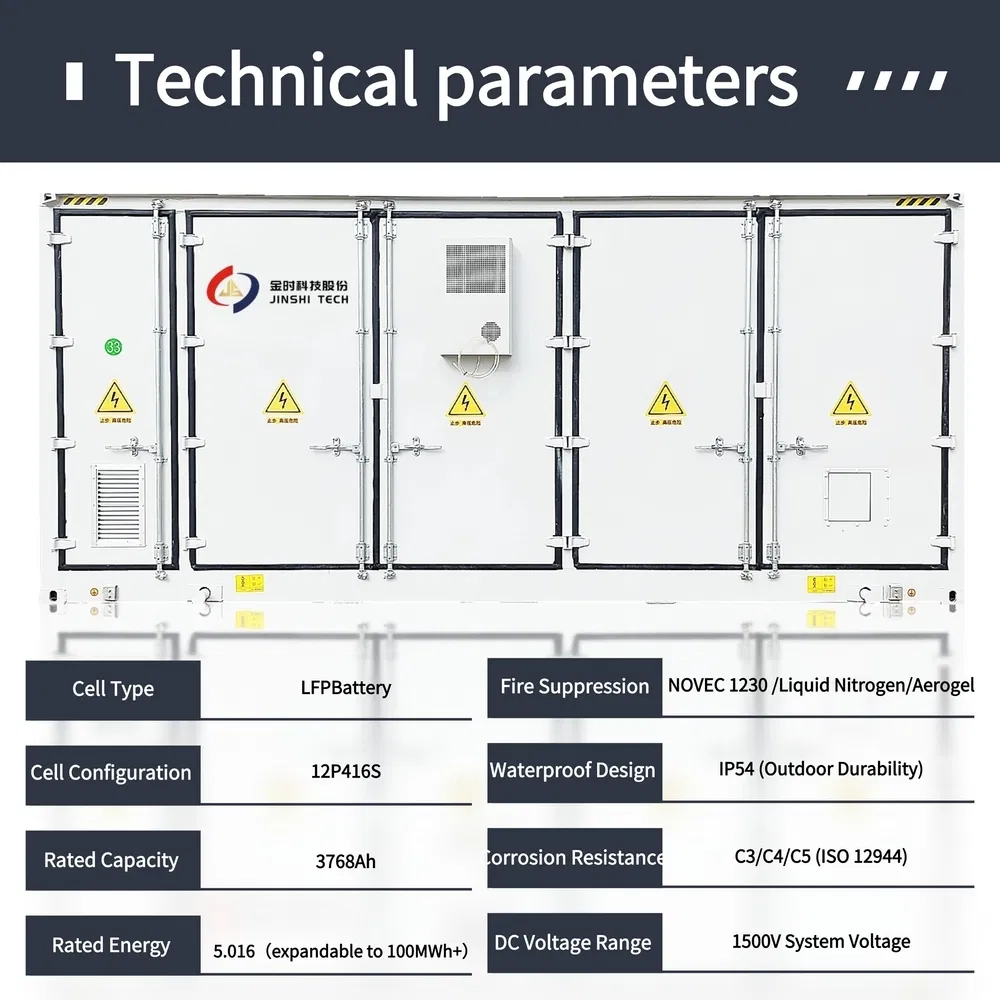

| Cell Configuration | 12P416S |
| Rated Voltage | 1331.2V |
| Charge/Discharge Rate | 0.5P |
| Operating Voltage Range | 1164.8-1497.6V |
| Corrosion Resistance | C3/C4/C5 (ISO 12944) |
| DC Voltage Range | 1500V System Voltage |
| Application Scenarios | Inland, Plateau, Coastal |
| Package Size | 650.00cm * 280.00cm * 289.60cm |
| Gross Weight | 44000.00kg |
Three-level fusing system with targeted explosion discharge design for maximum safety.
IP54 rating and C5 corrosion resistance ensure durability in coastal and plateau environments.

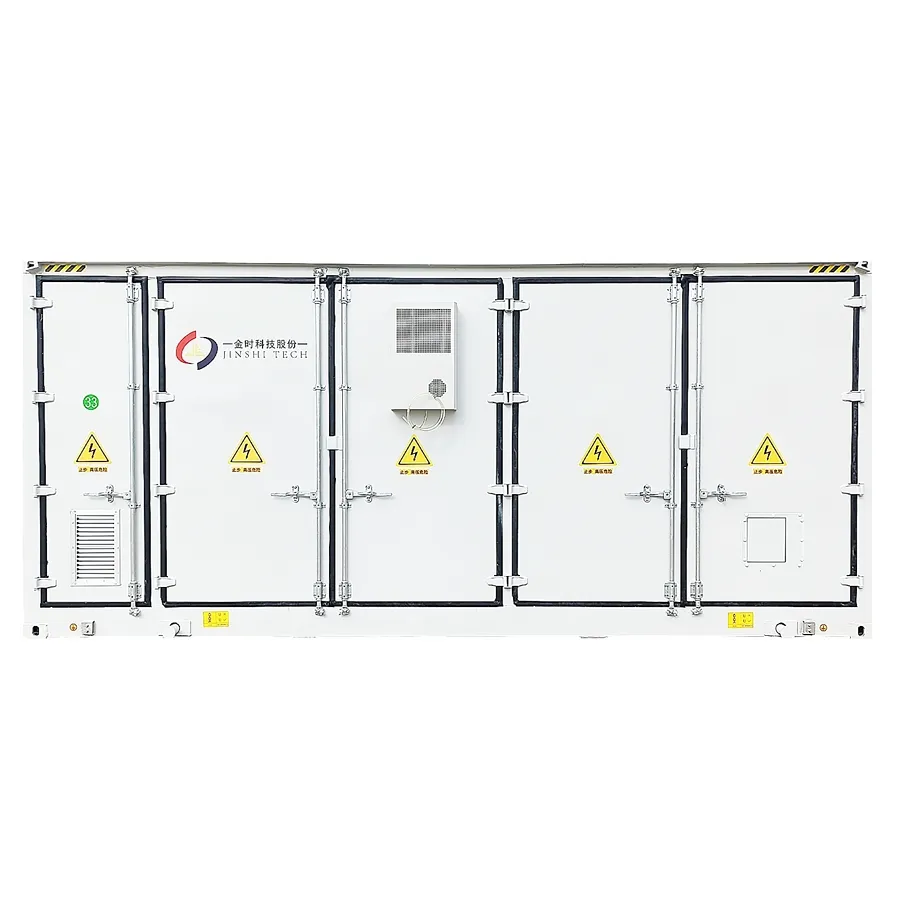

Containerized design with standardized interfaces for rapid deployment and commissioning.
