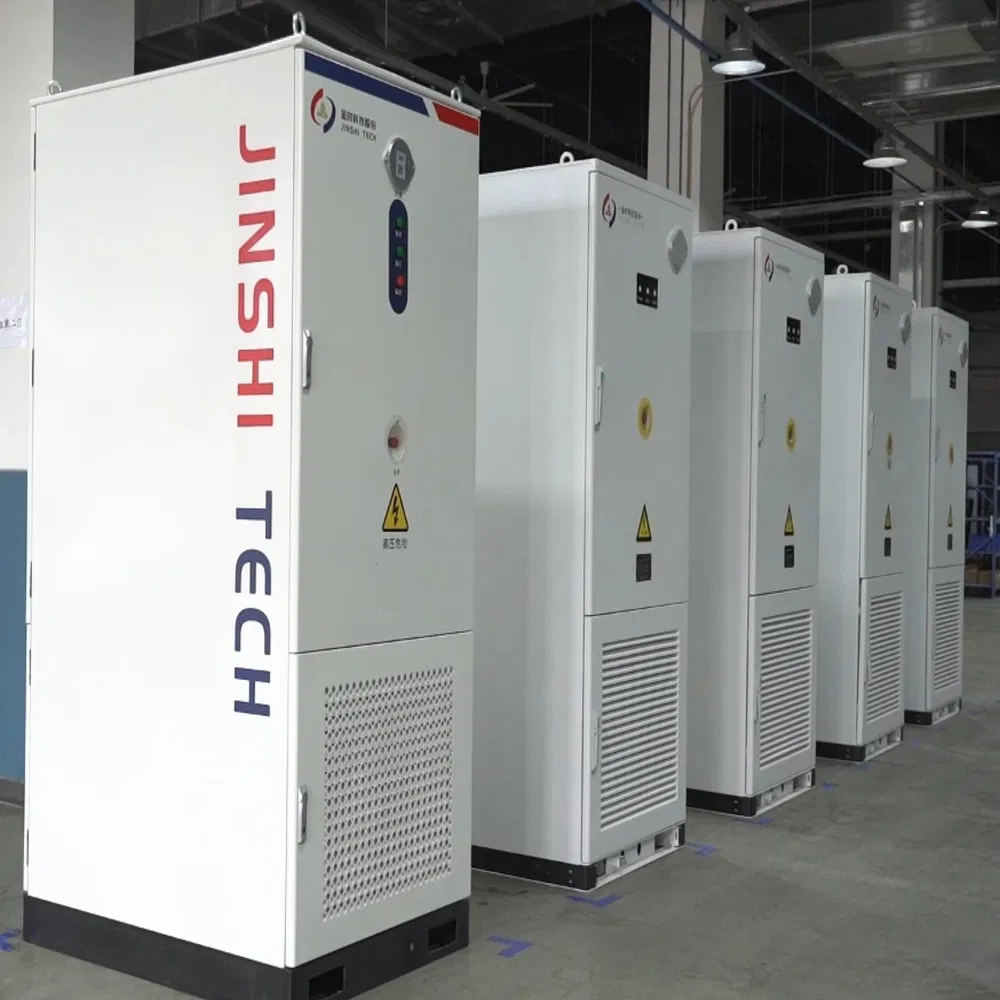

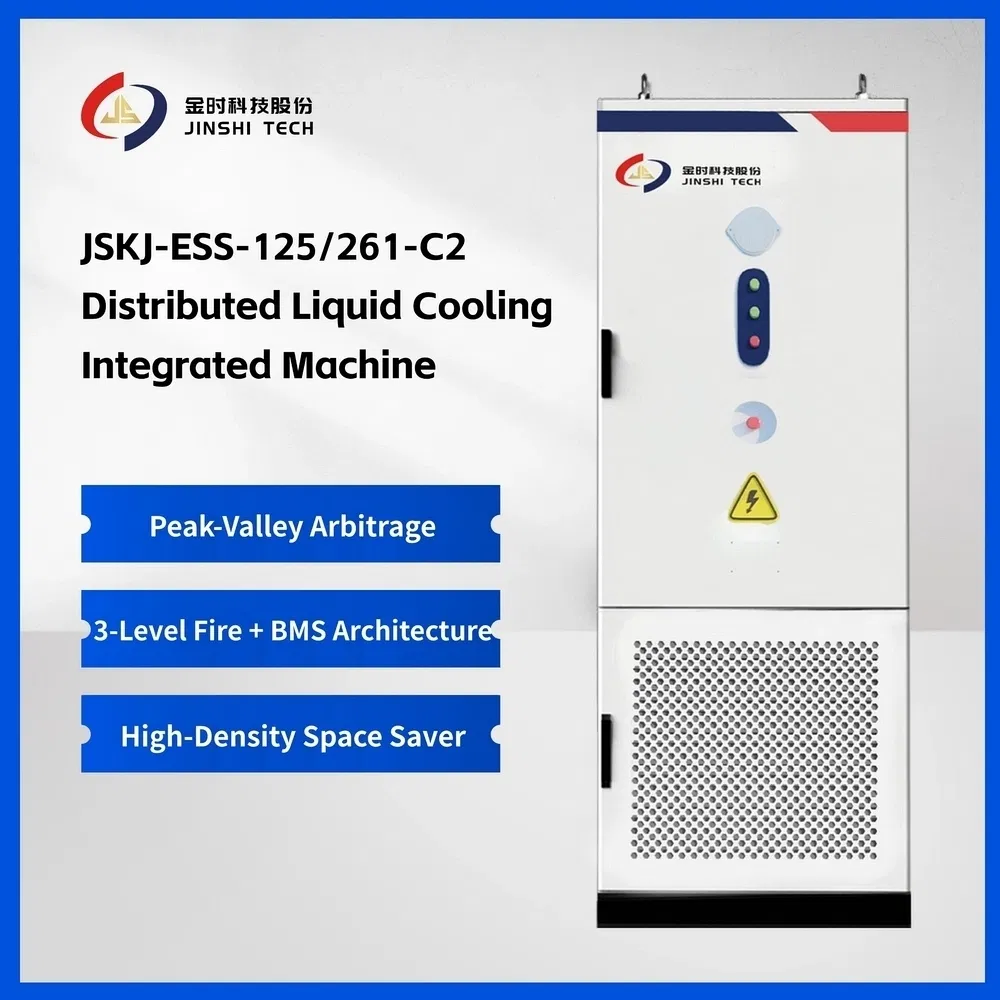

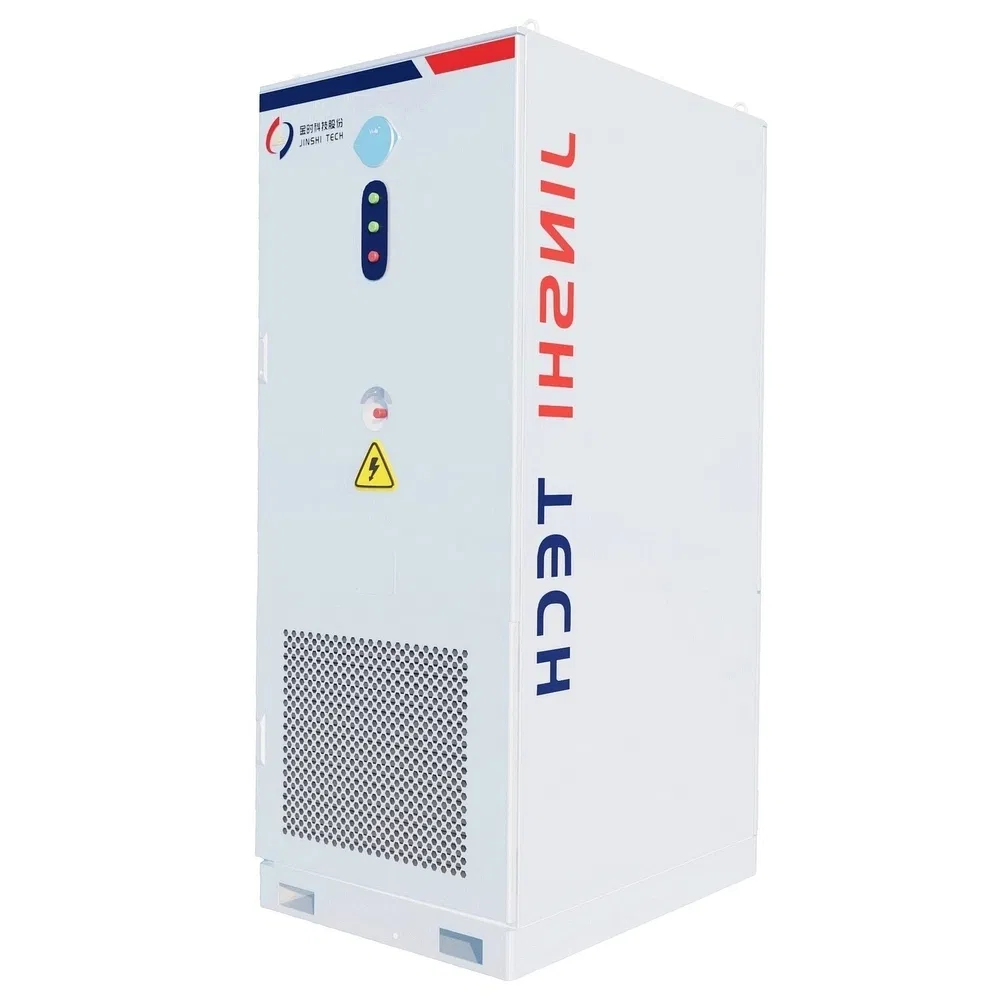

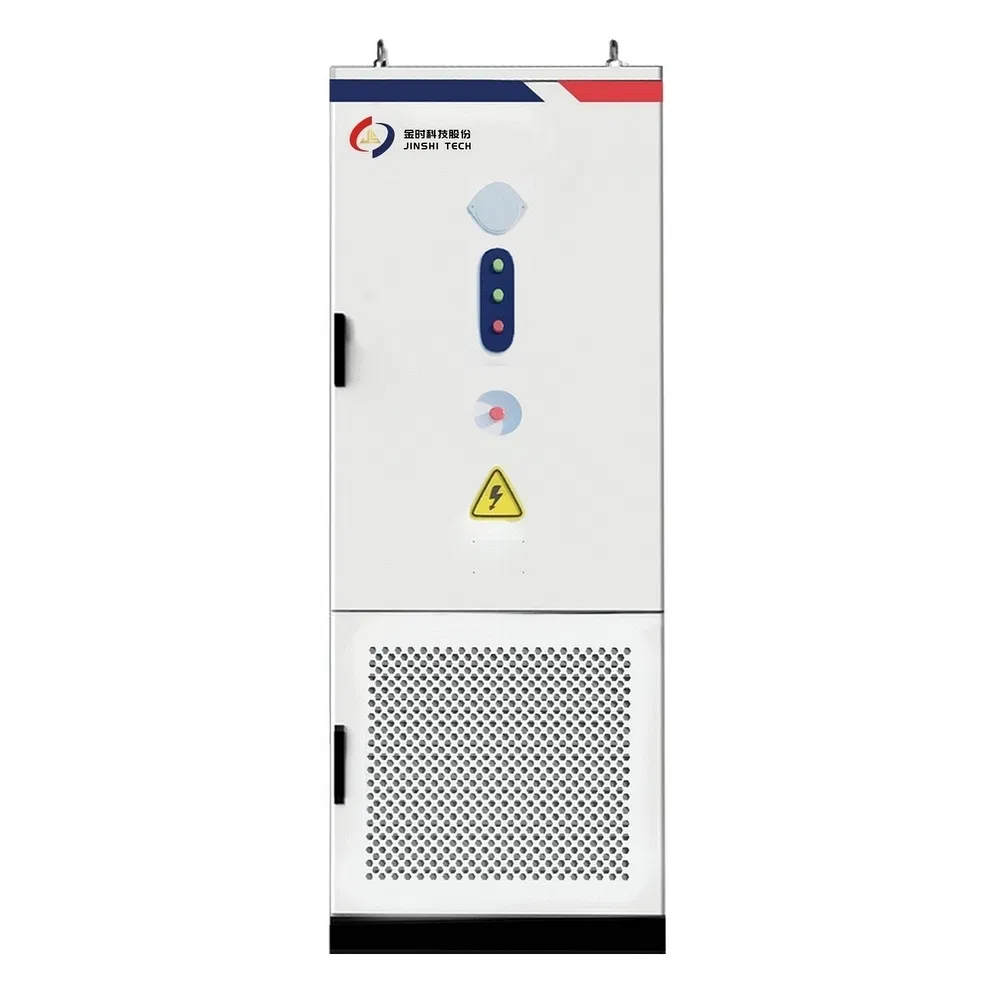

Our advanced Liquid Cooling Energy Storage System delivers exceptional performance with 125kW rated power and 261kWh capacity, engineered specifically for commercial and industrial applications. This LiFePO4 battery storage system features innovative liquid thermal management technology that ensures optimal operating temperatures and extended battery lifespan. With triple-level fire protection utilizing NOVEC 1230 suppression medium and a comprehensive BMS architecture, safety is paramount.
| TECHNICAL PARAMETERS | |
|---|---|
| Cell Type | LFP Battery |
| Configuration | 1P260S |
| Rated Capacity | 314Ah |
| Rated Energy | 261kWh |
| Rated Voltage | 832V |
| Rated Power | 125kW |
| Charge/Discharge Rate | 0.5P |
| Operating Voltage Range | 676~936V |
| Nominal Current | 157/157A |
| Cooling Method | Liquid Cooling |
| Fire Suppression Medium | NOVEC 1230 |
| Fire Detection | Temp., CO, Smoke Sensors |
| System Specifications | 125kW/261kWh |
| Noise Level | ≤ 75dB |
| Corrosion Resistance | C3 |
| IP Rating | IP54 |
| Weight | 2.6T |
314Ah rated capacity with 1P260S configuration delivering 261kWh energy storage and 125kW power output for demanding commercial applications.

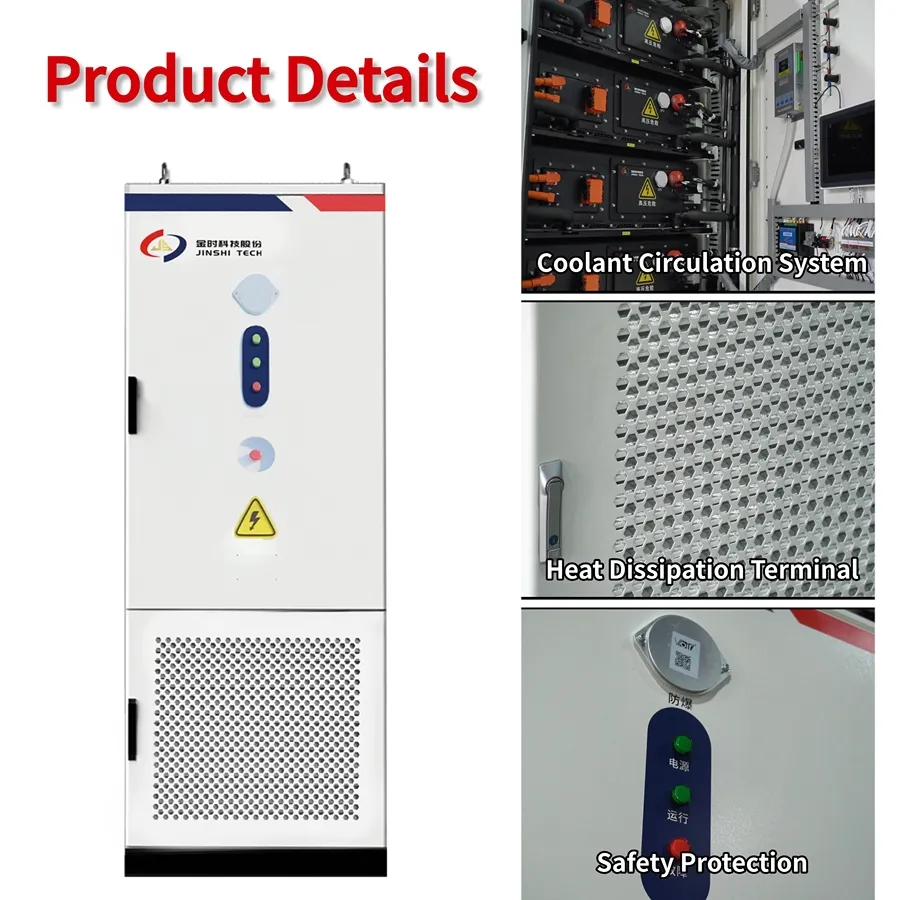

Precision thermal management ensures optimal operating temperatures (676-936V voltage range), maximizing battery efficiency and extending service life beyond traditional air-cooled systems.
Integrated NOVEC 1230 fire suppression system with multi-sensor detection (temperature, CO, smoke) provides comprehensive safety protection for critical assets.

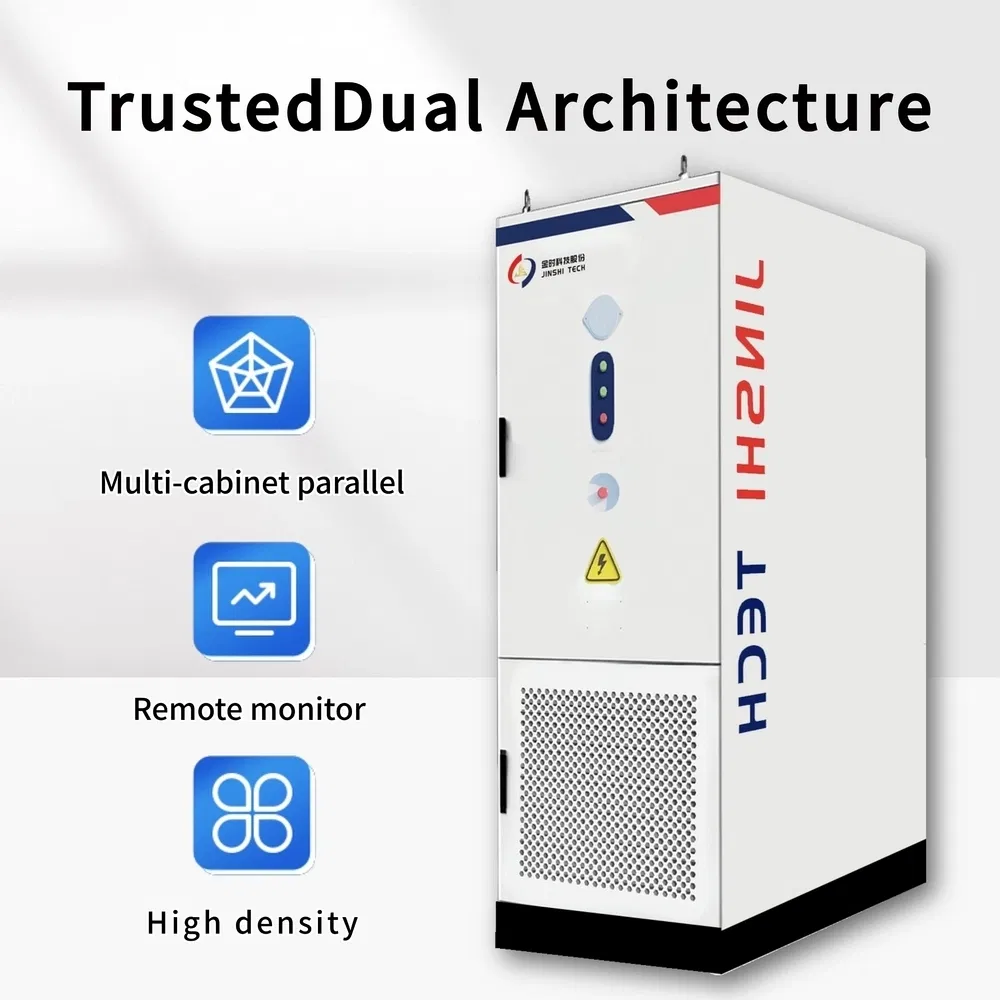

Sophisticated Battery Management System with remote monitoring capabilities enables real-time performance tracking, fault early warning, and predictive maintenance.
Smart energy management system automatically charges during off-peak hours and discharges during peak demand periods, reducing electricity costs by up to 40%.
