| Model NO. | HTAC-100/200-OD | Condition | New |
|---|---|---|---|
| Certification | ISO, CE | Application | Home, Industrial, Commercial |
| Specification | Normal, 100/200/215/229kWh | Product Name | 100/200/215/229kwh ESS Outdoor Cabinet |
| Nominal Capacity | 100kwh/200kwh/215kwh/229kwh Option | Output Voltage | 220/380/400/415/480VAC 50/60Hz 3phase |
| Cycle Life | ≥6000 Cycles | Installation | Outdoor Installation |
| Battery Type | Lithium Ion, LiFePO4 Battery | Online Monitoring | WiFi/LAN/GPRS |

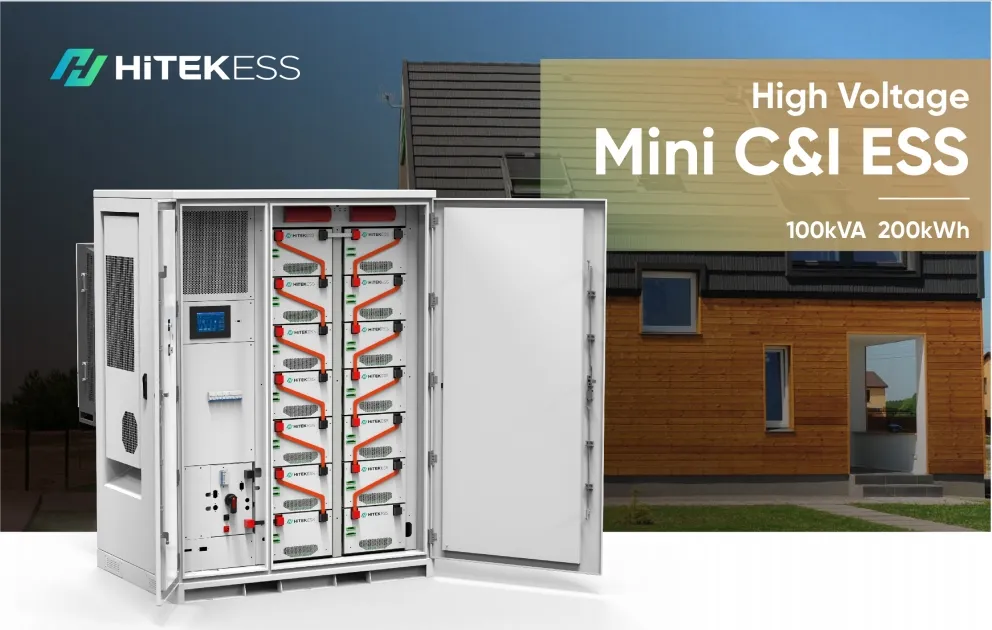

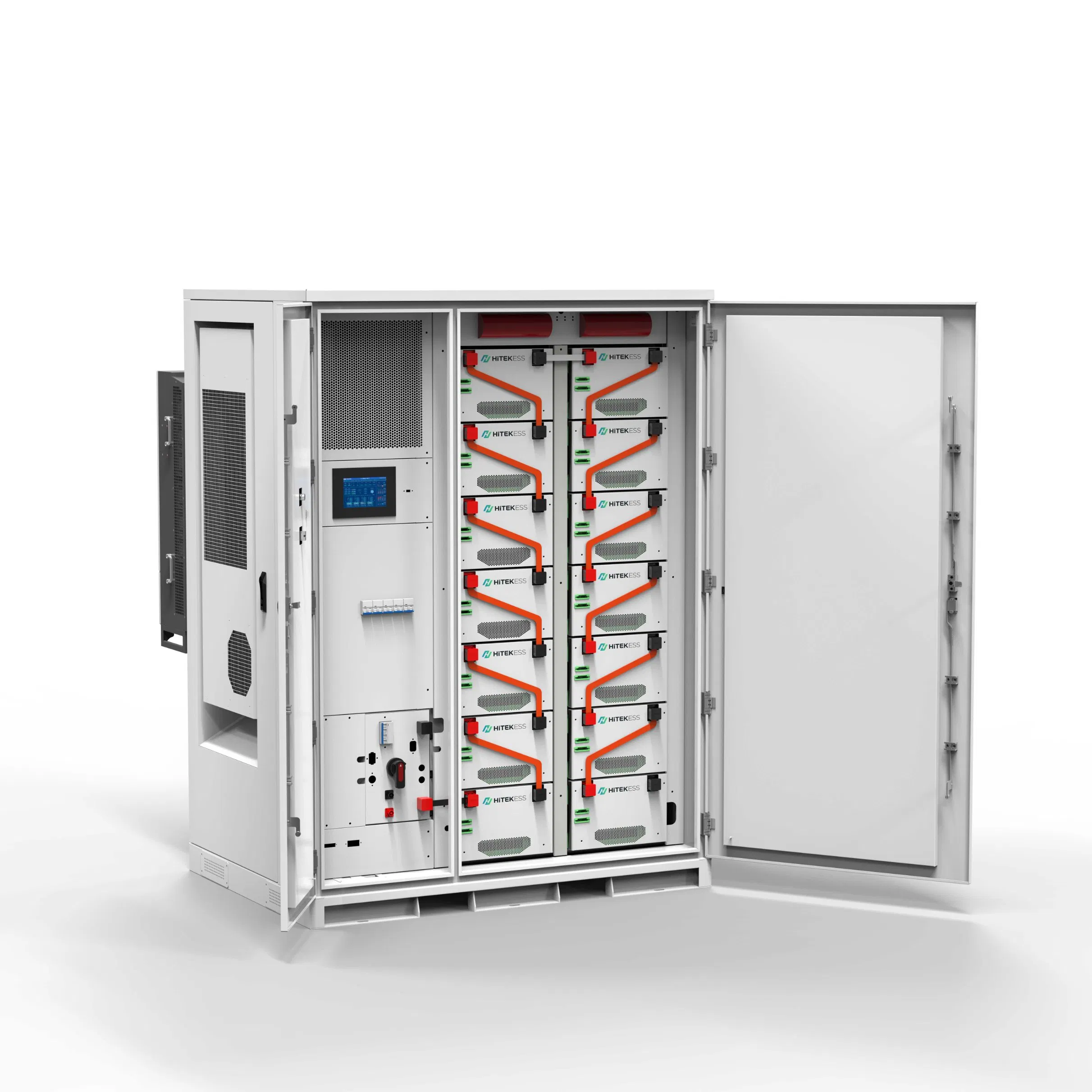

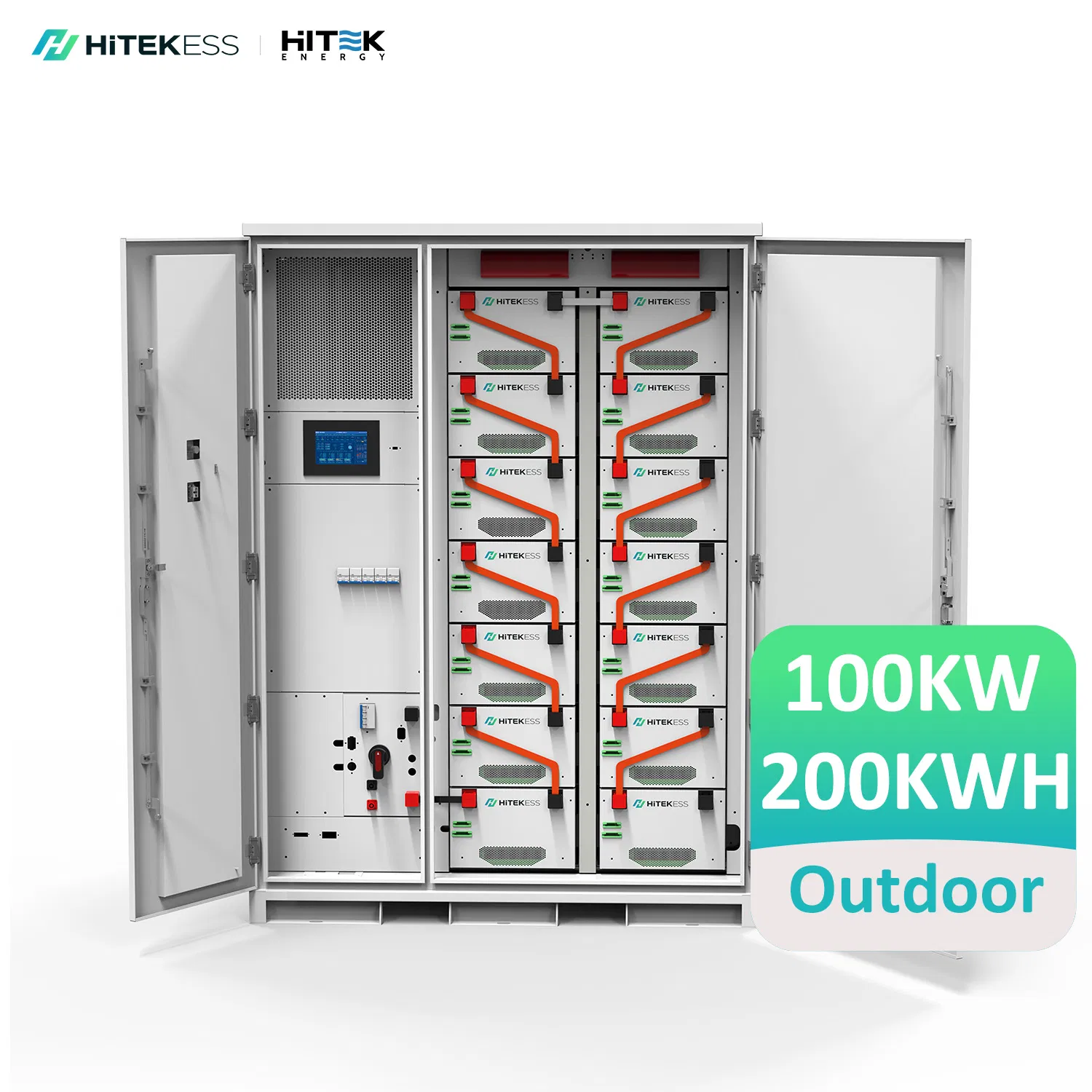

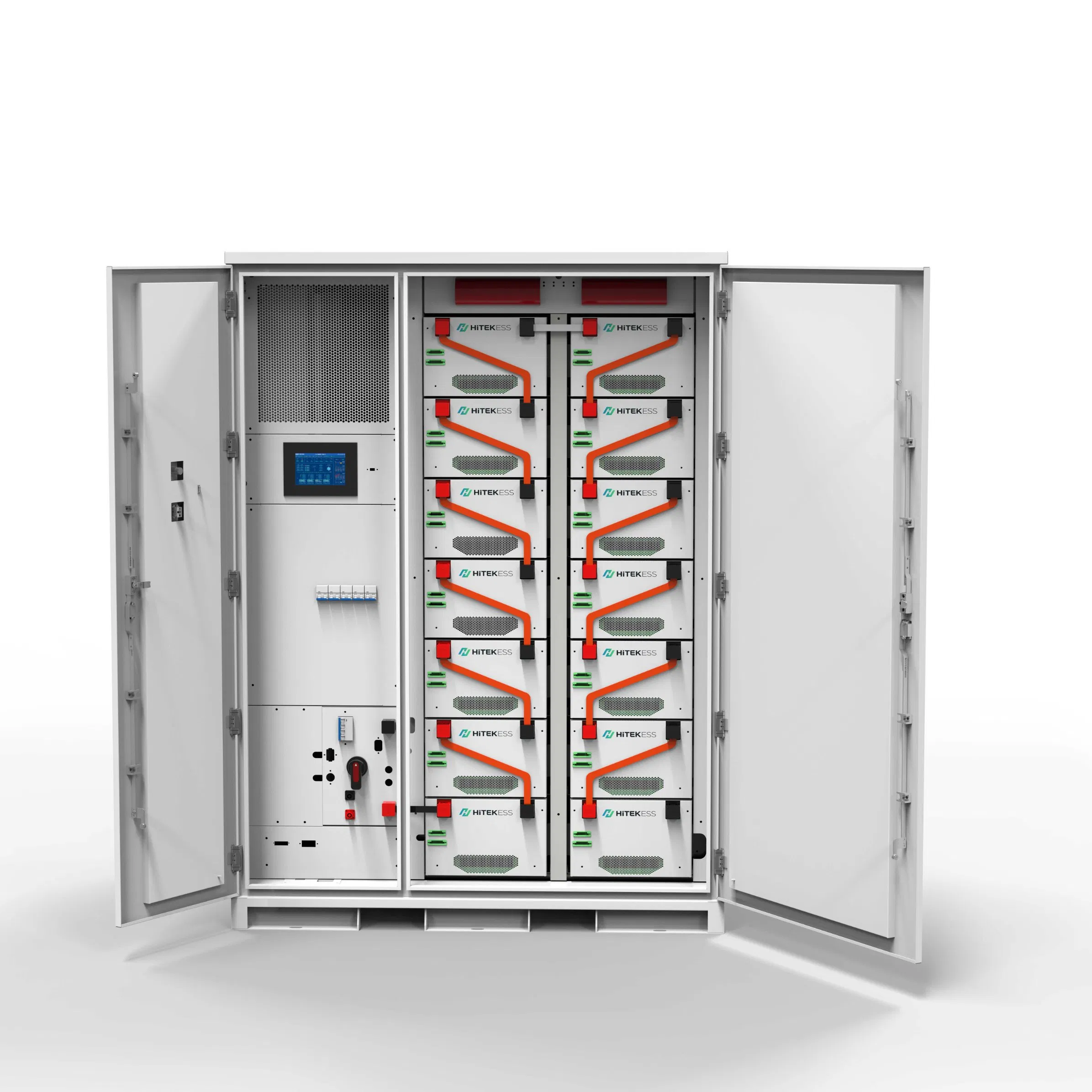

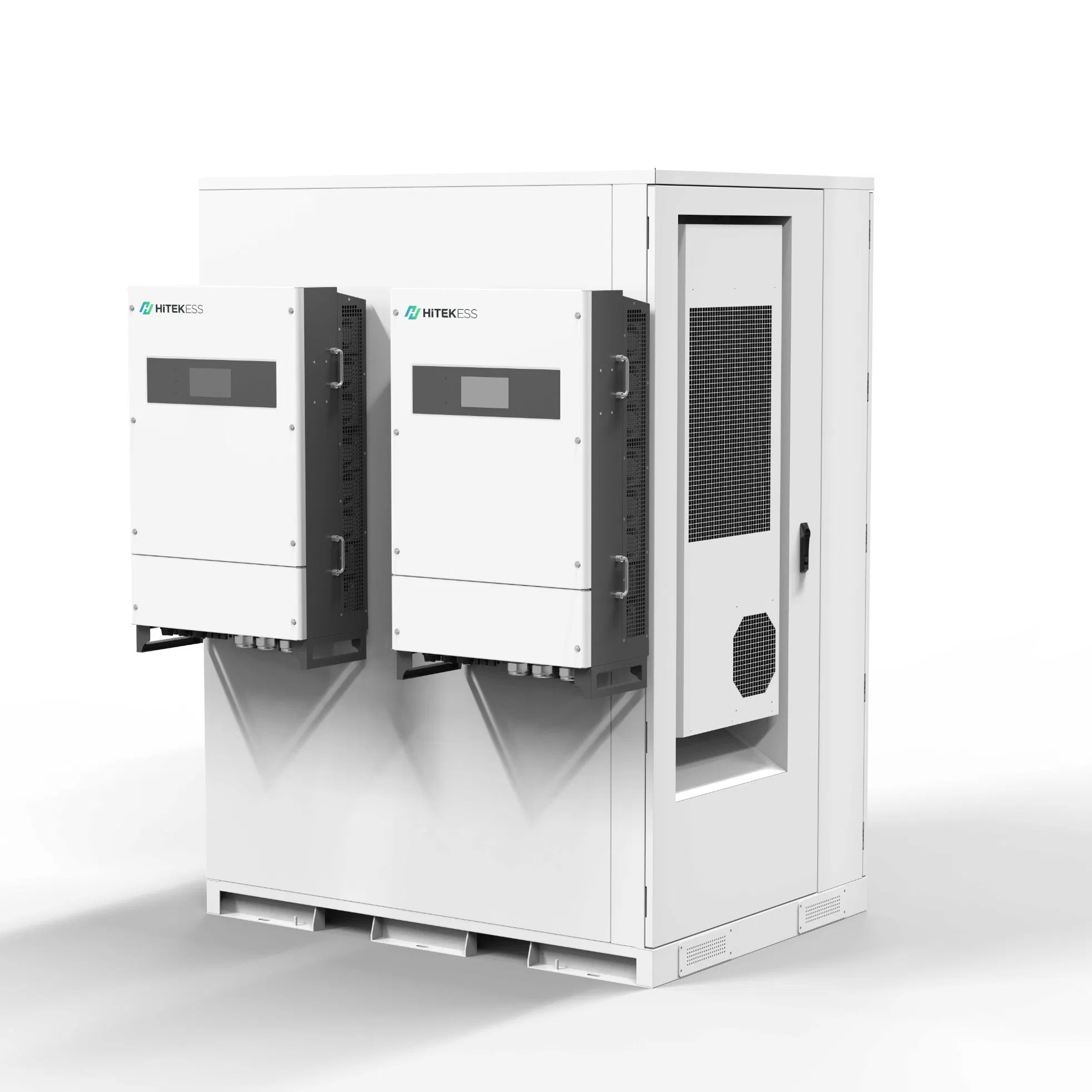

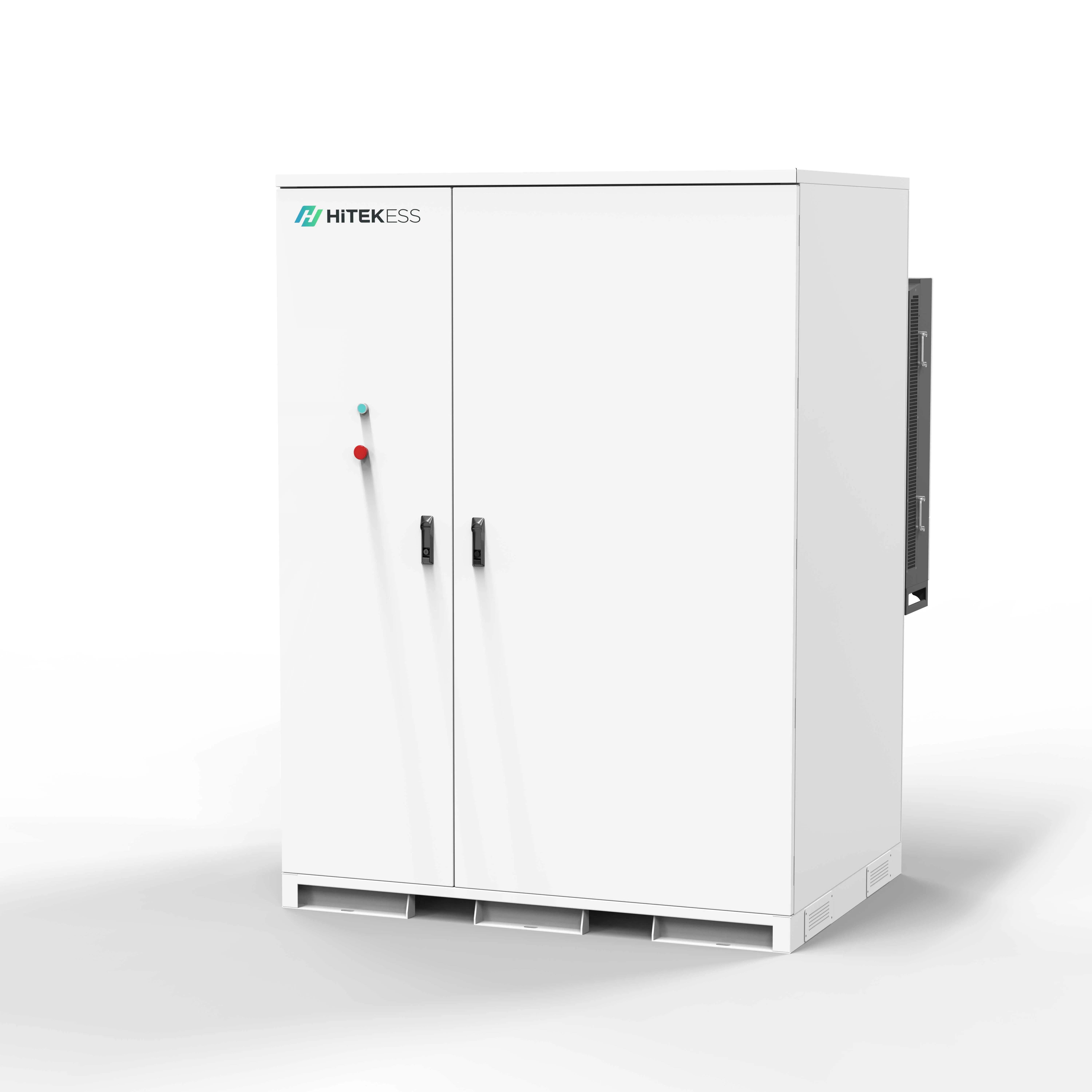

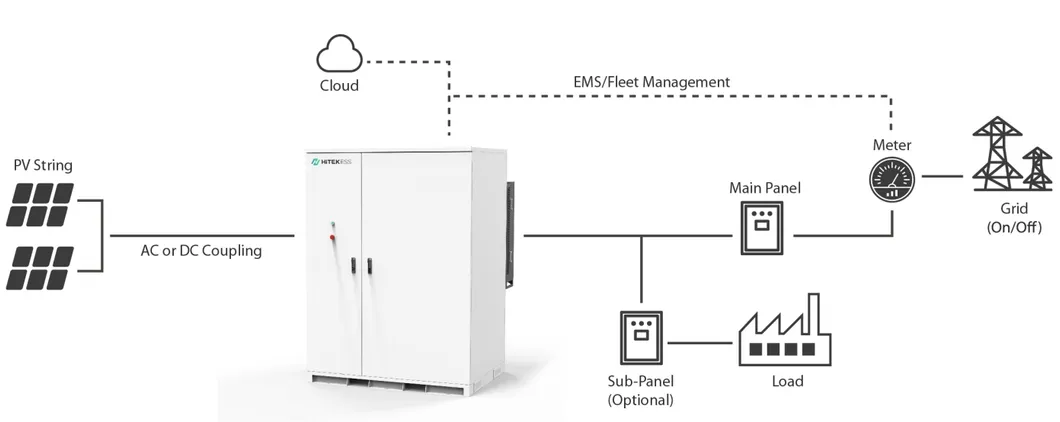

High Voltage 50kW/100kWh, 100kW/200kWh, 100kW/229kWh ESS Outdoor Cabinet Solution for fast install. This integrated system includes inverter, lithium battery trays, racks, BMS, Microgrid Controller, HVAC, fire suppression, islanding switch, and outdoor rated enclosure.
Safe Technology & Multi-level Protection, Easy & Flexible to Scale and Powerful Performance. The modular design allows for easy capacity expansion.

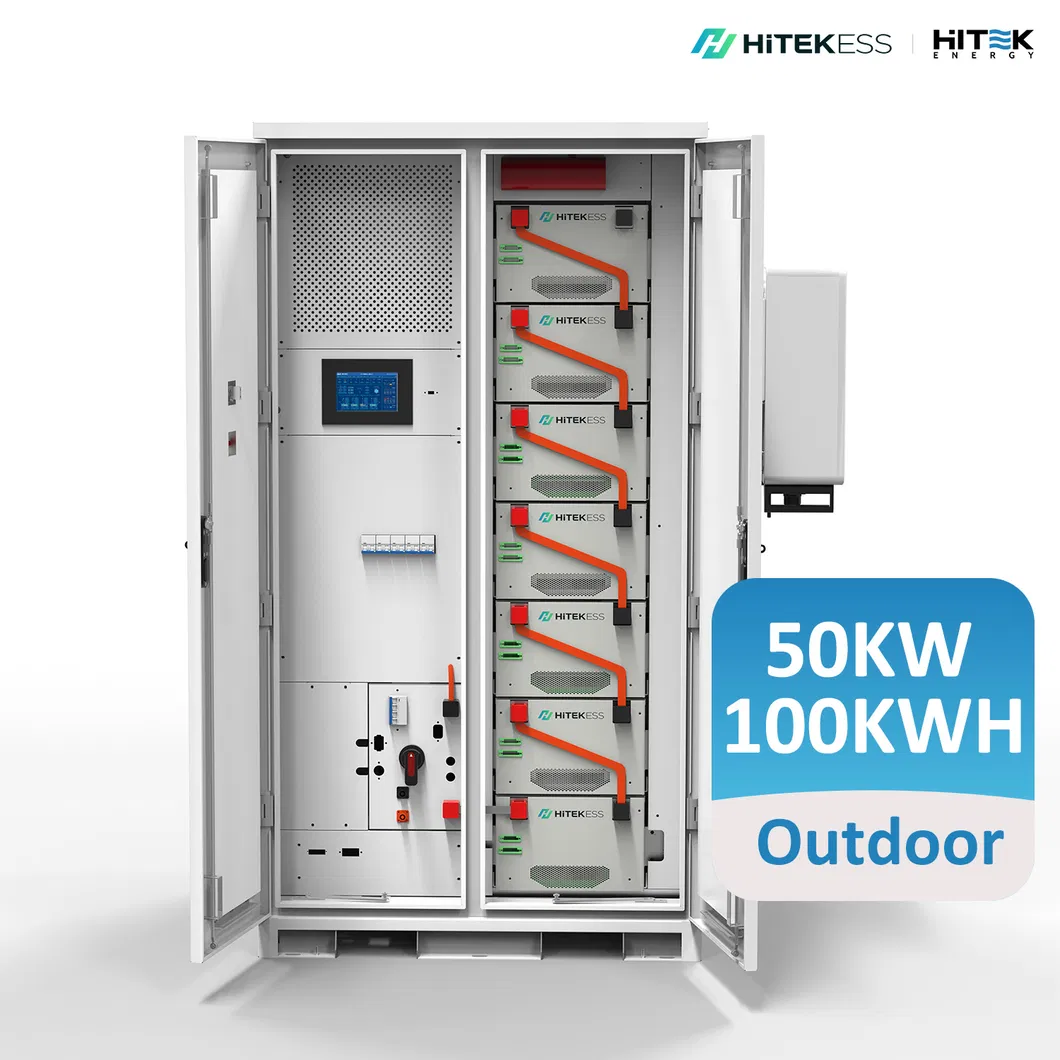

| Model | HTAC-50/100-OD | HTAC-100/200-OD | HTAC-100/215-OD | HTAC-100/229-OD |
|---|---|---|---|---|
| System Parameter | 50kW/100kWh | 100kW/200kWh | 100kW/215kWh | 100kW/229kWh |
| Battery Capacity | 100kWh | 200kWh | 215kWh | 229kWh |
| Rated AC Power | 50kW | 100kW | 100kW | 100kW |
| Rated System Voltage | 358.4V | 716.8V | 768V | 409.6V |
| Protection Level | IP54/IP65 | |||
| Operating Temp | -25~60°C (Derating Above 45°C) | |||

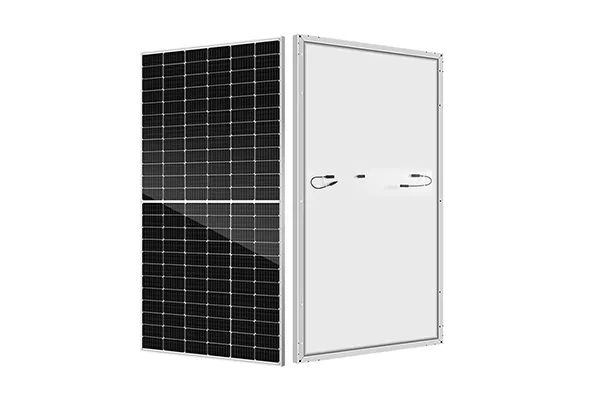

Peak Power: 600Wp
Dimensions: 2279*1134*30mm
Efficiency: High-performance monocrystalline cells.

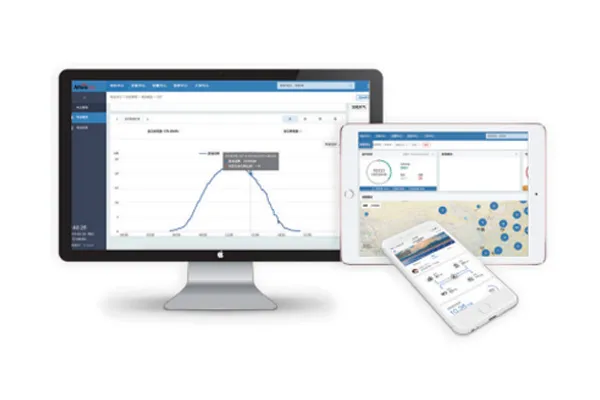

Smart Monitoring & Remote Upgrade
Built-in Anti-feed-in Function
Configurable Operation Modes.
One-click installation and registration. Safe operation with traceable logs and full lifecycle data security.
Deep Cycle LiFePO4 Battery
6000+ Cycles, up to 90% DOD

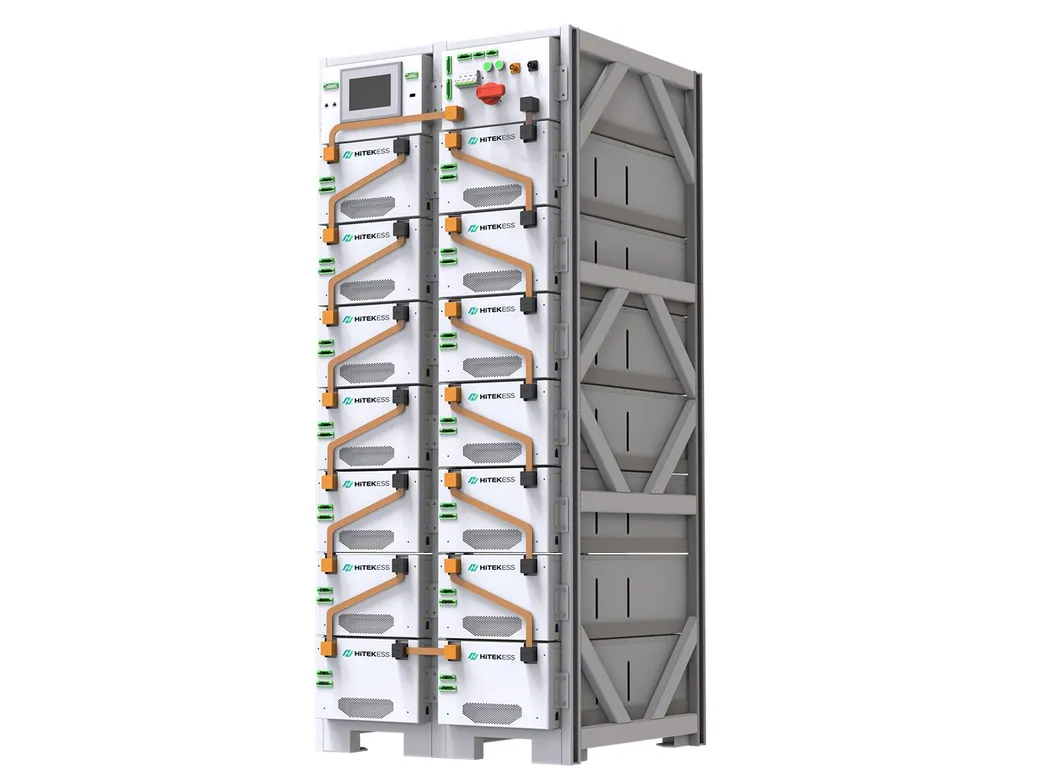

Rack mounted for easy maintenance.

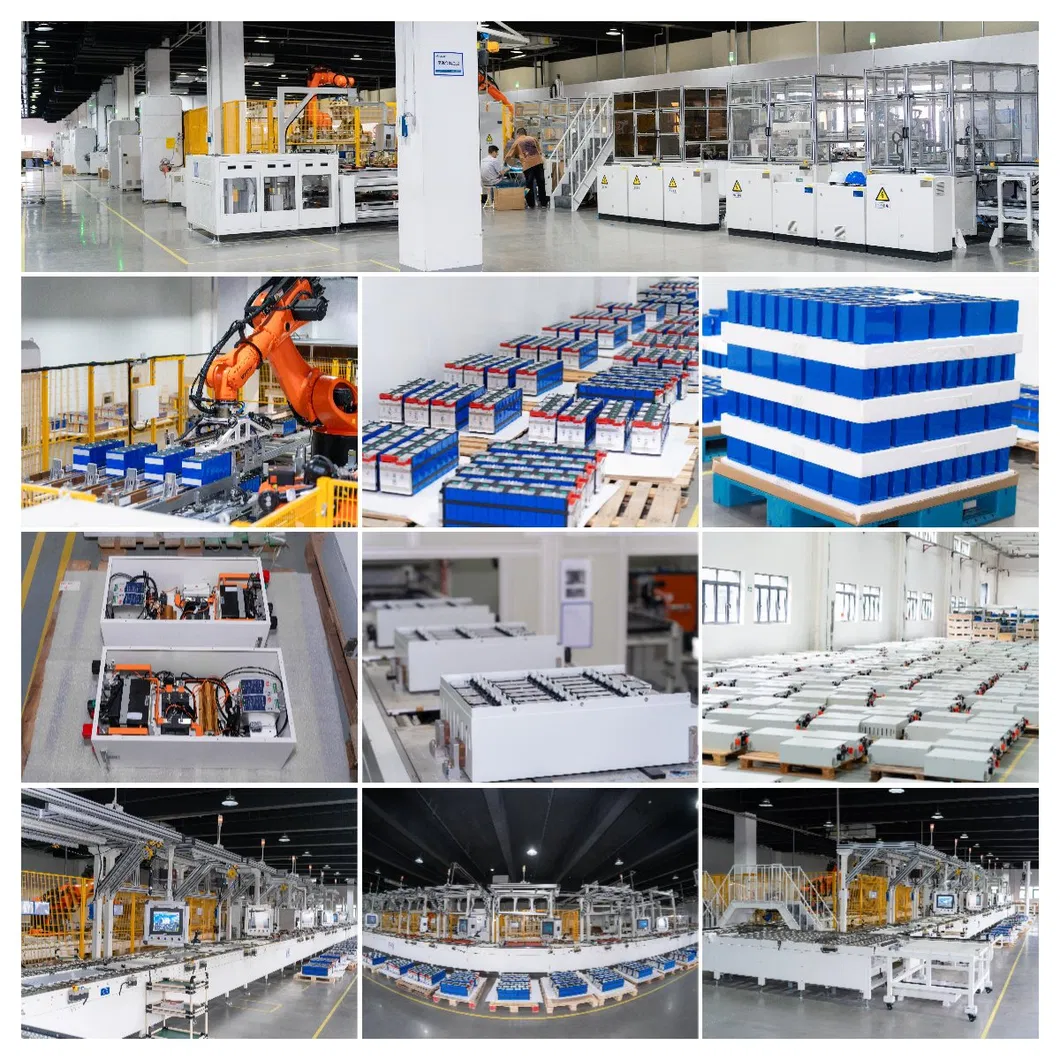

Founded in 2018, we are dedicated to providing sustainable and renewable energy solutions for homes, businesses, and industrial facilities. We provide tailored solar energy solutions for backup, residential, and commercial needs. Our top priority is reliability and helping users optimize their energy costs.
