| Model NO. | HTAC-100/229-OD |
| Certification | ISO, CE, UN38.3, MSDS, IEC |
| Application | Home, Industrial, Commercial |
| Product Name | 100/200/215/229kwh Ess Outdoor Cabinet |
| Nominal Capacity | 100kwh/200kwh/215kwh/229kwh Option |
| Output Voltage | 220/380/400/415/480VAC 50/60Hz 3phase |
| Cycle Life | ≥6000 Cycles |
| Battery Type | Lithium Ion, LiFePO4 Battery |
| Monitoring | WiFi/LAN/GPRS |

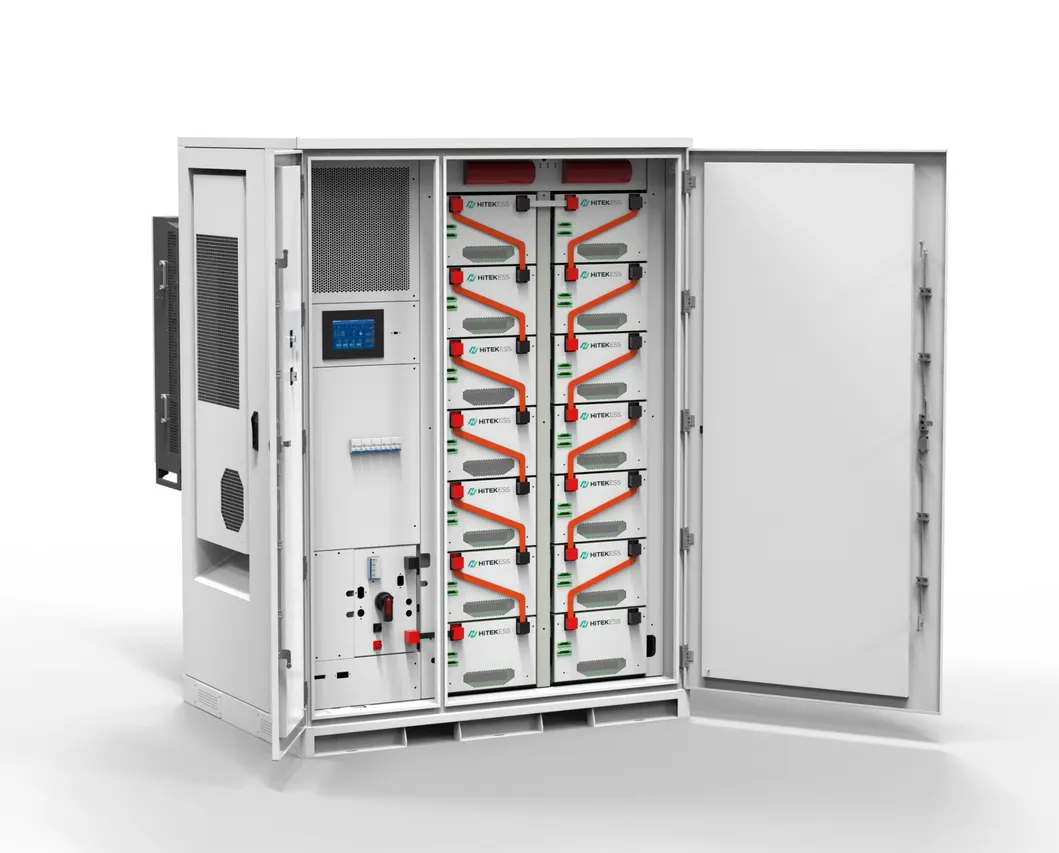

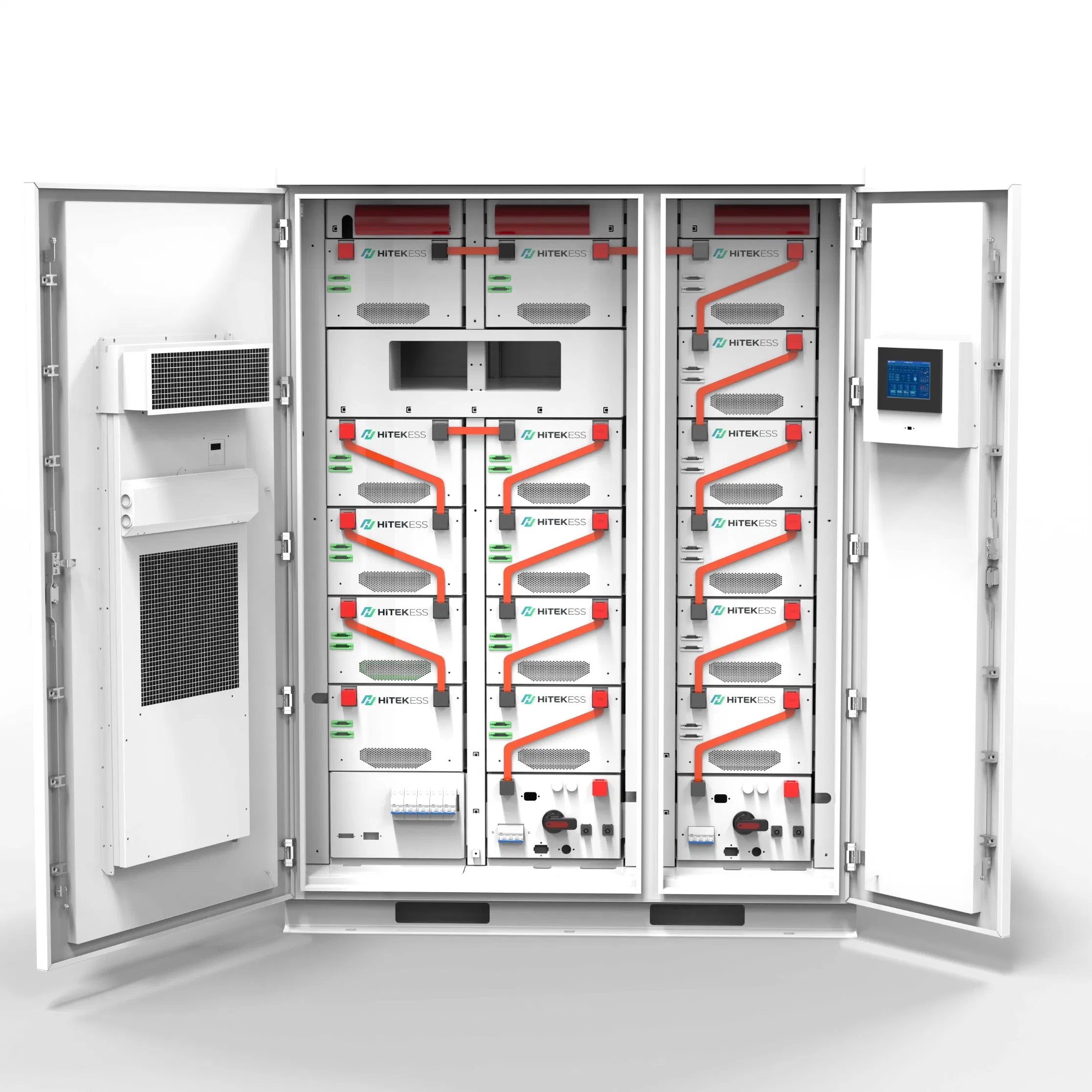

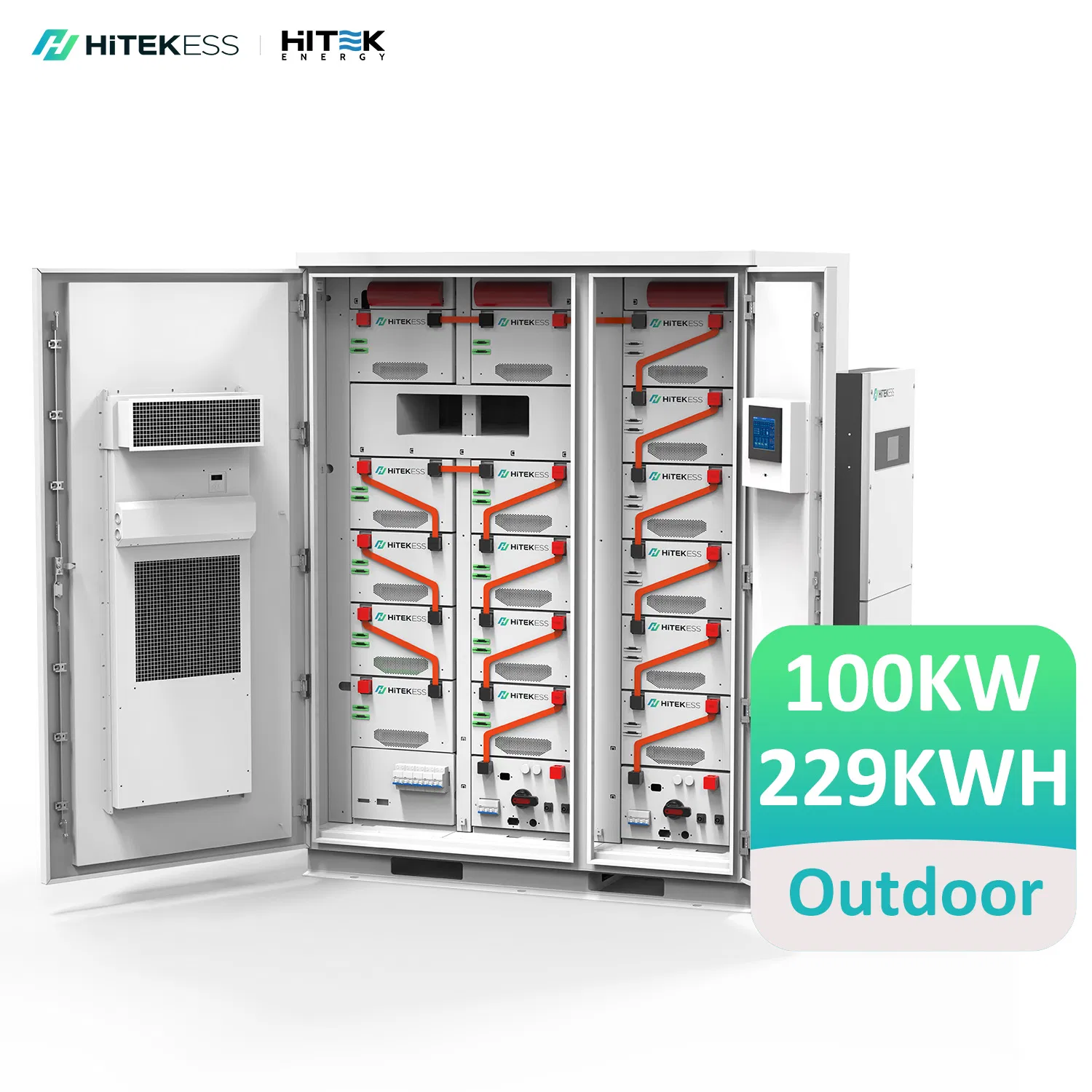

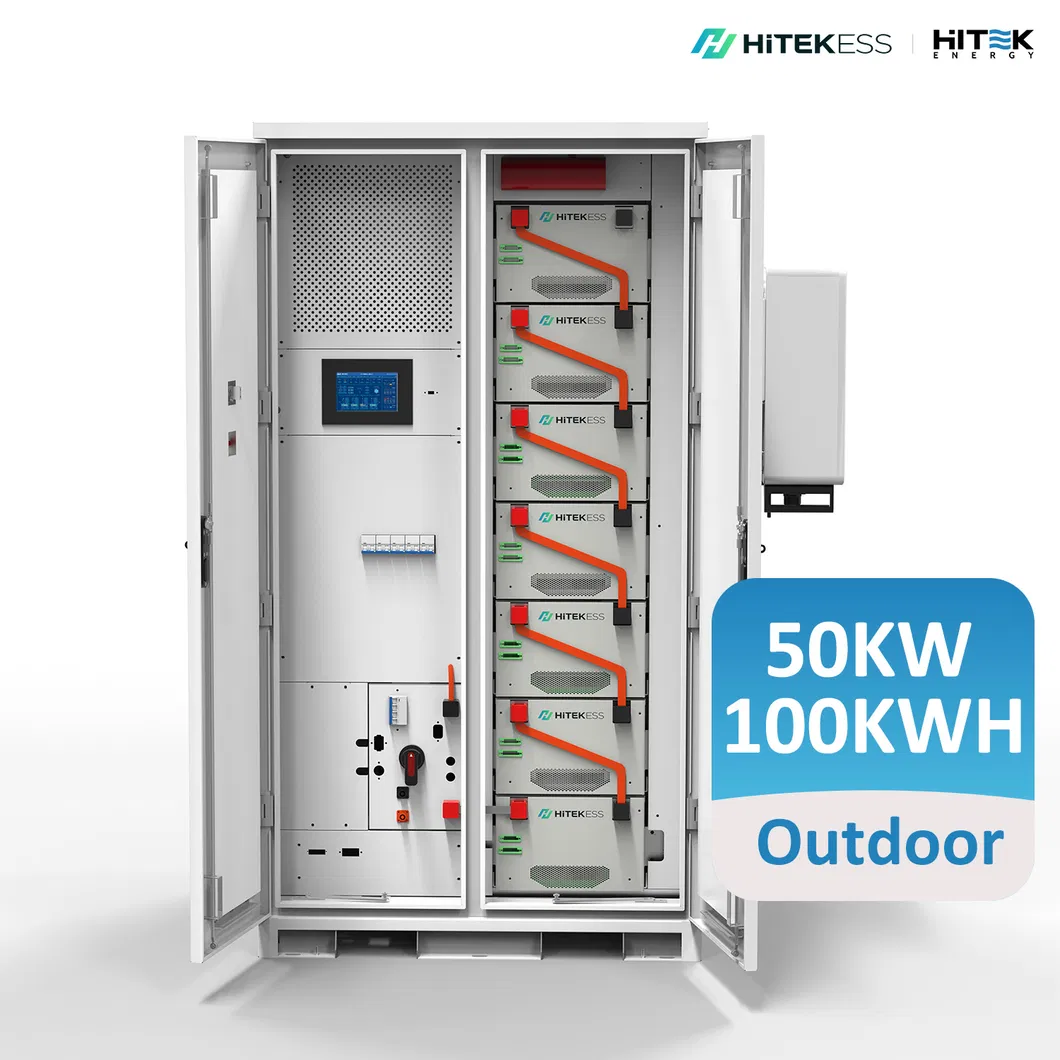

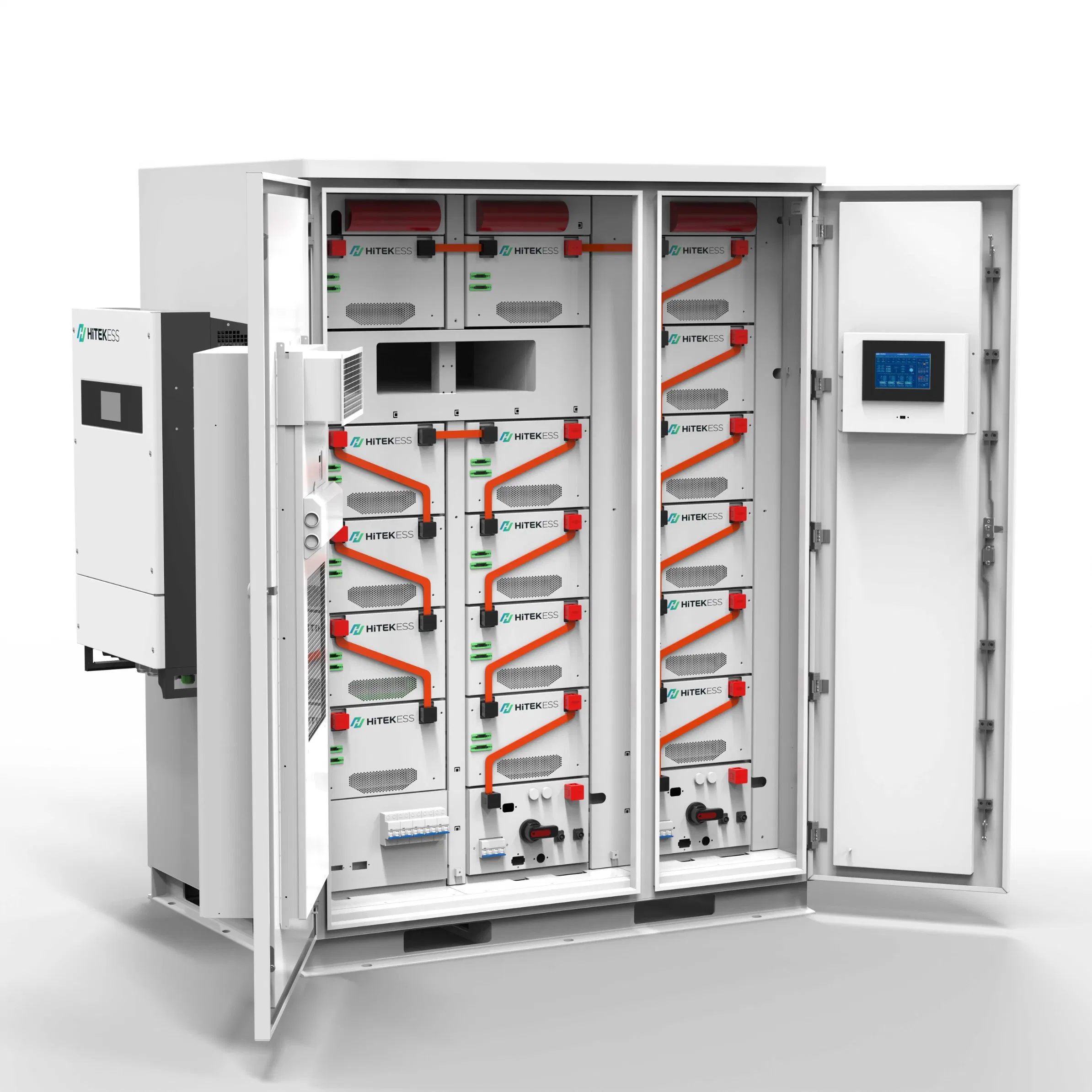

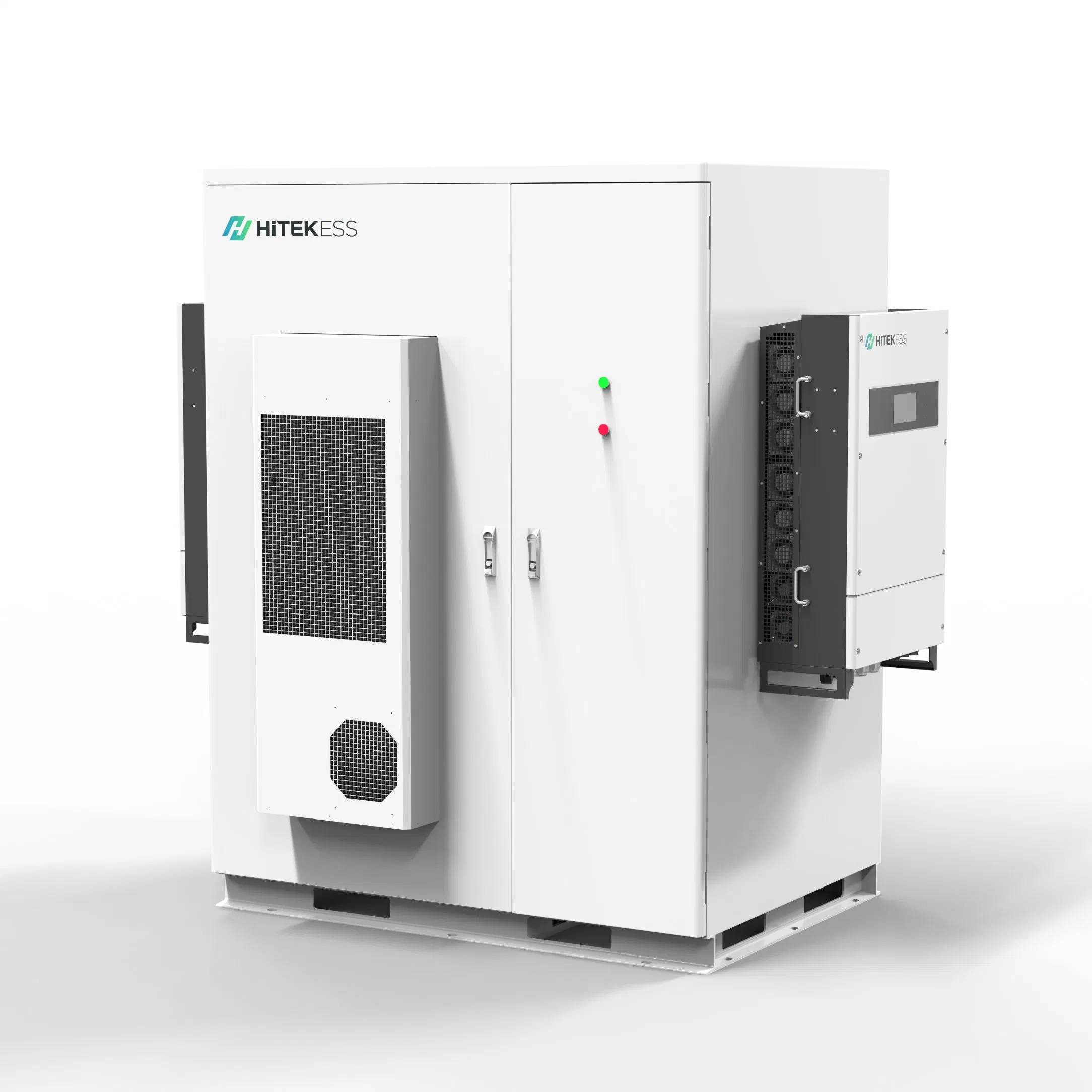

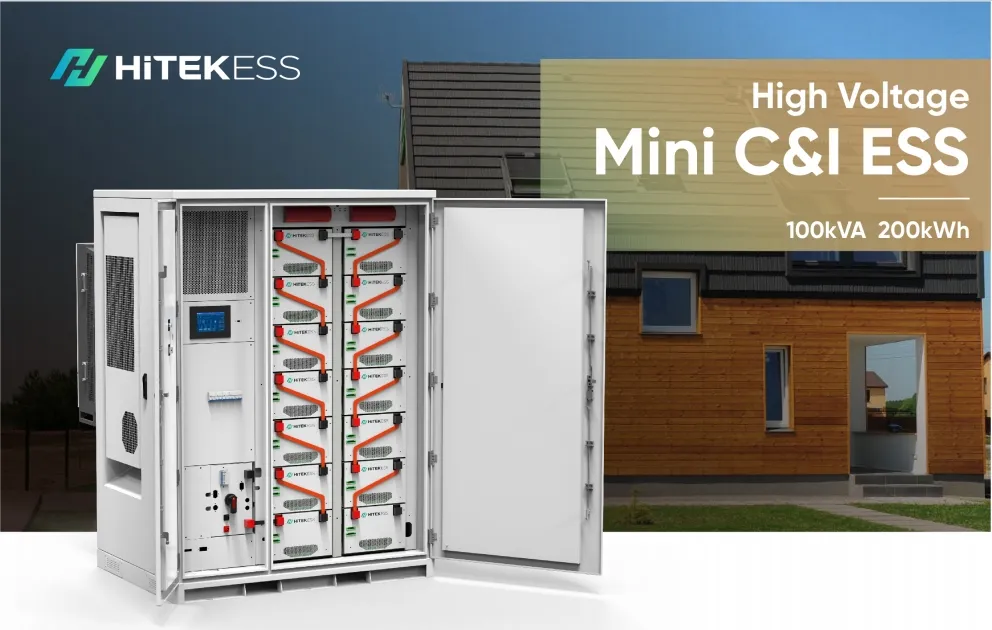

High Voltage 50kW/100kWh, 100kW/200kWh, 100kW/229kWh ESS Outdoor Cabinet Solution for fast install, includes inverter, lithium battery trays, racks, BMS, Microgrid Controller, HVAC, fire suppression, islanding switch, and outdoor rated enclosure.
The ESS Cabinet features safe technology & multi-level protection. The modular design allows for easy capacity expansion and powerful performance in various environmental conditions.
| Model | HTAC-50/100-OD | HTAC-100/200-OD | HTAC-100/215-OD | HTAC-100/229-OD |
|---|---|---|---|---|
| System Parameter | 50kW/100kWh | 100kW/200kWh | 100kW/215kWh | 100kW/229kWh |
| Cooling Method | Air-Cooling | |||
| Rated Battery Voltage | 358.4V | 716.8V | 768V | 409.6V |
| Cell Capacity | 280Ah | 280Ah | 280Ah | 280Ah |
| Protection Level | IP54/IP65 | |||
| Operating Temp | -25~60°C | |||
| Dimension (W*D*H) | 850*1100*2060mm | 1500*1100*2060mm | 1570*1350*2100mm | 1570*1350*2100mm |
| Weight (Approx.) | 1300kgs | 1900kgs | 2300kgs | 2300kgs |

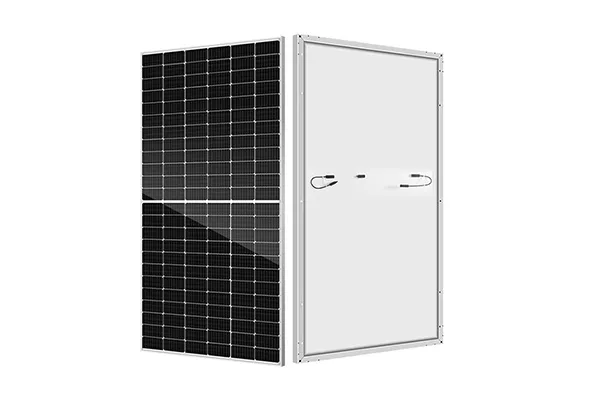

Peak Power: 600Wp | Dimensions: 2279*1134*30mm | High Efficiency Mono Cells.

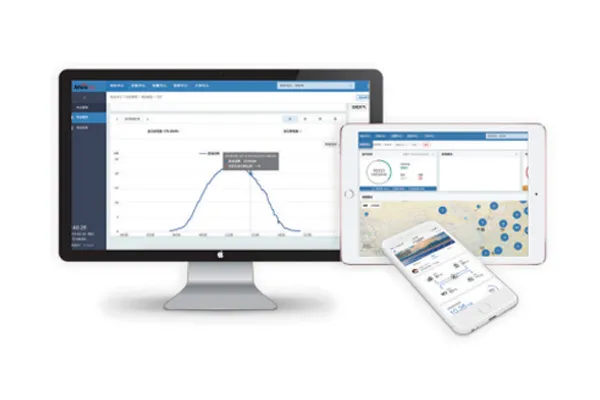

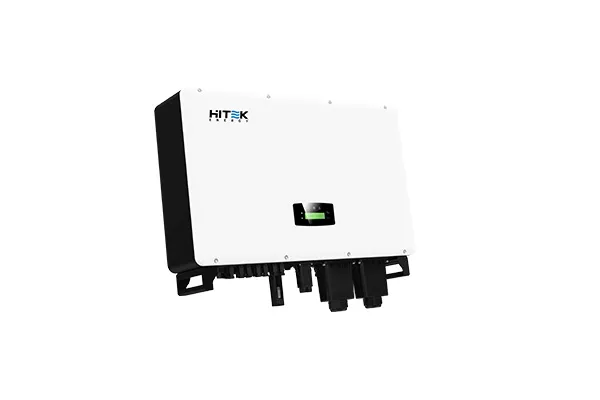

Smart Monitoring, Remote Upgrade, Built-in Anti-feed-in function, and AFCI support.
One-click installation, safe operation, traceable logs, and lifecycle data security.
Deep Cycle LiFePO4, high discharge performance, Maintenance-free, 6000+ cycles.

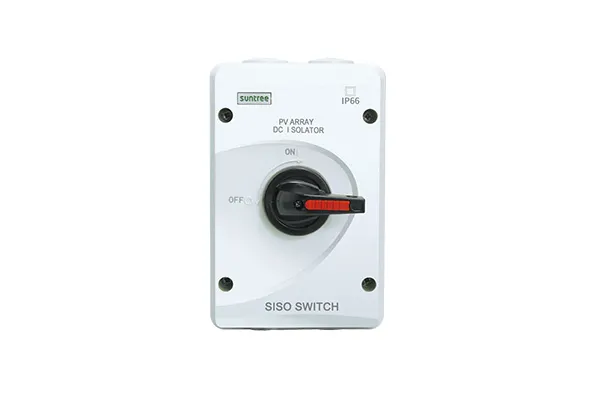

Rated Voltage: 1000VDC | Current: 16A-20A | M20/M25/MC4 Connections.

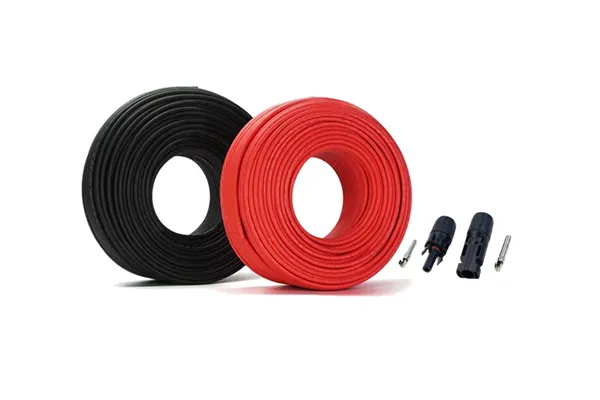

4mm2/6mm2 Optional | 1000VDC TUV Rated | Lifetime ≤ 25 Years.

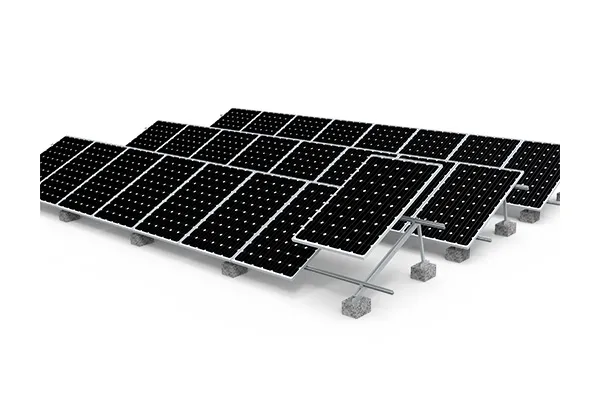

AI6005 Rail & SUS304 Bolts | Mid & End Clamps | Full mounting hardware included.

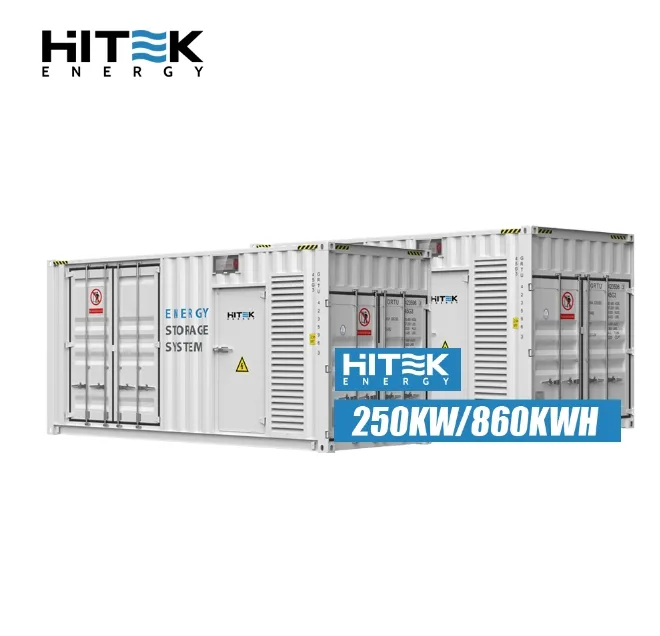

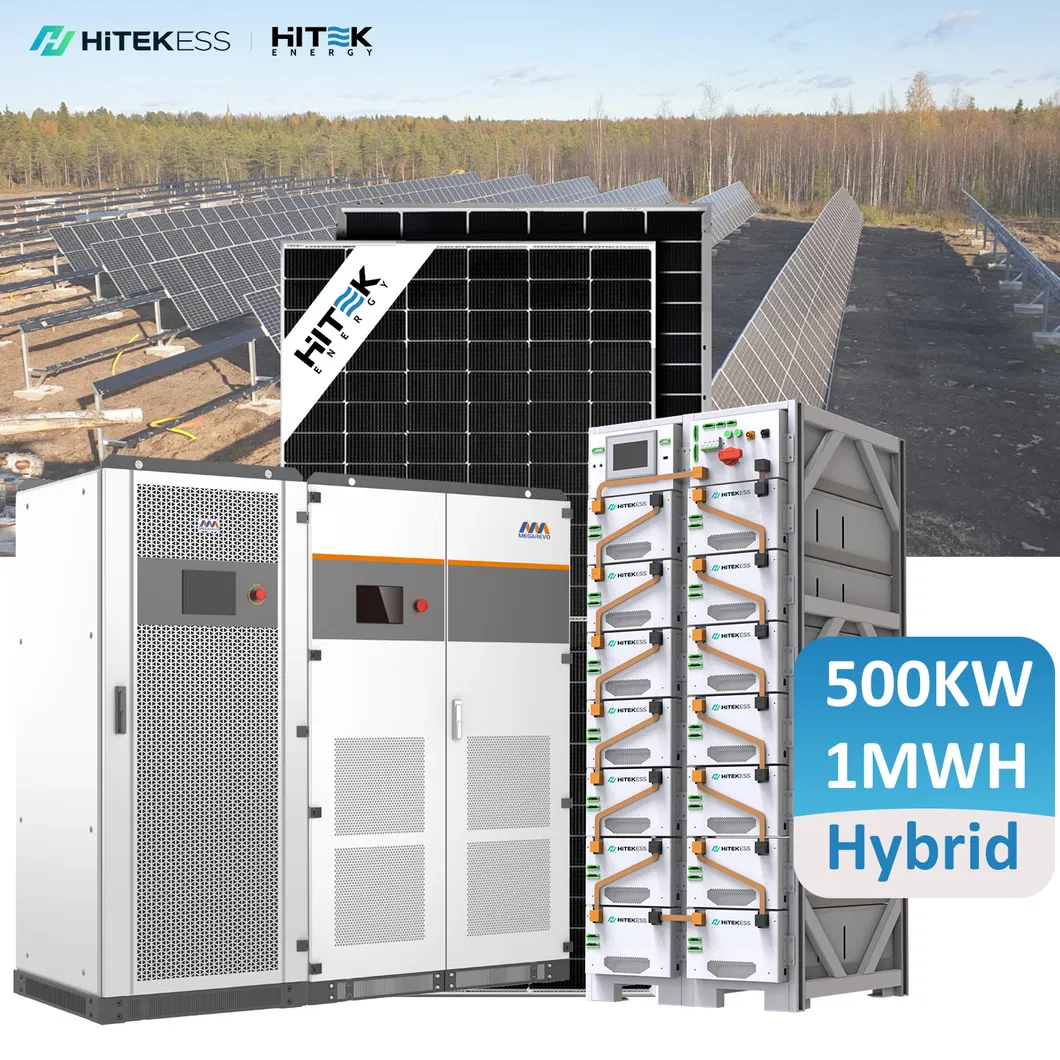

Power: 50-500kW | Capacity: 100kWh-MWh | Includes fire protection and HVAC.
