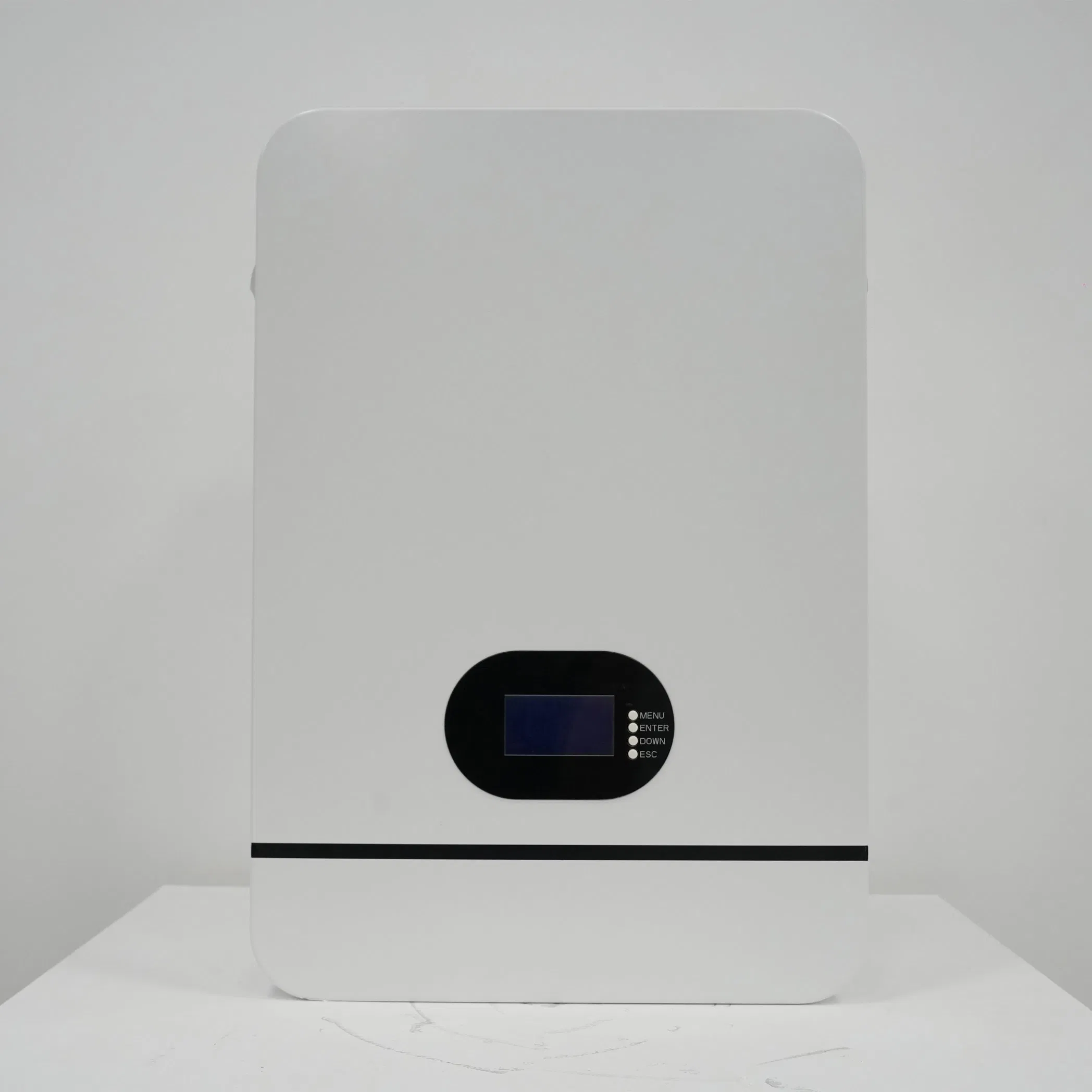

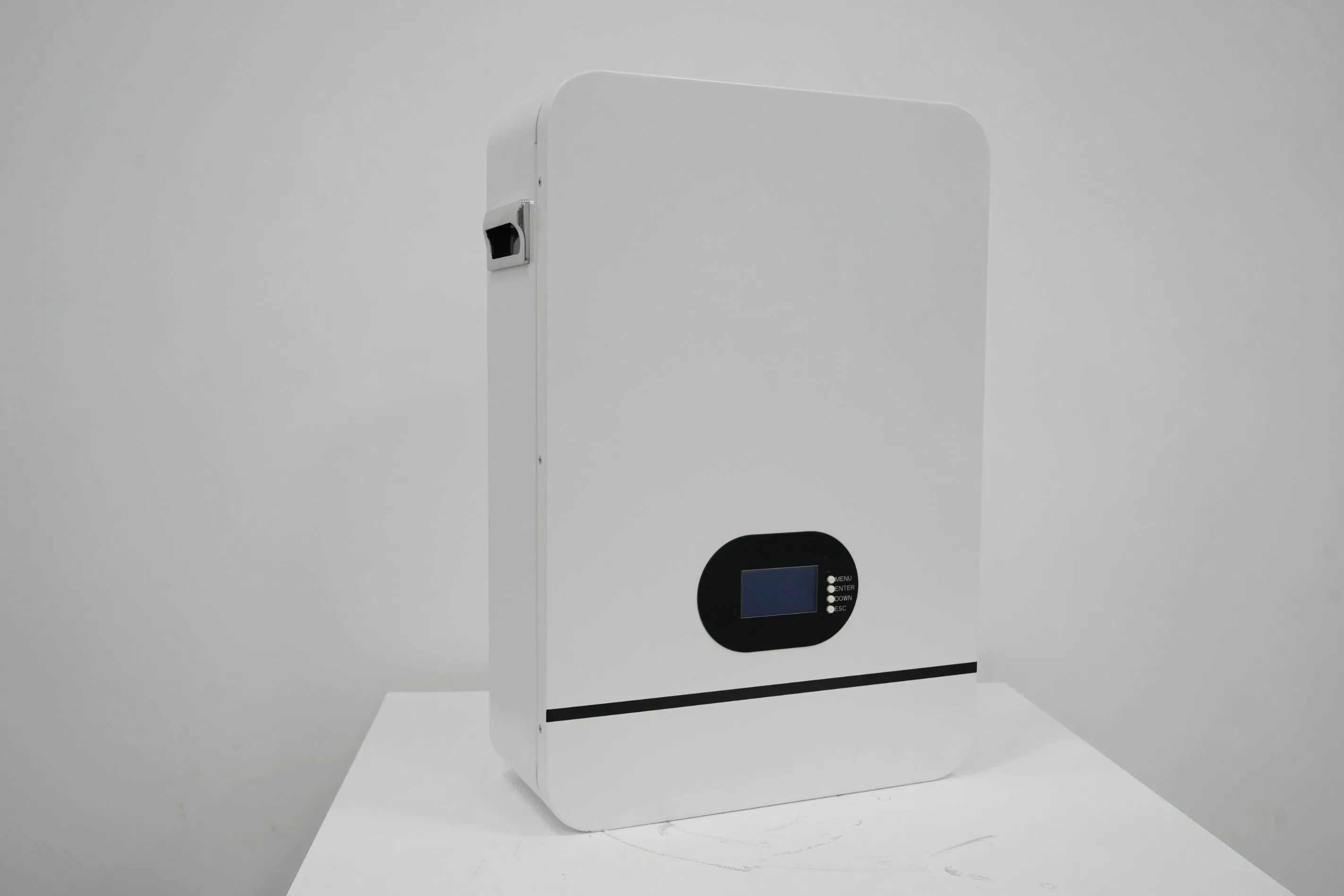

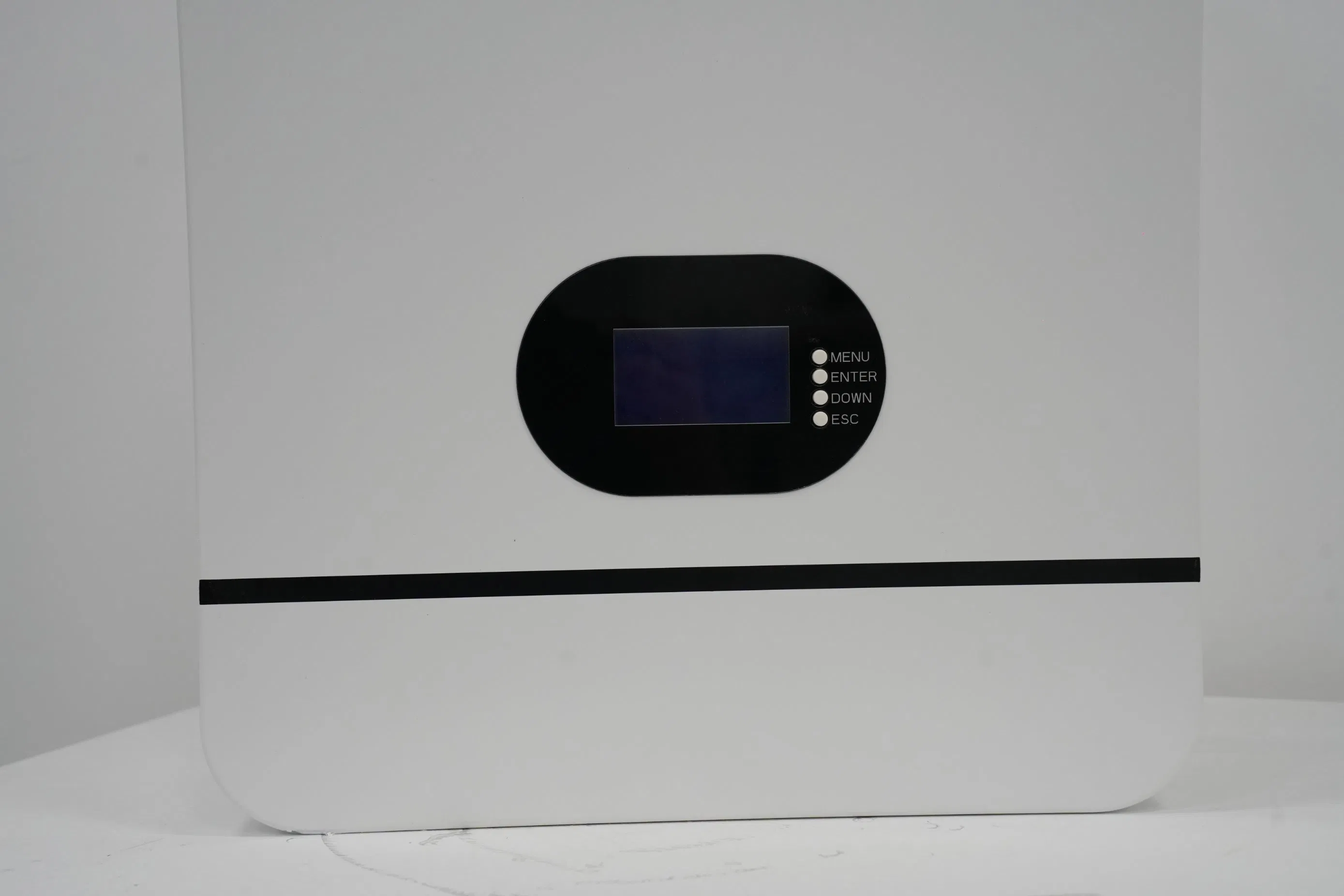

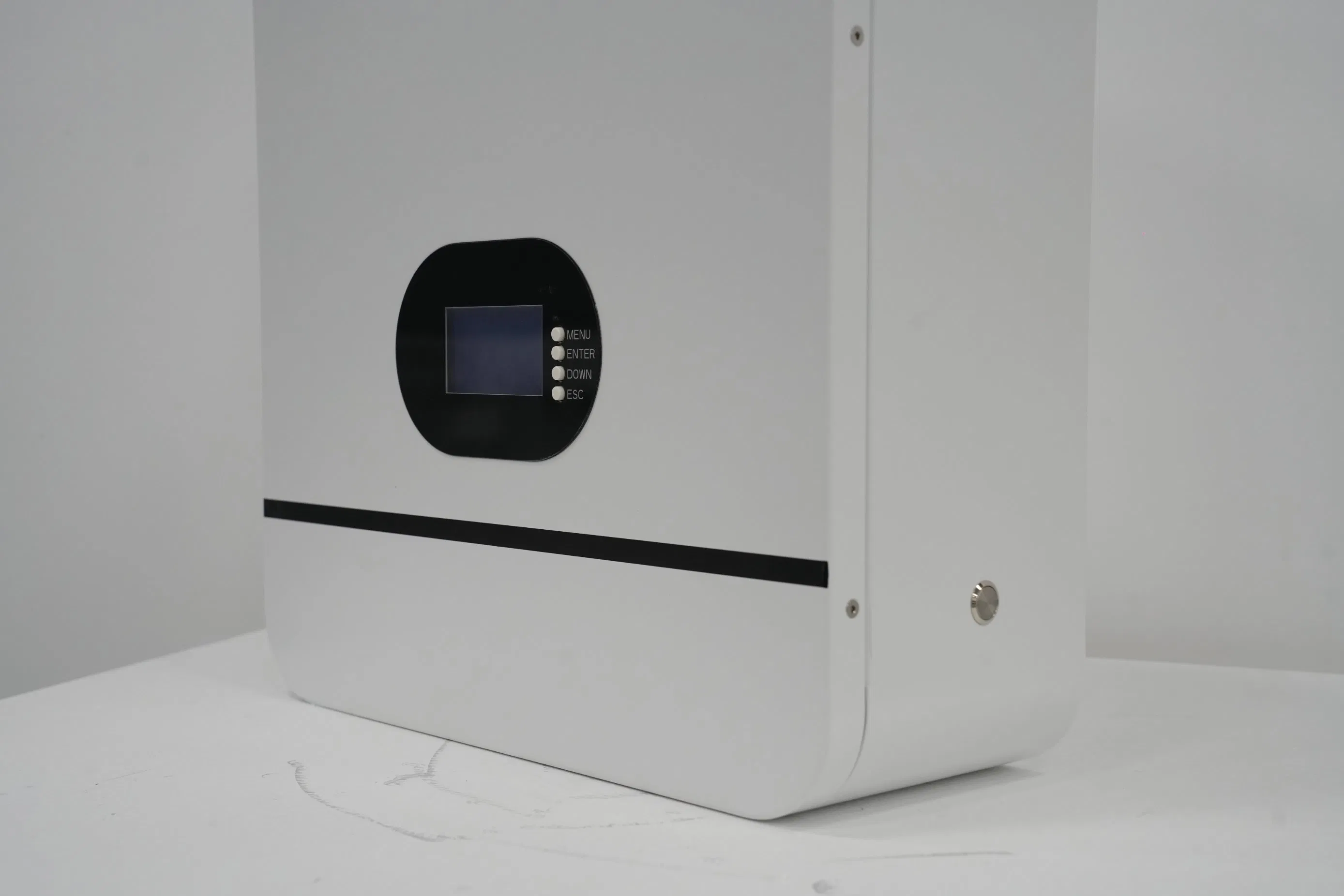

Advanced Wall-Mounted Home Energy Storage System for Solar Integration
Advanced Wall-Mounted Home Energy Storage System for Solar Integration
Advanced Wall-Mounted Home Energy Storage System for Solar Integration
Advanced Wall-Mounted Home Energy Storage System for Solar Integration
Advanced Wall-Mounted Home Energy Storage System for Solar Integration
1 / 5
Advanced Wall-Mounted Home Energy Storage System for Solar Integration
Advanced Wall-Mounted Home Energy Storage System for Solar Integration
Advanced Wall-Mounted Home Energy Storage System for Solar Integration
Advanced Wall-Mounted Home Energy Storage System for Solar Integration
Advanced Wall-Mounted Home Energy Storage System for Solar Integration

Advanced Wall-Mounted Home Energy Storage System for Solar Integration

Weight: 26kg, 44kg, 65kg, 81kg, 125kg
Warranty: 5 Years
Cycle Life: 6000 Cycles
Send Inquiry

Product Description

Overview & Basic Info
Nominal Capacity2.56kWh - 16.07kWh
Standard Voltage25.6V / 51.2VDC
Voltage Range21.6V-28.8V / 43.2-57.6VDC
CommunicationCAN/RS485/RS232/WiFi/Bluetooth
Modules ConnectionUp to 15 in Parallel
DOD90%
Max Charge Current100A - 200A
IP RatingIP20 (IP54)
Working Temp0 ~ 55℃
InstallationWall-Mounted / Floor-standing
Product Description

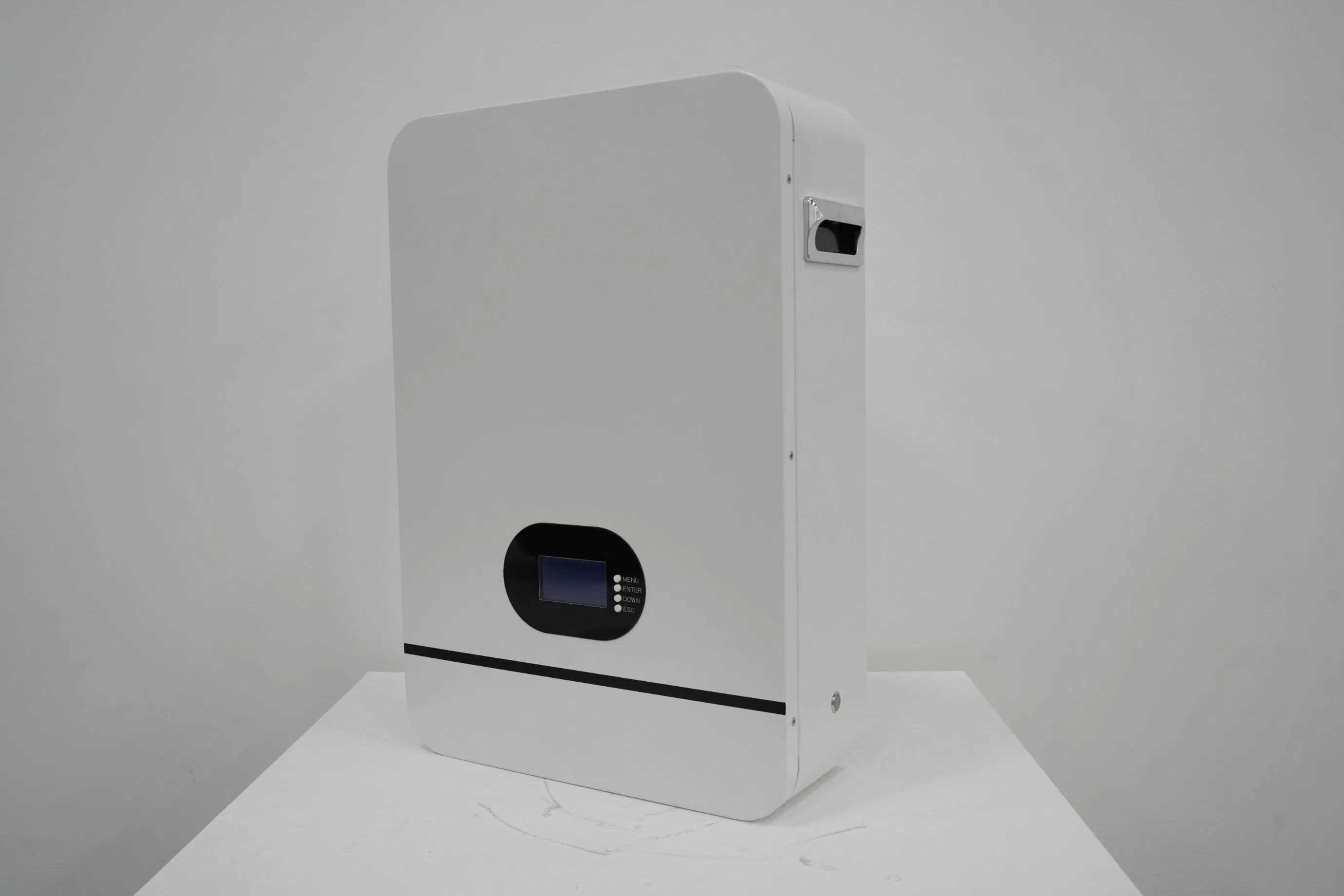

Wall-Mounted Home Energy Storage System

RELIABLE WALL-MOUNTED HOME BATTERY STORAGE SYSTEM

Upgrade your home energy management with our Wall-Mounted Energy Storage System—a compact, high-performance LFP (Lithium Iron Phosphate) battery solution designed for residential and light commercial use.

Featuring a scalable capacity from 2.56kWh to 16.07kWh, this home battery backup system delivers exceptional reliability with an impressive 6000+ cycle life at 80% DOD.

The space-saving wall-mount design, combined with a built-in intelligent BMS (Battery Management System), ensures maximum safety and effortless installation. Whether you're seeking solar energy storage, backup power, or off-grid independence, this premium-grade battery system offers the flexibility to connect up to 15 units in parallel, providing a truly customizable energy storage solution.

Technical Specifications
Model SMP-BU004 SMP-BU005 SMP-BU006
Nominal Voltage51.2VDC
Nominal Capacity280Ah300Ah320Ah
Rated Energy14.336kWh15.36kWh16.384kWh
Cycle Life≥6000 @ 25℃, 80% DOD
Max Charge/Discharge200A
Dimensions850*530*250mm
Net Weight125kg130kg135kg
Detailed Gallery
Internal view
Production line
Factory Testing
Certifications
Packaging
Frequently Asked Questions
Are you a factory or a trader?
We are a manufacturer integrating industry and trade. You are welcome to visit our production facilities.
Can I customize the product with my logo?
Yes, we support on-demand customization, including logo, color, and appearance size customization.
What is the expected cycle life of the battery?
Our LFP batteries are designed for long-term use, offering over 6000 cycles at 80% Depth of Discharge (DOD).
Can multiple units be used together?
Absolutely. You can connect 1 to 15 modules in parallel to scale your energy storage capacity as needed.
What payment and shipping methods do you support?
We support T/T, Western Union, PayPal, and cash. Transportation can be arranged via sea, air, or land depending on your requirements.
How can I get an accurate quotation?
Please provide your specific demand details and project requirements. We will customize a solution and provide a detailed price quote based on your needs.
