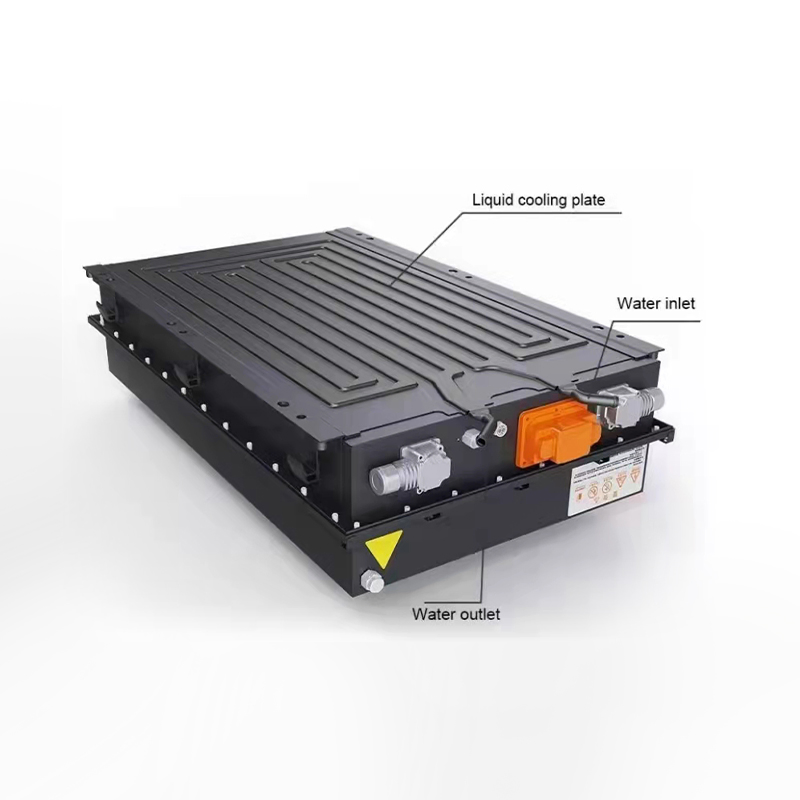

OEM Electrical Vehicle Battery Cooling Thermal Management System

Air cooling: Fan and heat sink.
Liquid cooling: Plate, radiator, fan, pump, and controller.
Chiller cooling: Cooling plate, chiller, and controller.
2-Phase change: Cooling plate and condenser.
Refrigerant: Cooling plate, condenser, and compressor.
Immersion: Specialized custom immersion cooling.

Basic Specifications

Model NO.	Battery Thermal Management System
Certification	RoHS
Application	Oil Cooler, Water Chiller, Industrial Aircondition
Principle	Liquid Cooling or Other Custom Cooling Solutions
Material	Aluminum/Copper
Dimension(LWH)	Max. 200010001000 mm
Cooling Capacity	1 to 10 Kw
Coolant Material	Water, Glycol, Refrigerant, or PCM, etc.
Main Technique	Vacuum Brazing & Arc Welding
Origin	Jiangsu, China

Product Overview

A Battery Thermal Management System (BTMS) helps to maintain a battery pack at its optimal temperature range of 20° to 45° C regardless of ambient temperature. For each vehicle design, the required performance and cycle life of the battery pack are considered to determine the specific set point for the battery pack temperature.

Our Battery Thermal Management System is a complete thermal system solution that maintains the critical operating temperature ranges of vehicle batteries. Design solutions are available for both active and passive cooling circuits.

Key Features: • Specialized battery radiator and condenser.
• 2 - 10 kW cooling capacity.
• Electric heating down to -20ºC.
• Total system weight < 60 kg.
• HV: 400 - 800 VDC | LV: 12 or 24 VDC.

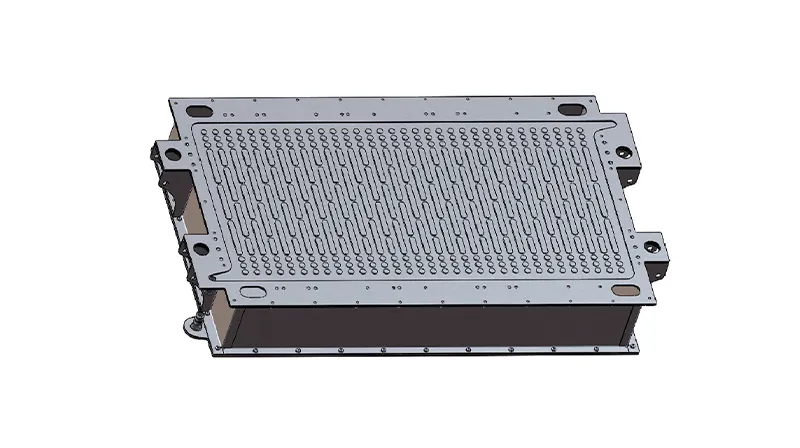

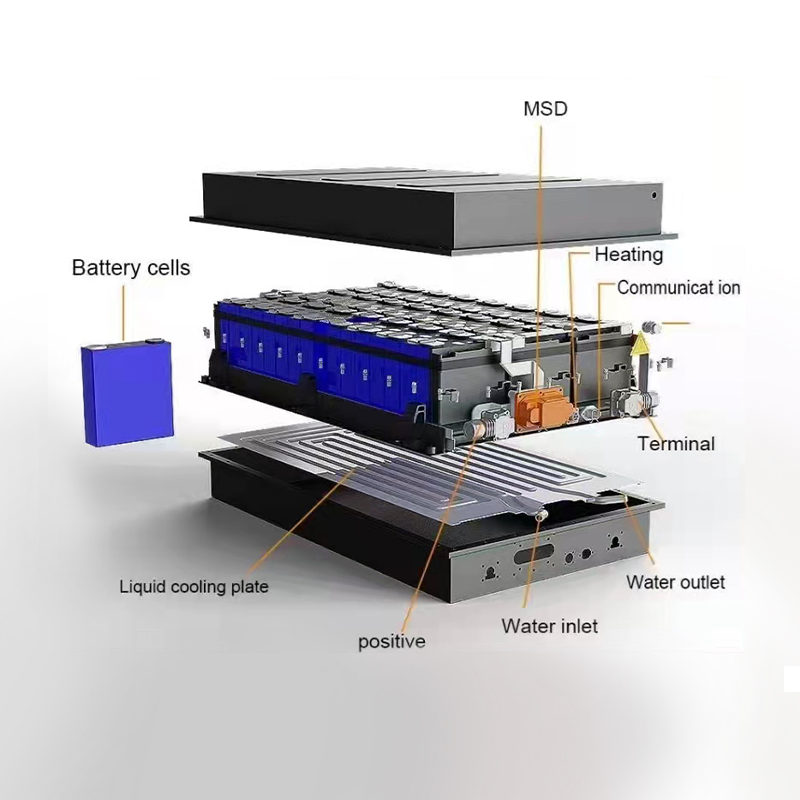

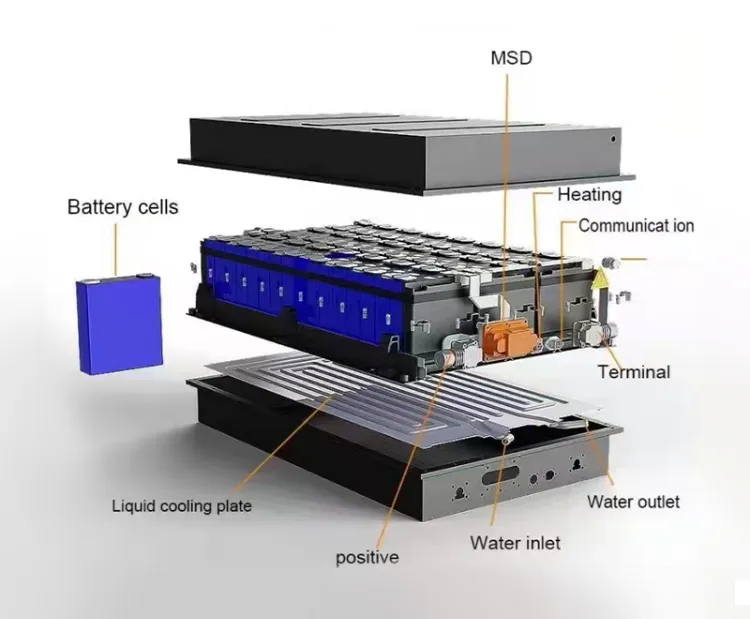

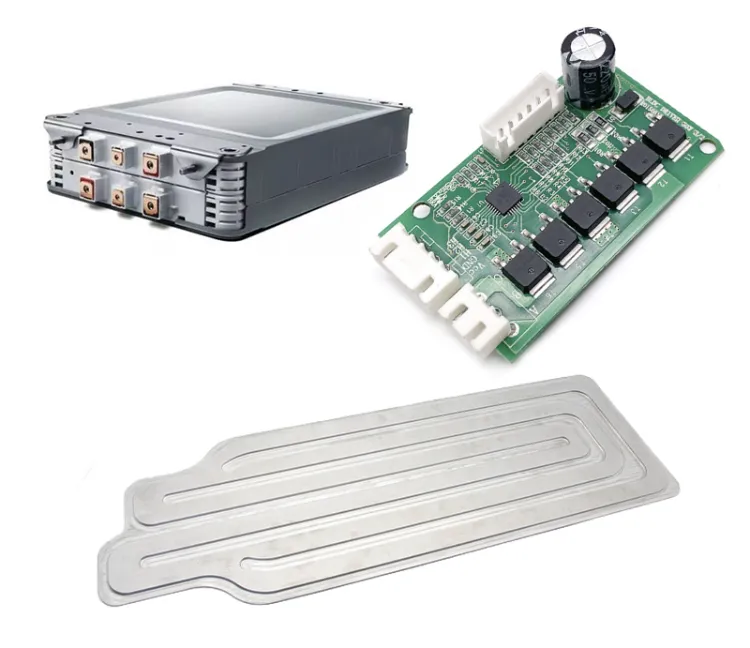

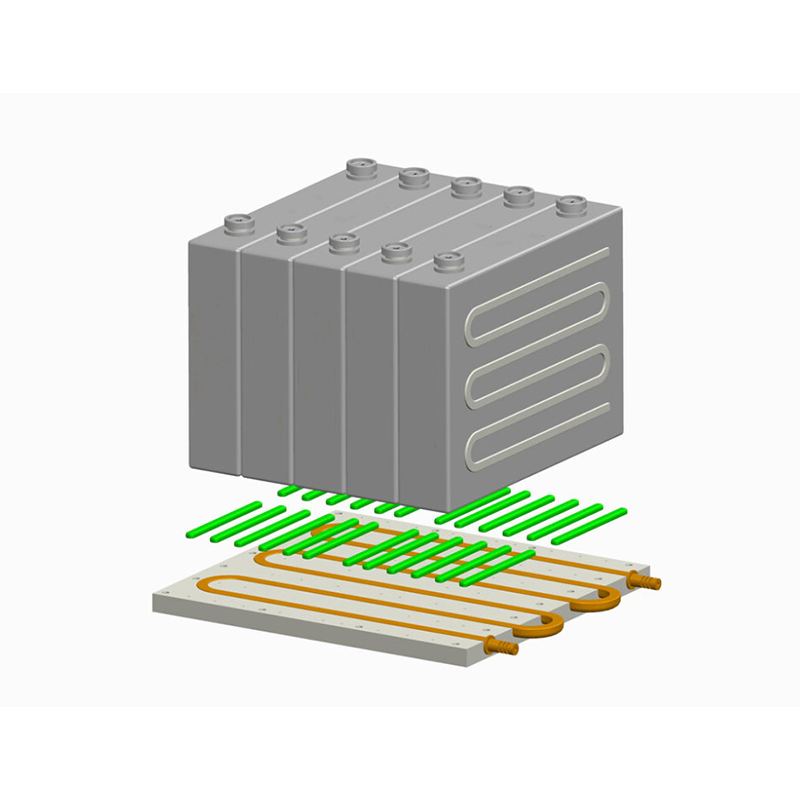

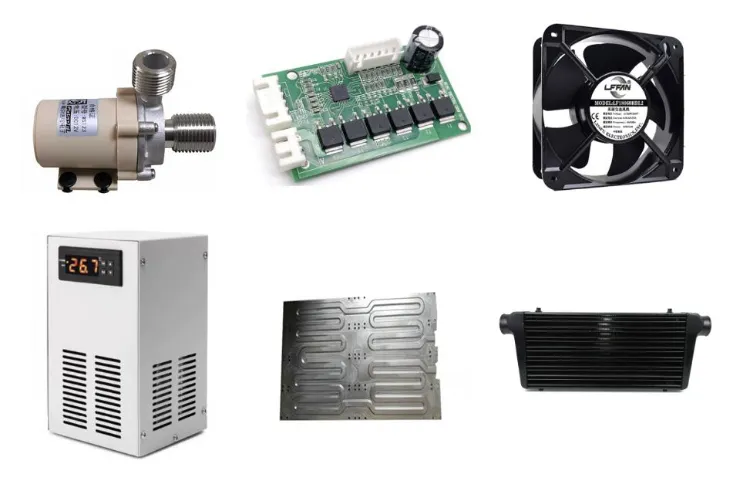

Main Elements: 1. Cooling plate
2. Chiller unit or Radiator with fan/pump
3. Controller (temperature/flow rate)
4. Accessories: hoses, connectors, valves.
