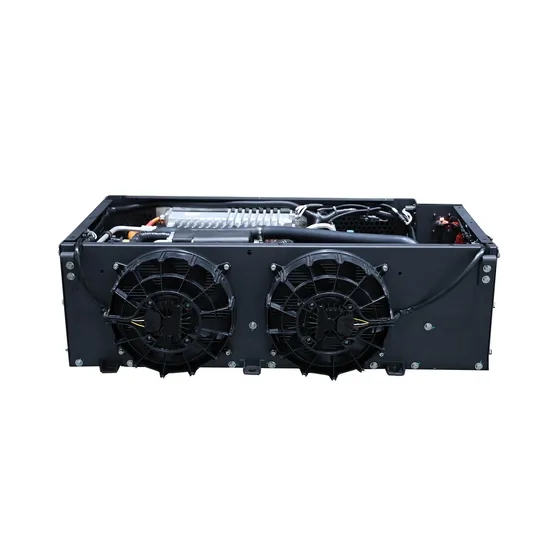

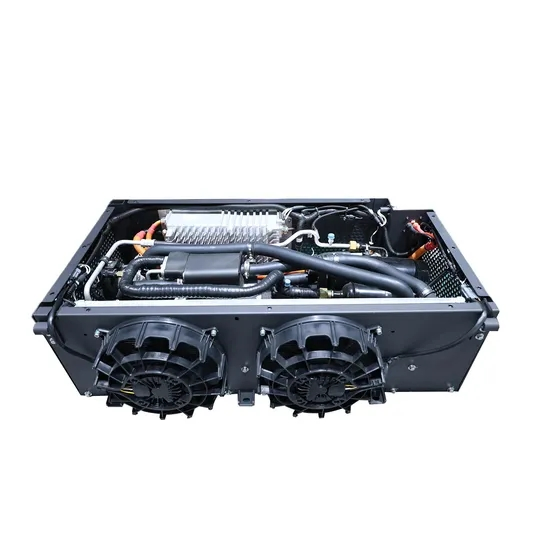

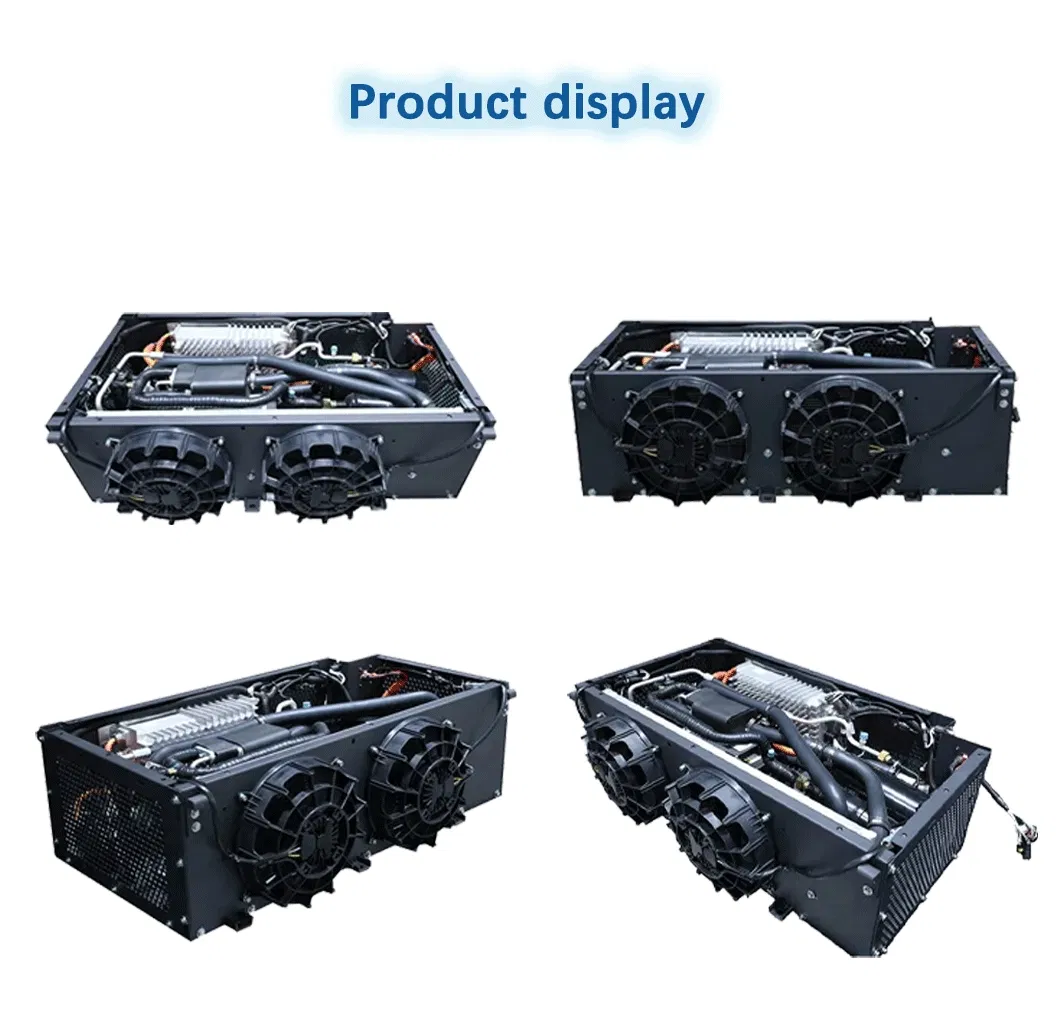

8kw 10kw 15kw Btms Battery Thermal Management System

📋 Basic Information

Model NO.

NFBTM10

Function

Cooling & Heating, Ventilating, Air Filtering

Power

8-15kw

Certification

CE, IP67/IP6K9K

Body Material

Aluminium

Refrigerant

R134A

Weight

<48kg

Specification

833*550*291mm

🔋 Product Description

NF Battery Thermal Management System for Electric Vehicles
The vehicle-grade battery cooling unit covers a cooling capacity of 8-15KW and a heating capacity of 10-24KW, providing battery cooling/heating for commercial vehicles (new energy heavy-duty trucks, new energy buses, new energy construction machinery), energy storage stations, battery swap stations, and other large-capacity battery applications.

⚙️ Technical Parameters

Product Name	10kW / 15KW Optional
Product Model Code	NFBTM10
Refrigeration Capacity Condition	Ambient 38ºC, outlet water constant at 15ºC
Ambient Temperature Range	-30 to +60ºC (Refrigeration: -15ºC to +55ºC)
Maximum Cooling Capacity	10KW (8~24KW Optional)
Maximum Heating Capacity	0~35Kw
Compressor Displacement	33CC / 46CC
COP	>2.2
Coolant Flow Rate	>35L/min @ 110kPa
Protection Rating	IP67
Voltage Range (High)	≤750V
Installation Diameter	Diameter 25mm

⭐ Key Features

🌡️

1. Full-range temperature control
Combined low-temperature heating & high-temperature cooling (-30°C~50°C ambient) with ±1°C precision, maintaining optimal battery temperature for extended cycle life and improved energy efficiency.

🧠

2. Premium Product Emphasis
Advanced PID & energy-demand algorithms enable precise outlet temperature control (±0.5°C) with optimized energy efficiency. Features remote intelligent monitoring/diagnostics and OTA upgrade capability.
