Lithium-Ion Battery Rack 200kwh 229kwh Battery Storage System Bess Thermal Management System Solar Battery Storage System Fast-Install Outdoor Battery Cabinets

1 / 5

Lithium-Ion Battery Rack 200kwh 229kwh Battery Storage System Bess Thermal Management System Solar Battery Storage System Fast-Install Outdoor Battery Cabinets

Customization:	Available
After-sales Service:	Available
Warranty:	10 Years

Send Inquiry

Product Description

📊 Basic Information

Model NO.HTAC-100/200-OD

ConditionNew

CertificationISO, CE

ApplicationHome, Industrial, Commercial

Cycle Life≥6000 Cycles

Battery TypeLithium Ion, LiFePO4

Nominal Capacity100/200/215/229kWh Option

Output Voltage220/380/400/415/480VAC

InstallationOutdoor Installation

MonitoringWiFi/LAN/GPRS

💡 Product Description

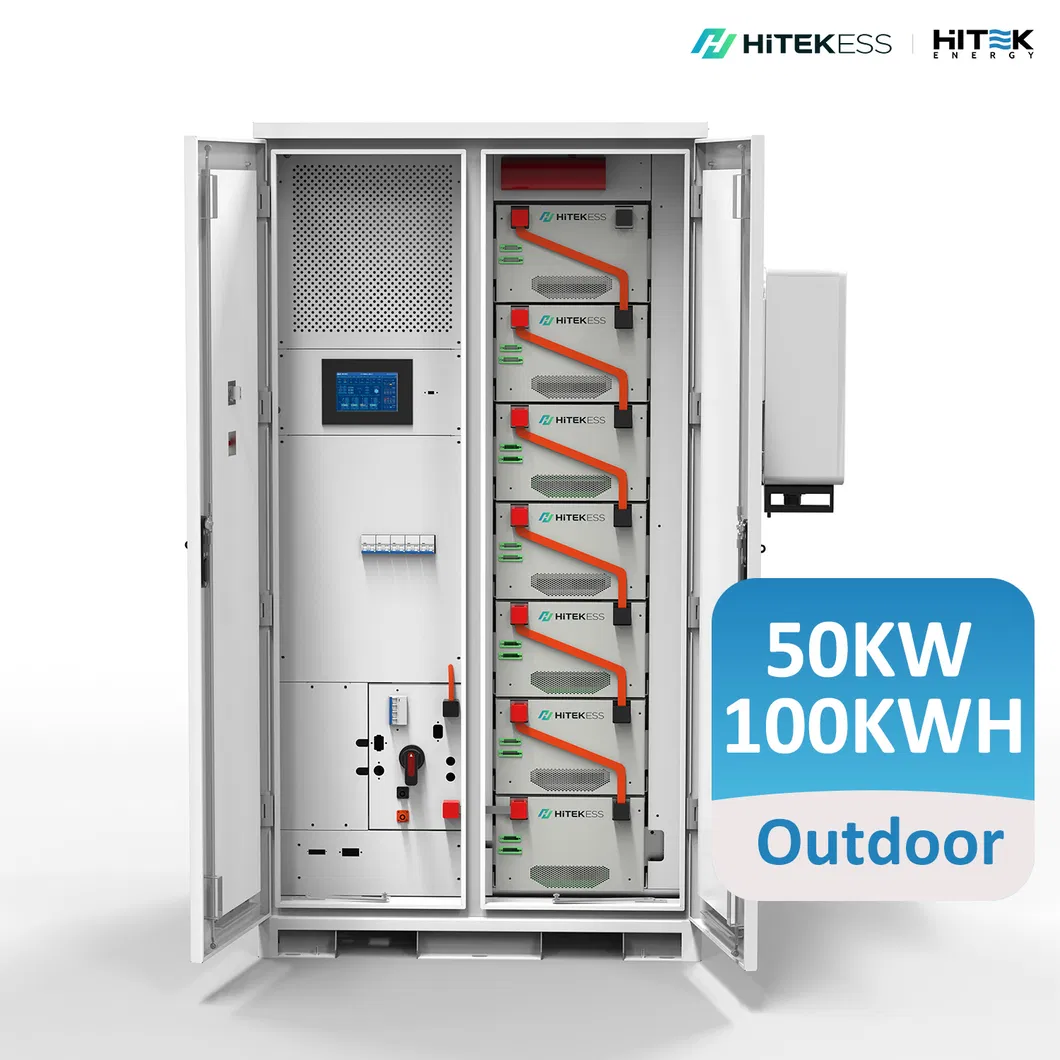

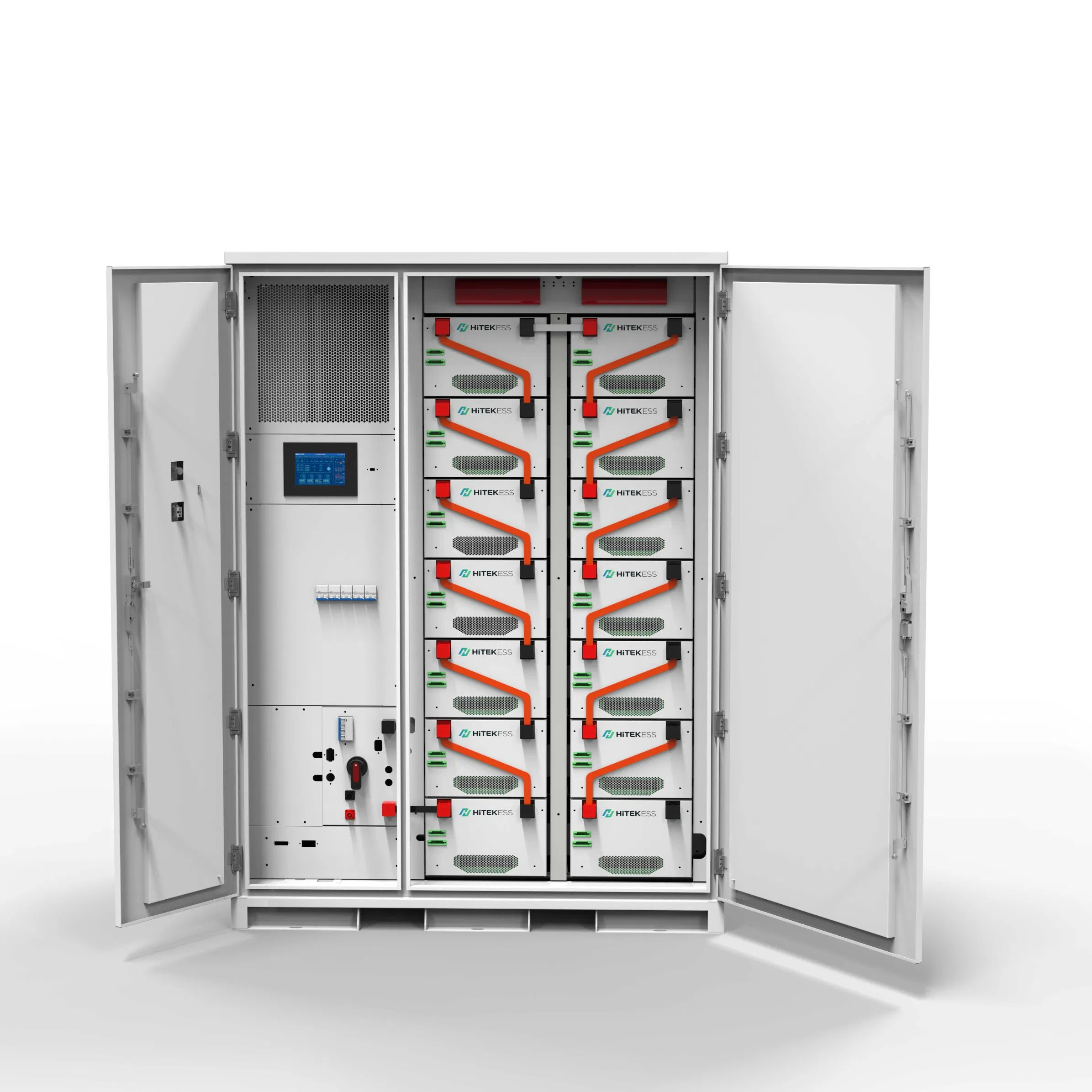

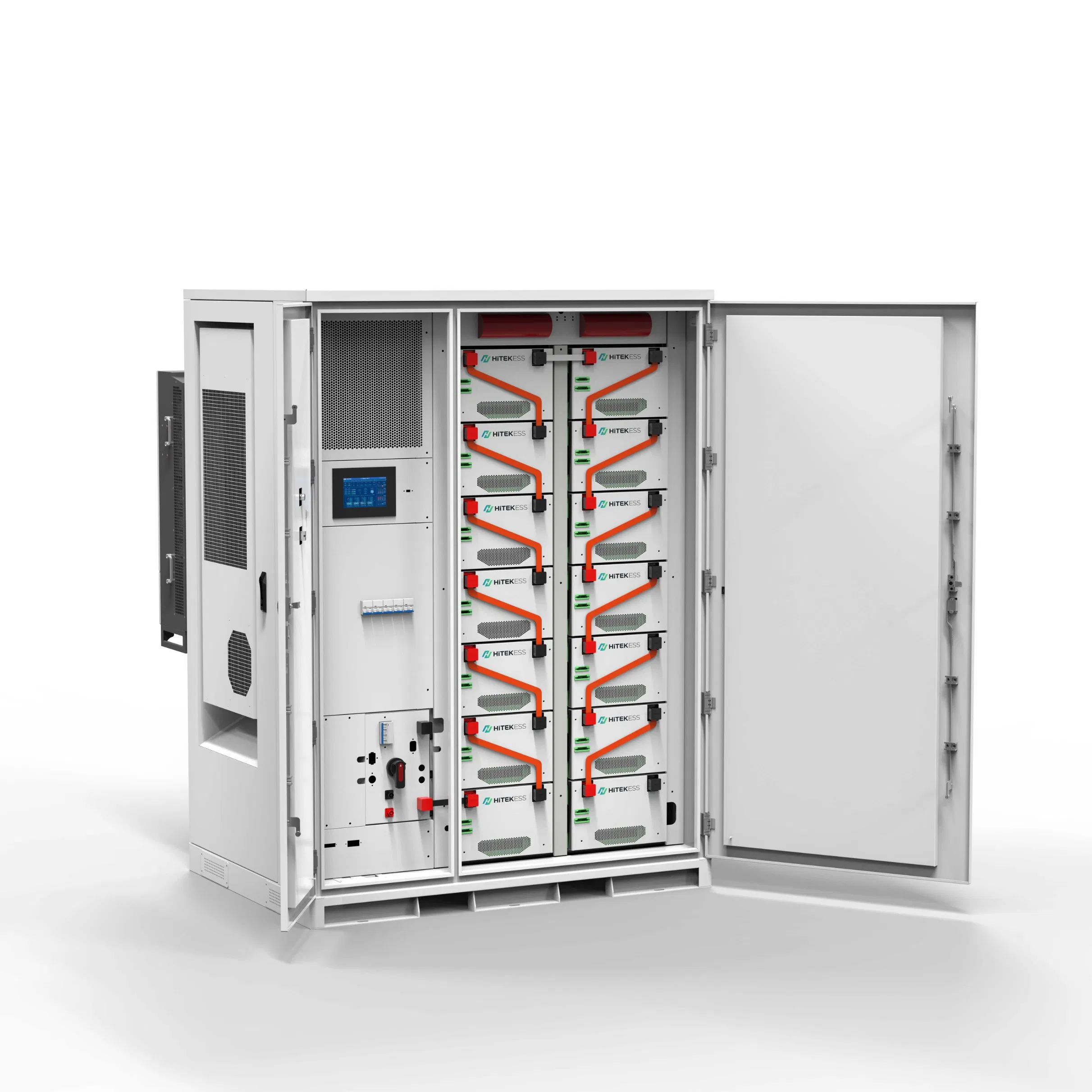

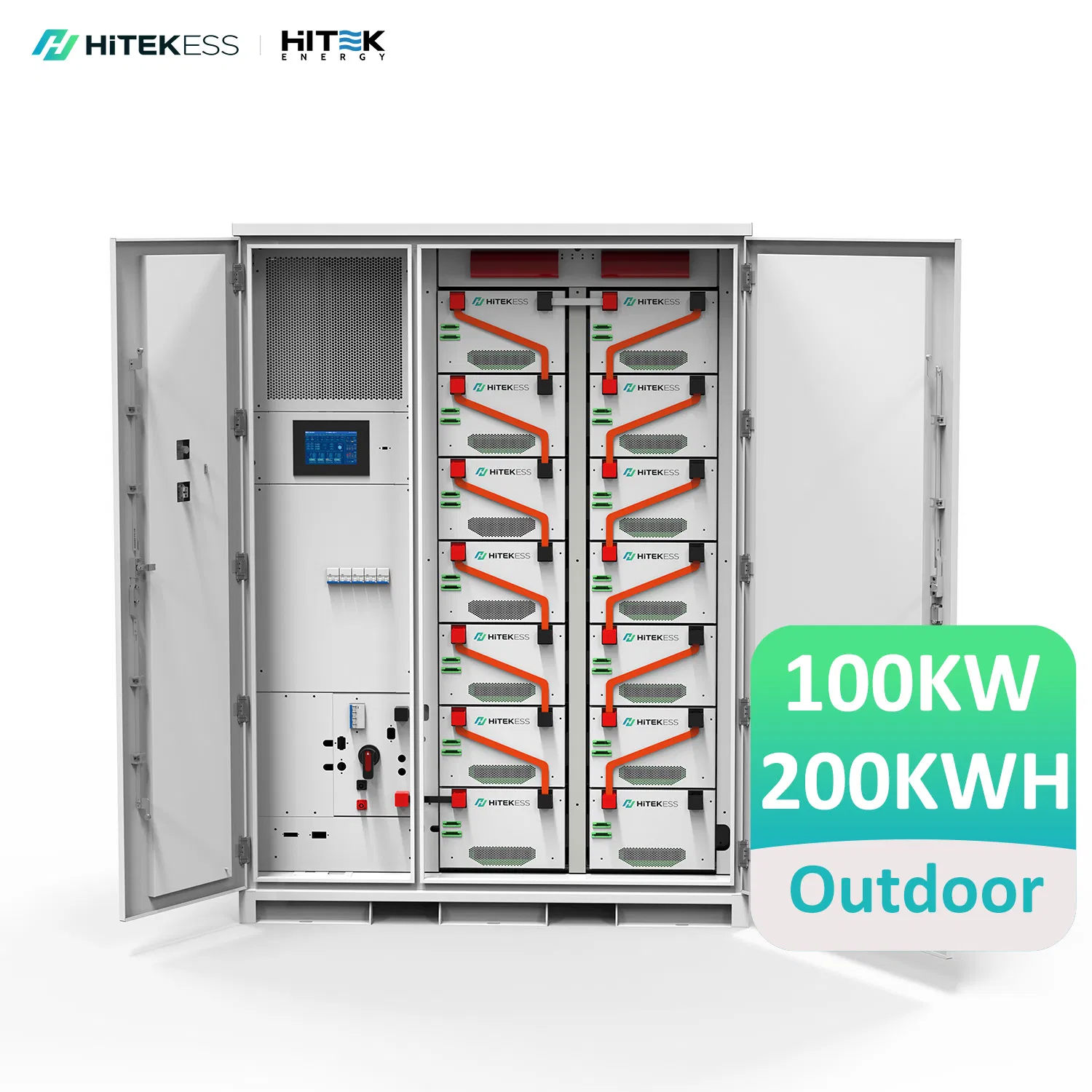

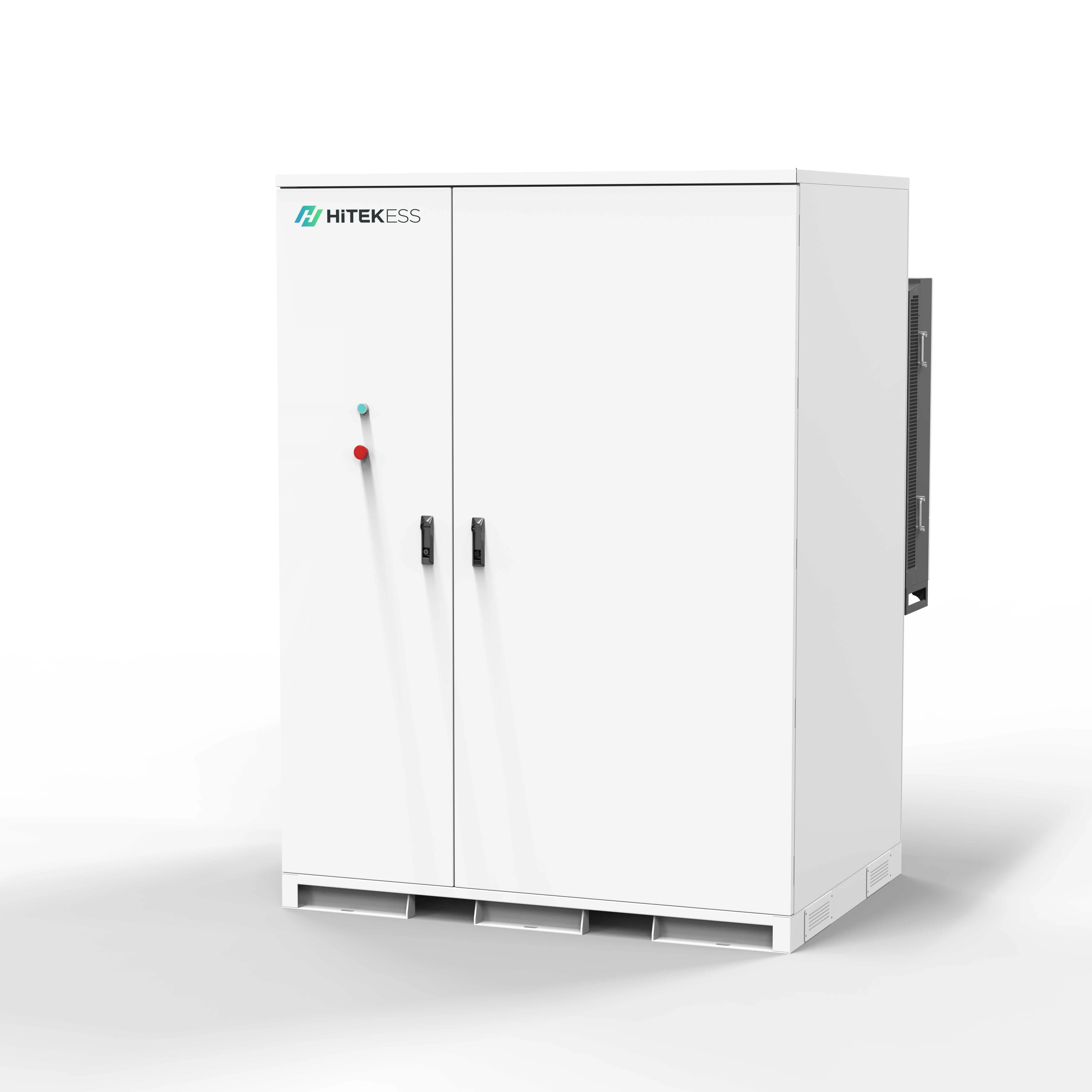

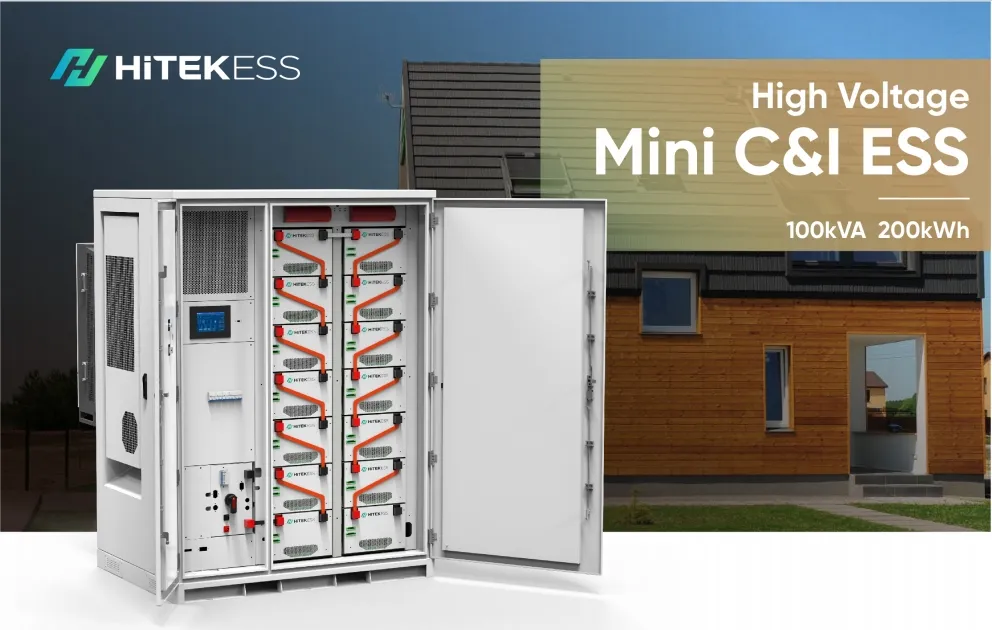

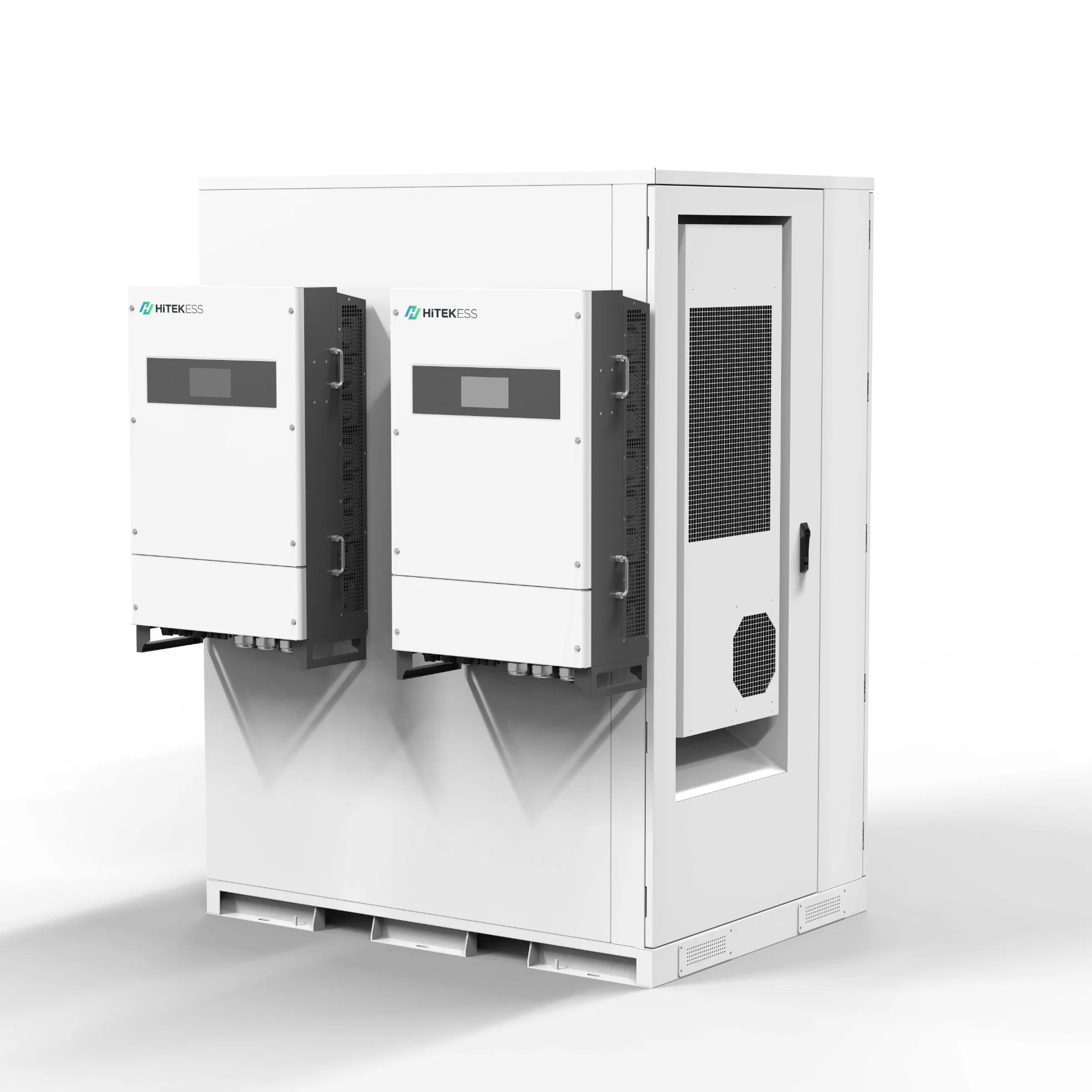

High Voltage 50kW/100kWh, 100kW/200kWh, 100kW/229kWh ESS Outdoor Cabinet Solution for fast installation. The system includes an inverter, lithium battery trays, racks, BMS, Microgrid Controller, HVAC, fire suppression, islanding switch, and an outdoor-rated enclosure.

The ESS Cabinet features safe technology and multi-level protection. It is easy and flexible to scale with powerful performance. The modular design allows for seamless capacity expansion.

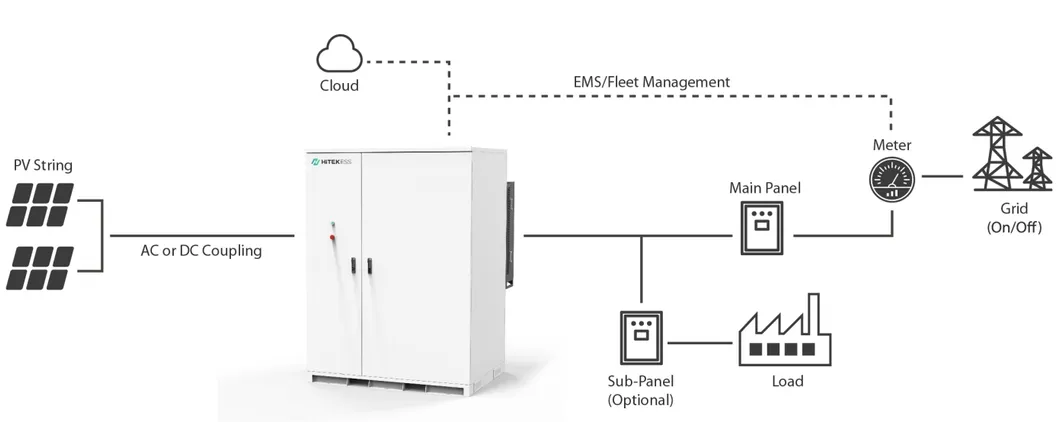

⚙️ How It Works?

📈

Peak Shaving Control

Optimize demand charge management through comprehensive load control and proper equipment utilization.

🔌

Non-Export Generation

Ensure private generation without grid export for maximum efficiency.

🏝️

Energy Island System

Establish self-contained microgrids with autonomous control, protection, and management.

🛡️

Outage Resilience Unit

Provide reliable backup battery support during grid outages.

📋 System Configuration

Model	HTAC-50/100-OD	HTAC-100/200-OD	HTAC-100/215-OD	HTAC-100/229-OD
System Parameter	50kW/100kWh	100kW/200kWh	100kW/215kWh	100kW/229kWh
Rated Voltage	358.4V	716.8V	768V	409.6V
Battery Type	Lithium Iron Phosphate Battery (LFP)
Cooling Method	Air-Cooling
Protection Level	IP54/IP65
Dimensions (WDH)	85011002060mm	150011002060mm	157013502100mm	157013502100mm

🧱 System Components

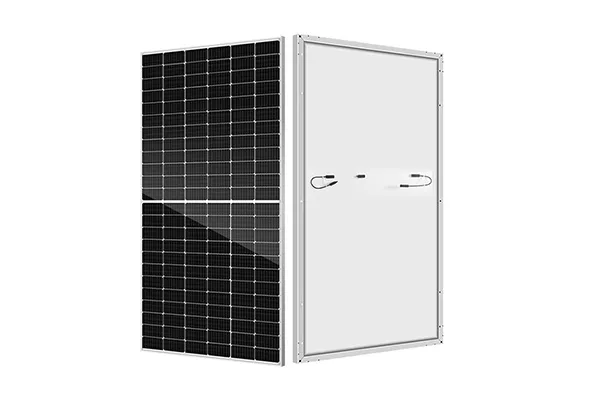

TOPCon Mono Solar Panel

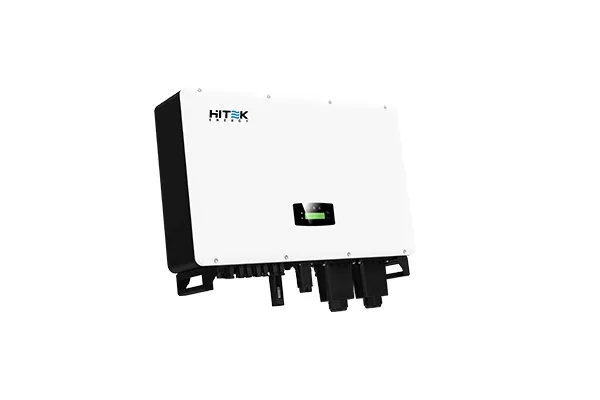

Hybrid Solar Inverter

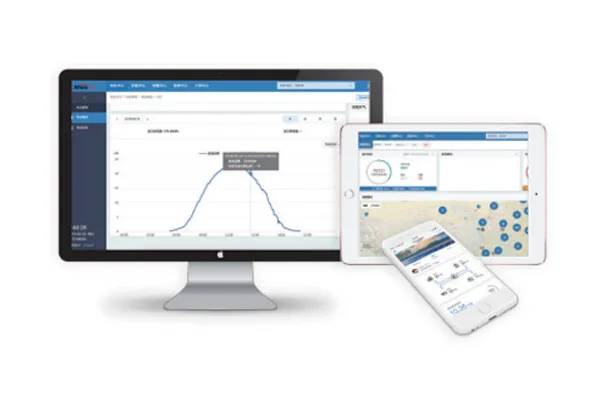

Online Monitoring

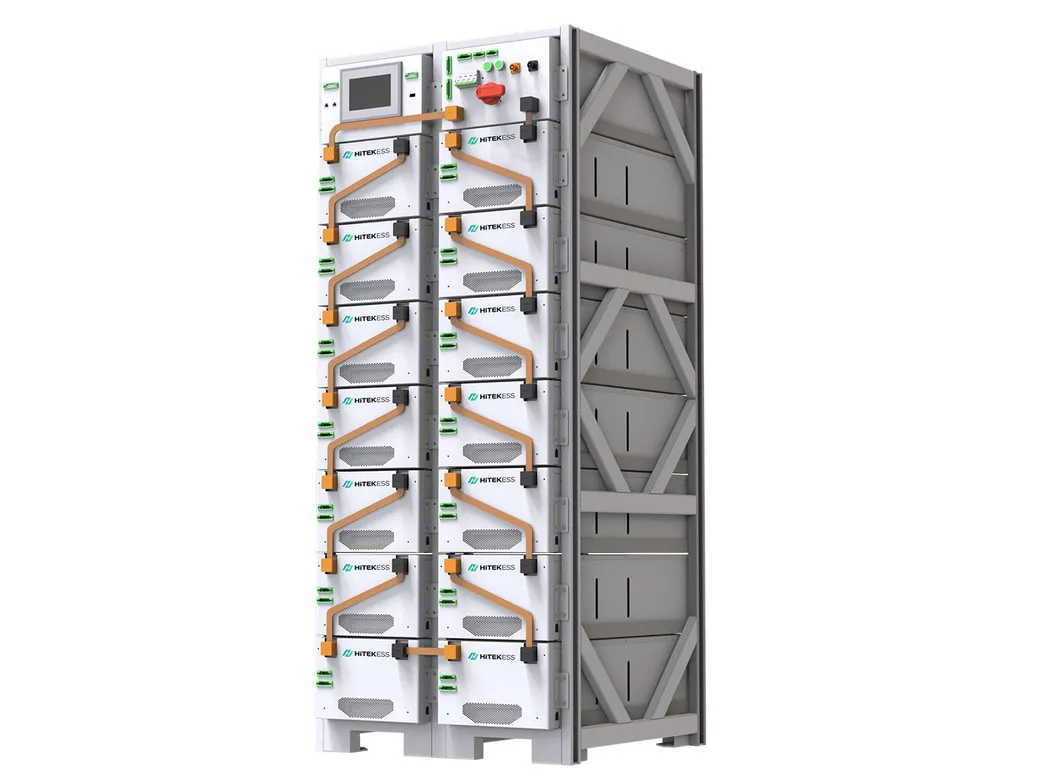

Solar Battery Rack

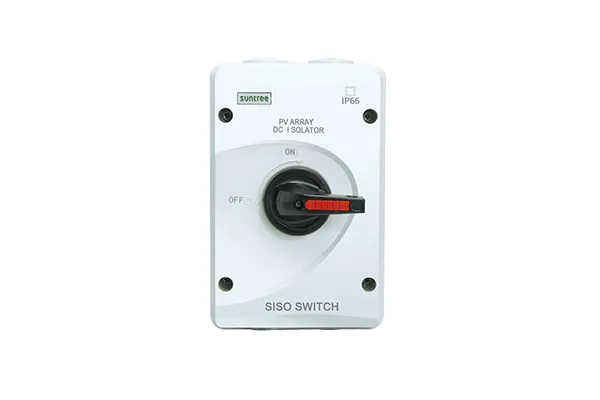

Disconnect Switch

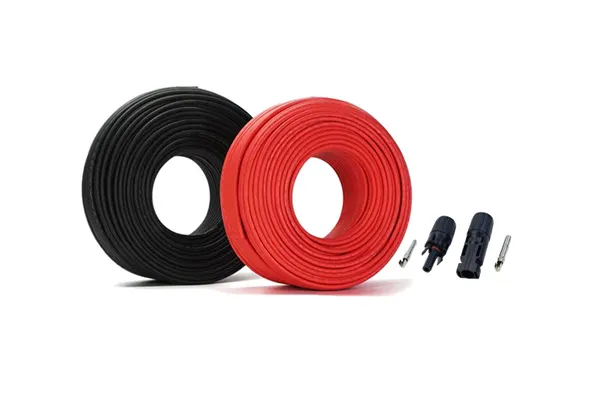

DC Cable & MC4

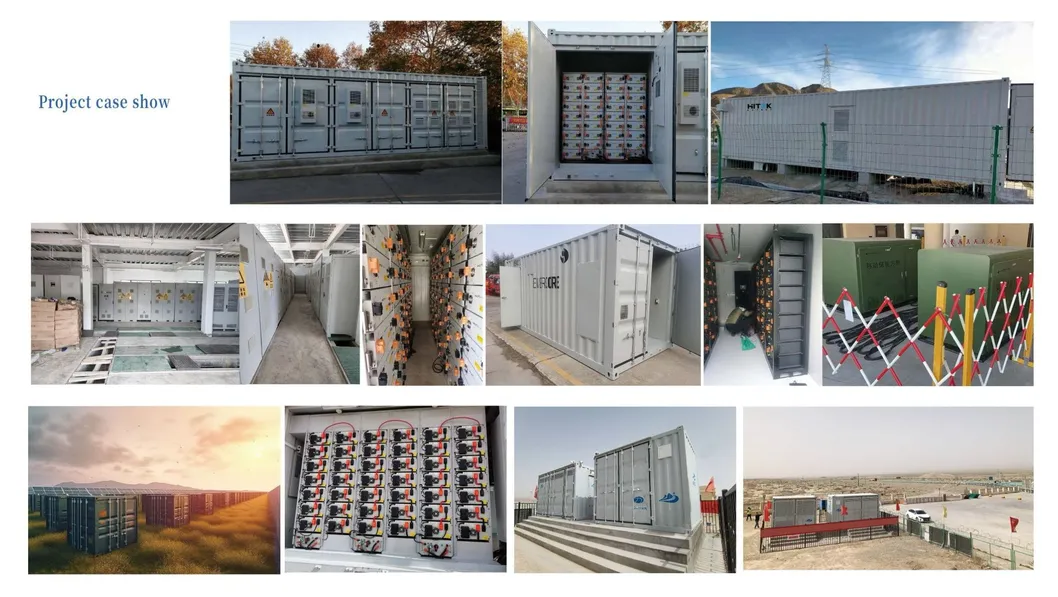

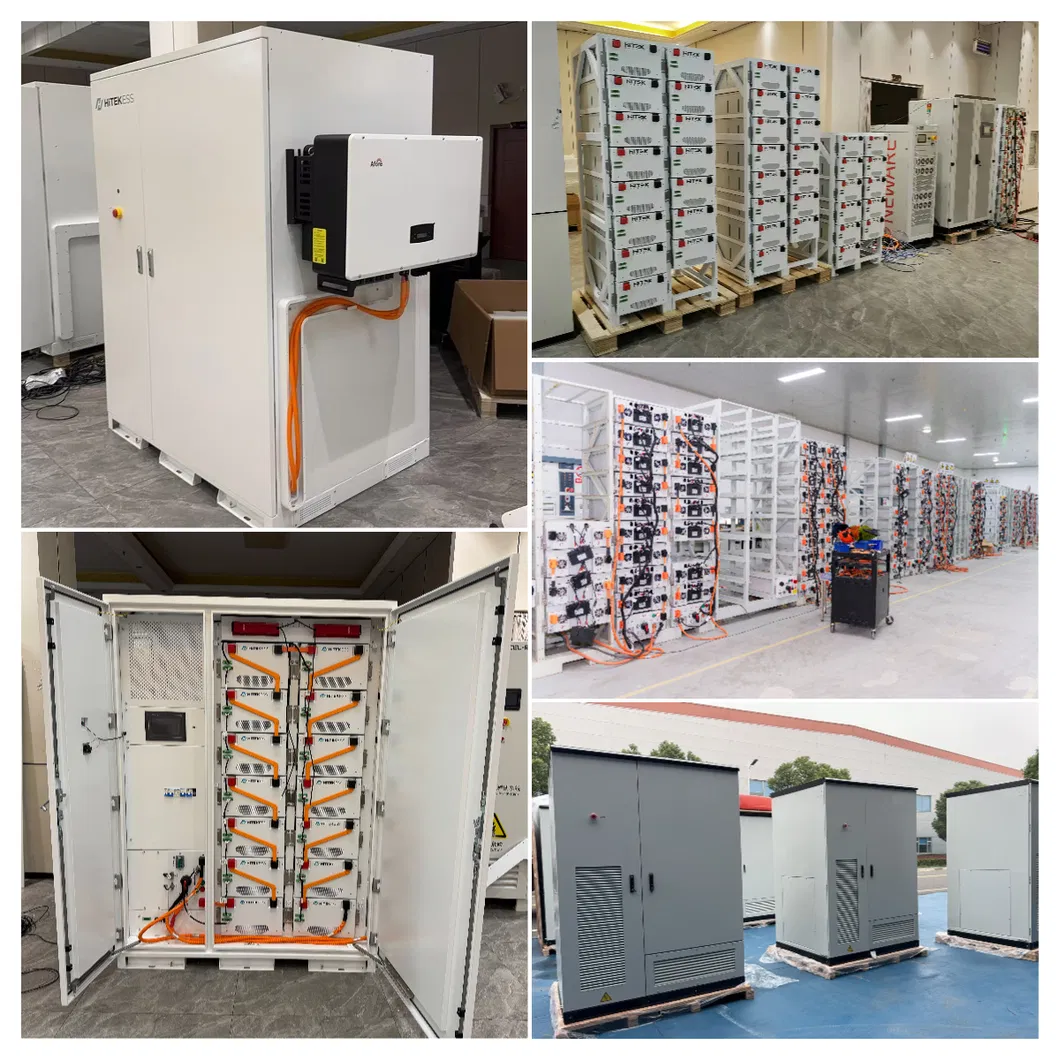

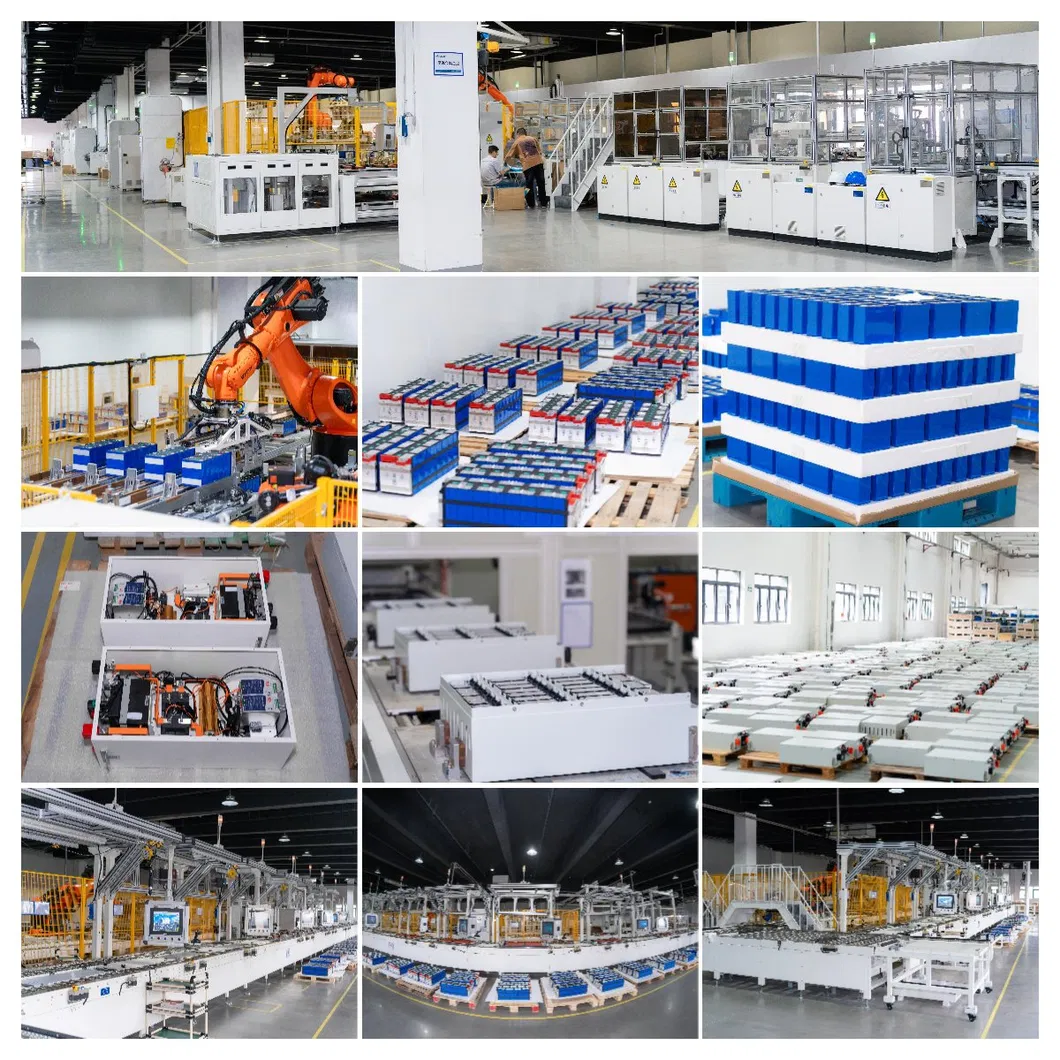

🏭 Our Factory & Project Cases

🌟 Our Advantages

🔍 You May Like

❓ Frequently Asked Questions

1. What is the expected cycle life of the battery system?

The system utilizes high-quality LiFePO4 cells, offering a cycle life of ≥6000 cycles at 90% Depth of Discharge (DOD).

2. Is the cabinet suitable for extreme outdoor environments?

Yes, the cabinet is rated IP54/IP65 for protection against dust and water, and features an integrated HVAC system to maintain optimal operating temperatures between -25°C and 60°C.

3. Can the energy storage capacity be expanded?

Absolutely. The modular design supports flexible parallel functions, allowing you to scale up capacity according to your residential or commercial requirements.

4. What fire safety measures are included in the outdoor cabinet?

The system is equipped with advanced fire suppression technologies, including options for Aerosols, perfluorohexanone, or heptafluoropropane to ensure maximum safety.

5. Does the system support remote monitoring?

Yes, it includes an online monitoring system compatible with WiFi, LAN, and GPRS, allowing for real-time data tracking and remote firmware upgrades.

6. What applications is this ESS cabinet best for?

It is ideal for Peak Shaving, Non-Export private generation, backup power for outage resilience, and self-contained Microgrid systems.
