Lifeo4 Battery 15s 48V 15A to 200A BMS Battery Thermal Management System

Customization:	Available
Certification:	RoHS, CE
Recyclable:	Recyclable

Send Inquiry

Product Description

Basic Specifications

Model NO.

LiFeO4 BMS

Product Name

Battery Management System

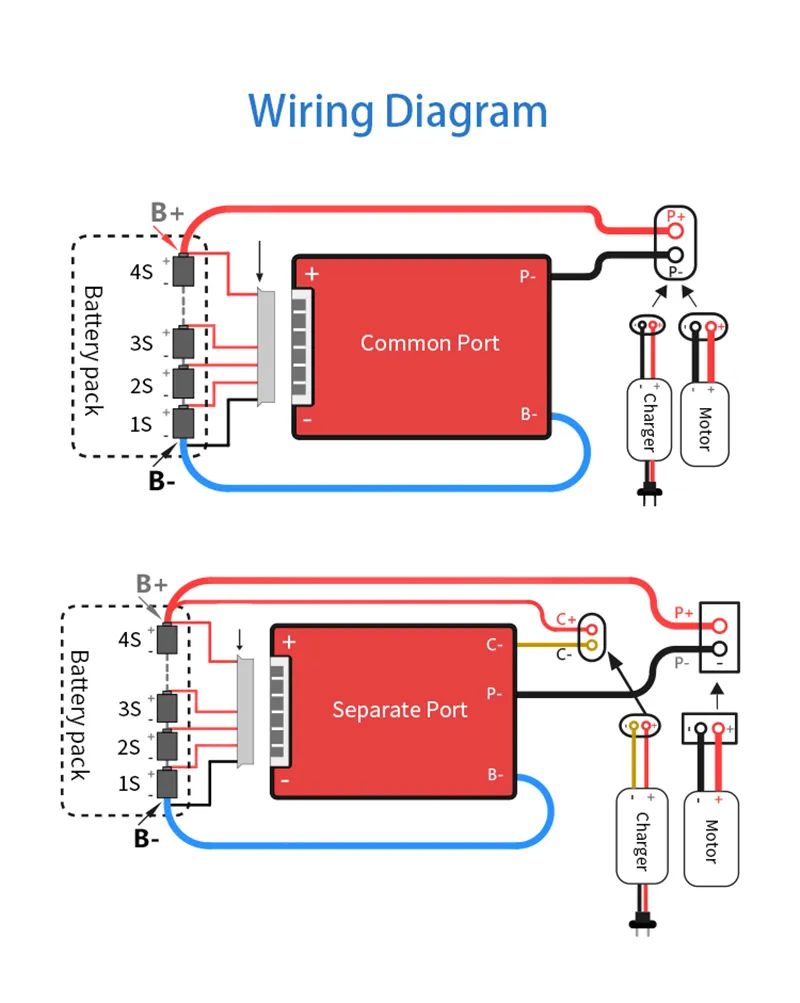

Port

Common/Separate

Over Discharge Protection

Yes

Over Charge Protection

Yes

Short Circuit Protection

Yes

Over Current Protection

Yes

Transport Package

Standard Express Packing

Specification

Standard Size

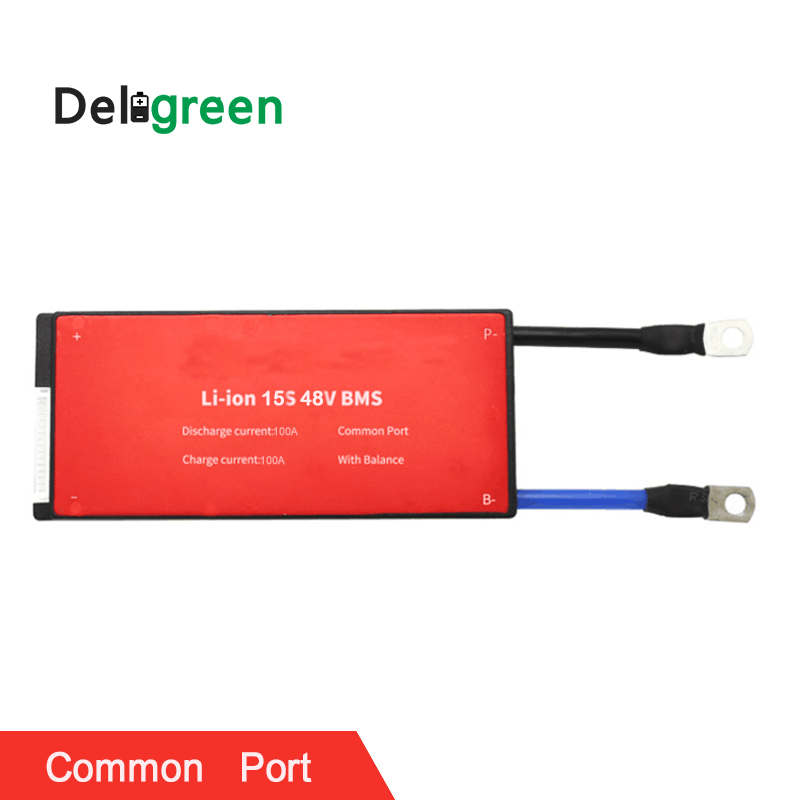

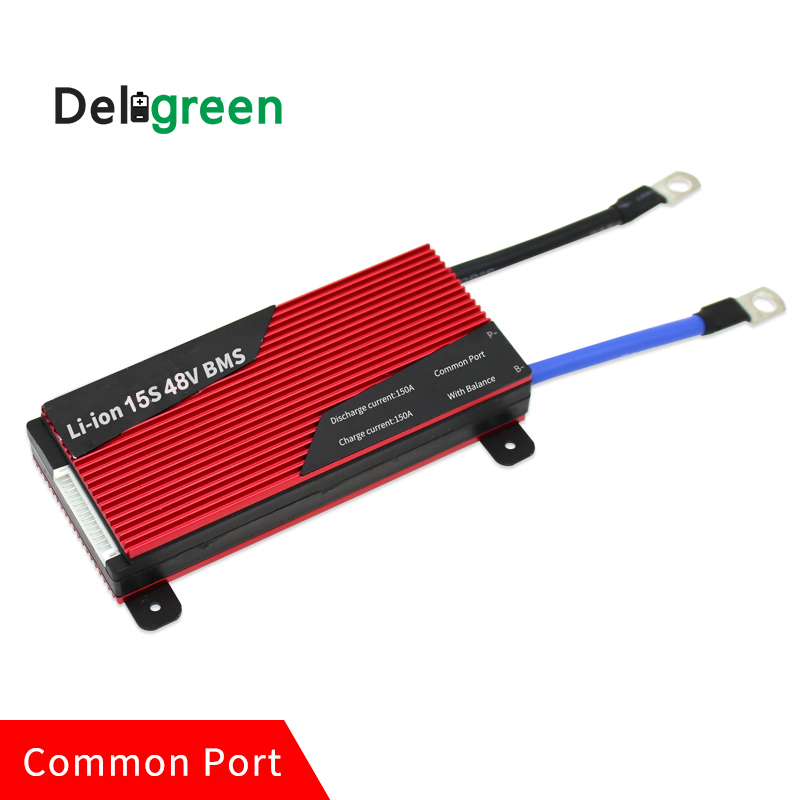

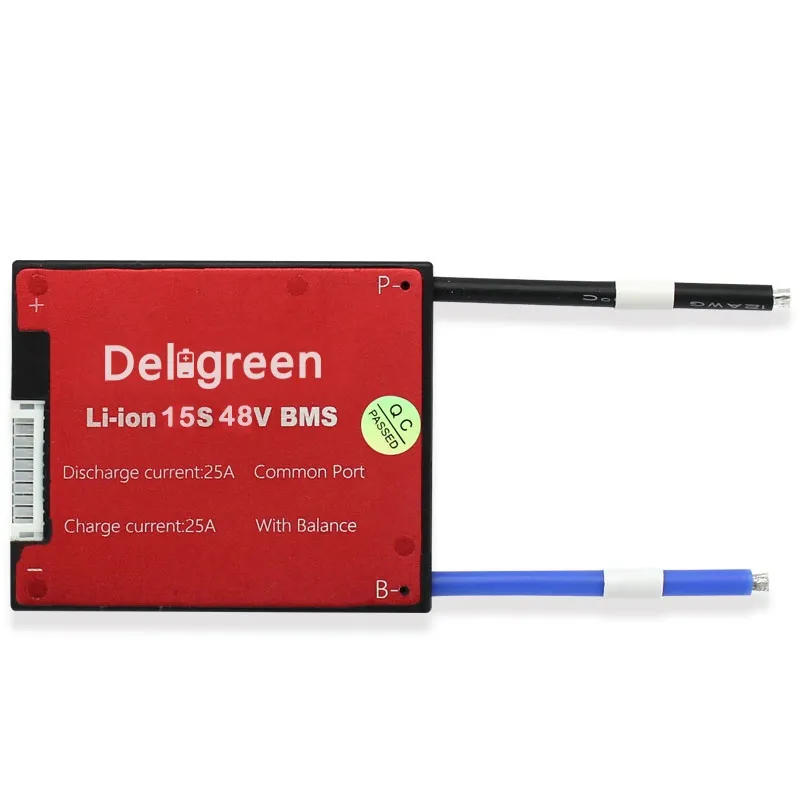

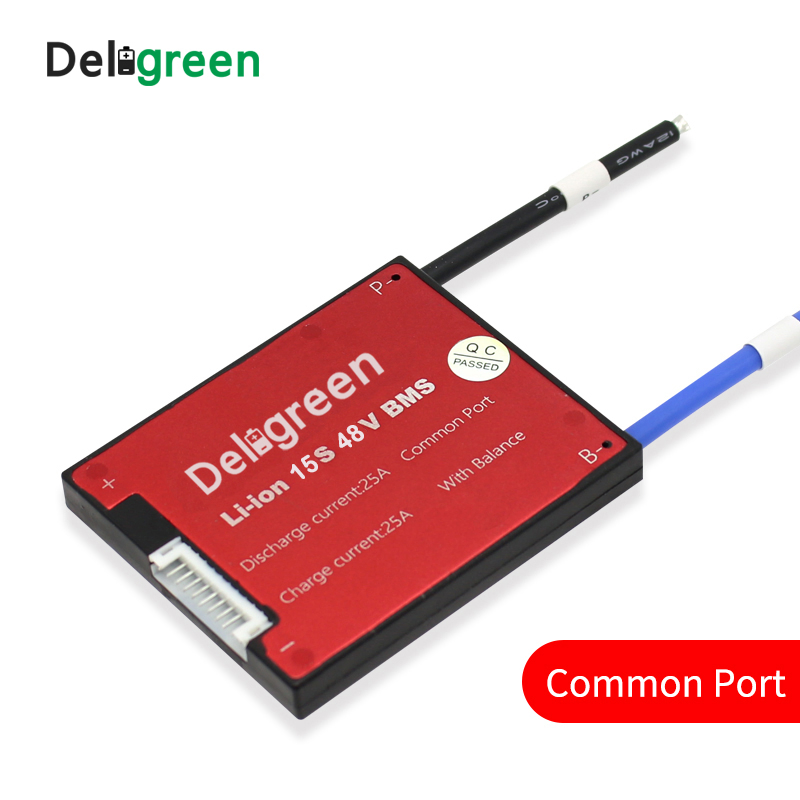

LiFeO4 Battery 15S 48V BMS

Designed for various lithium batteries including LiFePO4, LiMn2O4, and Li-polymer.

Comprehensive protection: Over-charge, over-discharge, over-current, short-circuit, and temperature protection.

Customizable PCM sizes and structures according to specific requirements.

Manufactured with high-quality imported Mos and IC components for long cycle service life.

Product Parameters

Category	Item	Specification
Power Balancing	Detect Volt	2.65V
	Release Volt	2.65V
	Current	40±5mA
Over Discharge Protection	Detect Volt	2.8±0.05V
	Detect Delay	0.5V
	Volt Release	3.0±0.05V
Over Current Protection	Detect Volt	150mV
	Detect Delay	9MS
	Protect Release	Disconnect load
Short Circuit Protection	Condition	External Load Short Circuit
	Detect Delay	250uS
	Protect Release	Disconnect load
Temperature Protection	Range	Can be customized
Resistance	Main Circuit	≤10mΩ
Self-consumption	Working Current	≤100uA
Self-consumption	Sleep Current	≤20uA
Working Temp	Range	-20 / +80ºC

Product Details & Selection

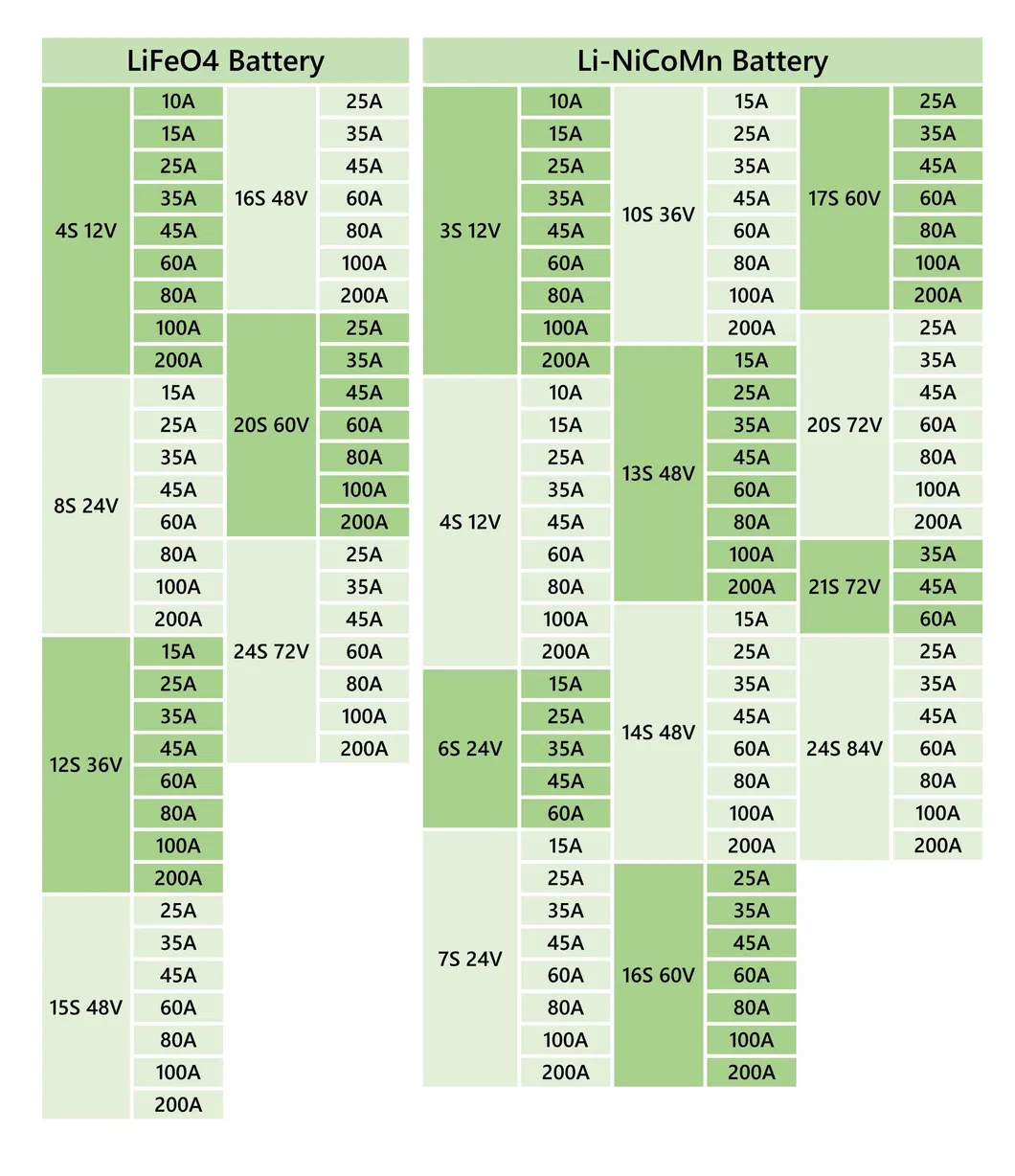

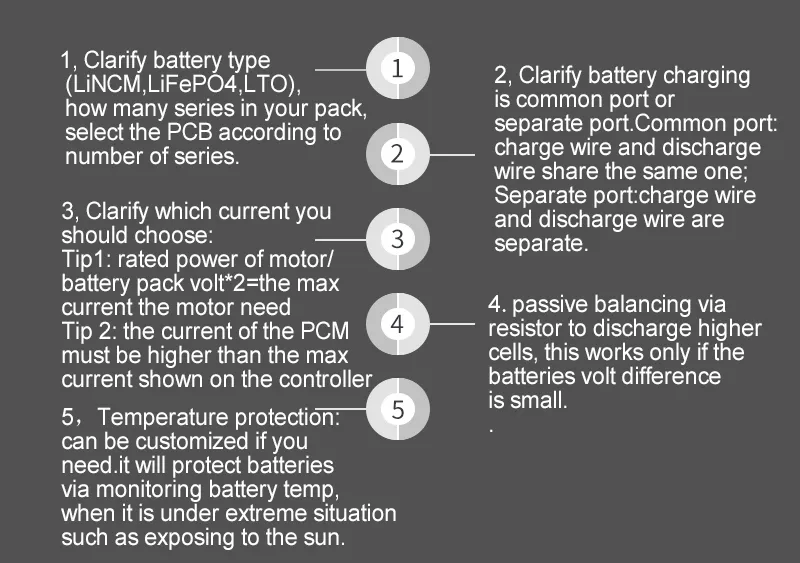

How To Select BMS

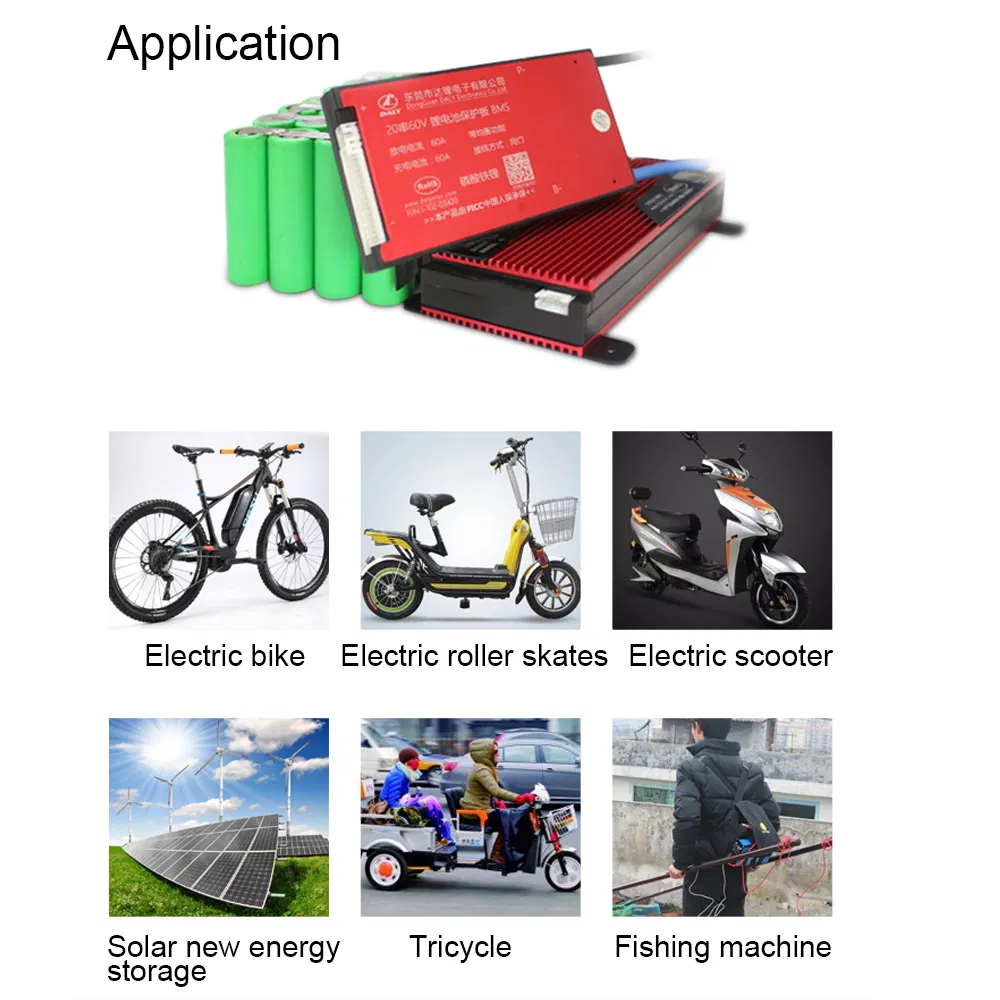

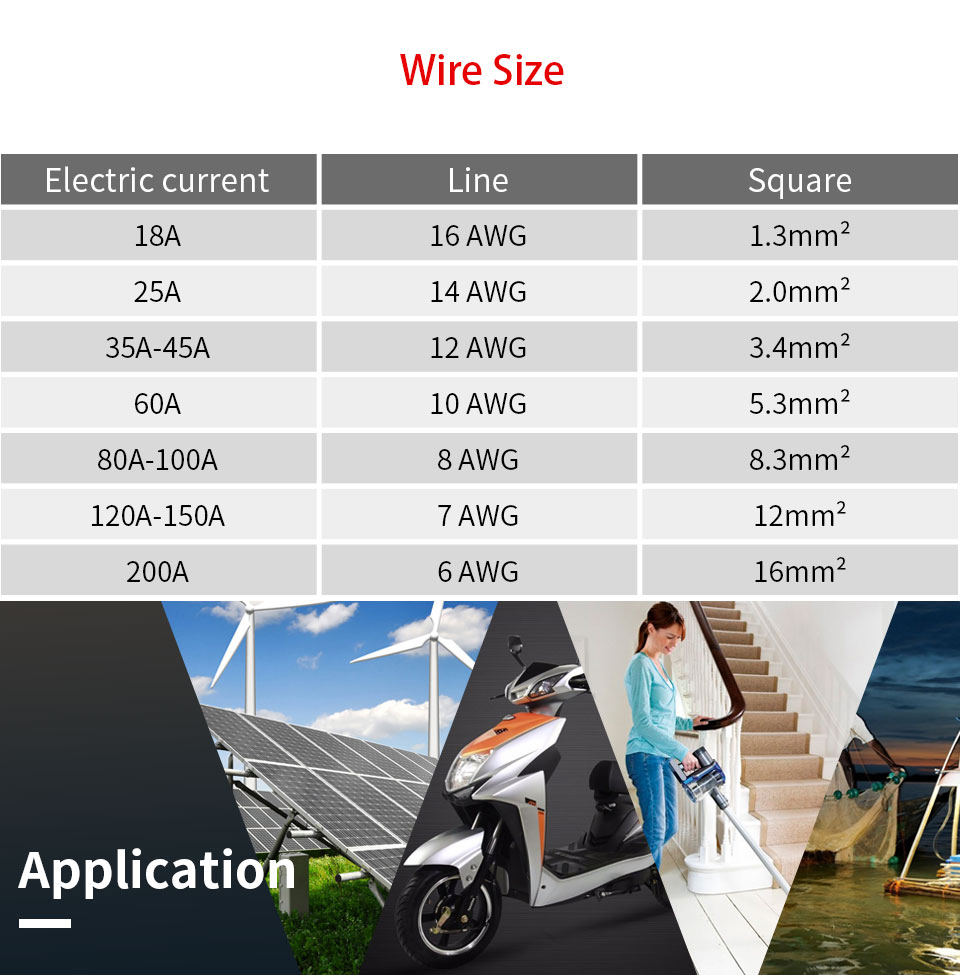

Advantages & Application

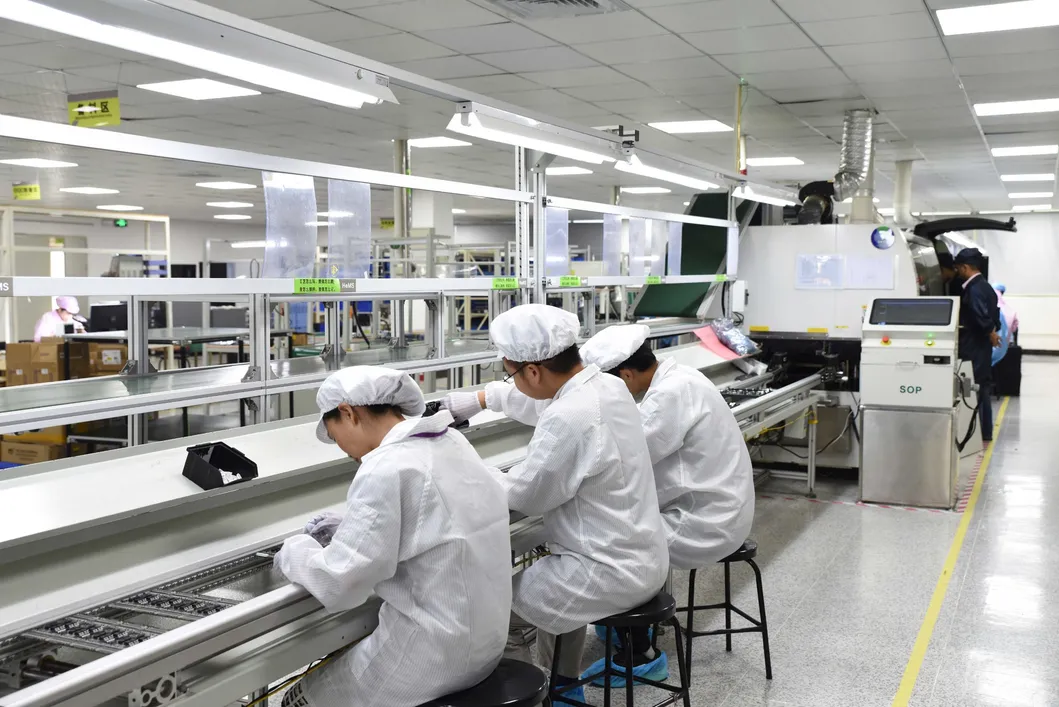

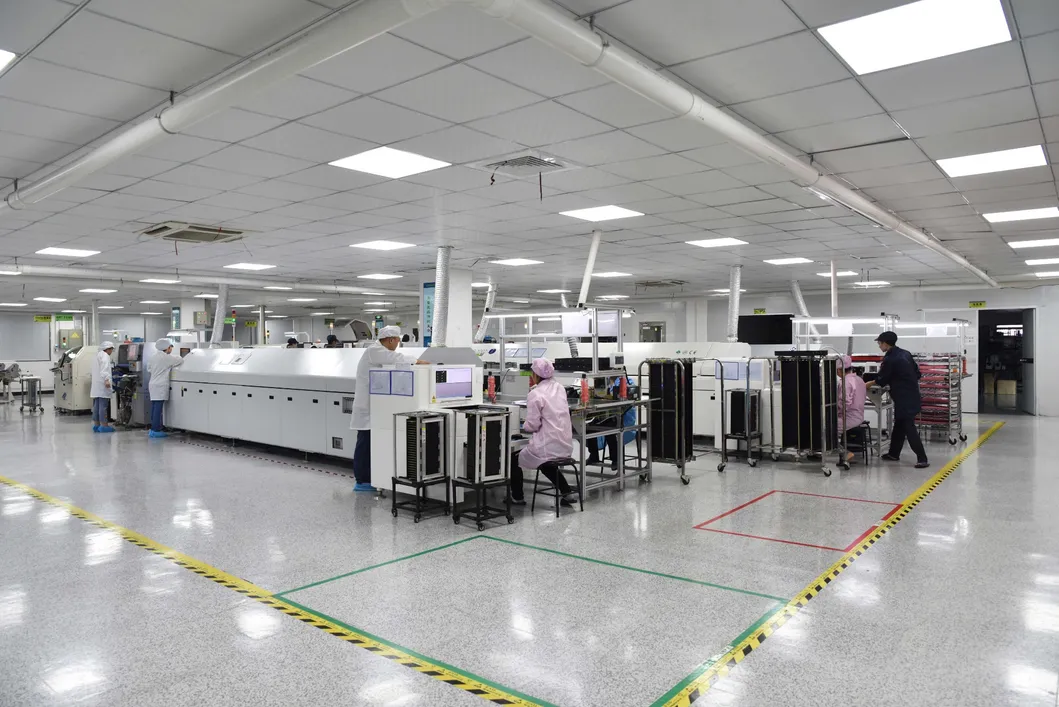

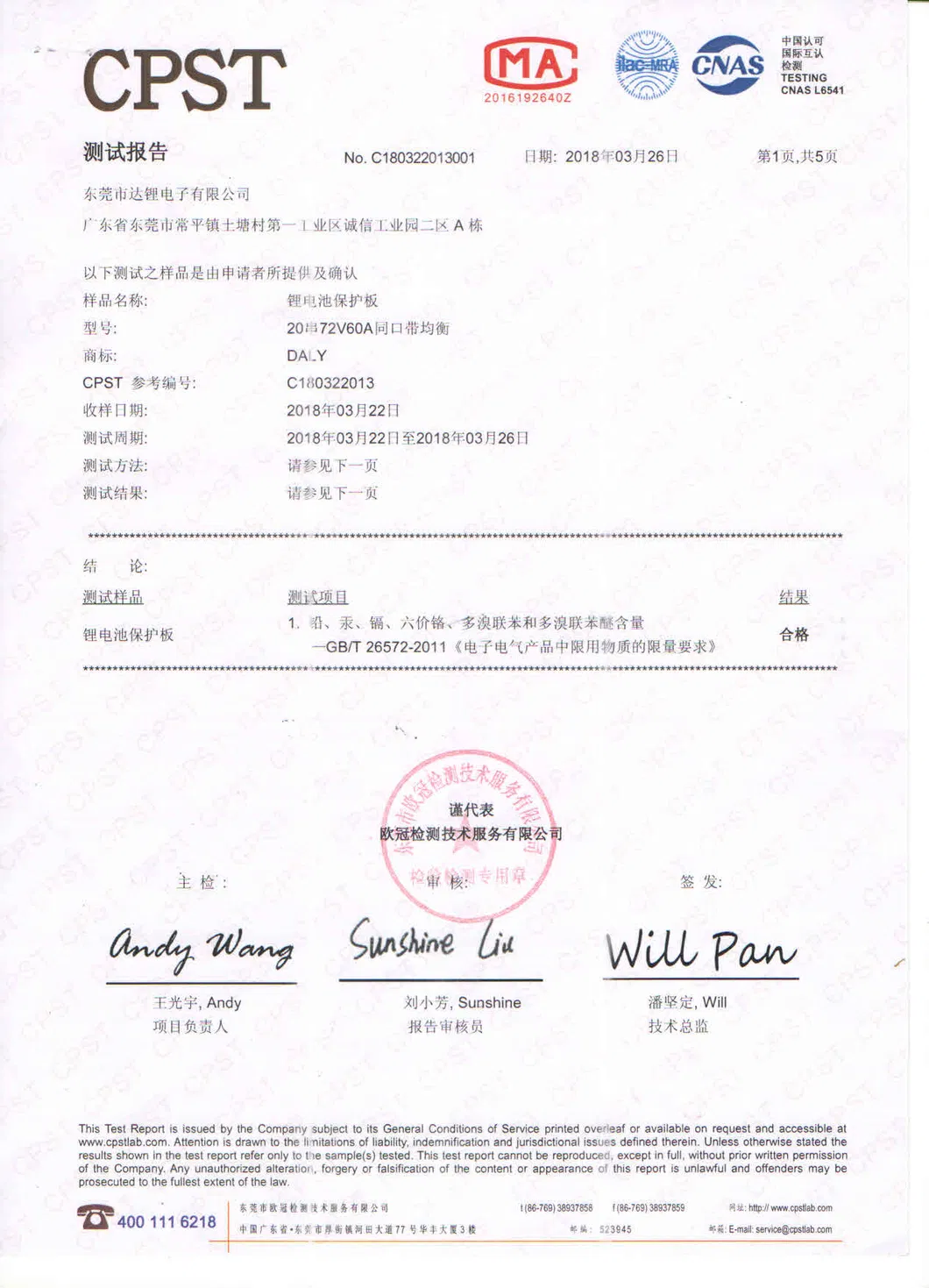

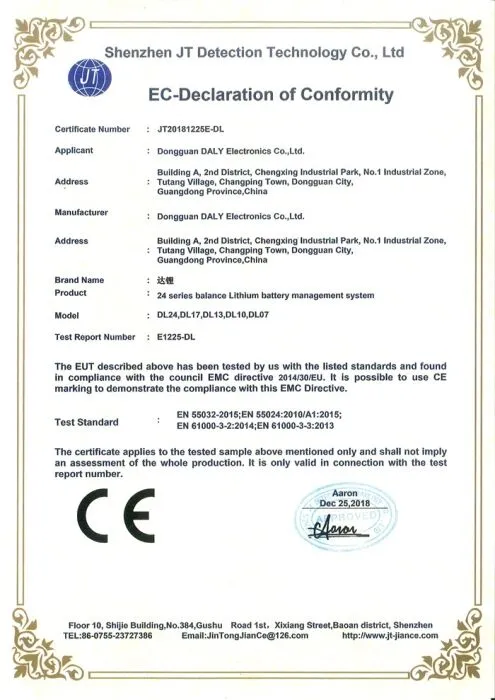

Certifications & Factory

Frequently Asked Questions

1. How do I choose the correct current for the PCB?

The choice depends on your motor power or controller current limit. For example, with a 48V pack: Choose 16A for motors below 350W, 18A for below 500W, 35A for below 800W, and 60A for below 1KW. For higher power, please consult professional technical support.

2. Can I use a PCB with a higher current rating than required?

Yes, choosing a higher spec (e.g., an 80A PCB instead of 60A) is safe and allows for higher current capacity, though the price may be slightly higher. However, you should never choose a lower spec than required.

3. What kind of charger should I use?

Lithium batteries must be charged with a specific lithium battery charger. Do not use lead-acid chargers, as they may damage the MOS pipe of the PCB.

4. Do I need additional balancers if I have a PCB?

While the PCB prevents over-charging and over-discharging, adding dedicated balancers can significantly improve battery lifespan and ensure capacity is fully utilized by maintaining cell balance.

5. How can I determine if my PCB is broken?

Use a multi-meter to check cell voltages. If the battery shows a short driving range or cuts off despite normal measured voltage, or if there is a 1V difference between cells, the battery or the PCB may be defective.

6. Can the BMS be customized for different battery types?

Yes, we can design BMS/PCM for various lithium chemistries including LiFePO4, LiMn2O4, and Li-polymer in different sizes and structures to meet customer requests.
