Overview
Model NO.CS A 30~300 W A
TypeCabinet Air Conditioner
MaterialGalvanized Sheet
Voltage380/400 VAC
MountingWall-Mounted
Lifetime10~15 years
CertificationRoHS, CE
CompressorHitachi BLDC Compressor
FanEC Fan
RefrigerantR410A / R407C
ProtectionIP55
HS Code8415822000
Product Description

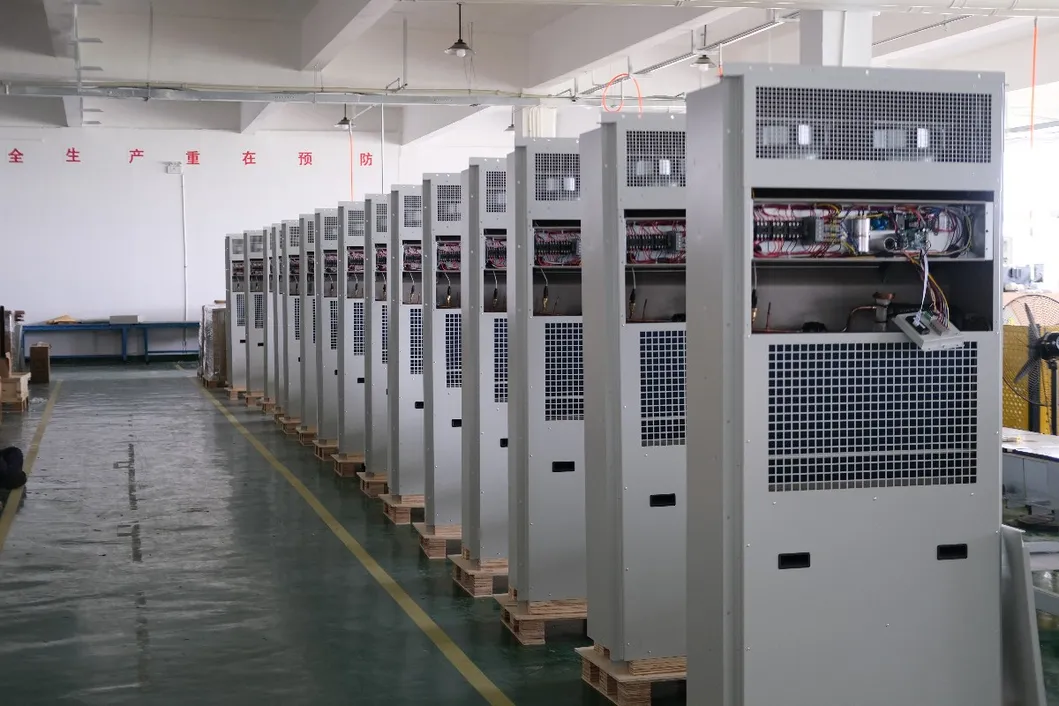

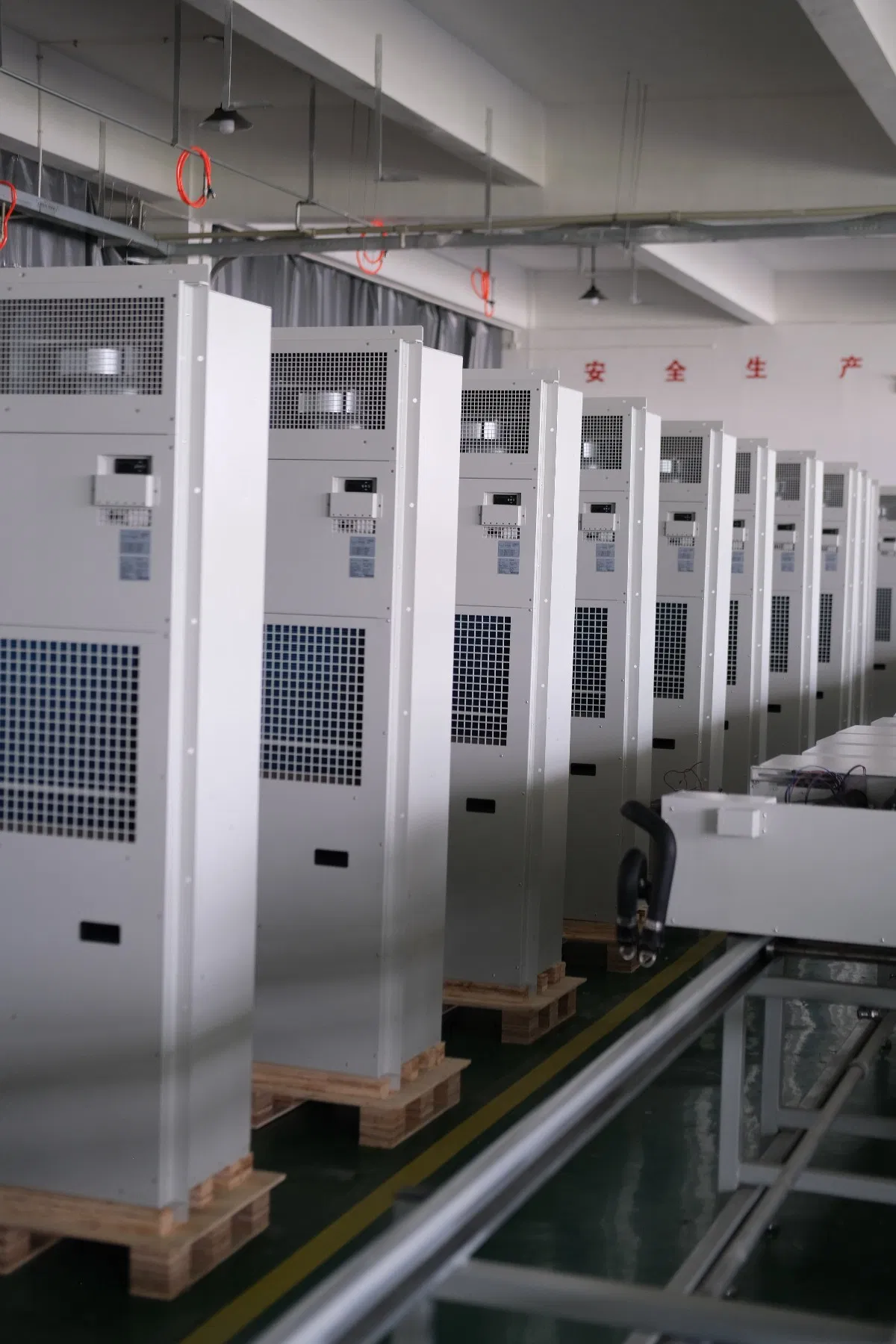

The BESS Shelter Cooling System provides advanced thermal management for battery energy storage systems (BESS) and energy containers. It maintains a stable temperature range for lithium-ion batteries and electronic components, ensuring peak performance and extending service life in harsh outdoor environments.

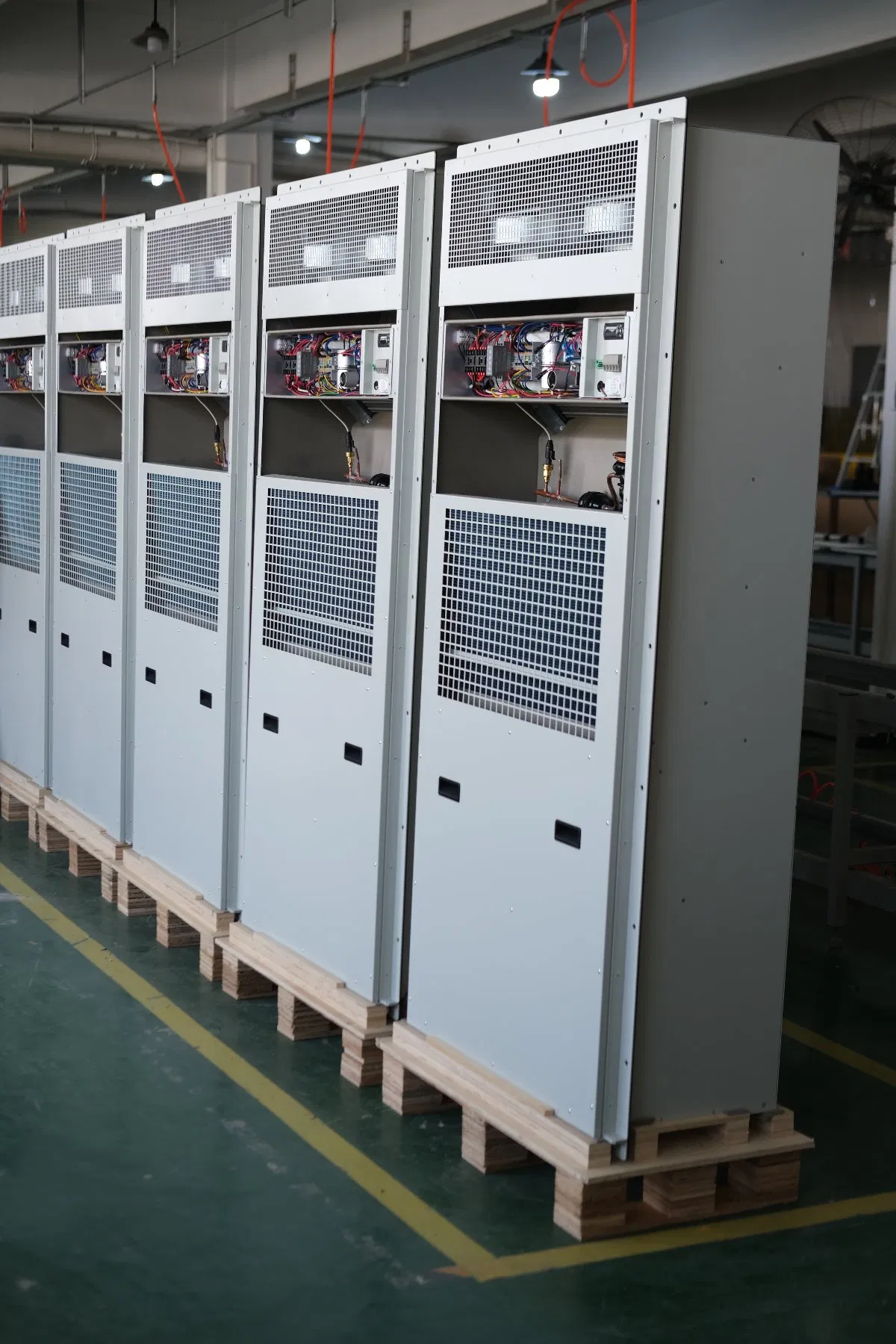

Microcontroller intelligent + BLDC Compressor + EC Fan

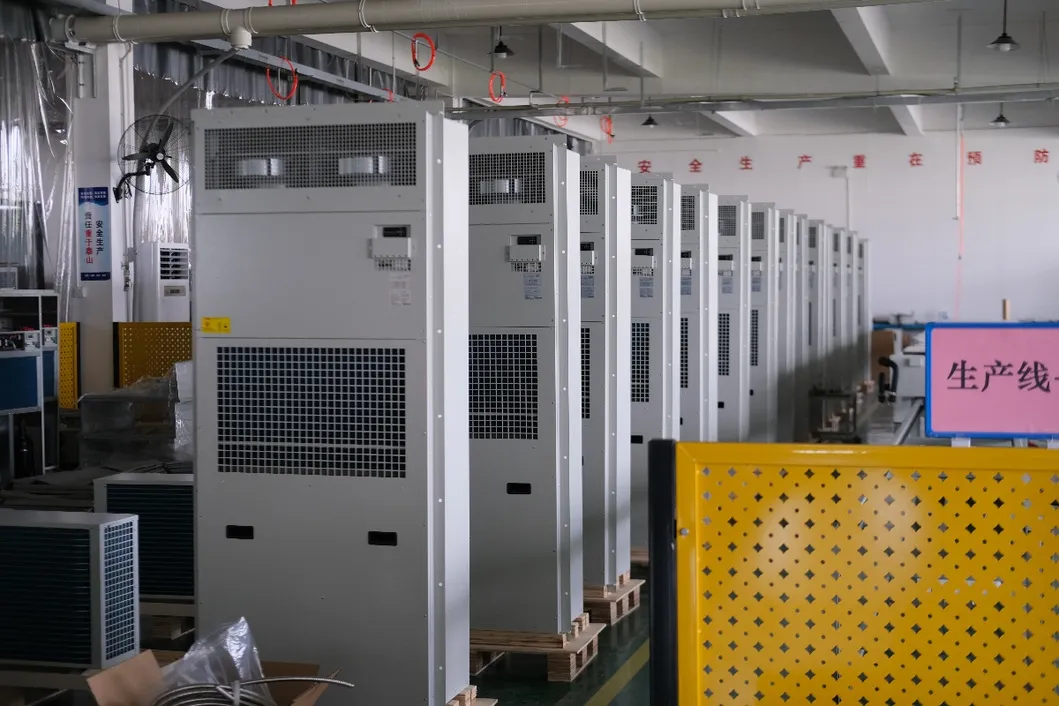

Upflow air outlet design, delivering air farther
Key Features
- BLDC Compressor + EC Fan for high efficiency and long service life
- Microcontroller Intelligent Control supporting remote monitoring
- Cooling, Heating, and Dehumidification functions for all seasons
- R407C / R410A Refrigerant for energy efficiency

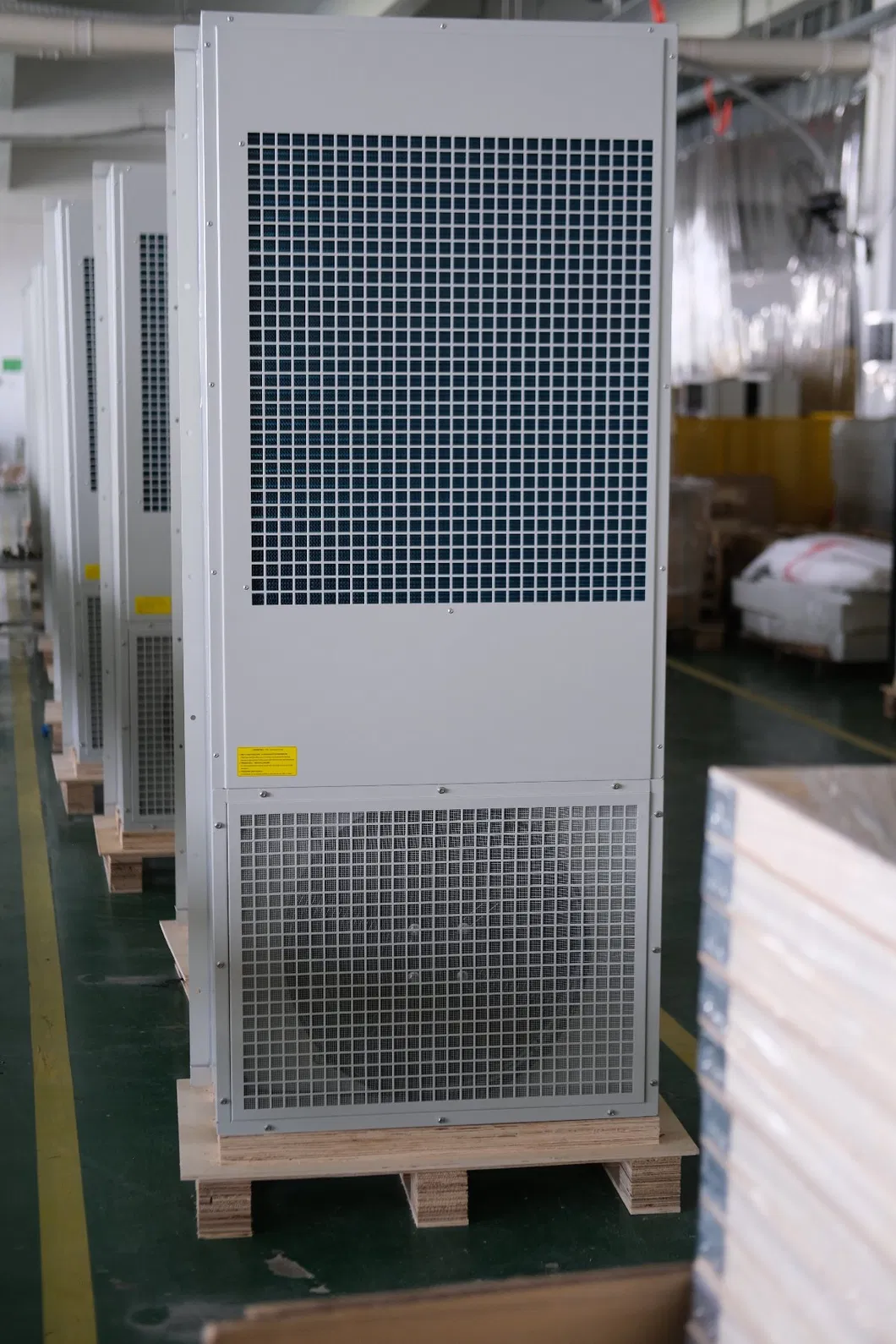

- Integrated Air Filtration (G2) prevents dust clogging
- IP55 Protection, perfect for outdoor storage systems
Technical Parameters
| PRODUCT |
3.0KW |
5.0KW |
7.5KW |
10.0KW |
12.5KW |
UNIT |
| Model |
CS A 30 W A |
CS A 50 W A |
CS A 75 W A |
CS A 100 W A |
CS A 125 W A |
- |
| Power Supply |
1P~220~240VAC/50Hz |
3P+N/3~400VAC±15%/50Hz |
V |
| Cooling Capacity |
3.0 |
5.0 |
7.5 |
10.0 |
12.5 |
KW |
| Heating Capacity |
2.0 |
3.0 |
3.0 |
5.5 |
6.0 |
KW |
| Internal Airflow |
950 |
1200 |
1400 |
2800 |
2800 |
m³/h |
| IP Class |
IP55 |
- |
| Outer Dimensions (W*D*H) |
500*250*1300 |
600*320*1300 |
600*320*1300 |
660*400*1600 |
660*400*1600 |
mm |

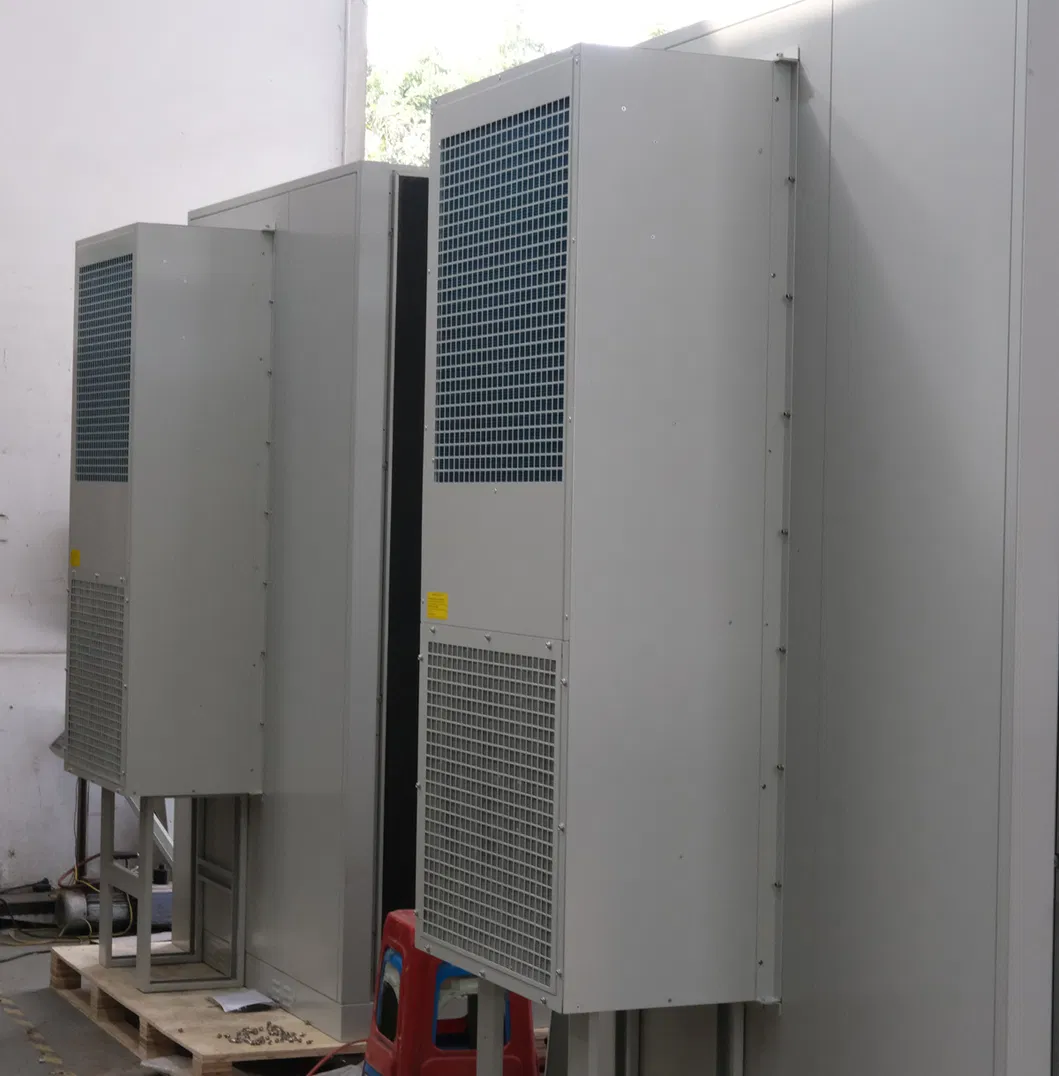

Applications
Telecom Base Stations
Outdoor Network Shelters
Remote Monitoring Stations
Industrial Cabinets & Enclosures

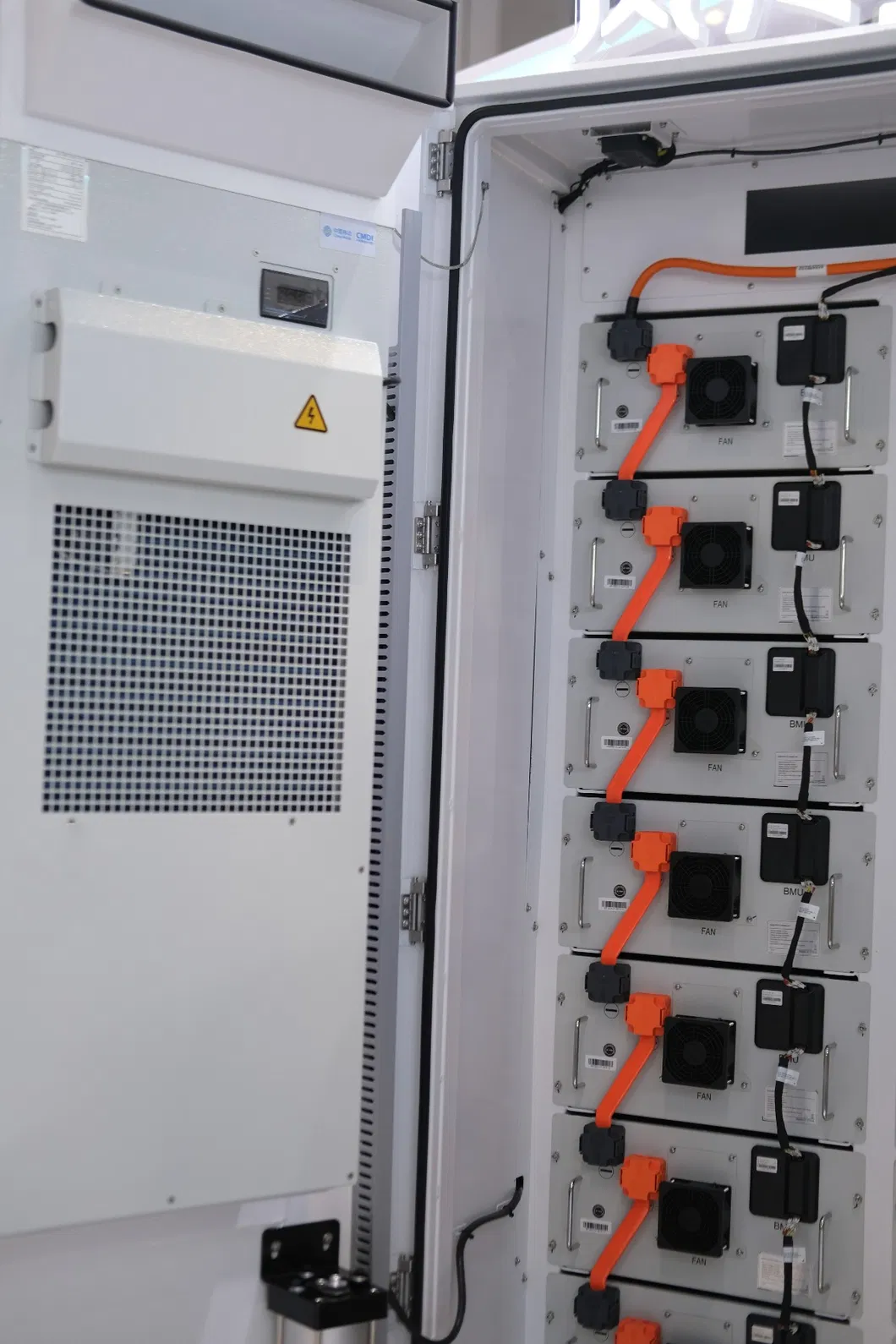

Energy Storage Containers
Frequently Asked Questions
What is the cooling capacity range of this system?
The BESS shelter cooling system offers a wide range of cooling capacities from 3KW up to 30KW to suit different cabinet and container sizes.
Is the unit suitable for extreme outdoor weather?
Yes, it features an IP55 protection class and is designed to operate in ambient temperature ranges from -40°C to +55°C, making it ideal for harsh outdoor environments.
Does it support remote monitoring and management?
Absolutely. The system includes a microcontroller intelligent board with RS485 and optional SNMP communication cards for remote monitoring and control.
What components contribute to its high energy efficiency?
The system utilizes a high-efficiency BLDC compressor (typically Hitachi) and EC fans, which significantly reduce power consumption compared to traditional units.
What functions does the system provide besides cooling?
The unit is a multi-functional climate control system providing cooling, heating, and dehumidification to ensure batteries stay in the optimal environment year-round.
What is the expected service life of the equipment?
Thanks to high-quality components like the galvanized sheet housing and advanced compressors, the equipment has a design life of 10 to 15 years.
