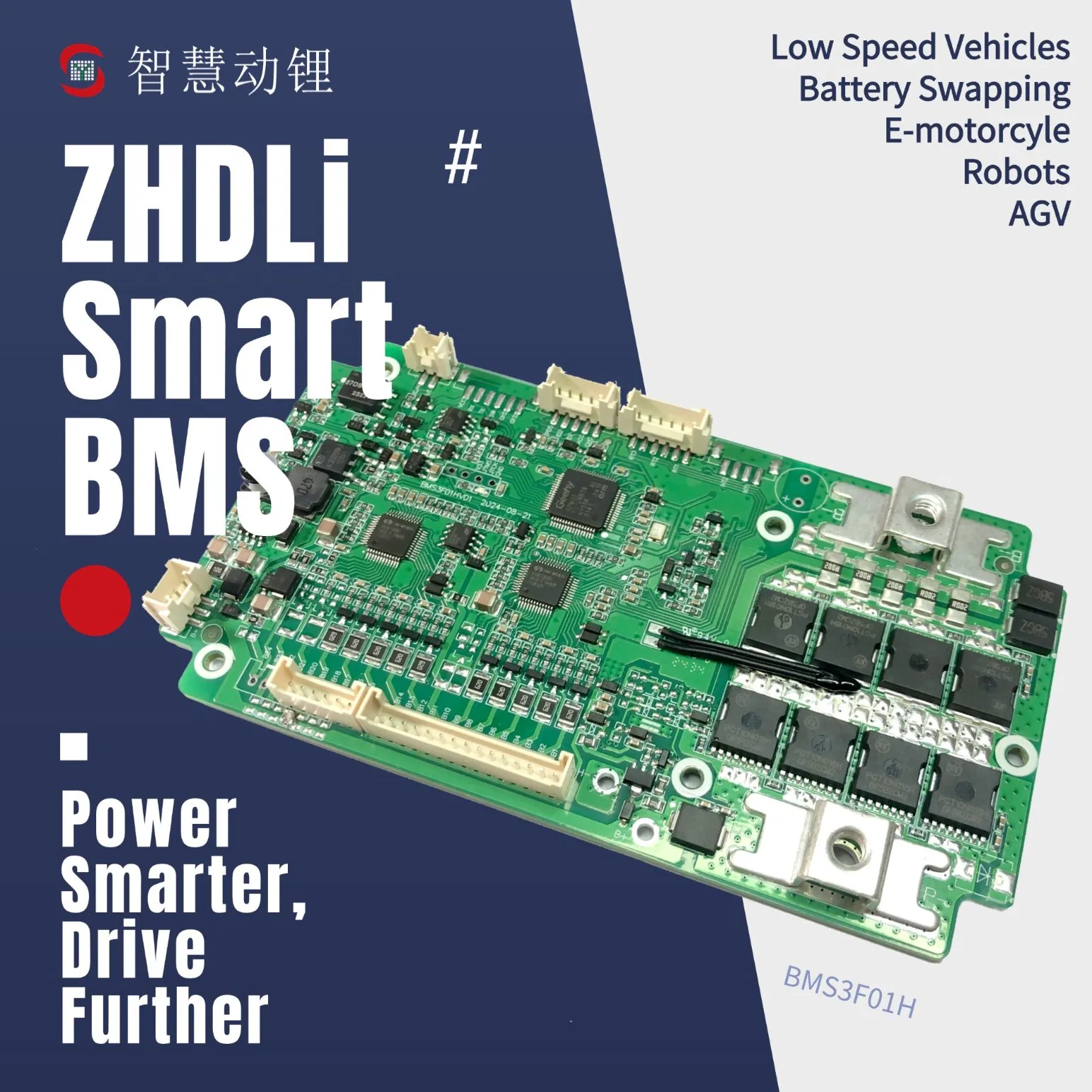

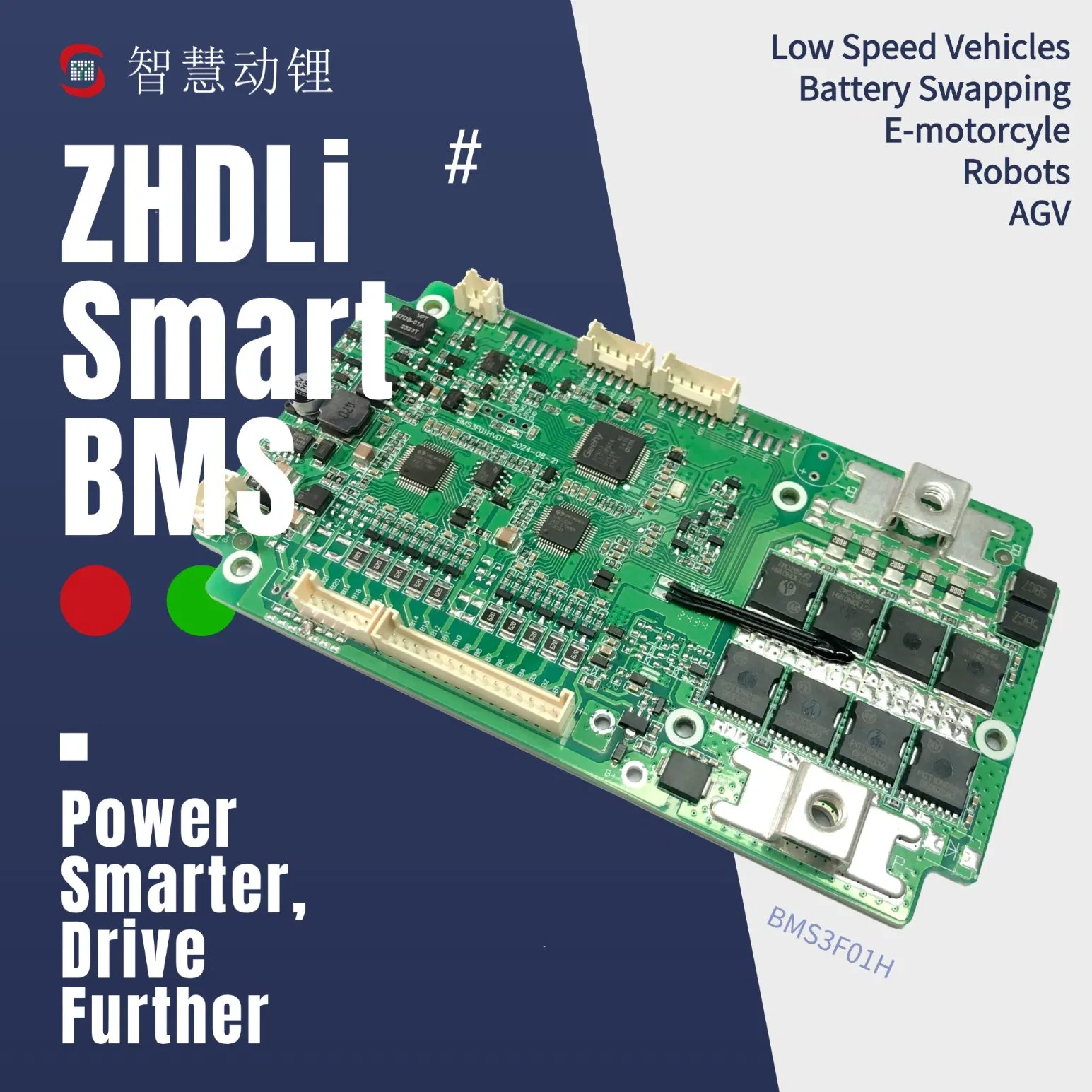

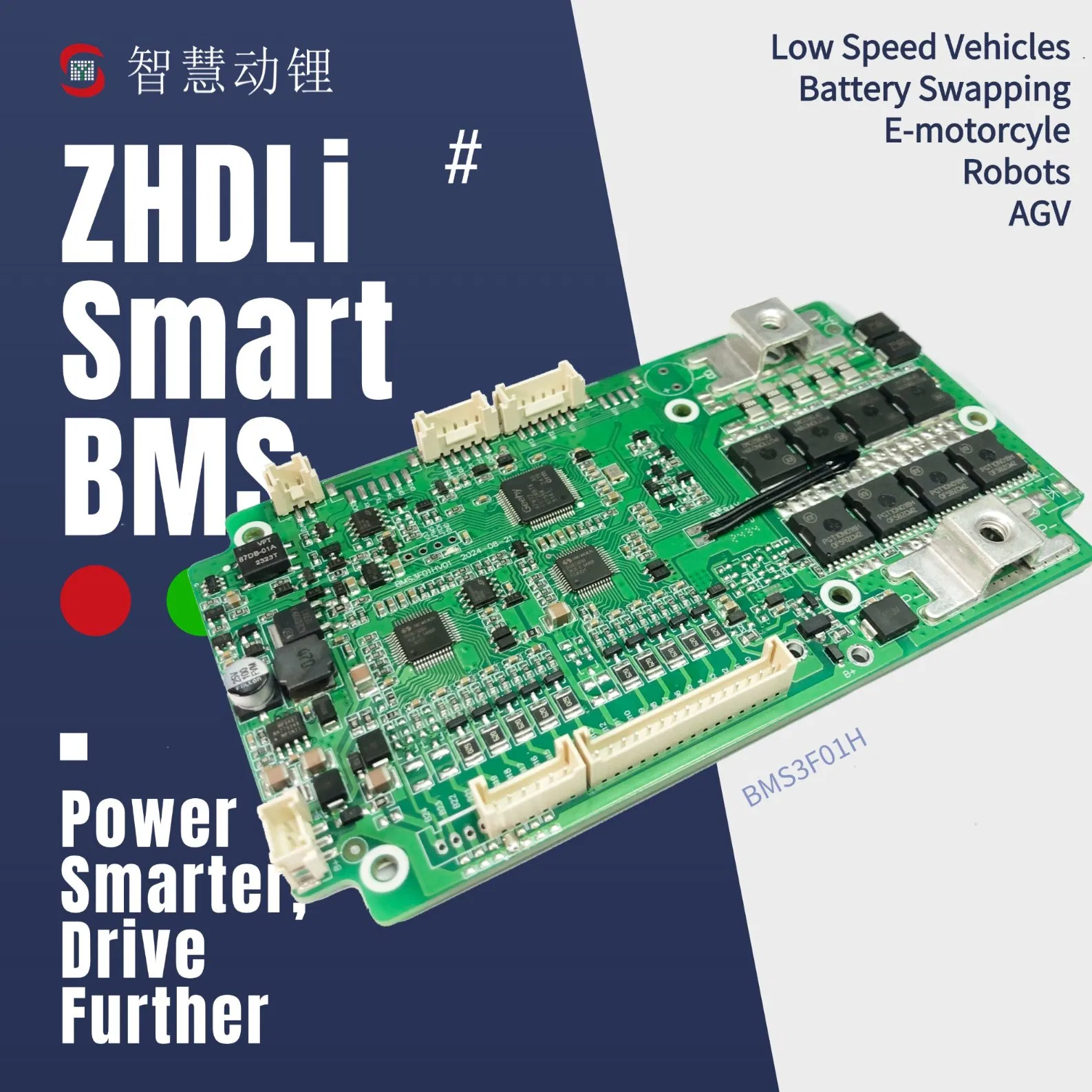

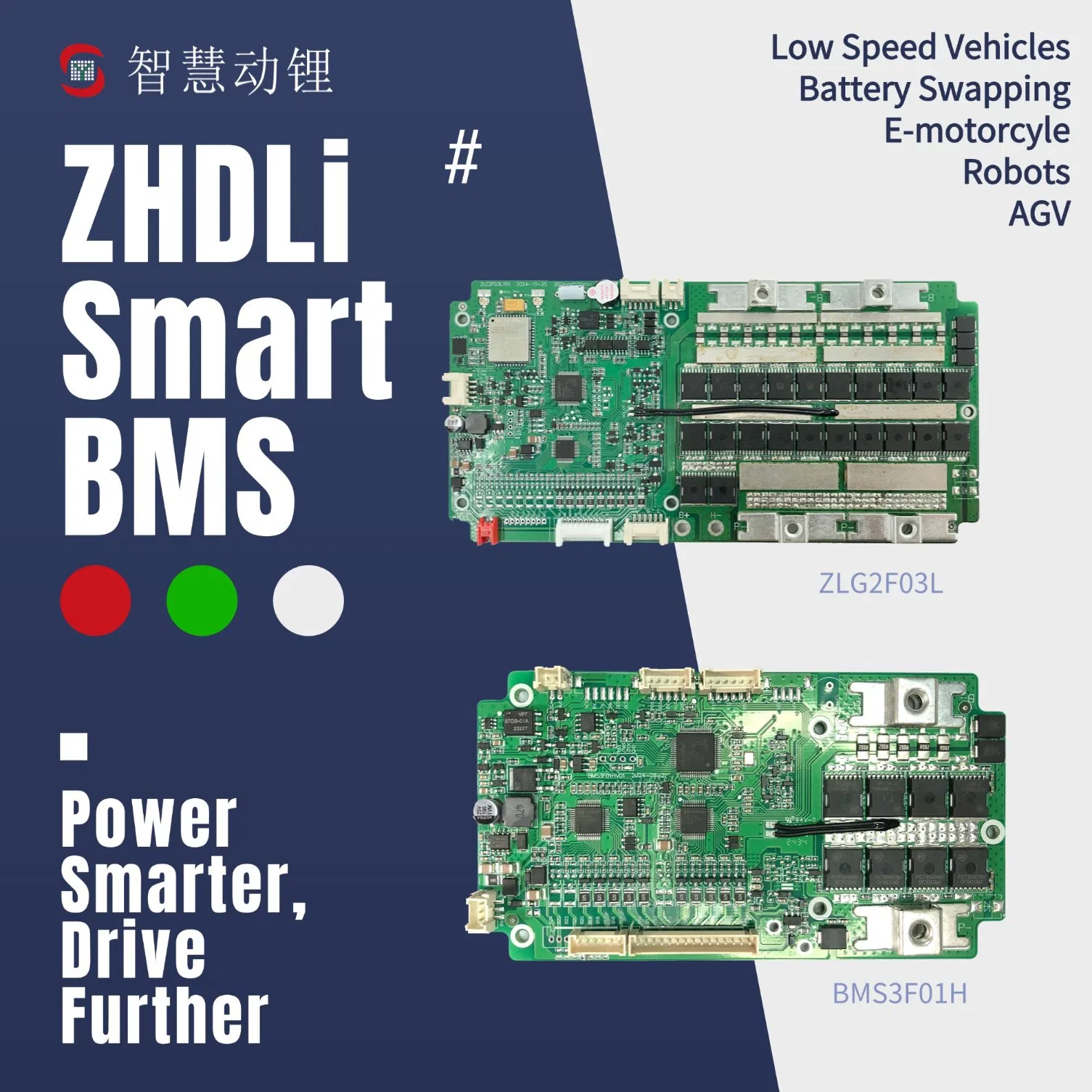

Zhdl Smart BMS BMS 12V 24V 36V 48V 200A 17s~24s Battery Management System for Solar Storage/E-Bike/UPS Battery for Li-ion

Still deciding? Get samples of $ !
Request Sample

Product Description

Basic Specifications

Model NO.
BMS3F01H
HS Code
853630000
Production Capacity
50000PCS/Month

Product Description

Technical Parameter Value / Detail
Cell Series Supported 17~24S
Product Size 138*75*16mm
Discharge Current 80A
Temperature Protection 6 Points
Communication RS485/CAN
Charge/Discharge Port Same Port
Balance Current 50-100MA
Sleep Mode 50-100uA
Low-voltage Switch Supported (√)

Application Scenarios

Ideal for: Low Speed Vehicles, E-motorcycles, Robots, AGV, Battery Swapping Systems, and more.

Optimize Your Battery Life - Intelligent BMS for Seamless Swapping!

Key Features

  • Support host computer, Bluetooth applet, and APP detection data.
  • Multiple software protection functions: over voltage, over current, over discharge, over temperature, anti-reverse connection, and short circuit.
  • Built-in high-precision SOC algorithm to accurately detect the real state of the battery.
  • Customizable software parameters; supports Ternary, Lithium Iron Phosphate, Sodium-ion, and other battery types.

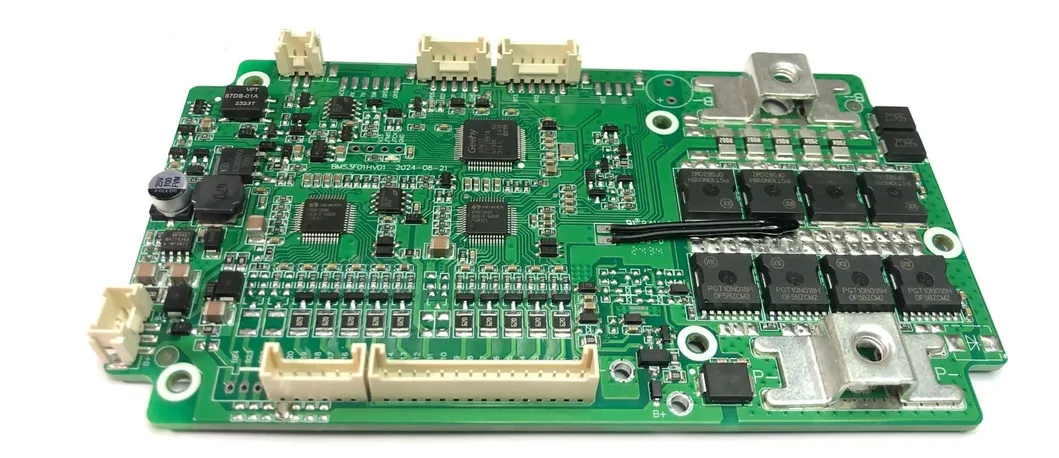

BMS Technical Diagram

Our Core Advantages

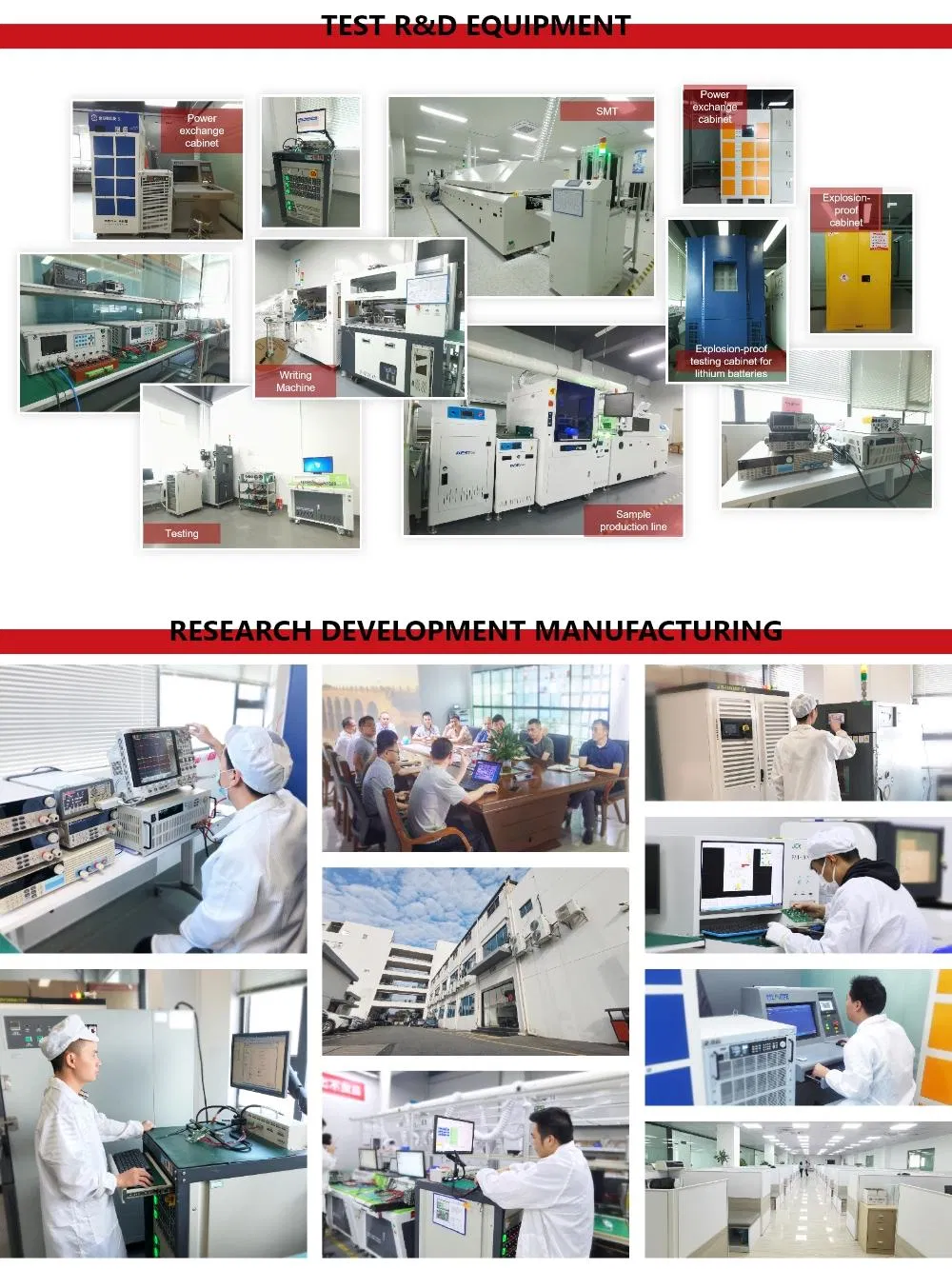

  • Advanced Facilities: Factory covers an area of 4,000 square meters, equipped with a series of automatic and semi-automatic equipment.
  • Strong R&D: Own more than 50 patents with over 15 years of focus on the smart BMS industry.
  • Expert Team: Professional software and cloud platform research and maintenance team with rich experience in customized solutions.
  • Efficient Delivery: Self-owned factory supports fast sampling and high-volume mass order delivery.
  • Strict Quality Control: ISO9001 certified factory; comprehensive quality control system from individual parts to finished products with 100% production inspection.

Professional Capability

Established in 2011, this high-tech enterprise specializes in the research, development, production, and sales of lithium battery management systems (BMS). As a national-level enterprise specializing in refined and innovative technologies, the goal is to provide global customers with safe, intelligent, and efficient battery solutions.

With a strong R&D team (40% research professionals), we have accumulated over 50 national patents. The cloud platform has successfully managed millions of battery packs, offering comprehensive health monitoring. The core BMS protection boards are widely used in e-bikes, forklifts, drones, power tools, and large-scale industrial energy storage systems.

Frequently Asked Questions

How do I choose the right BMS board?
It depends on your cell and battery pack parameters as well as your application scenarios. It is recommended to verify technical requirements before purchasing.
What is the factory's production capability?
The factory can produce 50,000 pieces per month, with the capacity to scale up to 100,000 pieces within three months based on order volume.
What is the standard delivery time?
For standard products, delivery typically takes 7-15 days. For OEM, ODM, or bulk quantity orders, please consult for a specific timeline.
Do you provide OEM/ODM services?
Yes, with a strong R&D team and professional equipment, both OEM and ODM services are fully supported and welcomed.
What are the available shipping terms?
Products can be shipped by air, express (DHL, FEDEX, UPS), or by sea, depending on your specific needs.
How are the products packed?
Items are securely packed using bubble mailers within sturdy carton boxes to ensure safety during transit.
