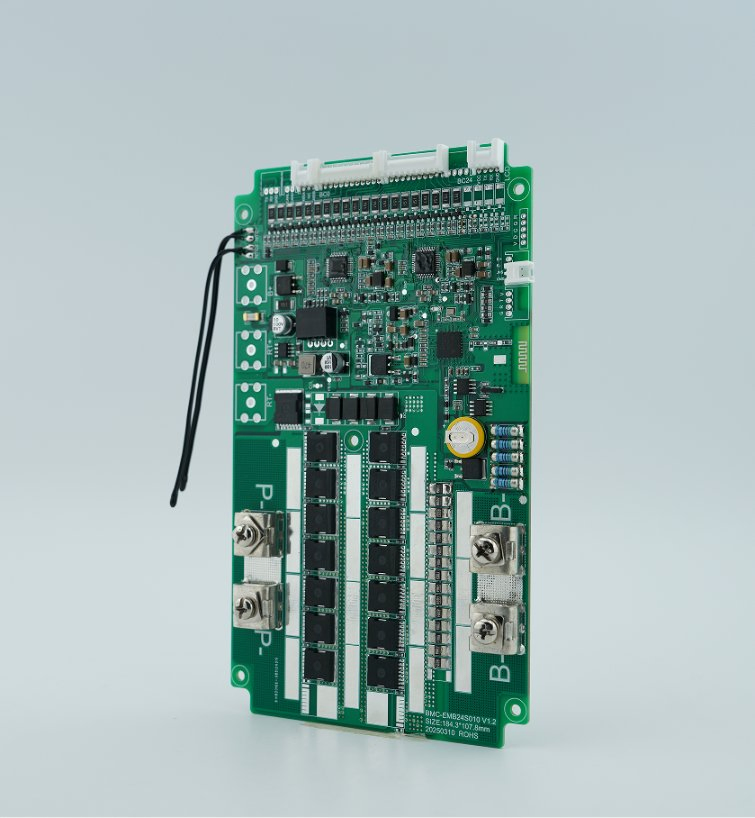

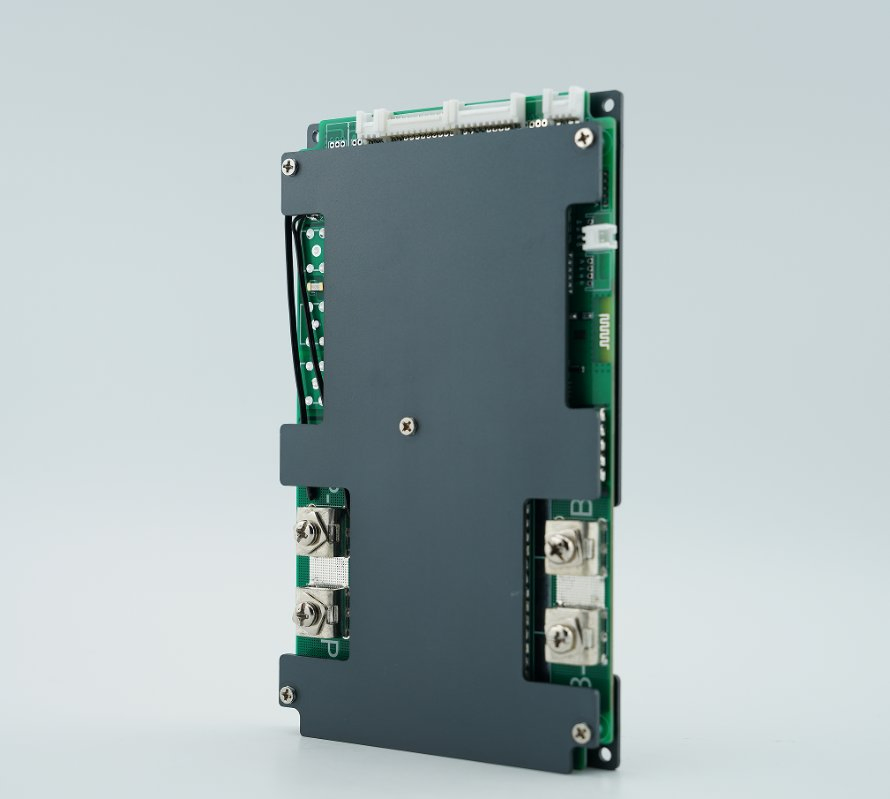

Battery Management System 24 Series 200A (R485 communication) - Free Sample BMS Provided

1 / 5

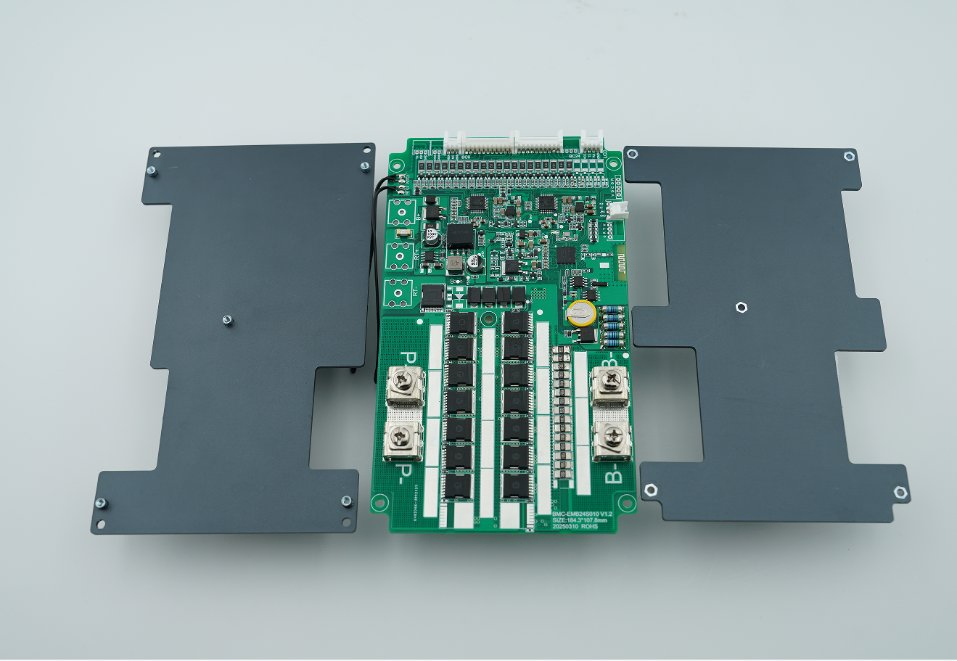

Battery Management System 24 Series 200A (R485 communication) - Free Sample BMS Provided

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

📋

Basic Product Specifications

Model NO.

BMS LiFePO4

Balance Function

Yes

Usage

Lithium Battery Packs, etc

Application

Digital Equipment, Electric Ebike, etc

Metal Coating

Copper

Base Material

Fr-4

Layers

Multilayer

Certification

RS485, CAN, Bluetooth

Testing Service

100% E-Testing

Dimensions

L184.3 * W107.8 * T16mm

📦

Packing & Delivery

Package Size	22.00cm * 1.0700cm * 0.23cm
Package Gross Weight	428g
Packing Method	Inner: Vacuum Packing / Outer: Carton Packing

🚀

Detailed Product Features

Smart Sleep & Power Management

The system intelligently enters low-power mode when the following conditions are met for 50 minutes:

No active charging or discharging detected.
No UART or Bluetooth communication in progress.
System is not in equilibrium state.
Automatic hibernation to protect battery life (MOS sleep mode).

Wake-up Mechanism

The BMS can be awakened from hibernation through several methods:

Connecting a charger to initiate a charging cycle.
Applying a load for discharge.
Activating UART communication or Wireless communication via the Smart Bluetooth APP.

Frequently Asked Questions

What type of battery is this BMS suitable for?

This BMS is specifically designed for LiFePO4 battery packs, commonly used in electric bikes, digital equipment, and lithium power storage systems.

Does it support remote monitoring?

Yes, it features RS485 and CAN communication protocols, as well as a dedicated Bluetooth APP for real-time monitoring and parameter adjustment via your smartphone.

How does the automatic balance function work?

The BMS includes an integrated balance function that ensures all individual cells within the battery pack maintain consistent voltage levels, extending battery lifespan and safety.

What is the low-power sleep mode?

To save energy, the system enters a sleep mode after 50 minutes of inactivity (no charging, discharging, or communication). It can be easily awakened by charging or via the app.

Can this BMS be customized for specific requirements?

Yes, we provide customized services to meet specific technical requirements for different industrial and consumer applications.

What is the standard lead time for orders?

For small orders, the typical delivery time is 7-12 days after payment is received.

Product Detail
