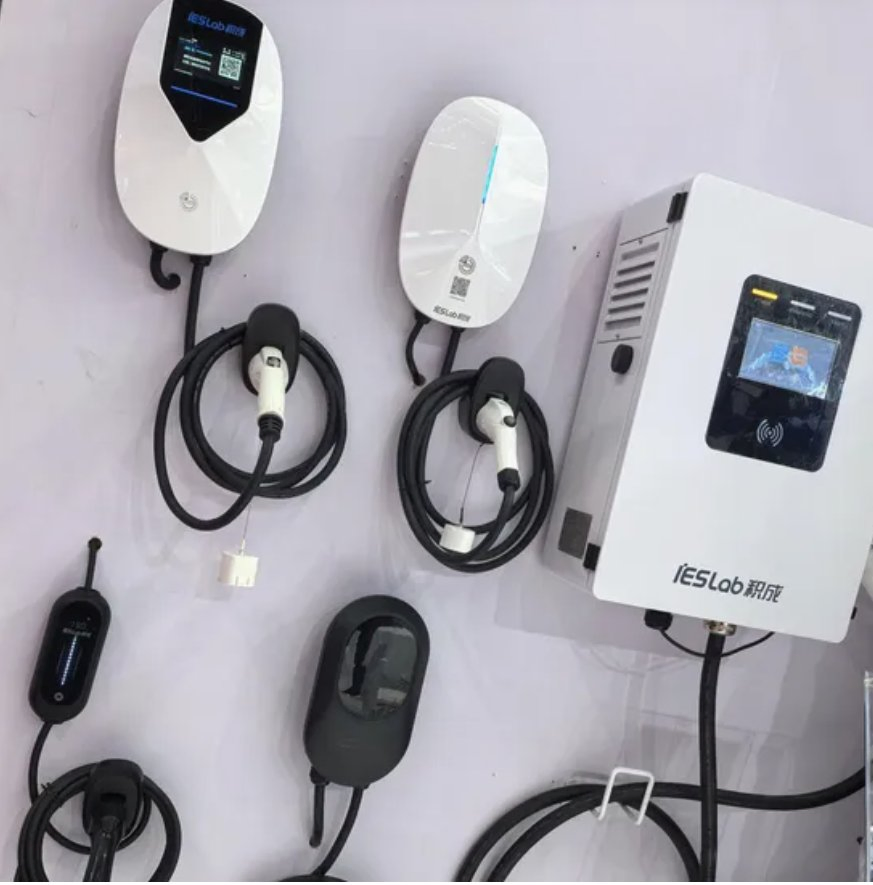

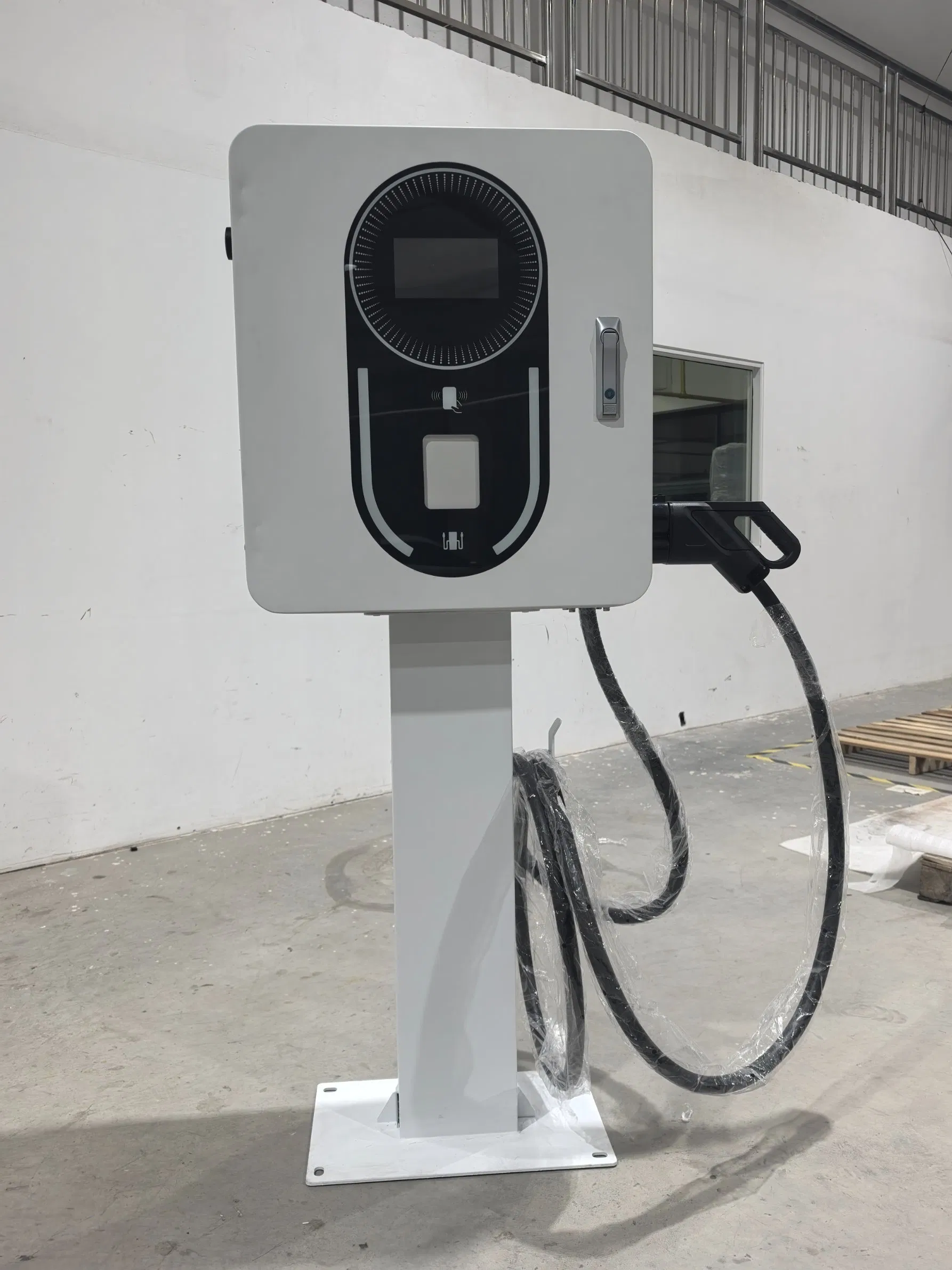

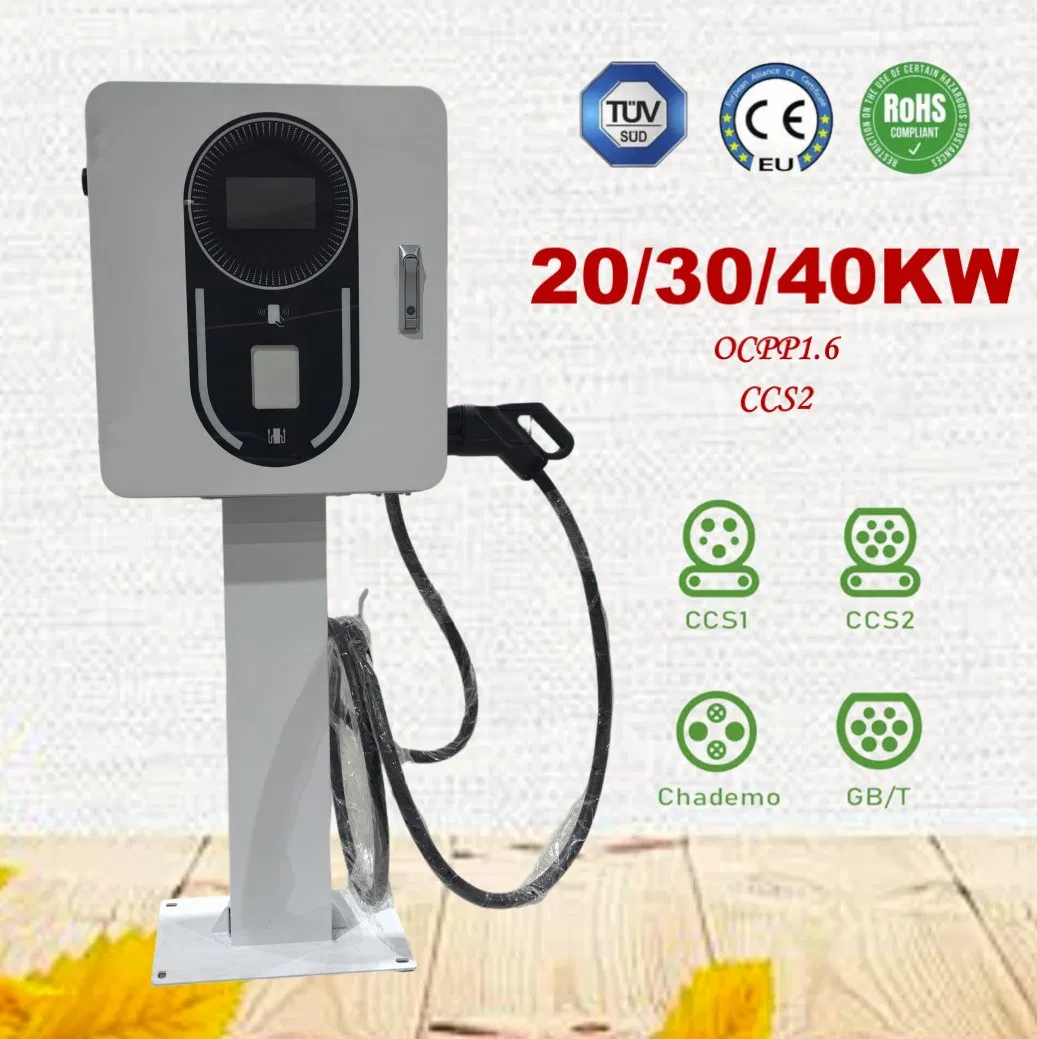

Wall Mounted Commercial Home Use Ocpp1.6 20kw 30kw 40kw Electric Vehicle Car Battery Fast DC EV Charging Solution

Customization: Available
Connector Type: CCS1, CCS2, CHAdeMO, GB/T
Installation: Wall Mounted

Product Description

Basic Information
Model NO.
20/30/40kw DC EV Charging Station
Location
Public/Private
Interfaces
One Pile with One Charge
Start Mode
RFID, Credit Card, Mobile APP
Output Power
20kw / 30kw / 40kw
Output Voltage
200V-1000V
Protection
IP54
Network
Ethernet / 4G
Product Features
Nuclear safety-grade high-power power module platform, offering high safety and reliability. Adopts efficient three-phase PFC circuit with a power factor >0.99 and harmonic distortion rate <5%. The high-frequency module utilizes full-bridge phase-shifting soft-switching technology for high efficiency. Digital flow technology improves accuracy and anti-interference. Pioneering module sleep and rotation technology ensures efficient system operation. Intelligent charging control for easy operation, supporting timed, quantitative, fixed-amount, and automatic charging modes. Real-time display of charging information, with RS-485 and GPRS communication options. Hot-swappable module design for easy maintenance.

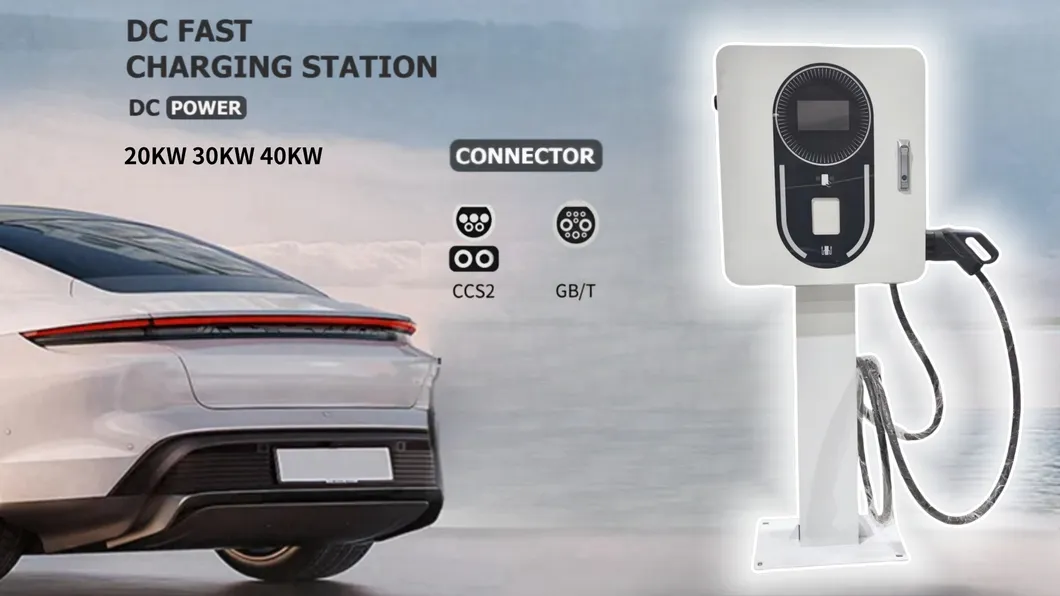

EV Charging Station View 1

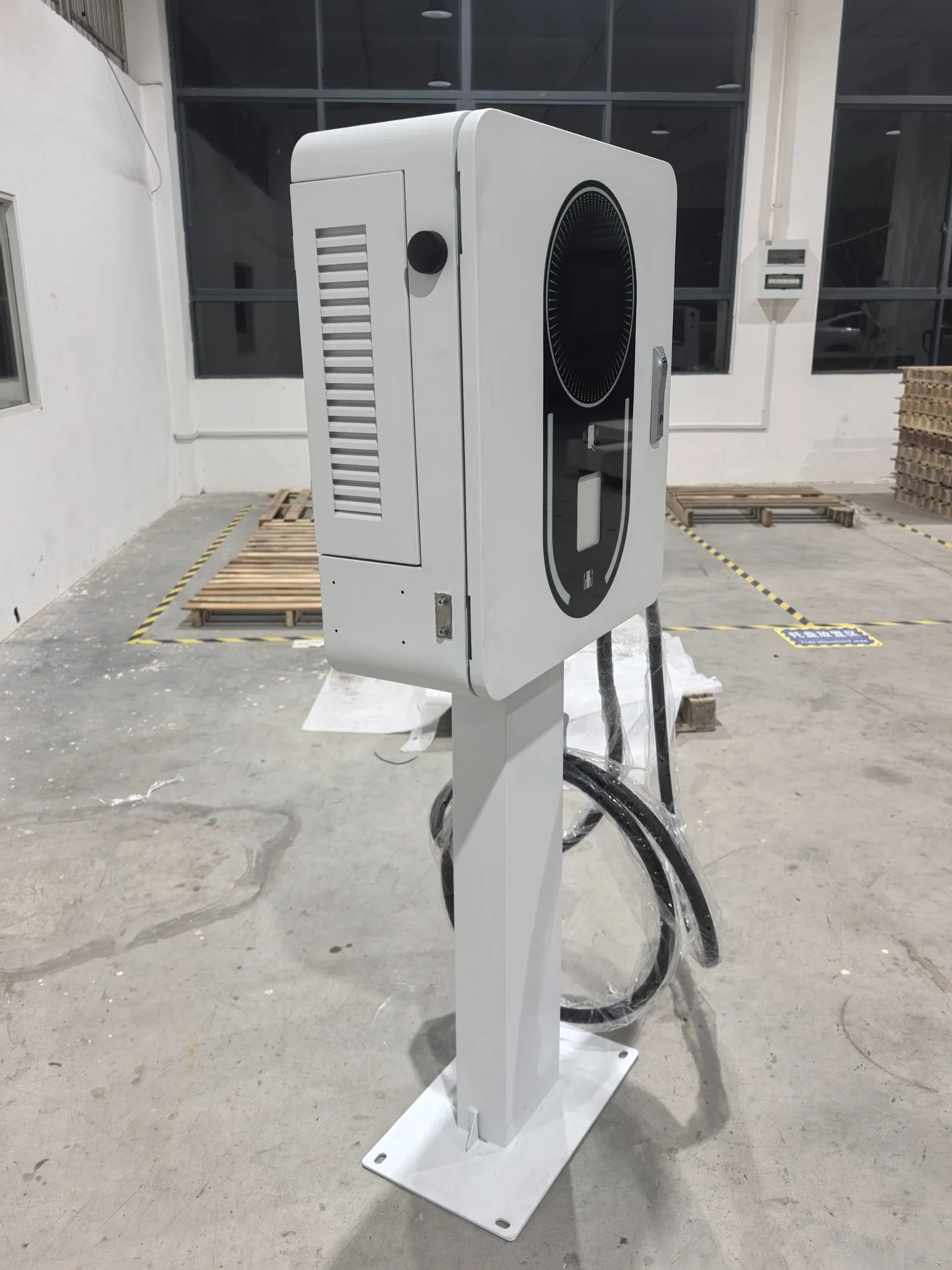

EV Charging Station View 2
Technical Specifications
Parameter Item Details
Output SpecsPower Options20kW / 30kW / 40kW
Voltage Range1000V DC
Current Range0-125A
User InterfaceDisplay7-inch LCD Color Touch Screen
InstallationWall Mounting
Cable Length5 Meters (Customizable)
Electrical PerformanceEfficiency≥94.5%
Power Factor≥0.99 (Above 50% load)
THD≤5% (Above 50% load)
Comprehensive Safety Functions

Charging gun temperature detection, overvoltage protection, undervoltage protection, overload protection, short circuit protection, grounding protection, overtemperature protection, low temperature protection, insulation monitoring, polarity reverse protection, lightning protection, emergency stop, and leakage protection.

Internal Structure
Dimensions

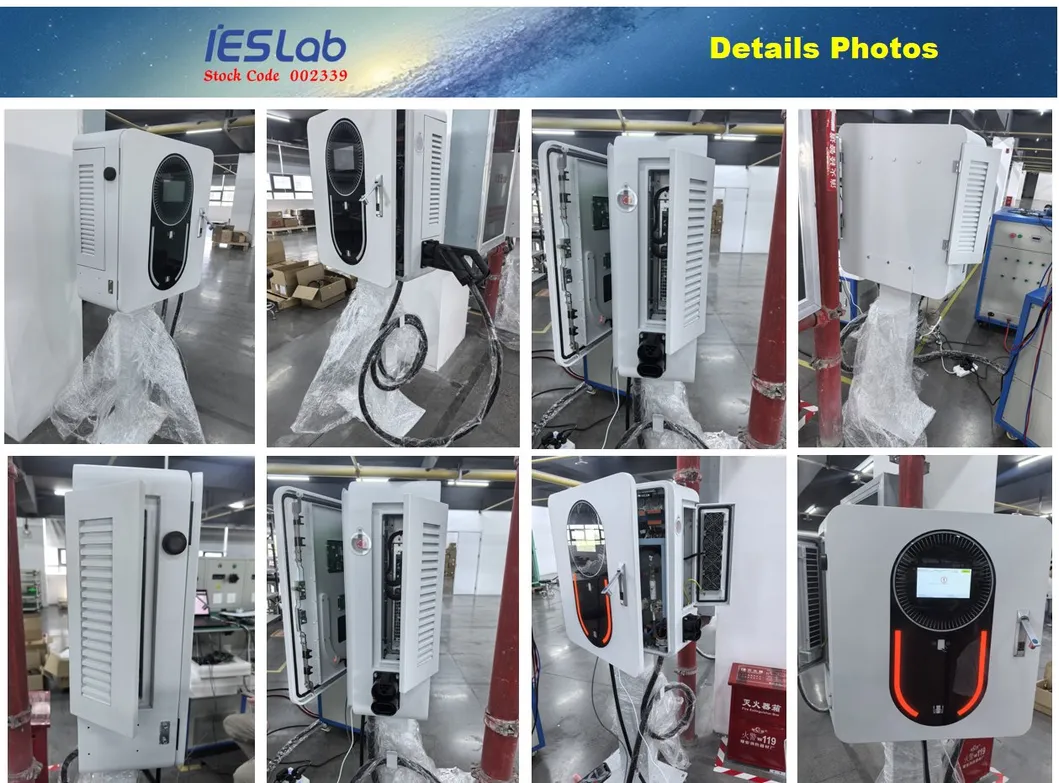

Main Features
Product Range & Factory

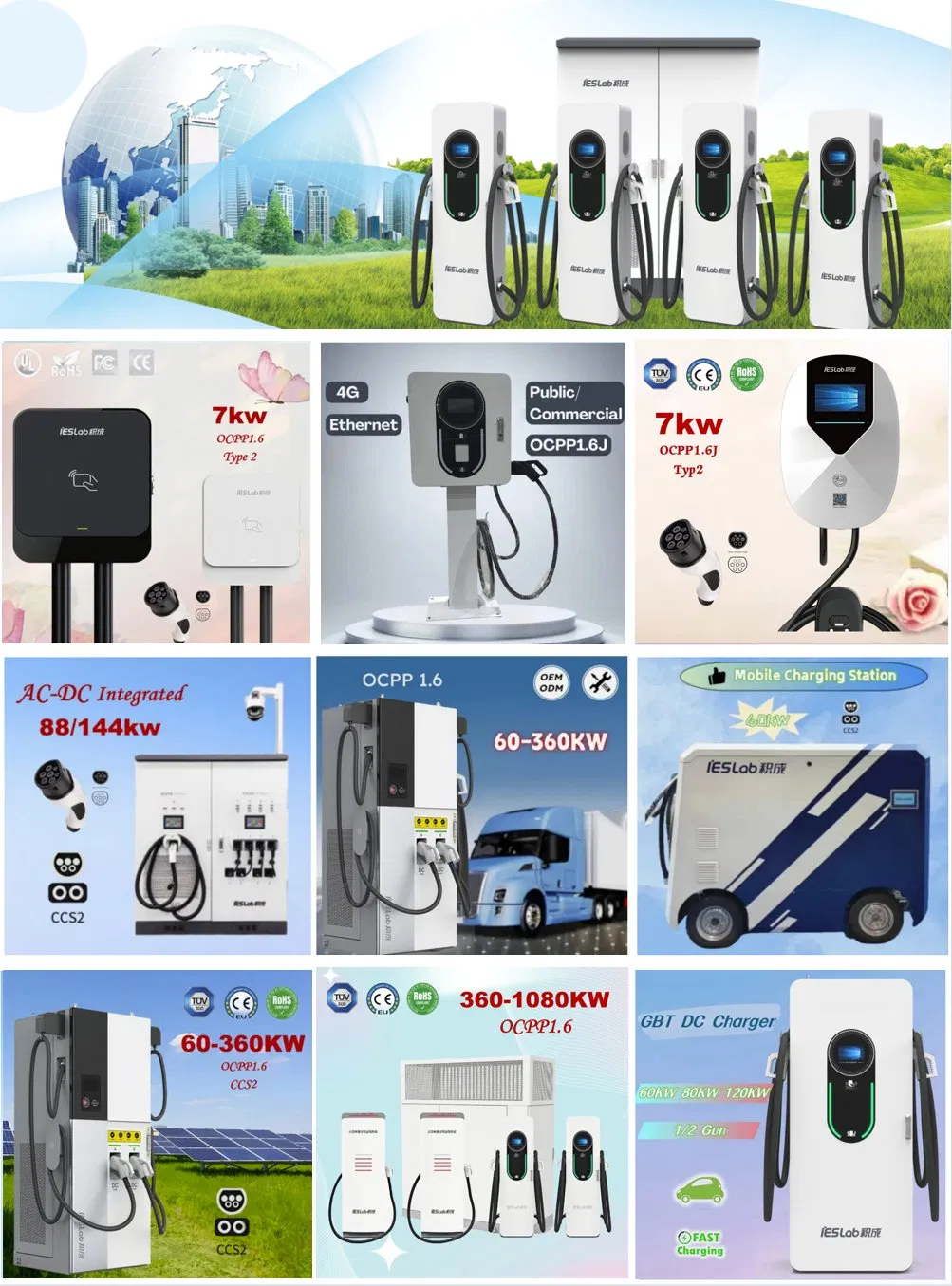

Product Line

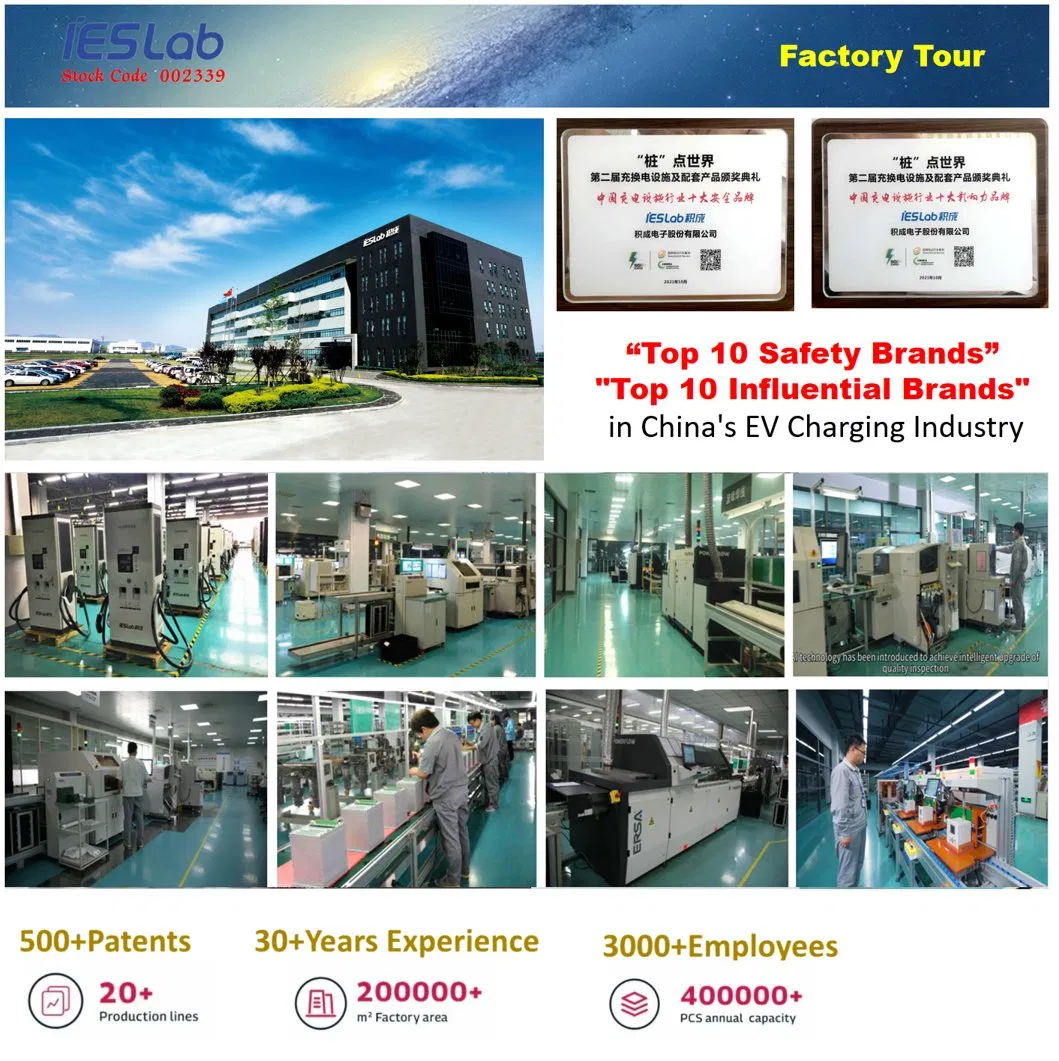

Production Facility

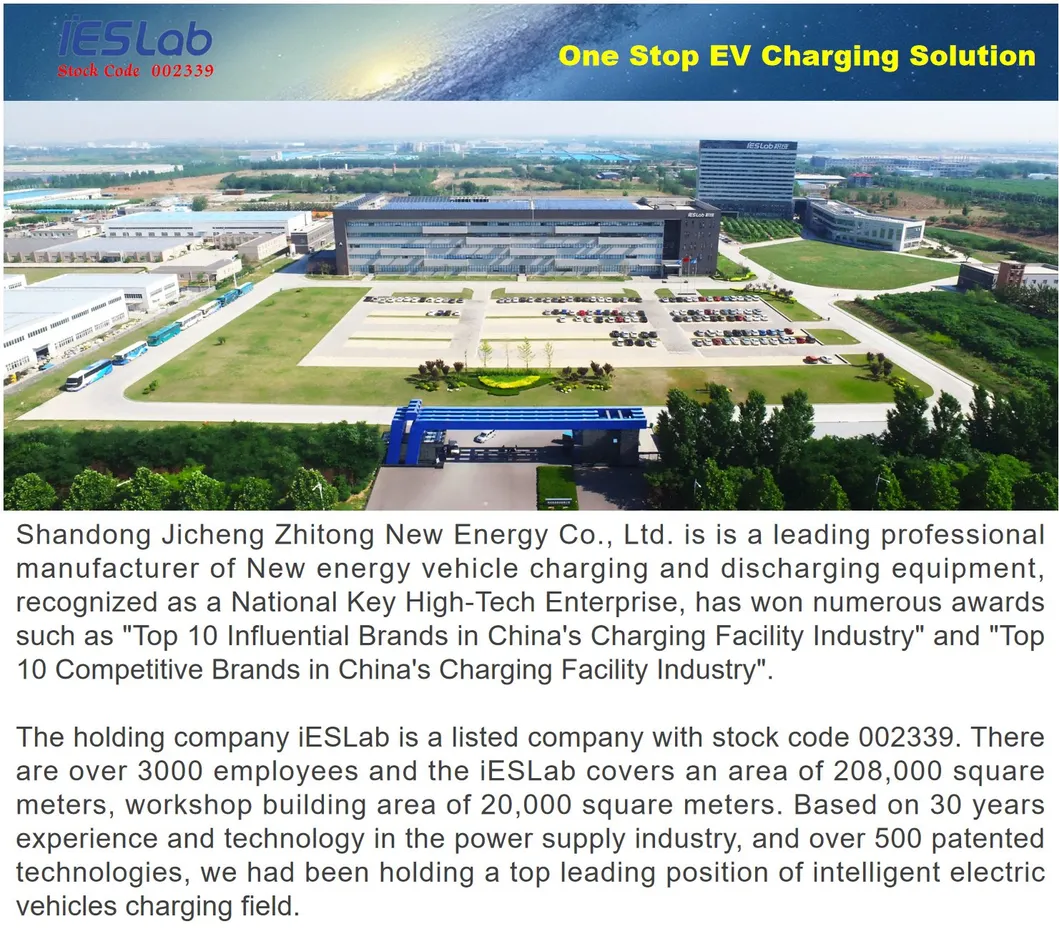

Manufacturing
Fair Events
Applications & Certifications

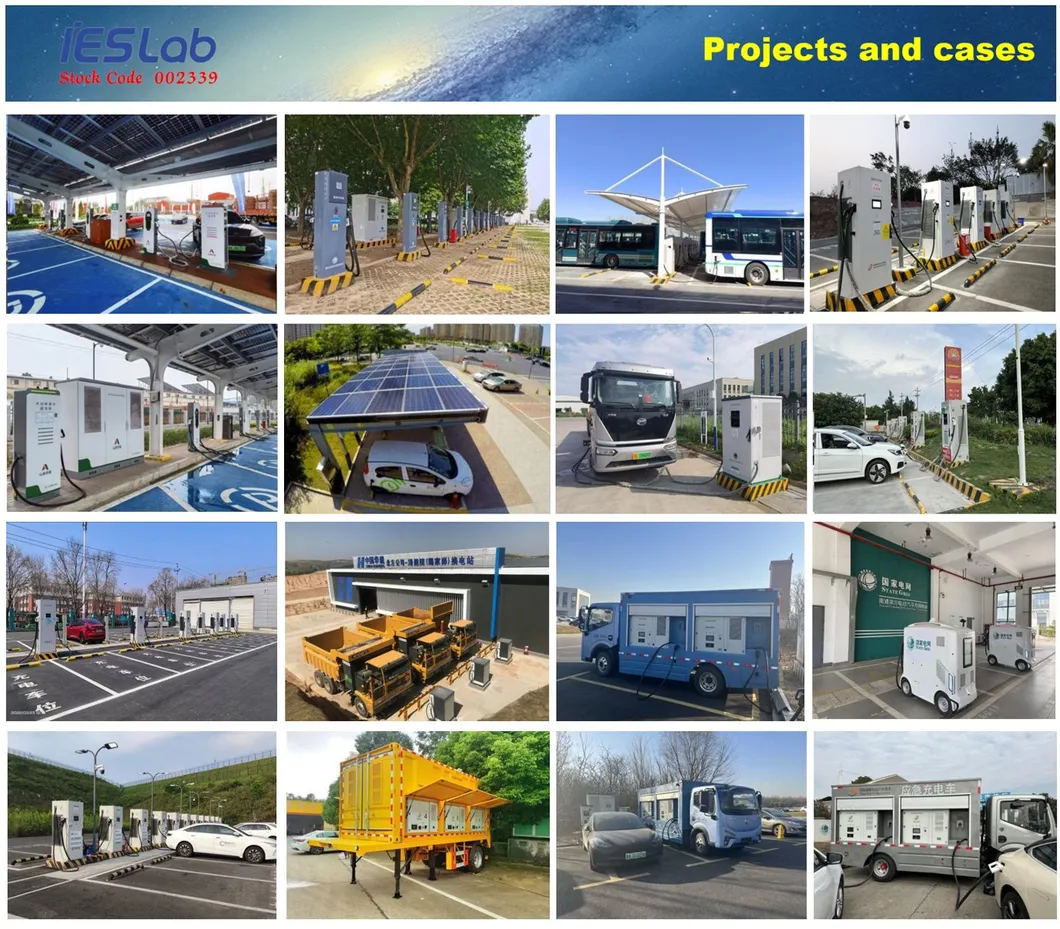

Installation Case
Certificates
Frequently Asked Questions
Are you a factory or a trading company?
We are professional manufacturer with 20 years of R&D and production experience. You are highly welcomed to visit our facility at any time!
Is customization acceptable for the chargers?
Yes, you can customize the appearance, power output, payment methods, and more. Our team will tailor the solution to your specific needs.
What is the warranty period?
We provide a 2-year warranty. During this period, we offer technical support and replacement parts for any product quality issues.
Do you test all units before shipping?
Yes. All major components are tested before assembly, and every completed charger undergoes full functional testing before being shipped.
Is the charging station easy to install?
Our charging stations feature a modular design for fast and convenient installation. We also provide comprehensive installation guides and usage training.
Can you produce according to specific samples?
Yes, we can produce based on your samples or technical drawings, including building necessary molds and fixtures.
