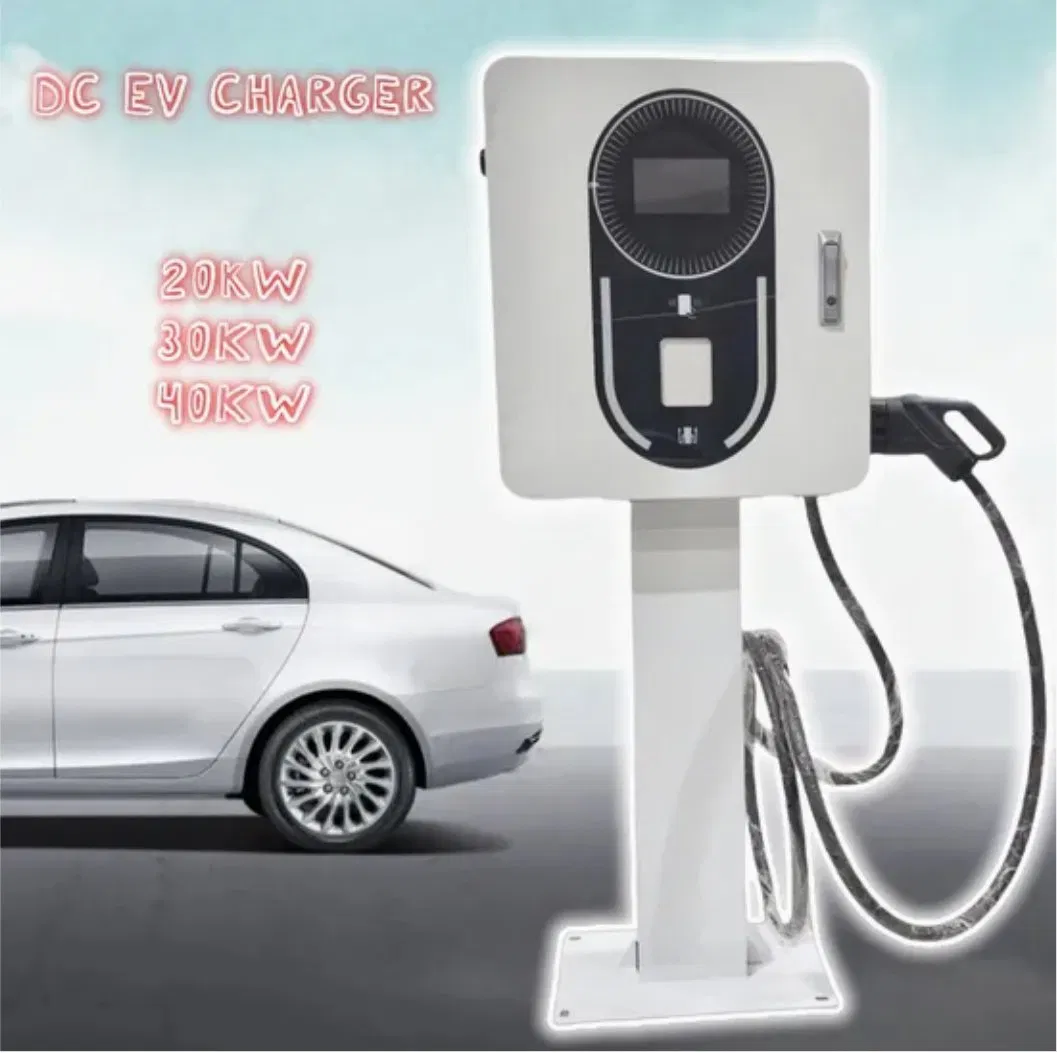

Byd Evs Gbt CCS2 Wall Mounted Commercial Public Home Use 20kw 30kw 40kw Electric Car Vehicle Battery Fast DC EV Charger Charging Solution

Customization: Available
Connector Type: CCS1, CCS2, CHAdeMO, GB/T
Installation: Wall Mounted

Product Description

Basic Specifications

Model NO.20/30/40kw DC EV Charging Station
LocationPublic/Private
Number of Charging InterfacesOne Pile with One Charge
Start ModeCredit Card Payment, Mobile Remote Operation, RFID Authentic
Output Power20kw 30kw 40kw
Rated Output Current0-125A
Protection RatingIP54
Output Voltage200V-1000V
Operating Temperature-20°C ~ 50°C
Screen7 Inch Color LCD Screen (Customizable)
NetworkEthernet / 4G
Gun Cable Length5 Meters (Customizable)
After-Sales Service2 Years Warranty
Cooling-Down MethodForced Air Cooling

Product Description

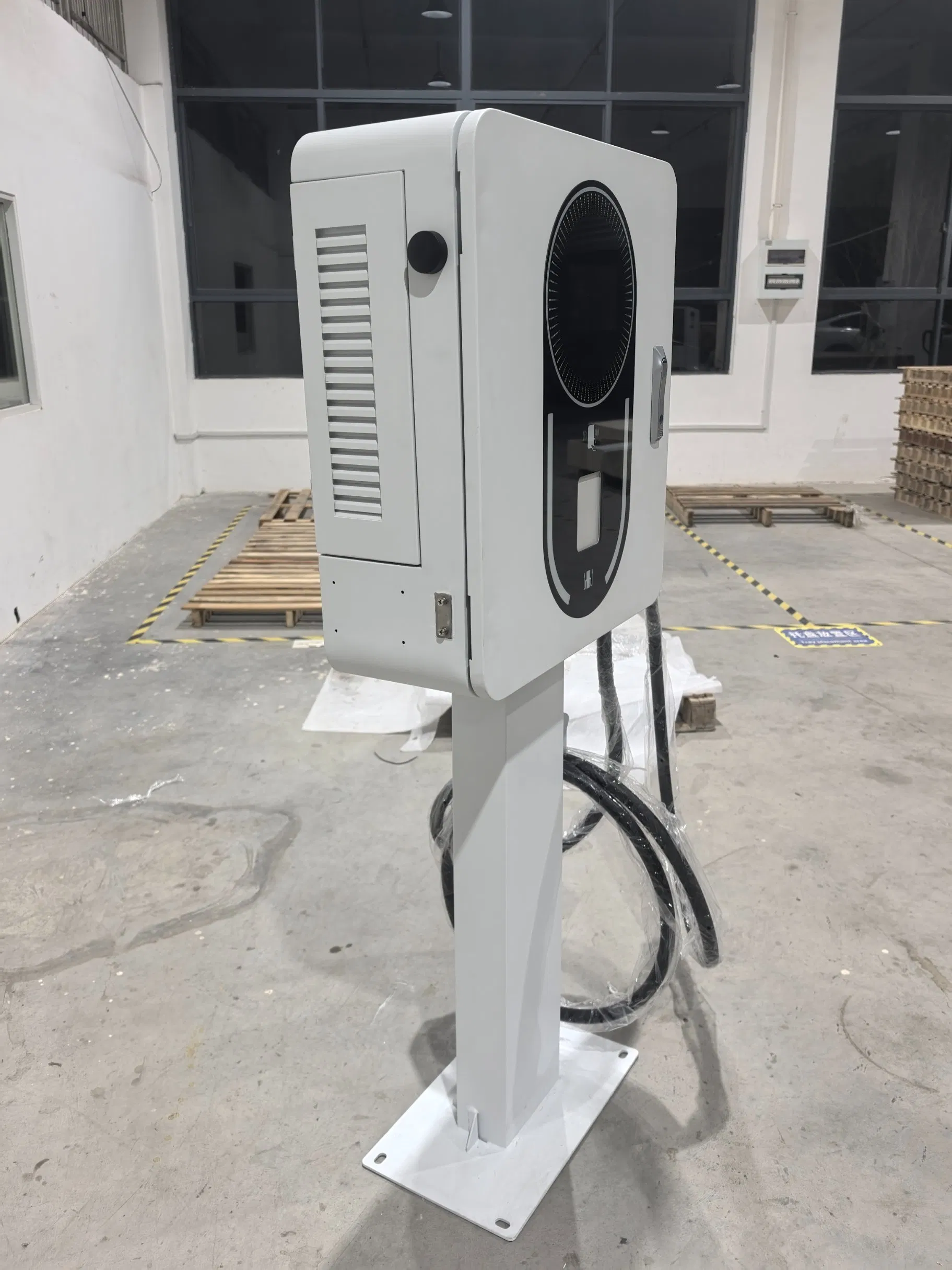

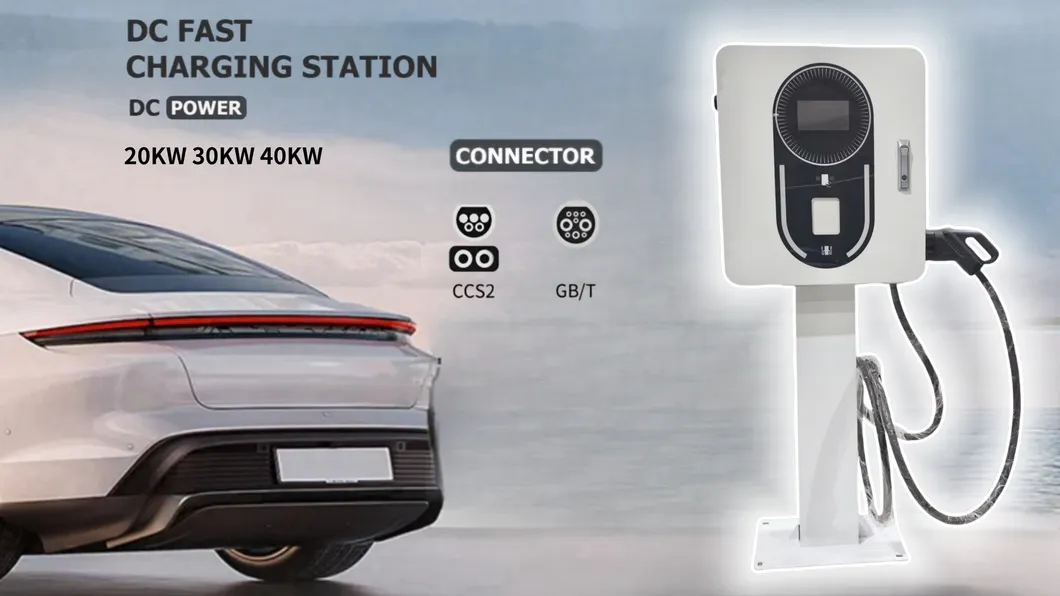

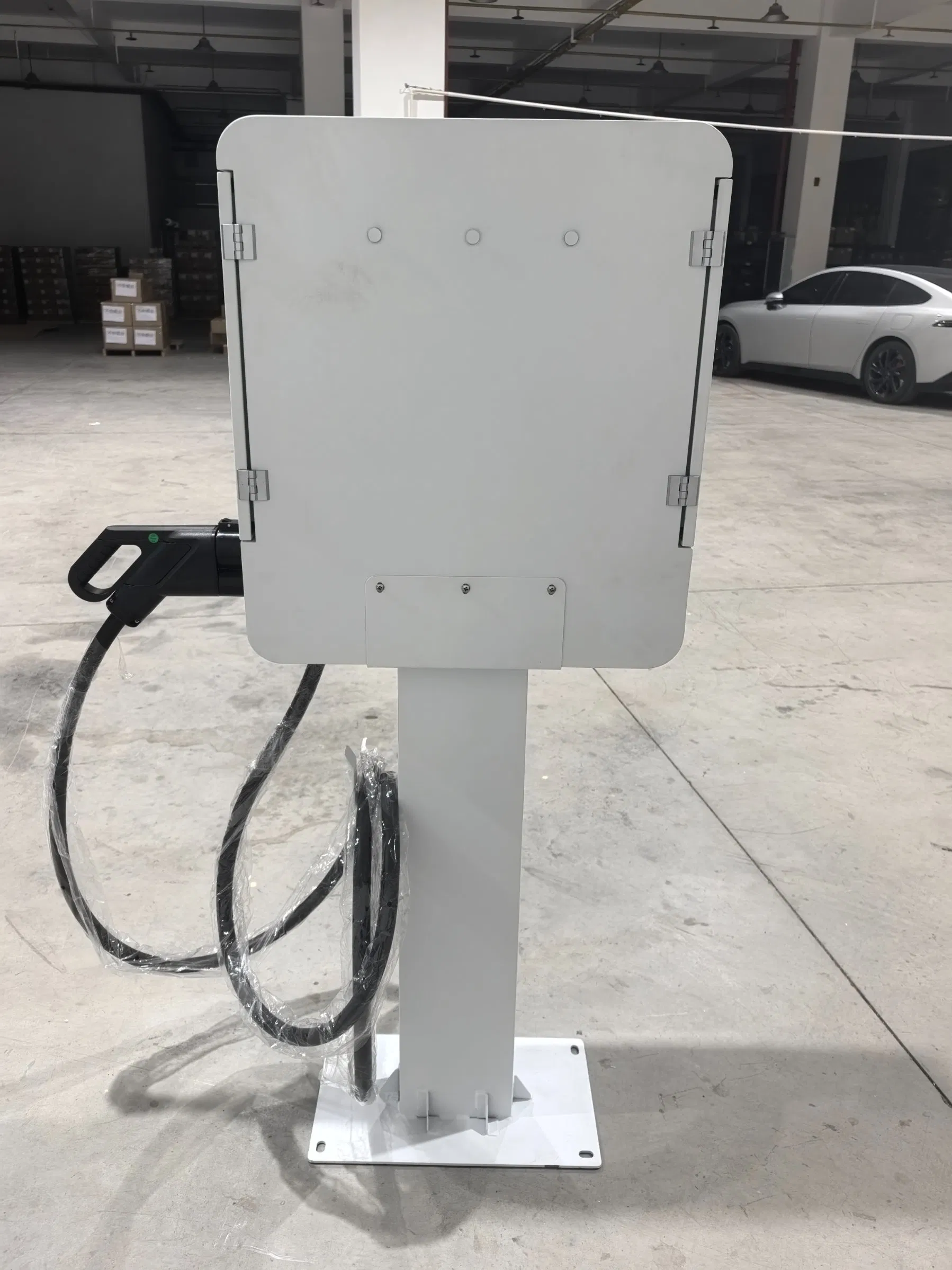

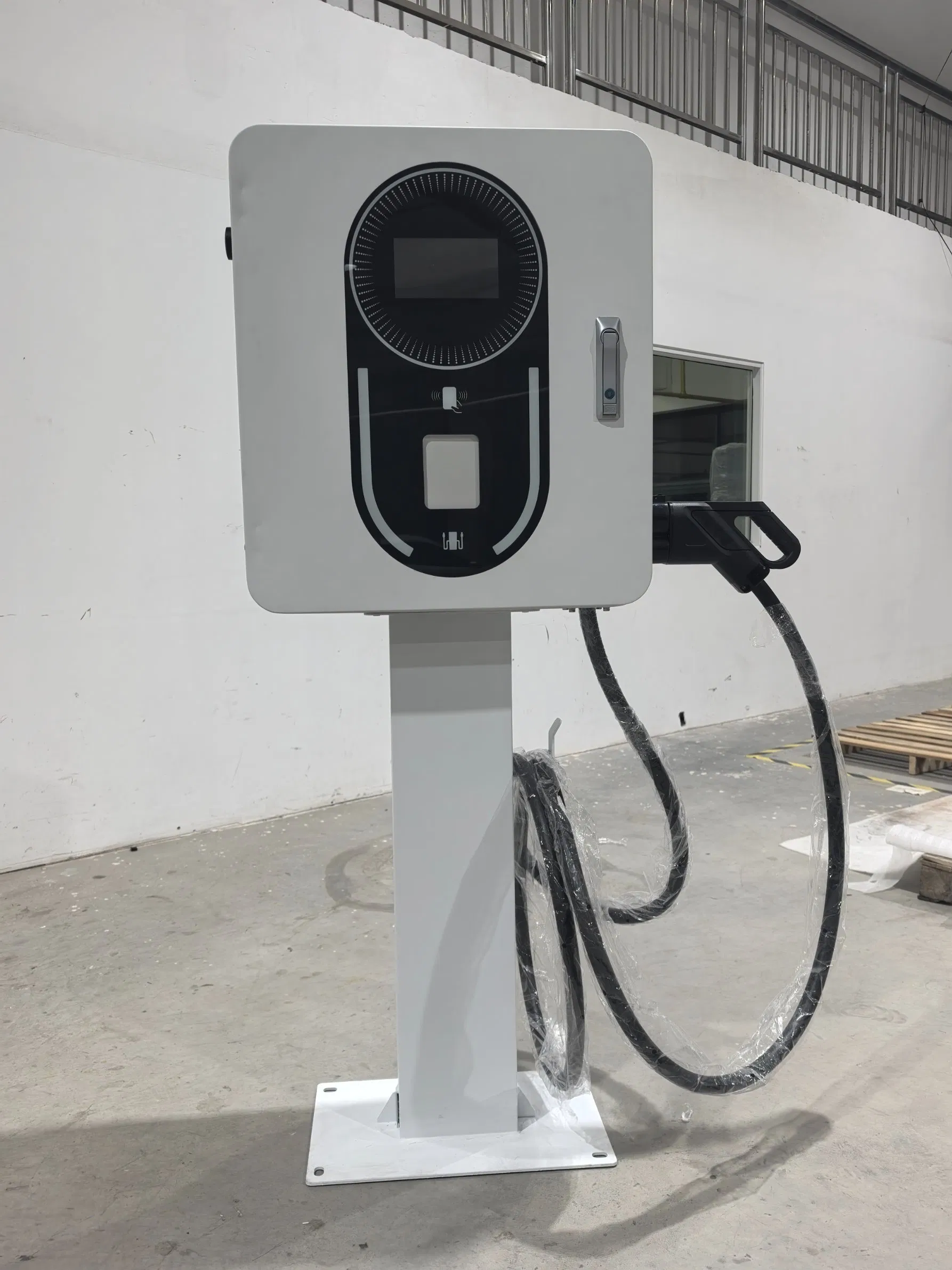

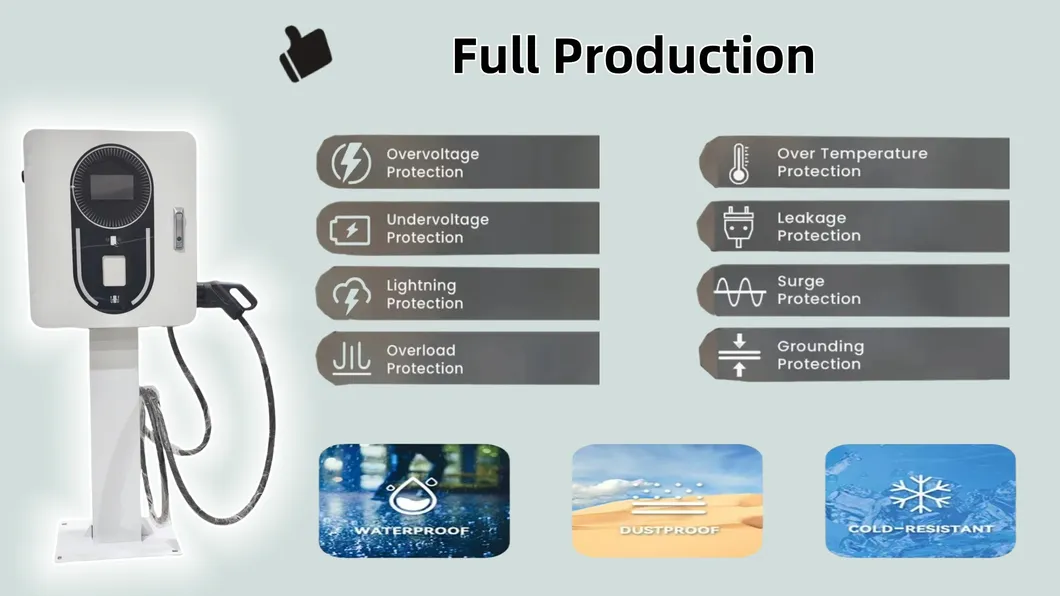

DC EV Charger Solution Wall Mounted Fast DC Charger
Technical Parameters
User Interface7-inch LCD color display touch screen
Installation MethodWall mounting
Input VoltageAC400V±15%
Incoming Frequency45~65Hz
Efficiency≥94.5%
Power Factor≥0.99 (Above 50% load)
Safety DesignIEC/EN 61851, IEC/EN 62196
Safety FunctionsOver/Undervoltage, Overload, Short circuit, Grounding, Overtemperature, Insulation monitoring, Lightning protection, Emergency stop, Leakage protection.
MTBF100,000 h
Charger Internal Structure

Main Products Showcase

Product Range 1

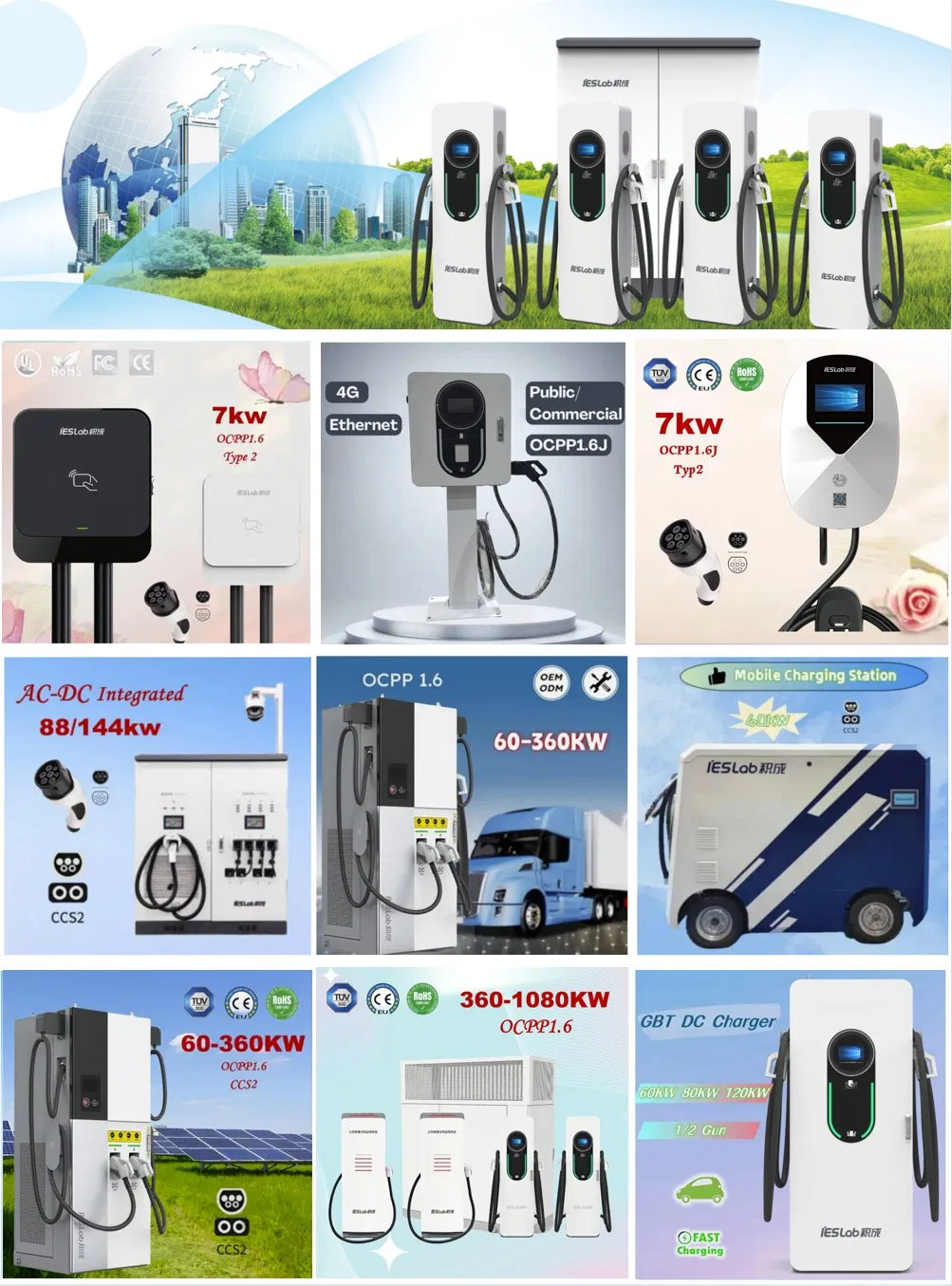

Product Range 2

Manufacturing Excellence

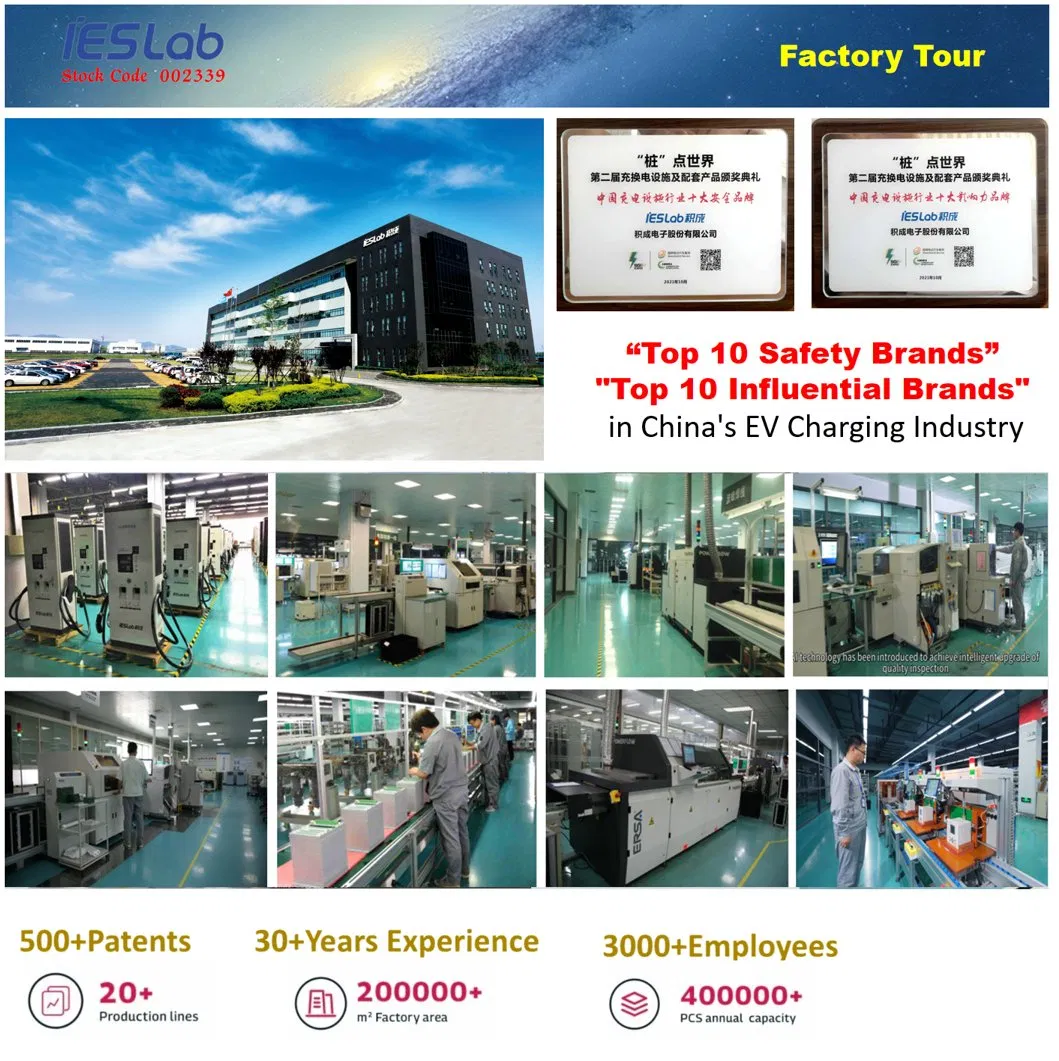

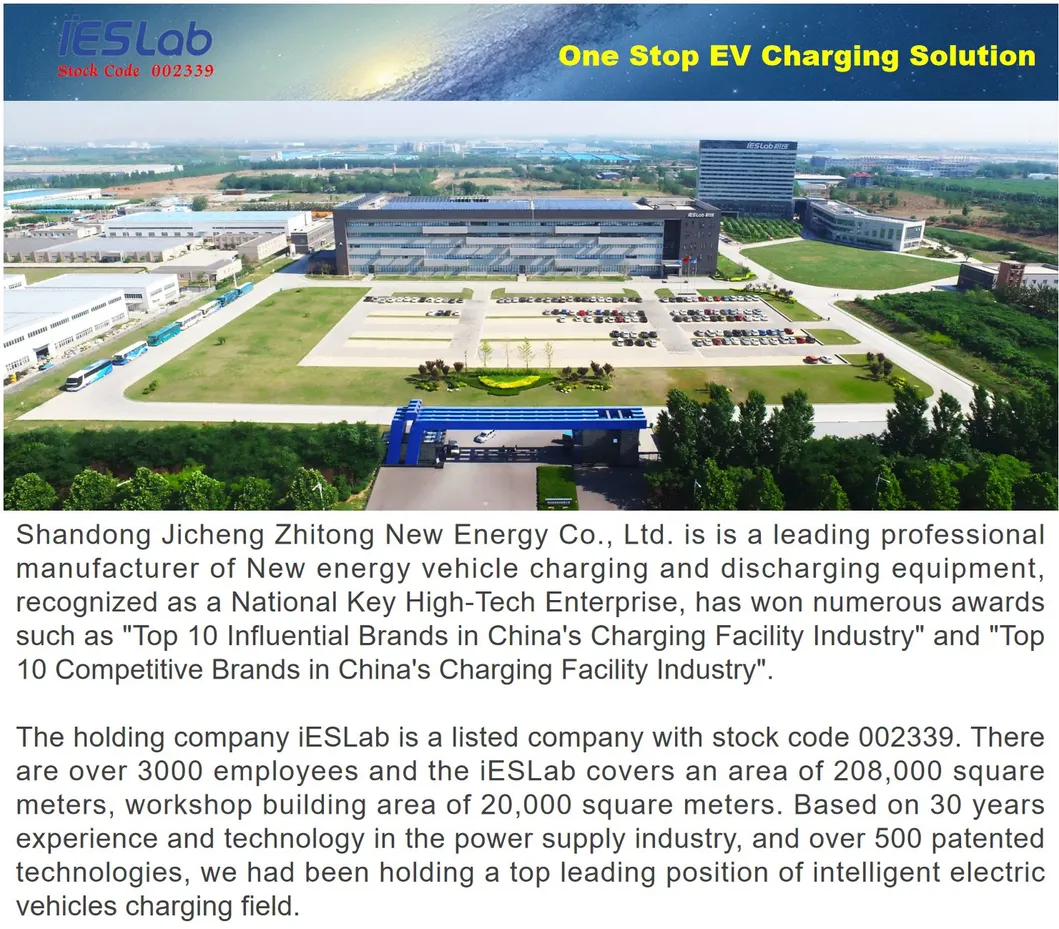

Factory Tour
Production Line
Quality Control

Fair Events & Applications

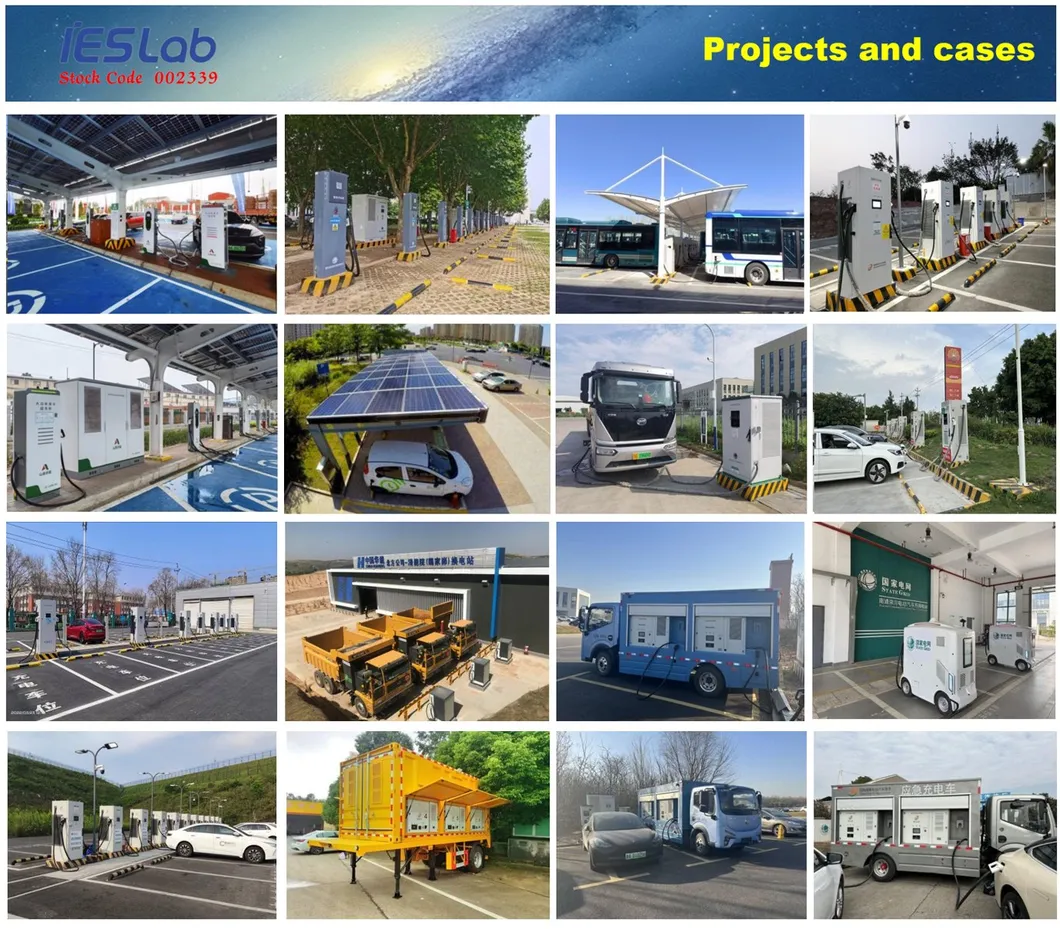

Global Exhibitions Application Cases

Certifications

Product Certifications

Frequently Asked Questions

Are you a factory or a trading company?
We are a professional manufacturer with over 20 years of R&D and production experience. You are welcome to visit our facility at any time.
Is customization available for these charging stations?
Yes, you can customize the exterior appearance, power output, payment methods, and branding. Our team will tailor the solution to your specific requirements.
What kind of warranty do you provide?
We provide a standard 2-year warranty. During this period, we offer full technical support and will replace parts if any quality issues arise.
Do you test the chargers before they are shipped?
Absolutely. All major components are rigorously tested before assembly, and every completed charger undergoes a full functional test before shipping.
Can you produce units based on samples or drawings?
Yes, our engineering team can produce chargers based on your physical samples or technical drawings, including building custom molds and fixtures.
Is the installation process complicated?
Our charging stations feature a modular design for fast and convenient installation. We also provide comprehensive manuals and usage training for your team.
