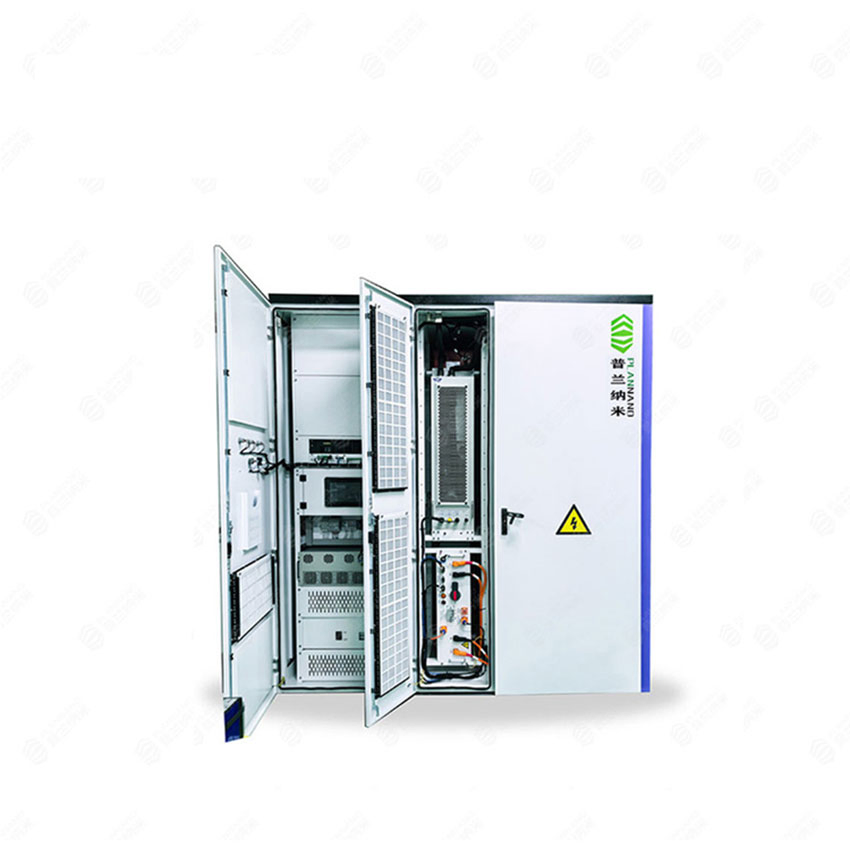

LiFePO4 Solar Photovoltaic 215kwh Industrial Commercial Air Lithium Generator Power Backup Battery Energy Storage System

Customization: Available
Nominal Voltage: 768
Warranty: Yes

Product Description

Basic Information

Model NO.
100K/215A-L
Nominal Capacity
215
Cycle Life
20000
Battery Type
302V/280ah
Rated Output Power
110kVA
Rated Grid Voltage
768V
Rated Grid Frequency
50Hz/60Hz
Specification
1500*2050*1455mm
Origin
China

Packaging & Delivery

Package Size
150.00cm * 205.00cm * 145.50cm
Gross Weight
3000.000kg
Transport Package
Container

Product Showcase

Product Parameters

Model 100K/215A-L 100K/215A-H 100K/215L-L 125K/261L-H
Battery Parameters
Nominal Capacity (Ah)280280280314
Combination Mode1P24S1P16S1P48S1P52S
Rated Capacity (KWh)215.04215.04215.04261.248
Rated Voltage (V)768768768832
Grid-connected / Off-line Parameters
Rated Power (KW)100100100125
Max. Power (KVA)110110110137.5
Rated Frequency (Hz)50505050
System Parameters
Fire FightingAerosol/PerfluorohexanonePerfluorohexanone
Cooling MethodAir-cooledLiquid-cooled
Fire RatingIP54
Overall Weight (Kg)<3000

Detailed Features

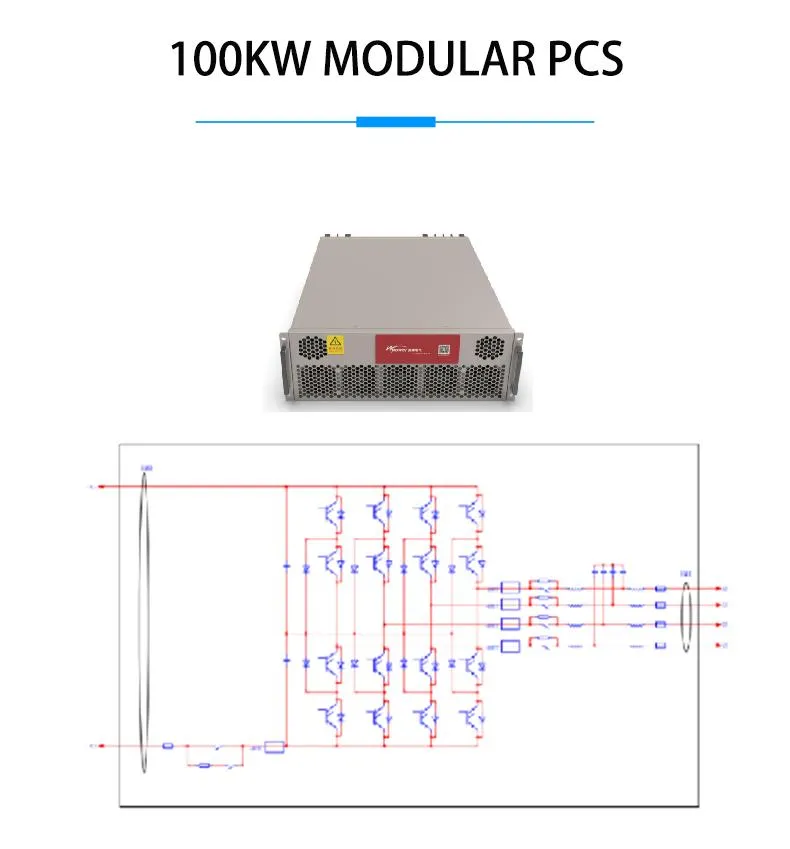

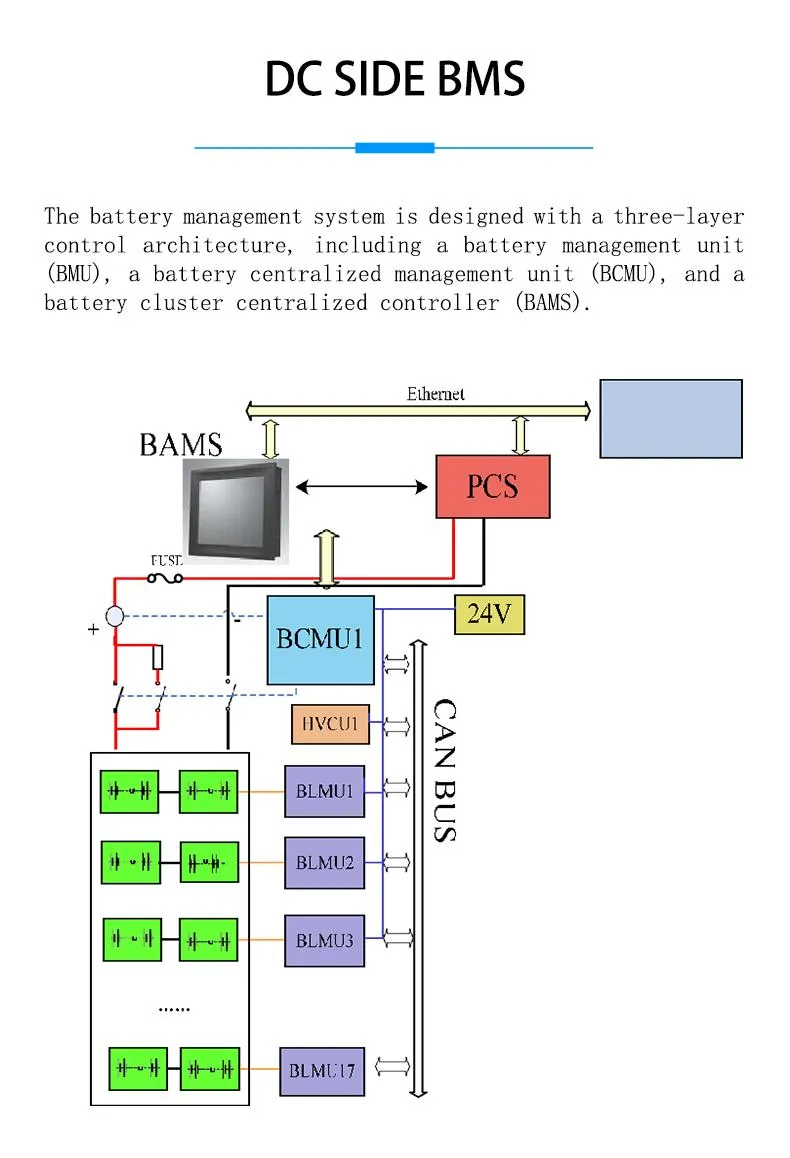

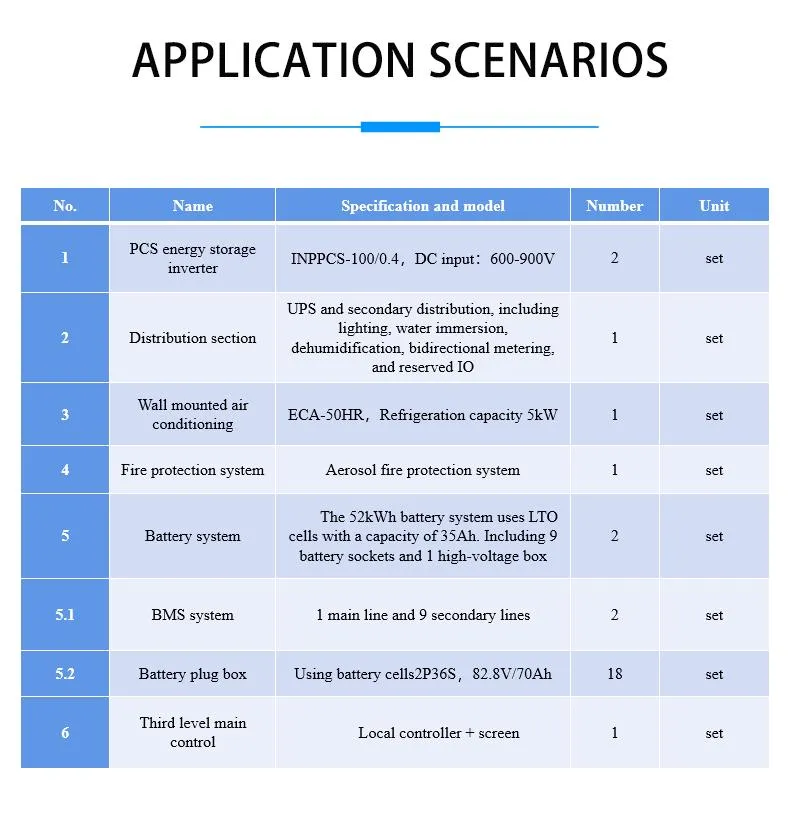

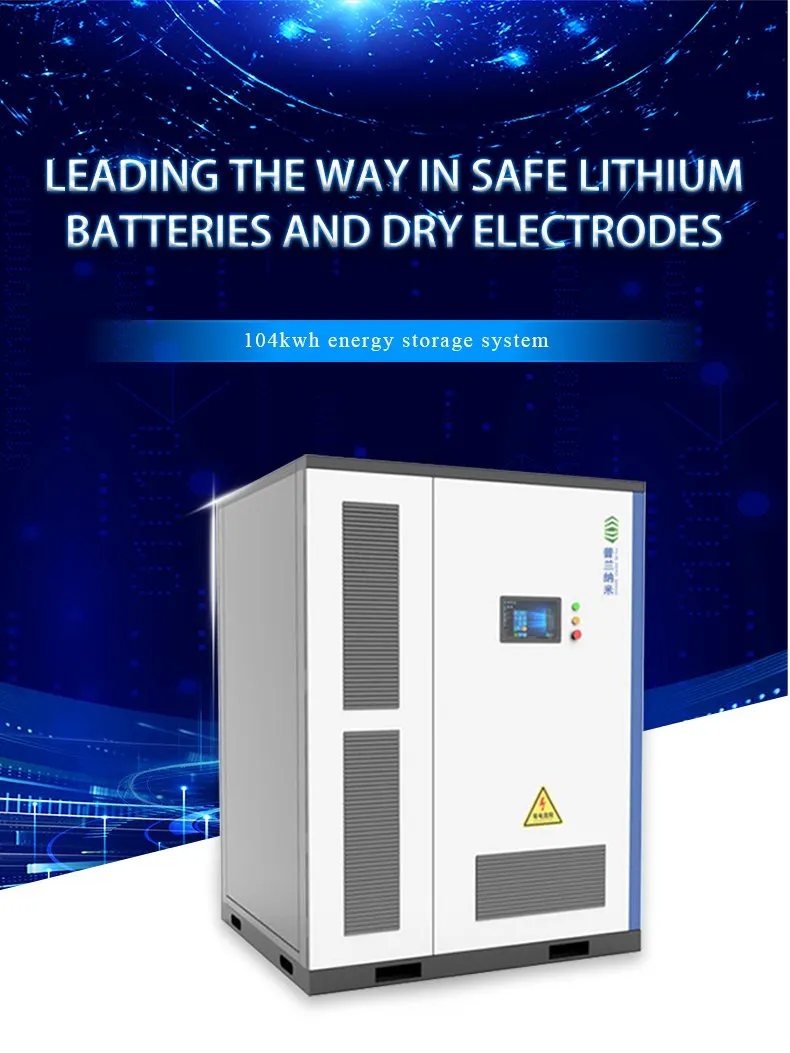

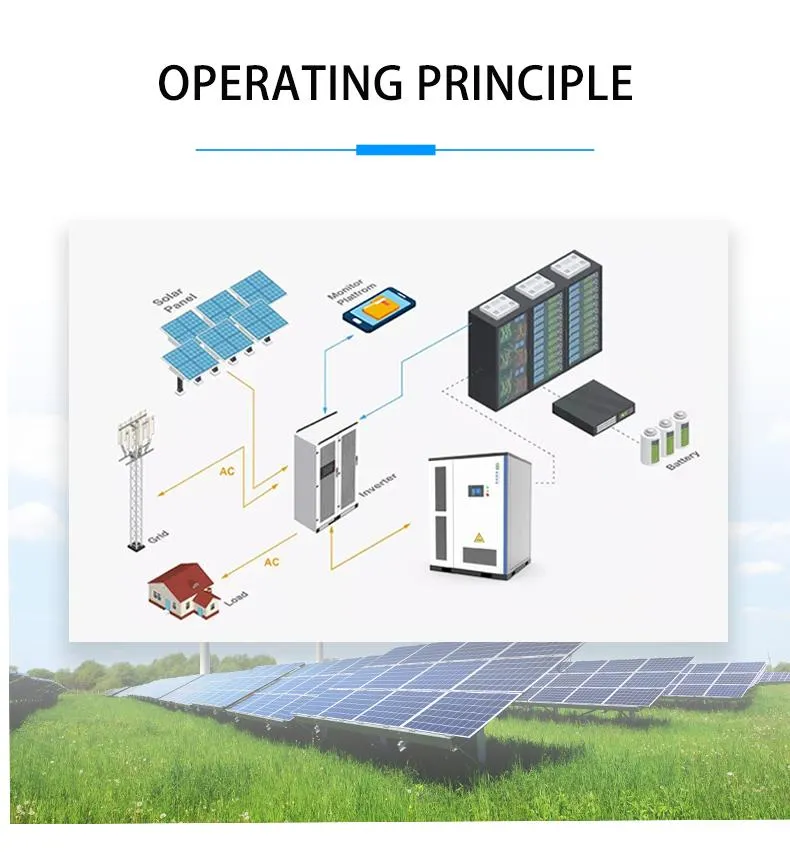

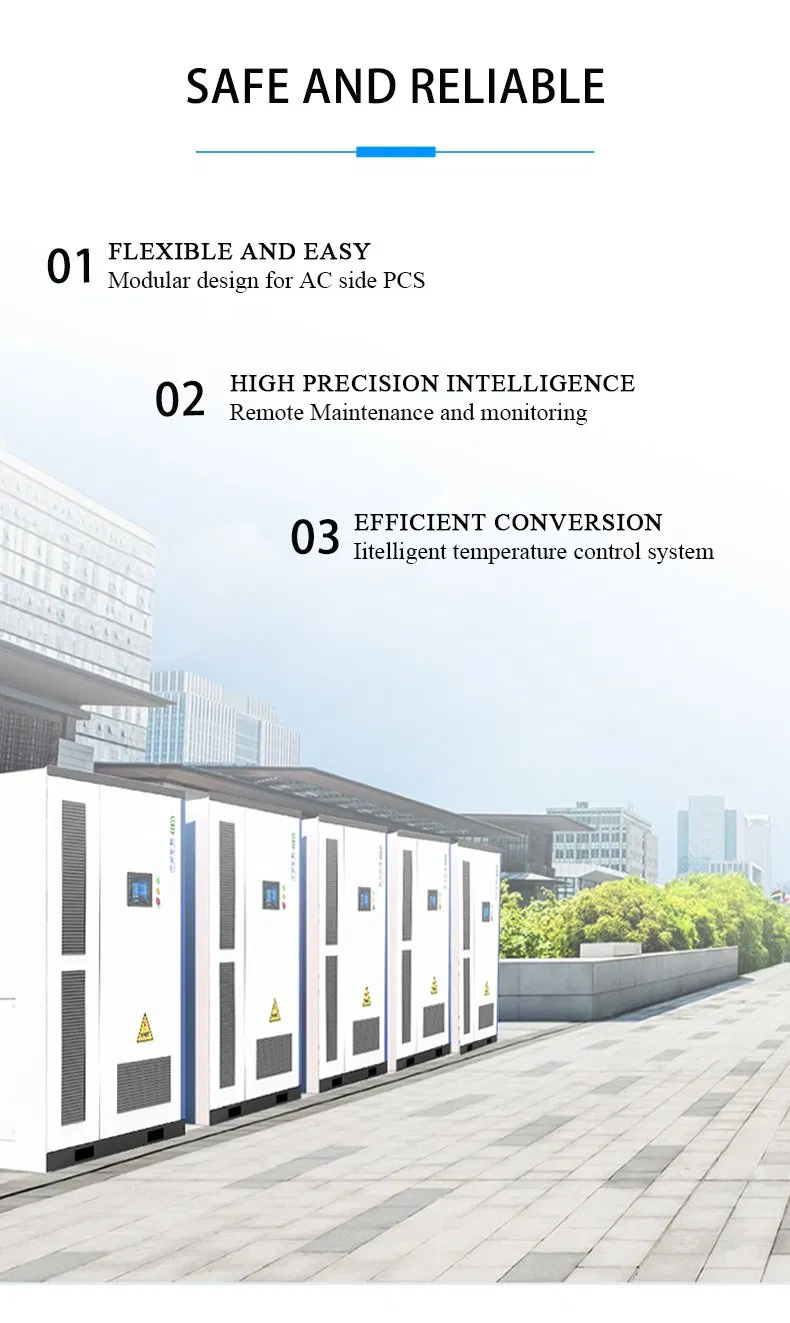

Feature 1 Feature 2 Feature 3 Feature 4 Feature 5 Feature 6 Feature 7 Feature 8 Feature 9 Feature 10 Feature 11 Feature 12

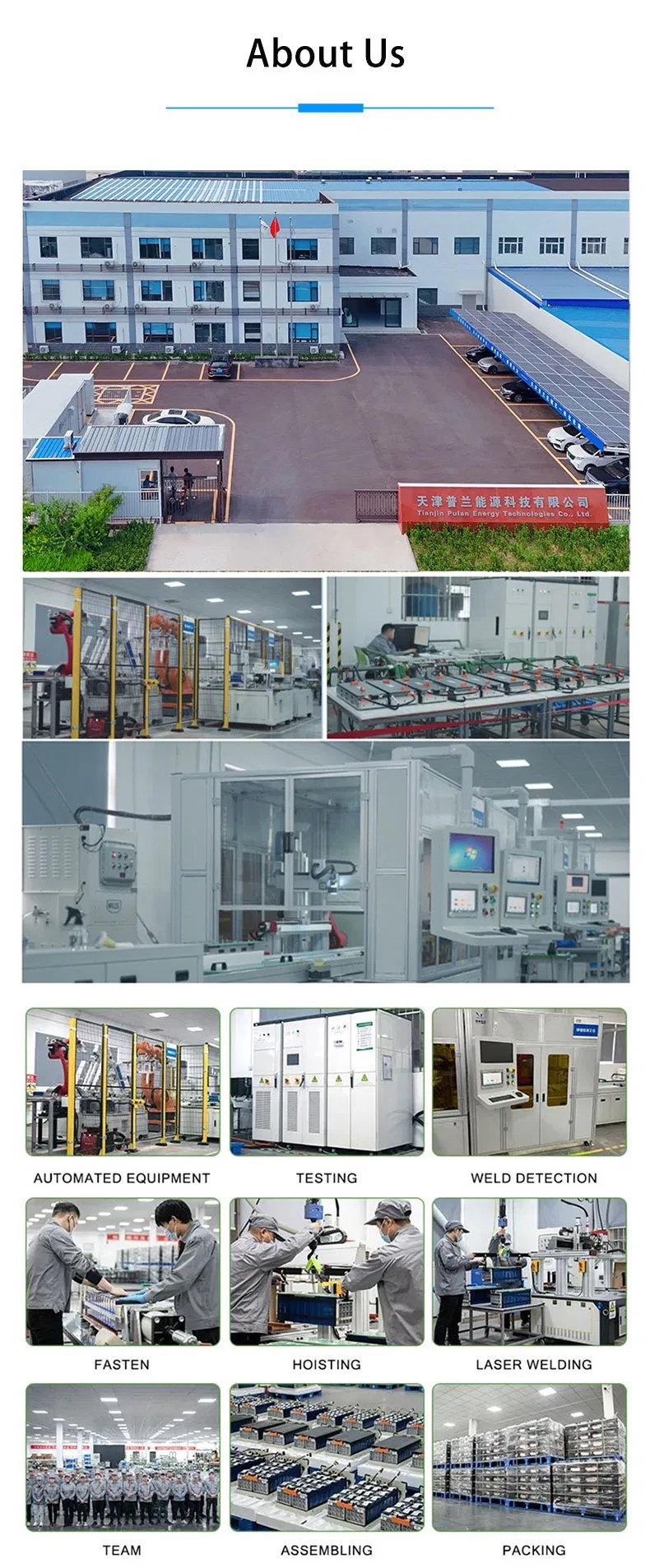

Professional Profile

A high-tech company focusing on the research and development, manufacturing, marketing and technical service of graphene-based materials and their applications in clean energy. Based on excellent technical service and support, the aim is to supply a complete solution to green-energy storage and products in power system for the clients.

Equipped with high-standard test instruments and a top-class technical management team, the provider owns more than 50 patents in preparation and application of graphene-based material. Successful building of production lines has enabled the mass-production of graphene, LTO, Si/C material, and super capacitor cells ranging from 0.1F to 3000F.

The main products are widely applied to new-energy vehicles, rail transportation, smart grid, micro grid, engineering machinery, industrial energy-saving and other fields. The focus remains on manufacturing advanced clean-energy products with high quality and supplying reliable solutions to energy-related systems while contributing to the global green energy industry.

Frequently Asked Questions

What is the nominal capacity of this energy storage system?
The system offers a rated capacity ranging from 215.04kWh to 261.248kWh depending on the specific model selected.
What type of fire suppression is used?
Safety is a priority; the system is equipped with either Aerosol or Perfluorohexanone fire-fighting methods.
Are there different cooling options available?
Yes, we provide both Air-cooled and Liquid-cooled models to suit various environmental conditions and performance requirements.
What is the protection rating for outdoor installations?
The system features an IP54 fire and environmental rating, making it suitable for industrial and commercial outdoor applications.
What communication protocols are supported?
The system supports standard industrial communication interfaces including CAN, RS485, and LAN for seamless integration.
What is the expected cycle life of the battery?
The battery system is designed for longevity, supporting up to 20,000 cycles under specified operating conditions.
