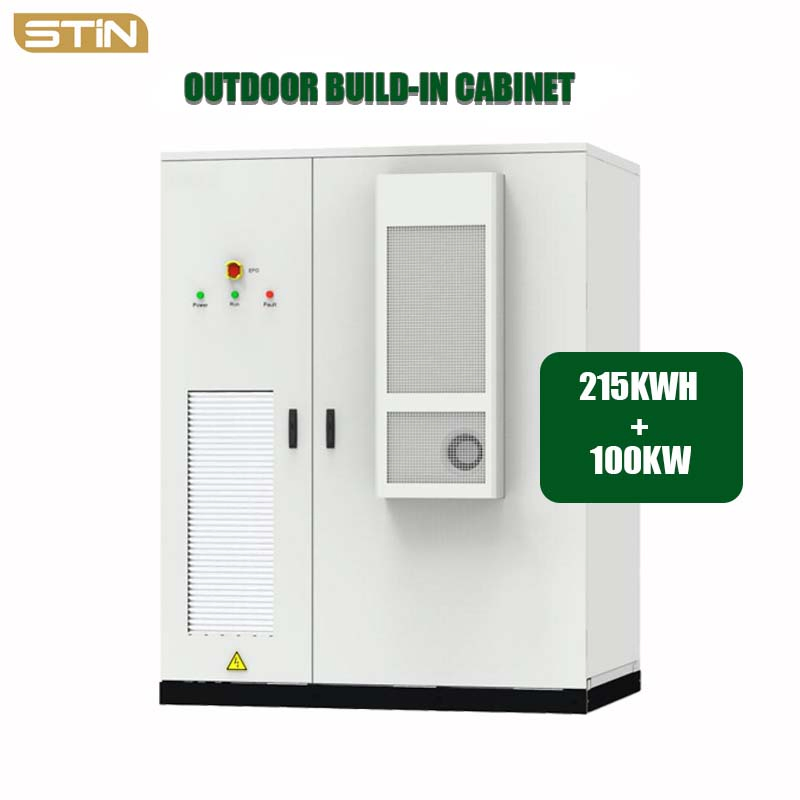

215kwh Industrial Ess Cabinet 100kw LiFePO4 Battery Rack Peak Shaving Backup Power IP55 Liquid Cooled for Factory Plant

1 / 5

215kwh Industrial Ess Cabinet 100kw LiFePO4 Battery Rack Peak Shaving Backup Power IP55 Liquid Cooled for Factory Plant

Customization:	Available
Weight:	3260kgs
Warranty:	1year

Send Inquiry

Product Description

Basic Product Information

Cycle Life 6000+

Nominal Capacity 768V / 215kWh

Battery Type Lithium (LFP)

System Type All-in-One Cabinet

Package Size 180cm * 120cm * 230cm

Gross Weight 3260.00kg

Product Description

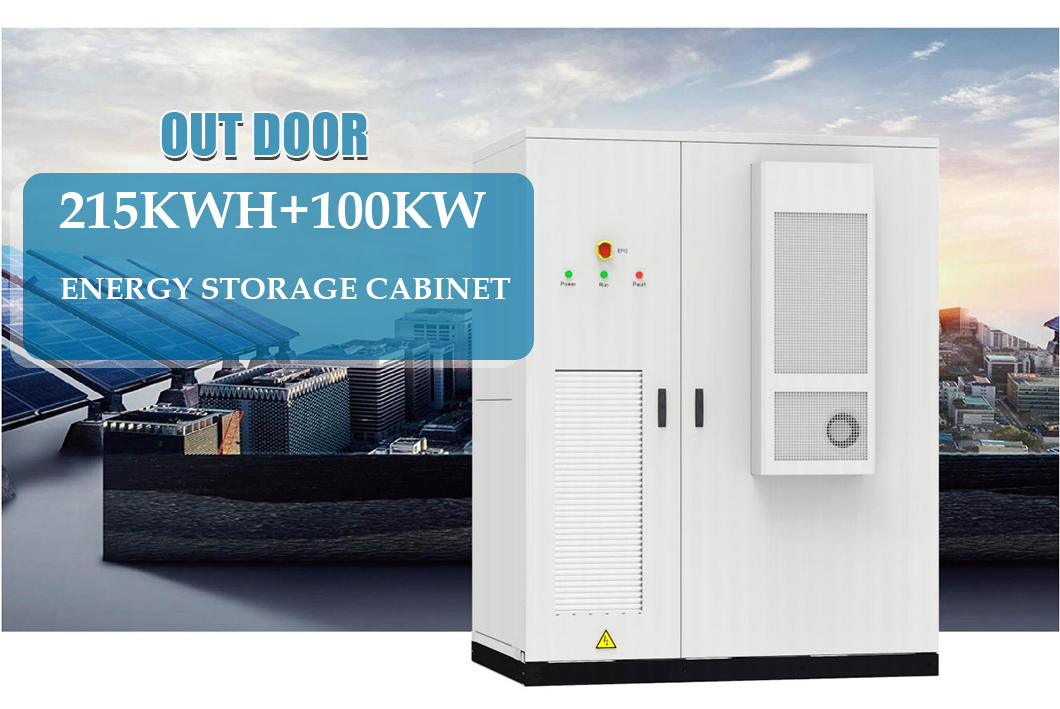

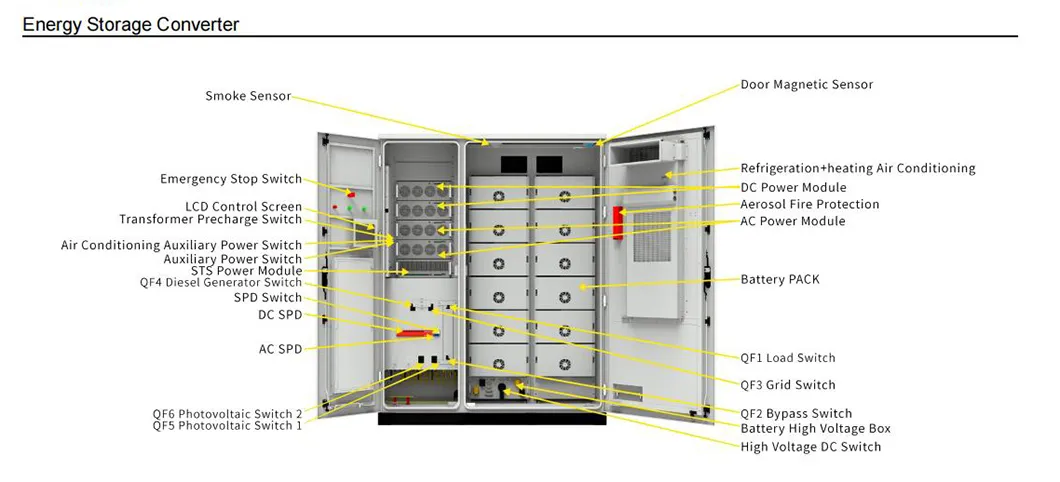

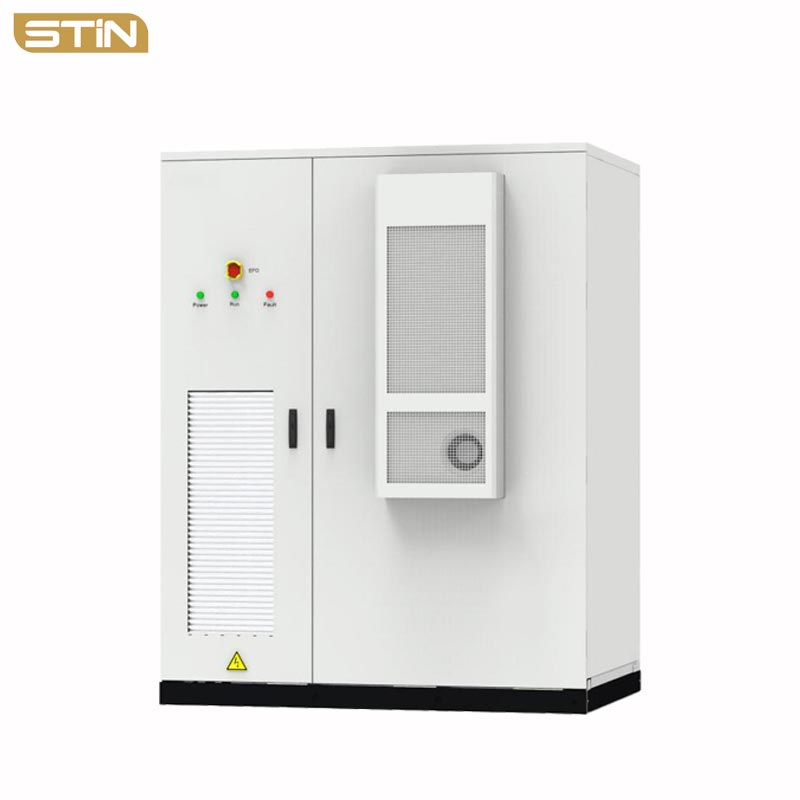

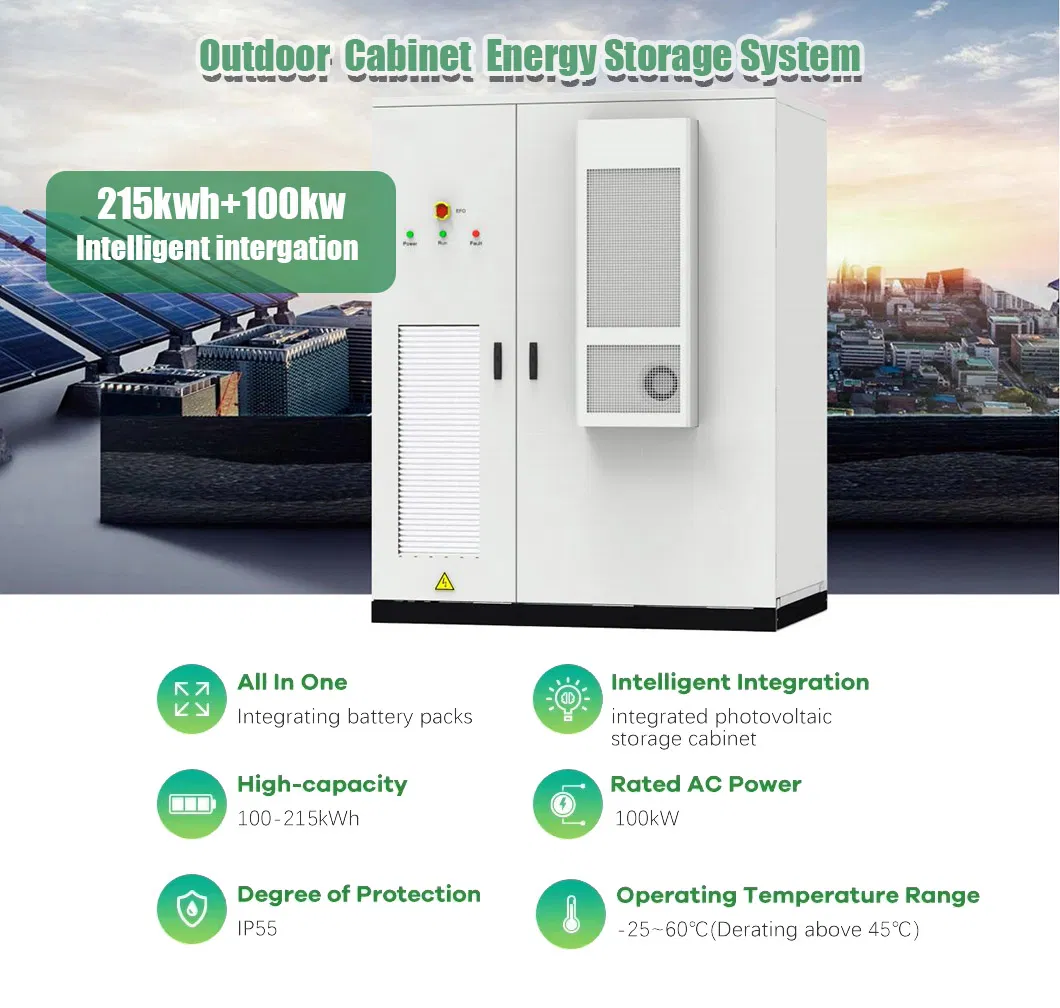

The outdoor energy storage cabinet integrates energy storage batteries, modular PCS, energy management monitoring systems, power distribution, environmental control, and fire control systems. It utilizes modular PCS for simplified maintenance and expansion. The cabinet features front-access maintenance to minimize the footprint. Key benefits include safe and reliable operation, fast deployment, high energy efficiency, and intelligent management.

Peak Shaving & Valley Filling: During low-tariff valley periods, the system charges automatically. During peak periods, it discharges to realize price arbitrage and improve economic efficiency.

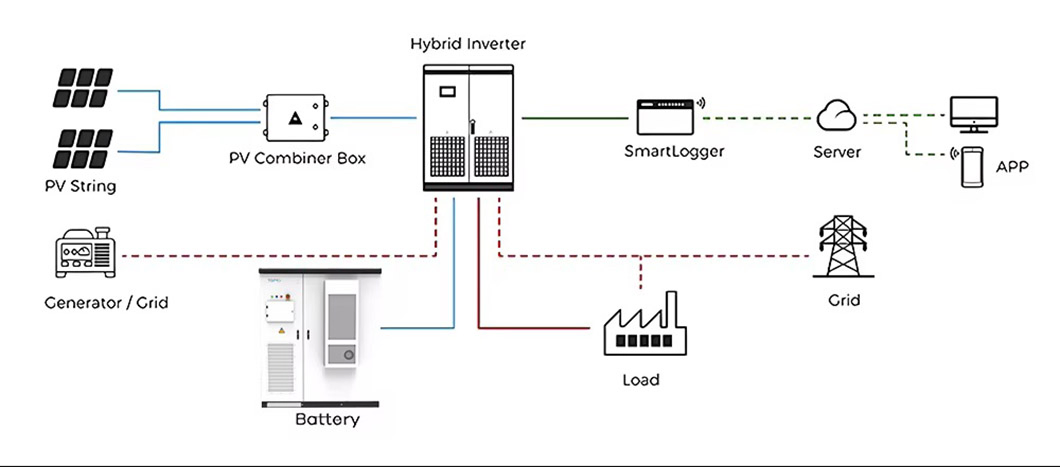

PV-Energy Storage Integration: Real-time acquisition of local load power. Photovoltaic power generation is prioritized for self-consumption, with surplus energy stored in the battery system.

Advanced Protection: IP55 protection level ensures optimal performance in various outdoor environments and weather conditions.

Technical Parameters

Category	Specifications
Model	Monet-100C / 100TS (215kWh)
Battery Rated Capacity	215kWh
Battery Rated Voltage	768V (Range: 672V~864V)
Cell Capacity	280Ah (LFP)
Max Charge/Discharge Power	0.5P (184A)
Rated AC Power	100kW
Rated AC Voltage	400V, 3W+N+PE
Frequency	50/60Hz
Protection Level	IP55
Isolation Mode	Isolation Transformer
Ambient Temperature	-25ºC to +60ºC
Dimensions	1800 * 1200 * 2300 mm

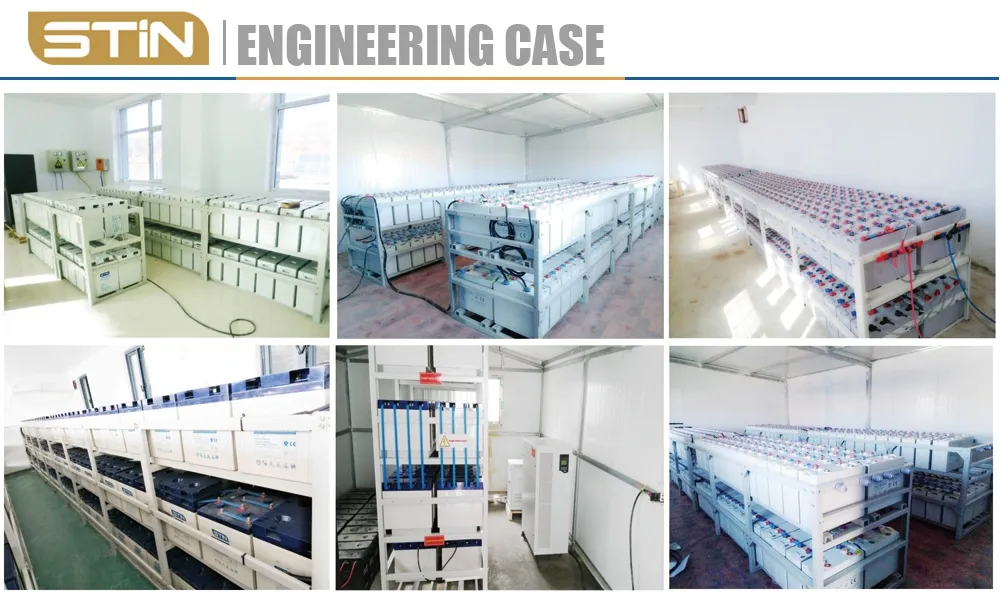

Applications & Projects

Frequently Asked Questions

What are the main components of the energy storage system?

The system includes high-quality mono/poly solar panels, lithium-ion battery racks, on/off-grid inverters, and MPPT/PWM charge controllers.

What experience do you have in the solar industry?

With over 10 years of experience in the solar industry, we provide full support from initial design to final installation.

Is it possible to request a sample?

Sample availability depends on the specific product type. Typically, sample fees are reimbursed upon placing a full-scale commercial order.

How are shipping costs and delivery times determined?

Costs are calculated based on quantity and preferred transportation method (sea, air, or express couriers like DHL/FedEx). We provide detailed quotes once the destination port is confirmed.

What is the Minimum Order Quantity (MOQ)?

The minimum order quantity starts at just 1 piece for most industrial energy storage solutions.

What payment methods are accepted?

We accept various payment options including T/T, L/C, PayPal, and Western Union for your convenience.
