Basic Specifications
❄️
Cooling Method
Oil-immersed Type
🌀
Winding Type
Auto-transformer
📜
Certification
ISO9001-2000, ISO9001
⚡
Frequency
High Frequency
📦
Capacity
5000PCS / Month
📏
Specification
800 * 600 * 2200 mm
System Overview

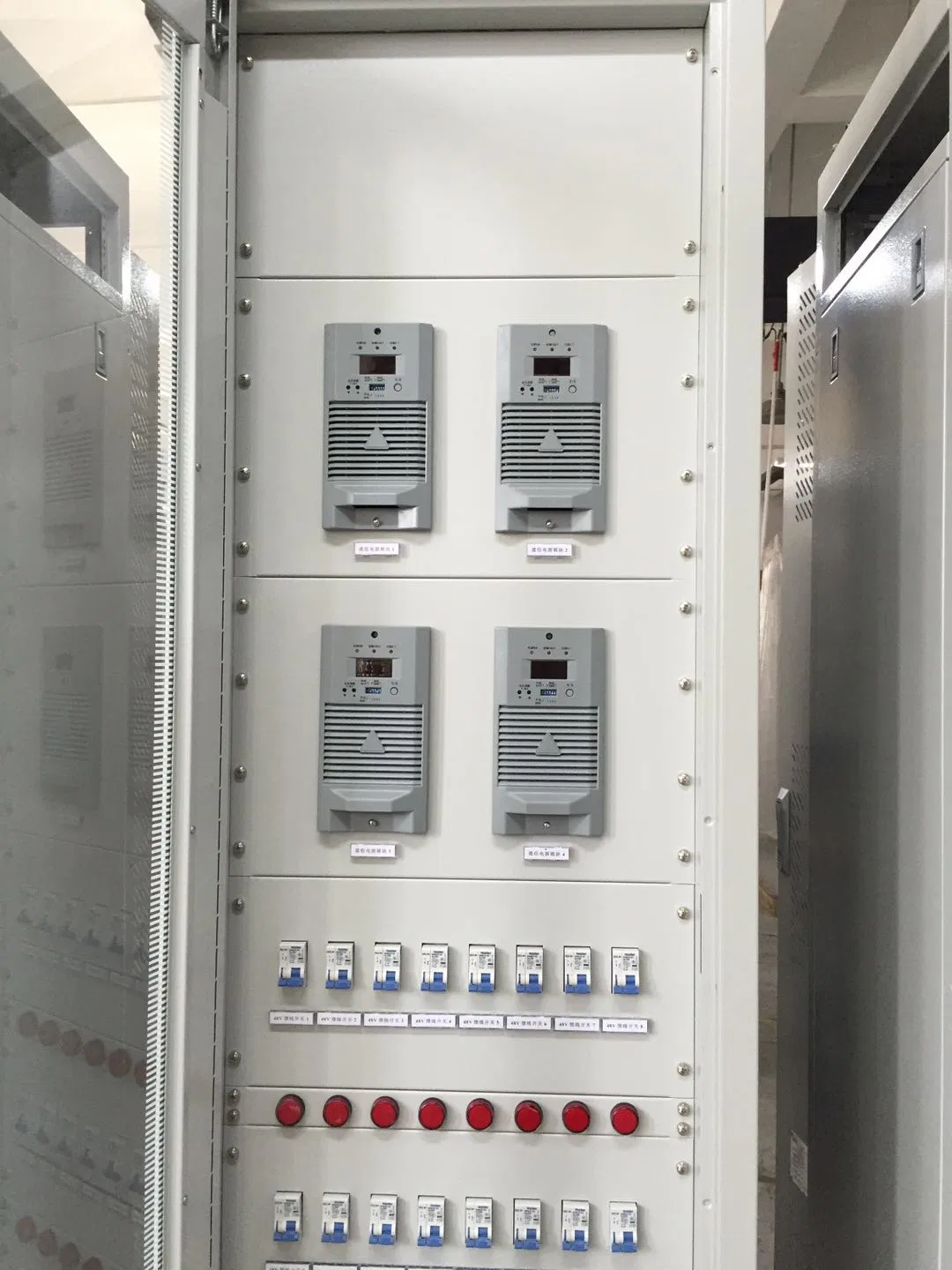

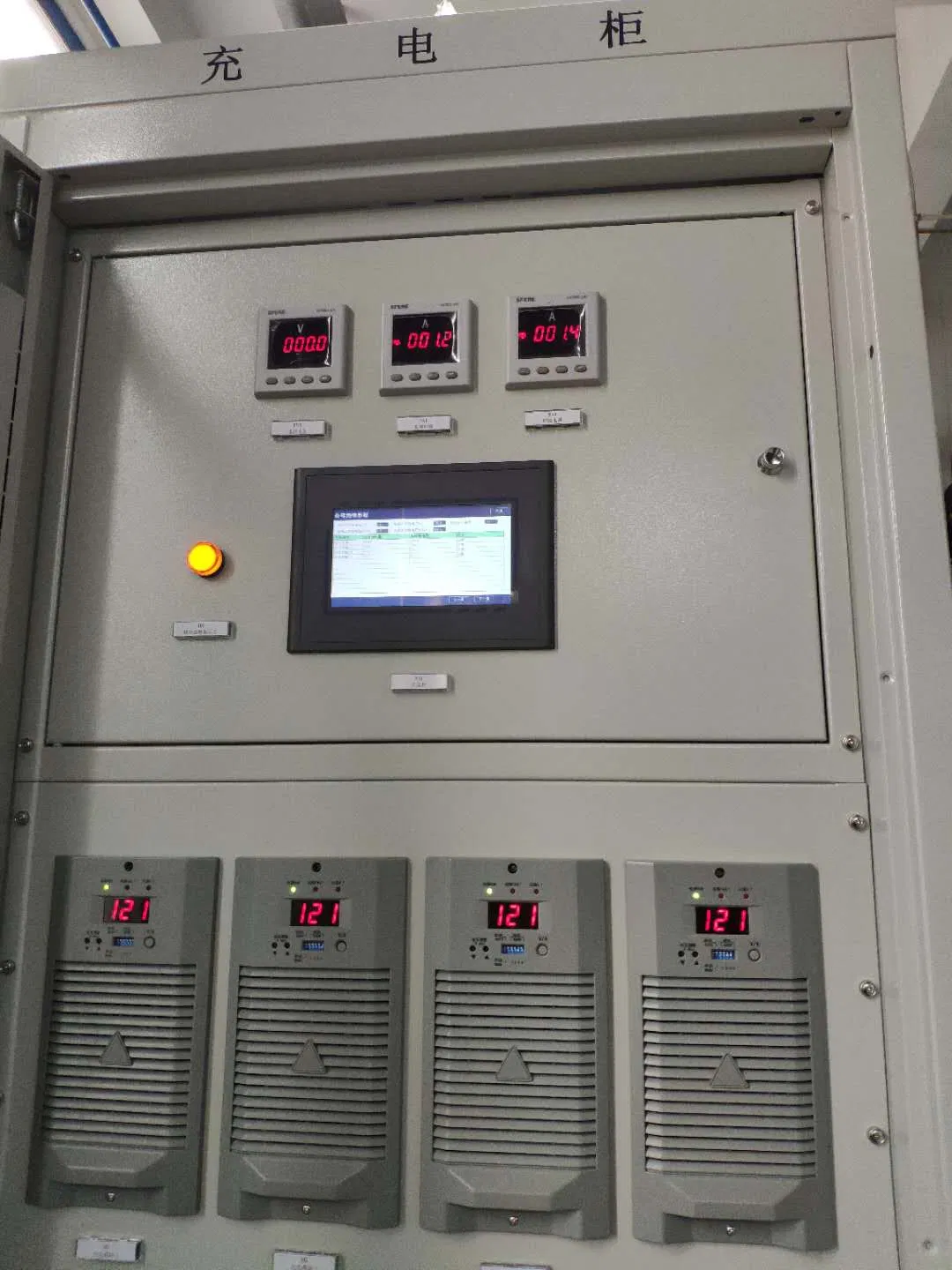

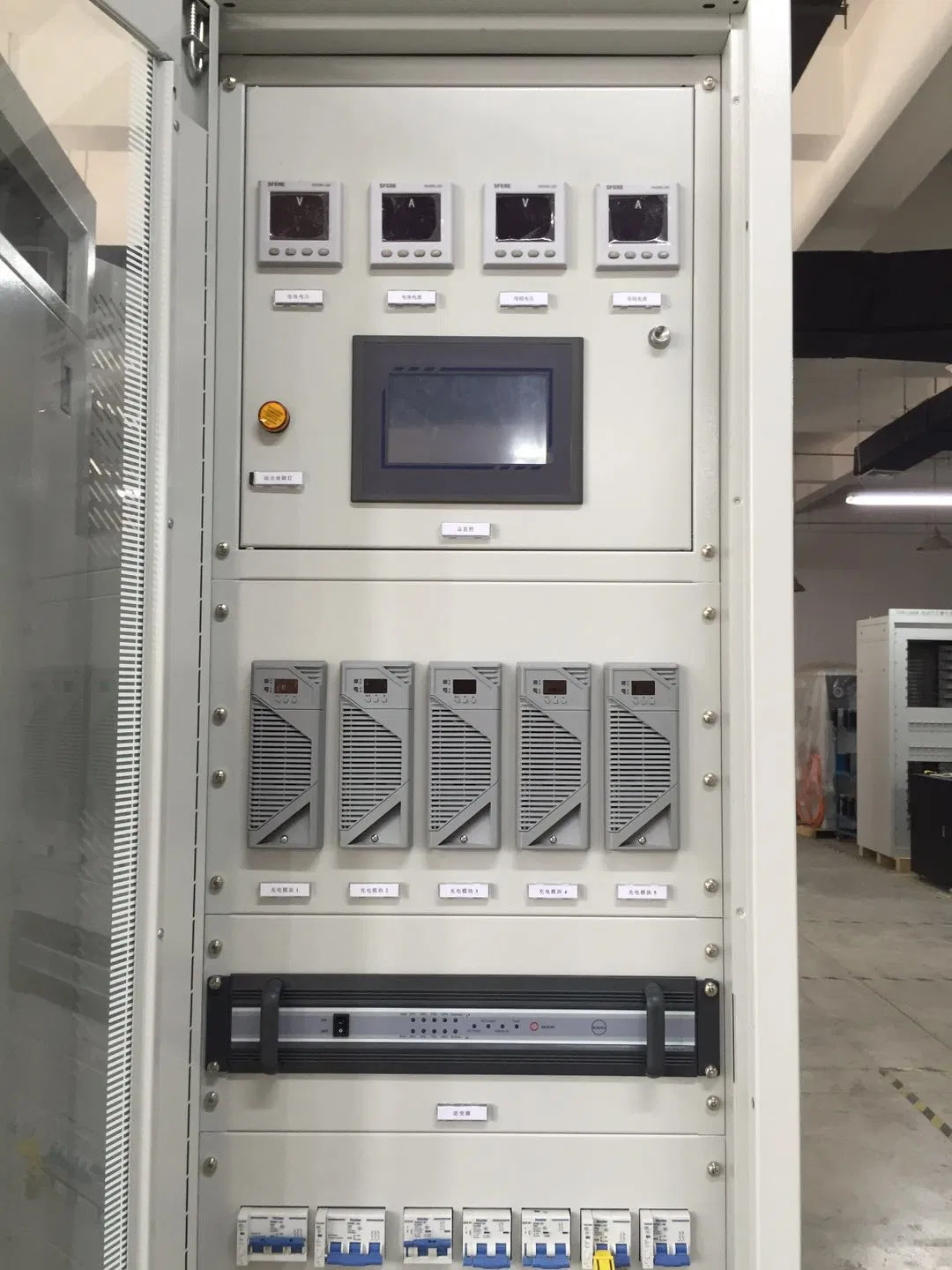

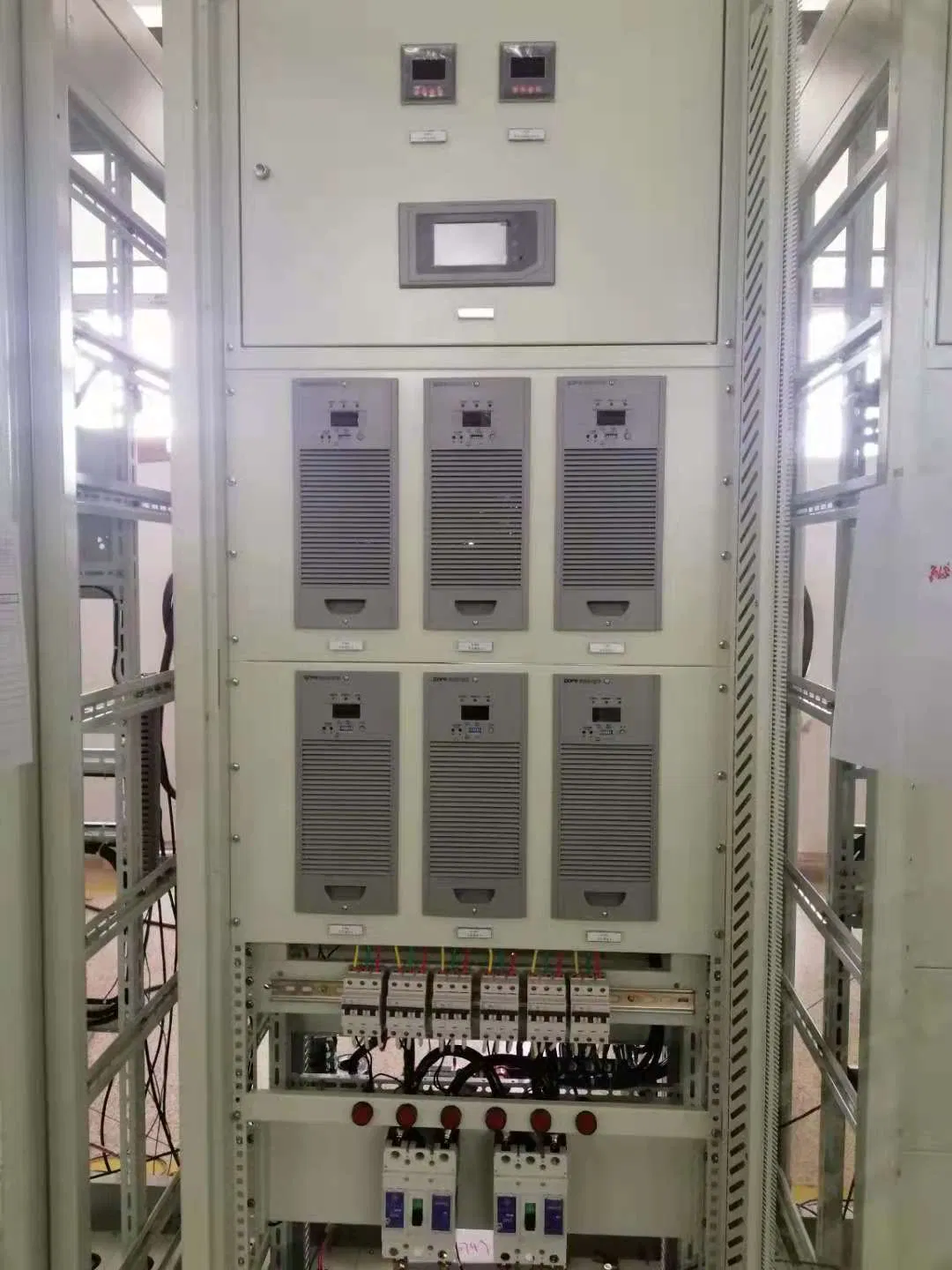

The charging module adopts an intelligent high frequency switching power supply independently developed for power systems. This series of power supply features "four remote" functionality and utilizes world-leading resonant voltage type double loop controlled resonant switching power supply technology. It offers significant advantages including compact volume, lightweight design, high efficiency (over 95%), and exceptional reliability.
Available in 220V, 110V, and 48V series with dozens of varieties, the system is equipped with standard RS-485 interfaces for easy connection with automation systems. It is suitable for substations and switching stations (500kV to 10kV), power plants (15mw-60mw units), and key industrial projects like subways, oil fields, chemical industries, and metallurgy. The charging process aligns with the curve requirements for lead-acid and nickel-cadmium batteries, featuring intelligent management and temperature compensation.
System Parameters
AC Input Voltage: 220V ± 15%
Grid Frequency: 50 Hz ± 10%
Output Current Class: 30A ~ 300A
Battery Capacity: 10Ah ~ 2000AH
Rated Output Voltage: 48V
Output Voltage Range: 40-57VDC
Efficiency: ≥ 95% (Single Module)
Protection Grade: ≥ IP30
Relative Humidity: ≤ 90%
Altitude: ≤ 2000m
Operating Temp: -10 ºC ~ 40 ºC
Audible Noise: ≤ 40dB (Self Cooling)
Frequently Asked Questions
1. What is the efficiency level of this charging system?
The system utilizes resonant switching technology to achieve a high efficiency of over 95% for single modules.
2. Which battery types are compatible with this system?
The charging process is specifically designed to meet the requirements of lead-acid batteries and nickel-cadmium batteries.
3. Does the system support remote monitoring?
Yes, it features "four remote" functions and is equipped with standard RS-232/485 interfaces for easy automation networking.
4. What are the typical applications for this transformer?
It is widely used in substations, power plants, subways, oil fields, and metallurgy projects with voltage levels from 10kV to 500kV.
5. Can this system operate in extreme temperatures?
The environmental operating temperature range for this system is between -10 ºC and 40 ºC.
6. What is the insulation strength of the equipment?
It can withstand 2.5kvac applied to ground/output/input for 1 minute without flashover or insulation failure.
