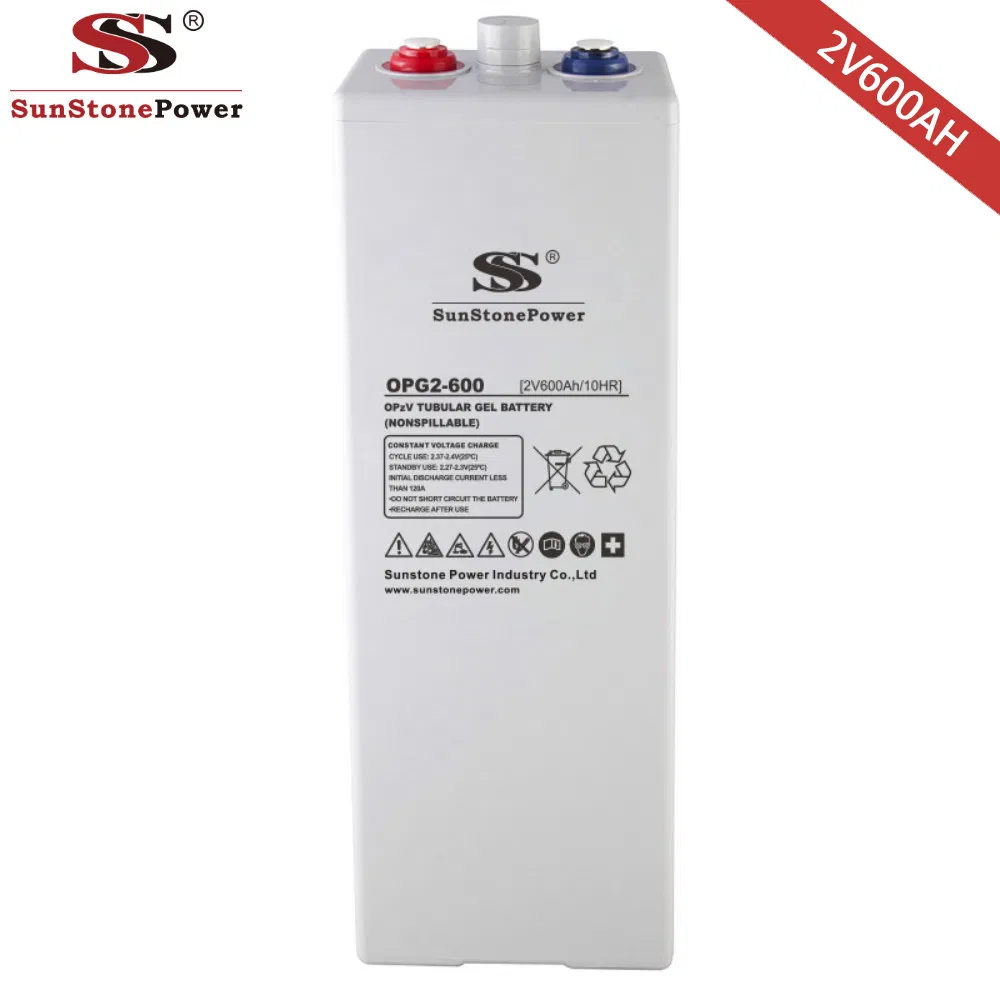

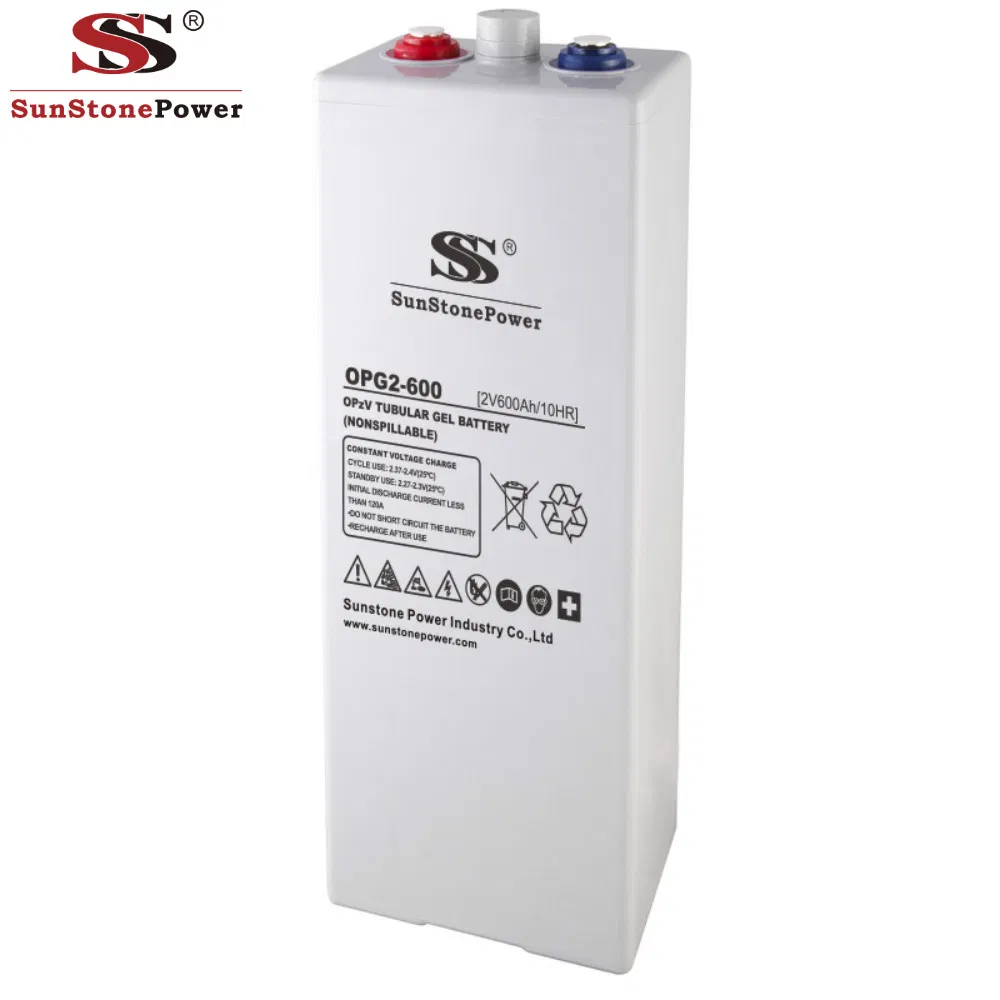

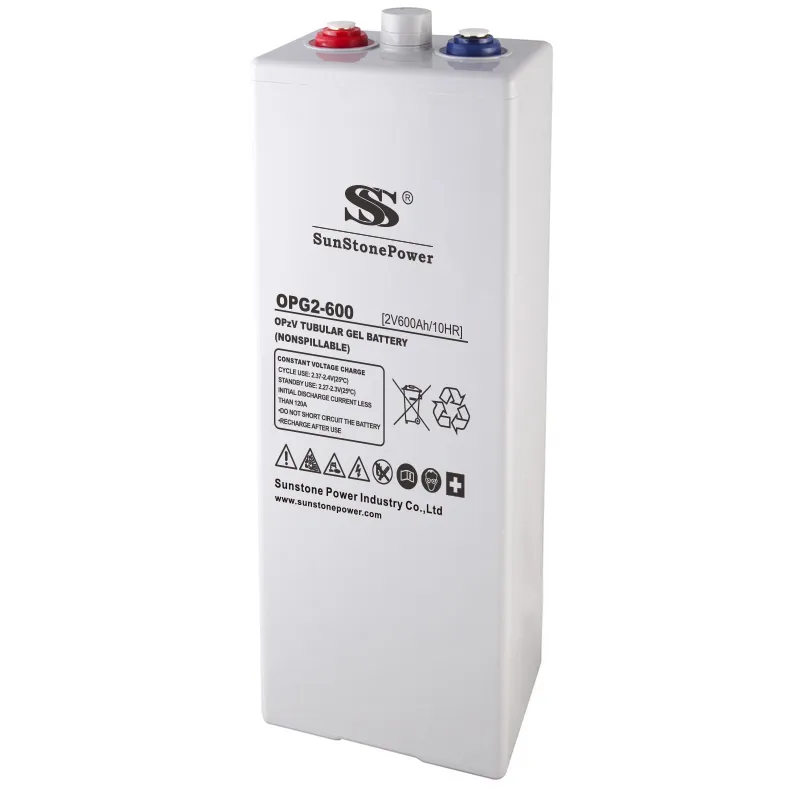

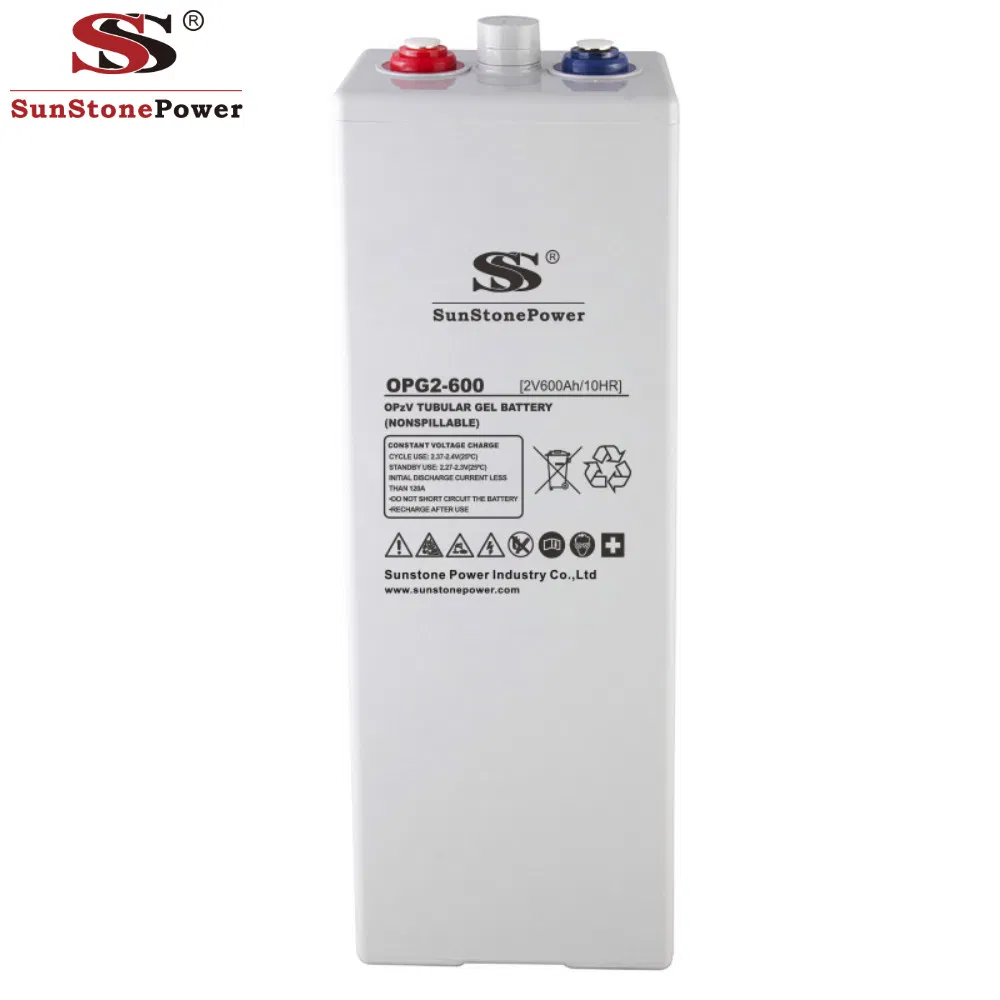

The OPG series battery adopts tubular plate and Gel electrolyte technology in accordance with DIN 40472 (OPzV) standards. Compared to normal lead-acid batteries, it provides a significantly longer lifespan under deep discharge conditions. These batteries feature strong temperature resistance, excellent charge reception, and fast charging capabilities. Cells can be mounted horizontally or vertically to suit specific requirements.

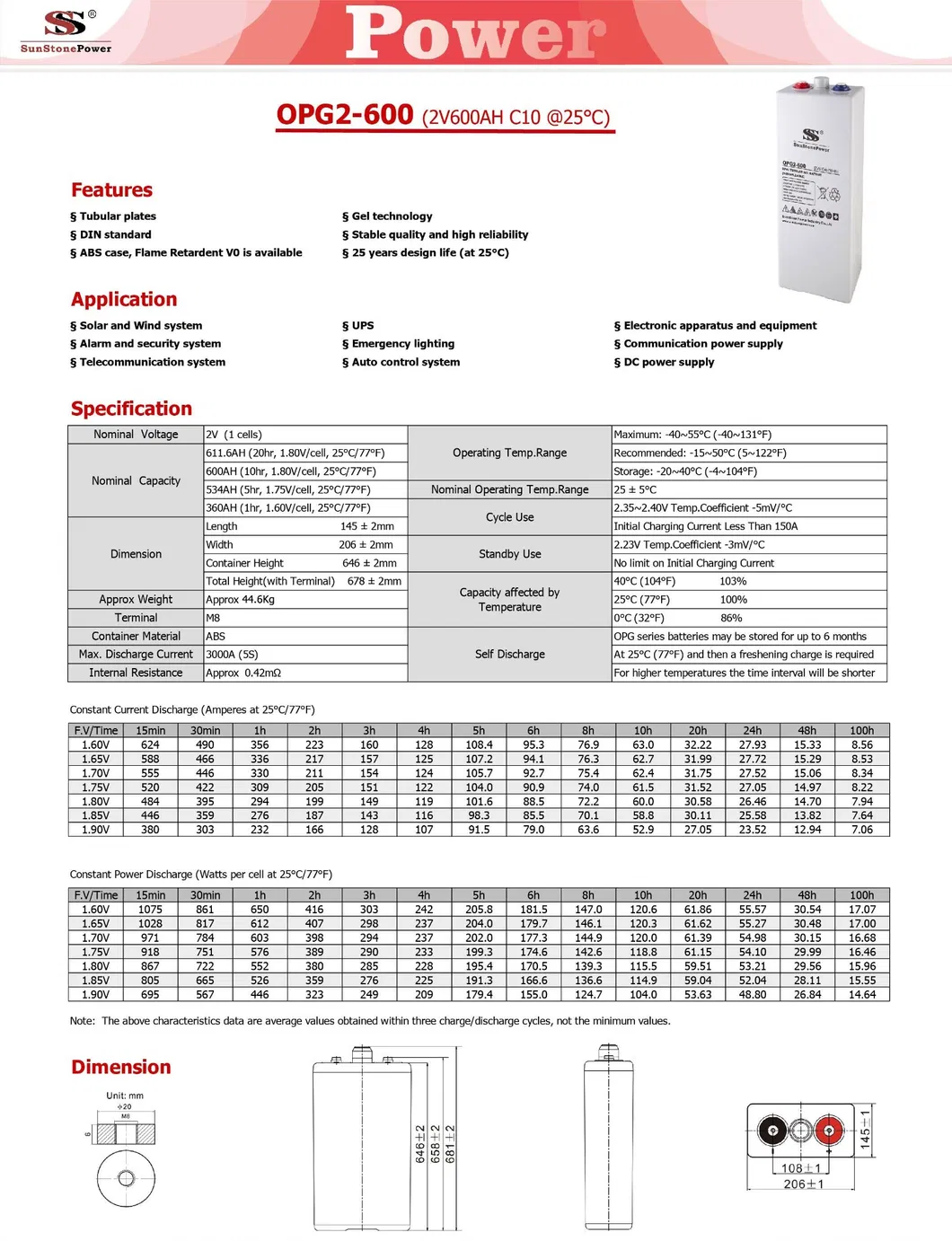

| Nominal Voltage | 2V (1 cell) | Operating Temp. Range | Maximum: -40~55°C |
| Nominal Capacity | 611.6AH (20hr, 1.80V/cell) | Recommended Temp. | -15~50°C (5~122°F) |
| 600AH (10hr, 1.80V/cell) | Storage Temp. | -20~40°C (-4~104°F) | |
| Dimensions | Length: 145mm | Width: 206mm Height: 646mm (Total: 678mm) |
Cycle Use | 2.35~2.40V (-5mV/°C) |
| Terminal | M8 | Self Discharge | Up to 6 months at 25°C |

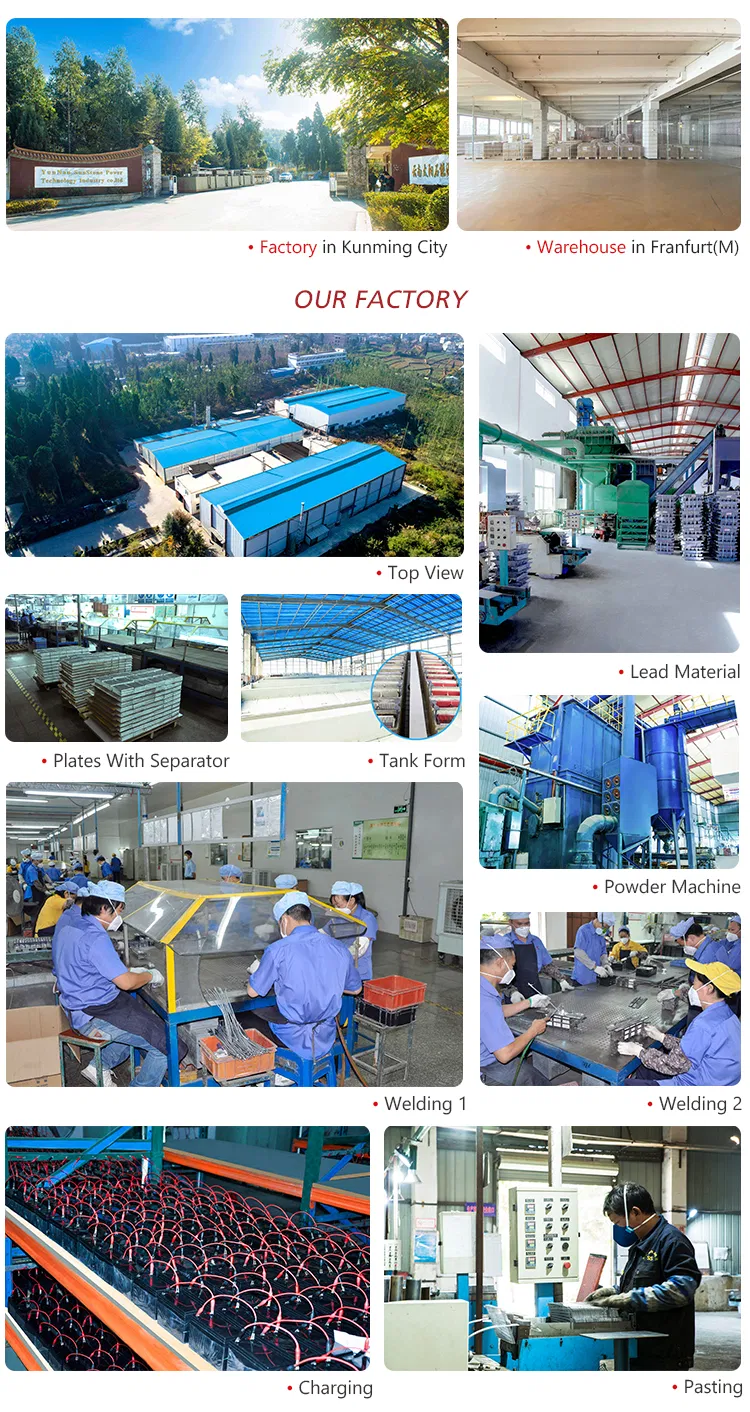

With over 20 years of production and export experience, the facility spans 70,000 square meters and employs approximately 500 staff members. The operations include specialized factories for battery plate manufacturing, battery assembly, and Lithium battery pack production.
Approved ISO9001, ISO14001, CE, IEC, VDS, and RISTI certificates.
