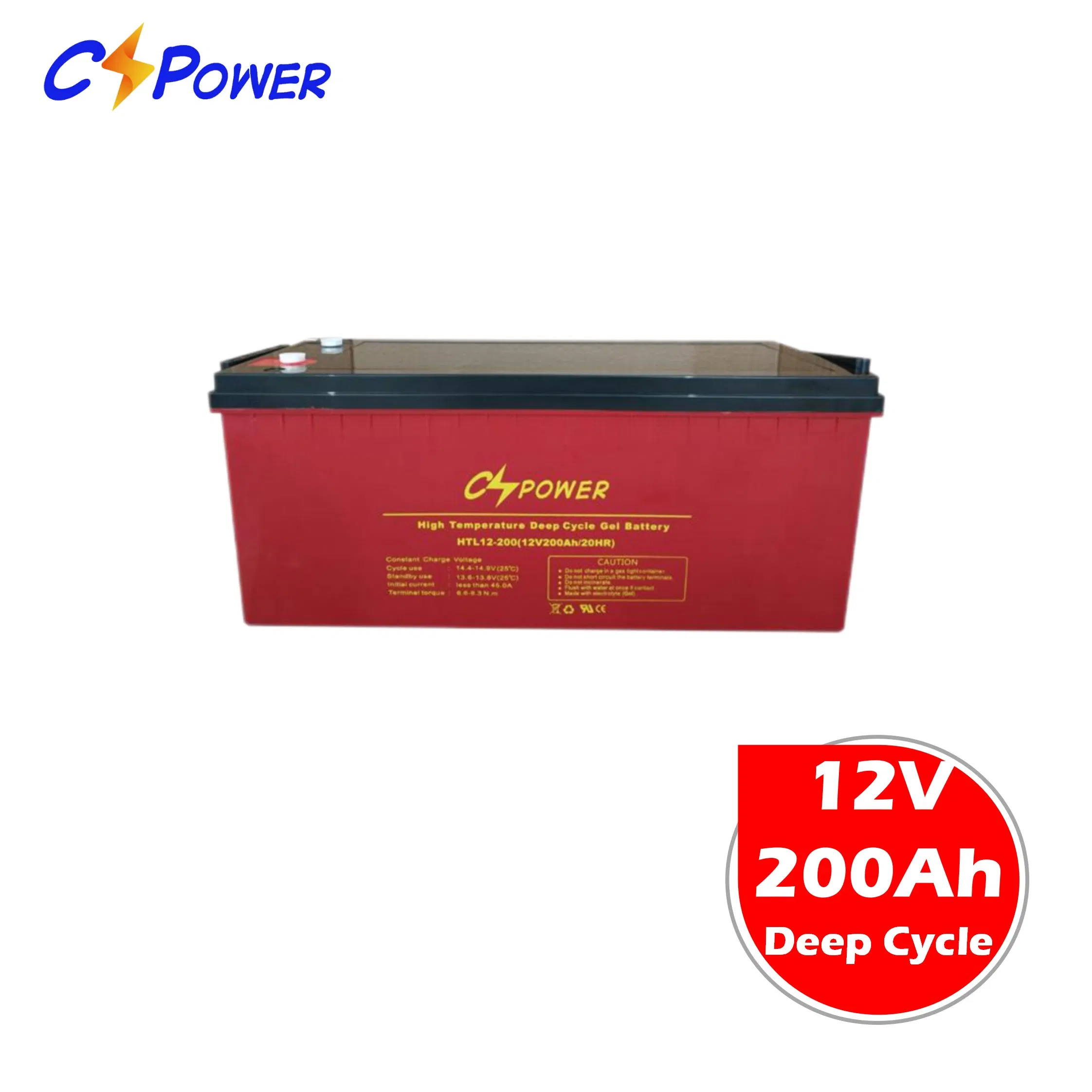

Cspower Deep Cycle Gel Htl12-200 12V 200ah Solar Battery with IEC 61427/IEC 60896/ CE Certificate

1 / 5

Cspower Deep Cycle Gel Htl12-200 12V 200ah Solar Battery with IEC 61427/IEC 60896/ CE Certificate

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Specifications

Model NO.

HTL12-200 (12V 200Ah)

Nominal Voltage

12V / 6V / 8V

Discharge Rate

0.2-0.5c

Electrolyte

Gel

Installation

Fixed

Rechargeable

Chargeable

Size (L*W*H)

522*240*216mm

Protection

Water Proof, Non Spillable

Capacity

200Ah

Weight

58.7kgs

Warranty

3 Years

Design Life

20 Years Float Life

Terminal

Pure Copper M8 Screw

Casing

ABS Fire Resistance

Cycle Life

50% DoD 1600 Cycles

Package Size

55.00cm * 22.00cm * 24.00cm

Product Overview

Constant Safe Power: HTL12V Patented High-Temp Deep Cycle Solar Gel Battery

The HTL series of GEL deep cycle batteries are recognized as the most reliable systems in the industry. Designed with advanced patented GEL technology, these batteries offer a service life of 15-20 years and are capable of 1500-1600 cycles at 50% DOD. They comply with international standards such as IEC60896-21/22, BS6290-4, and Eurobat Guide.

Advanced Features & Benefits

● Environmentally friendly

● Maintenance-Free

● Non-Spillable Design

● Wide Temp Range (-20°C~+60°C)

● Explosion Proof

● Low Self Discharge

● High Discharge Rate

● Independent of Position

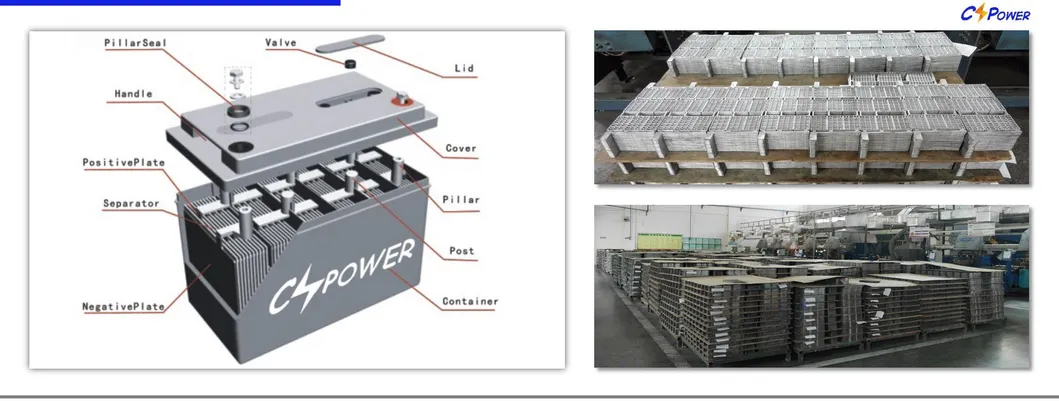

Internal Structure

Component	Positive Plate	Negative Plate	Container	Safety Valve	Separator	Electrolyte
Features	Thick high Sn low Ca grid	Balanced Pb-Ca grid	Fire resistance ABS	Flame Si-Rubber	Advanced PVC/AGM	Nano Silicon Gel

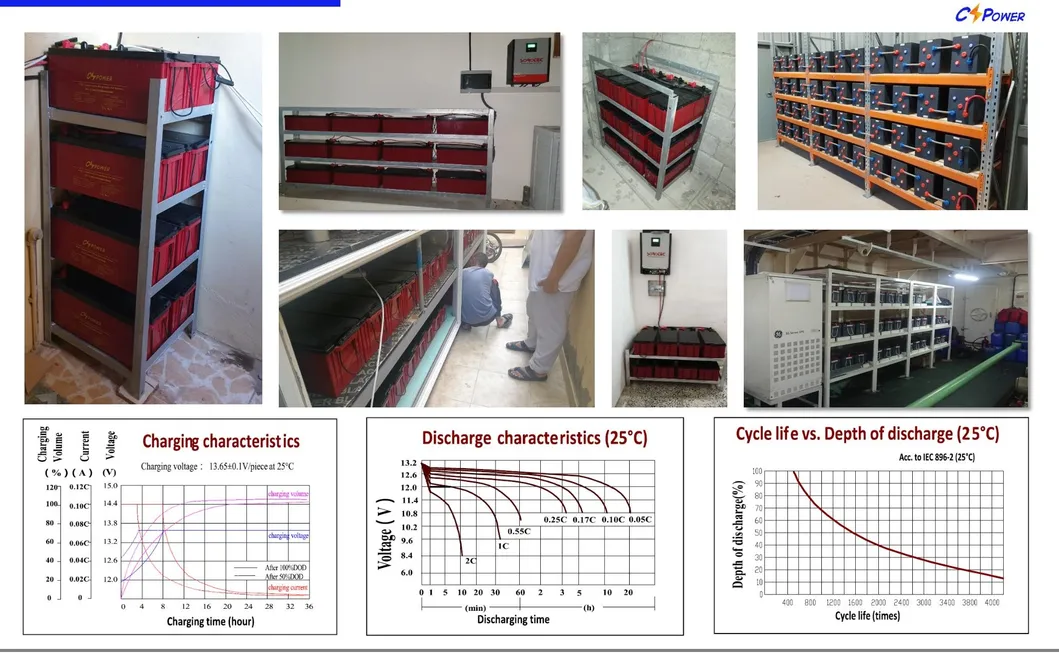

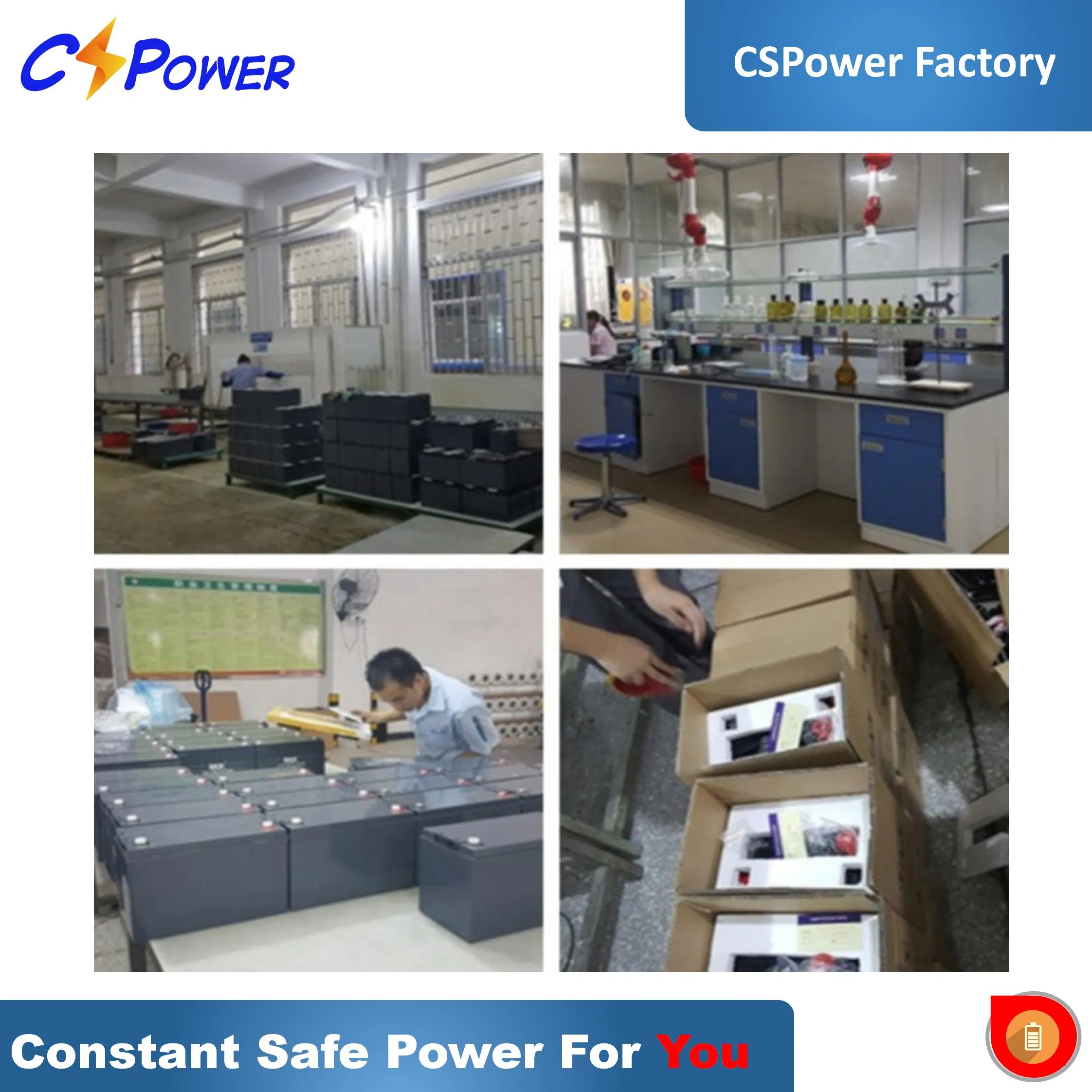

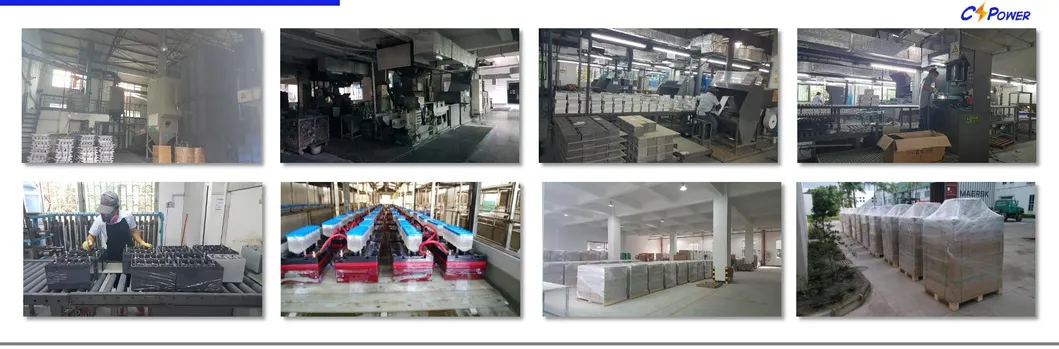

Manufacturing & Projects

Primary Applications

Our High-Temperature Long Life GEL batteries are ideal for:

✔ Solar and Wind Systems

✔ Telecommunication Control

✔ UPS and Backup Power

✔ Medical Equipment

✔ Electric Vehicles & Golf Carts

✔ Emergency Lighting Systems

Frequently Asked Questions

Can these batteries be delivered by sea and air?

Yes, our batteries are approved for both sea and air transport. We provide MSDS and safety test reports confirming them as non-dangerous products.

Is fast charging recommended for Gel batteries?

Fast charging is generally not recommended as it can be harmful to the battery's longevity and internal structure.

What is the typical delivery lead time?

Usually, it takes about 7 days for stock items, 20 days for half-container orders, and approximately 30 days for full 20ft container orders.

How should VRLA batteries be maintained during storage?

Batteries should be recharged every 6 months if stored at 25°C. In hotter climates, we recommend a recharge every 3 months to compensate for self-discharge.

Can I replace only a few batteries in a lead-acid bank?

Partial battery replacement is not recommended for lead-acid banks; it is best to replace the entire set to ensure balanced performance.

Why does capacity vary with the discharge hour rate?

Battery capacity is dynamic. A lower discharge current (e.g., a 20-hr rate) allows the battery to deliver more total Amp-hours than a high discharge current (e.g., a 2-hr rate).
