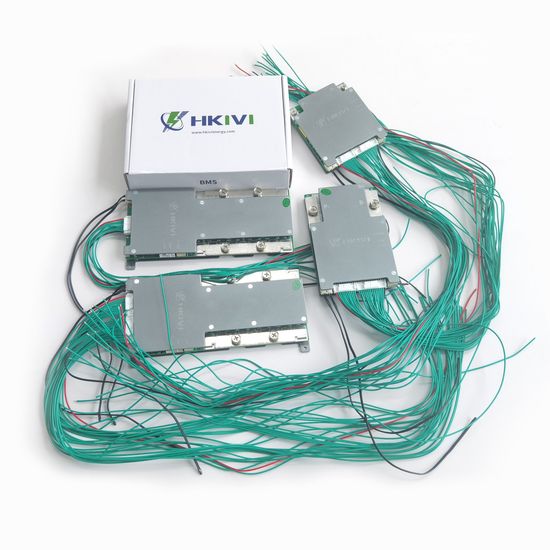

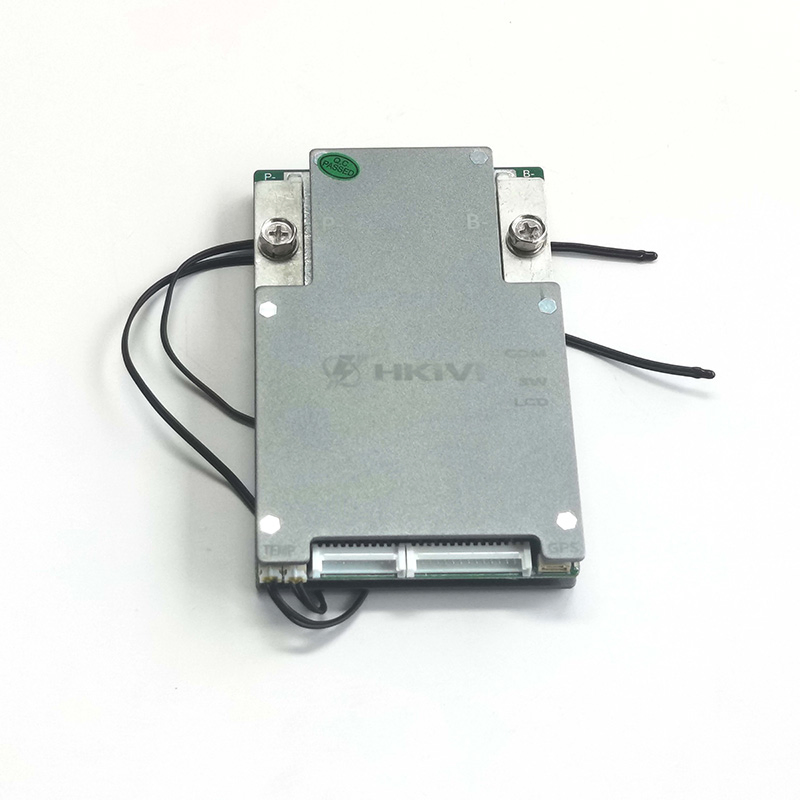

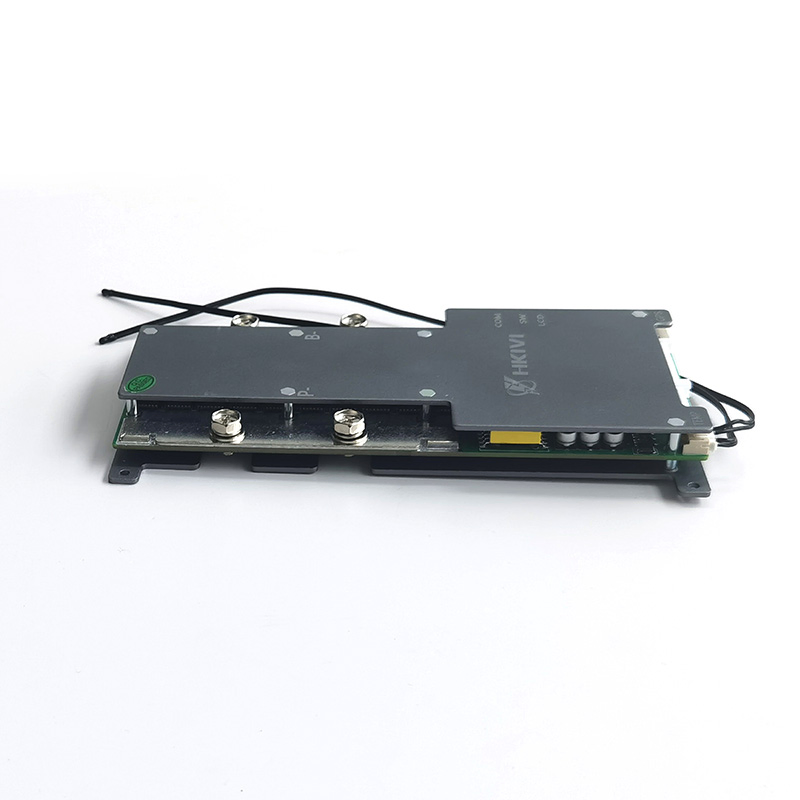

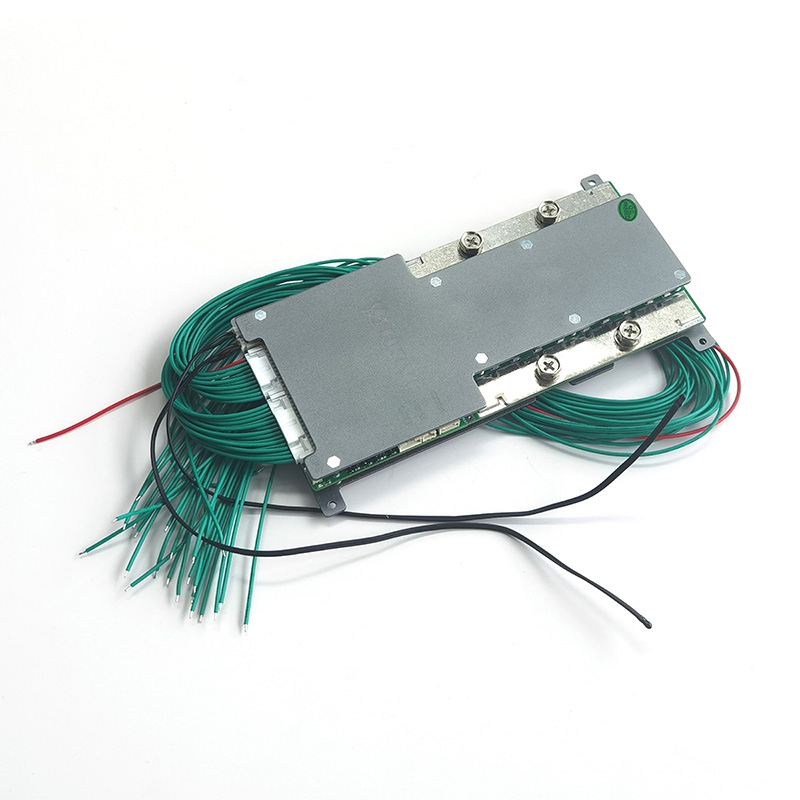

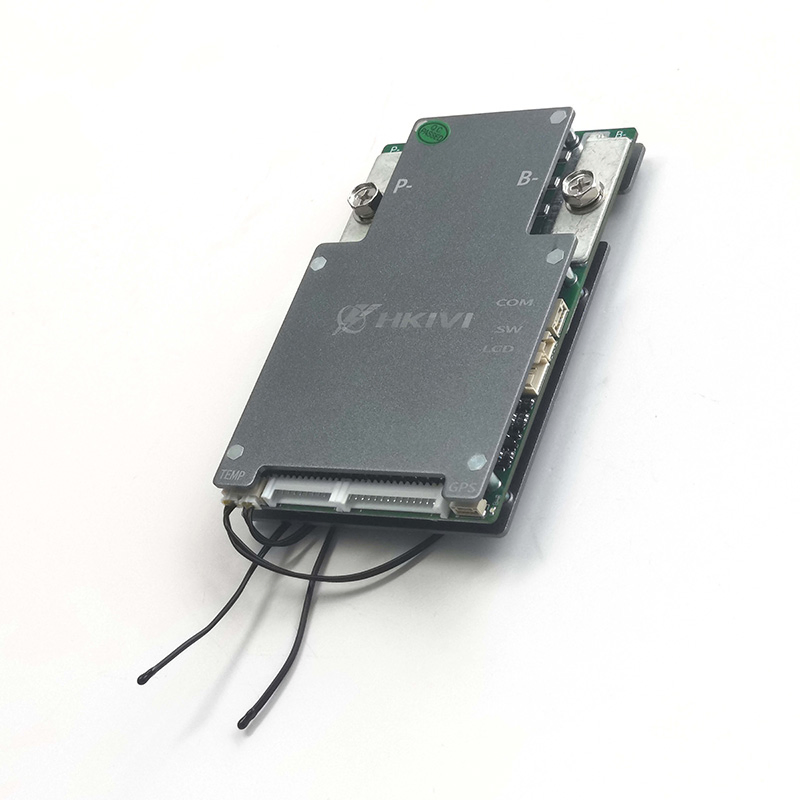

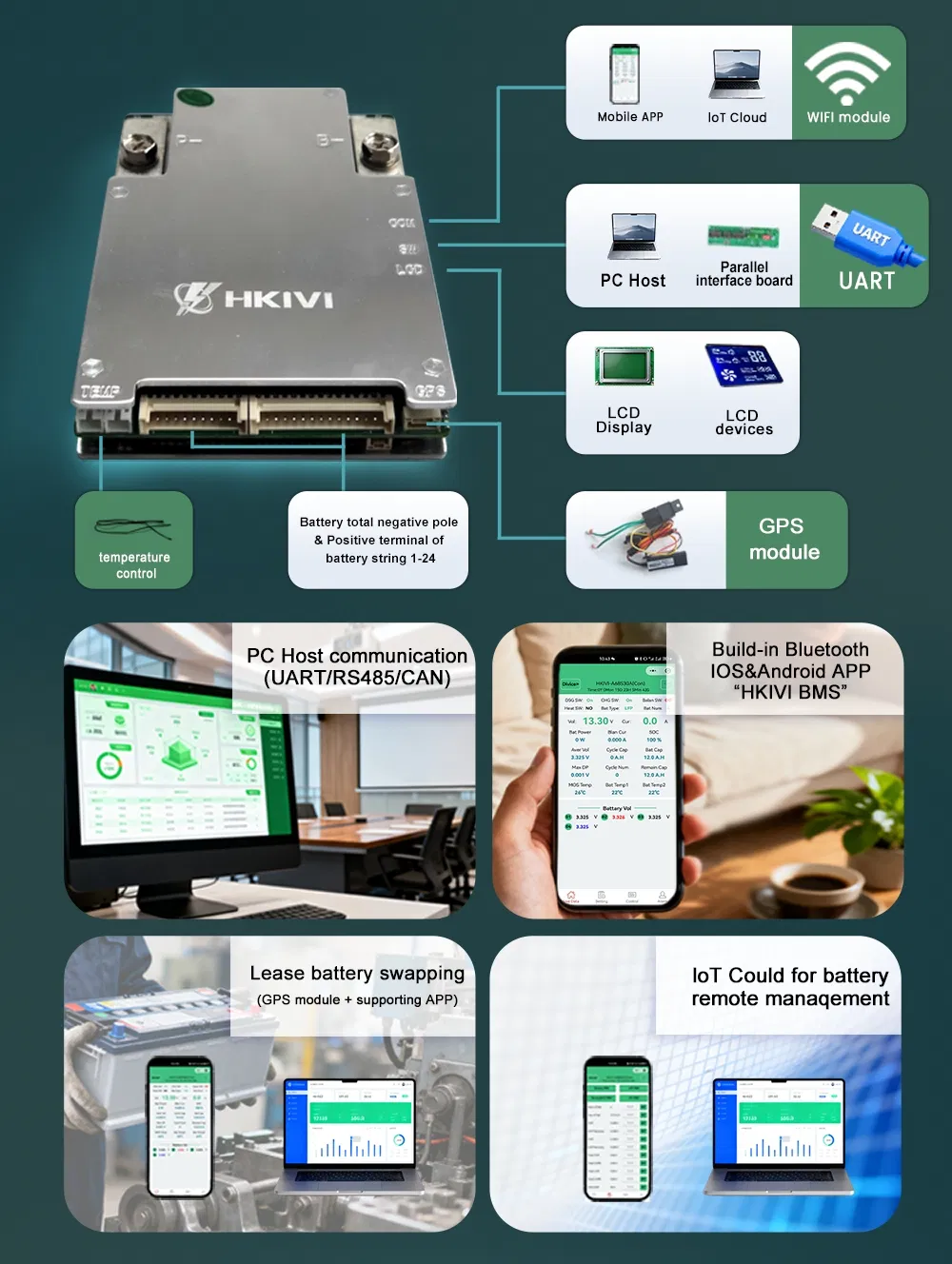

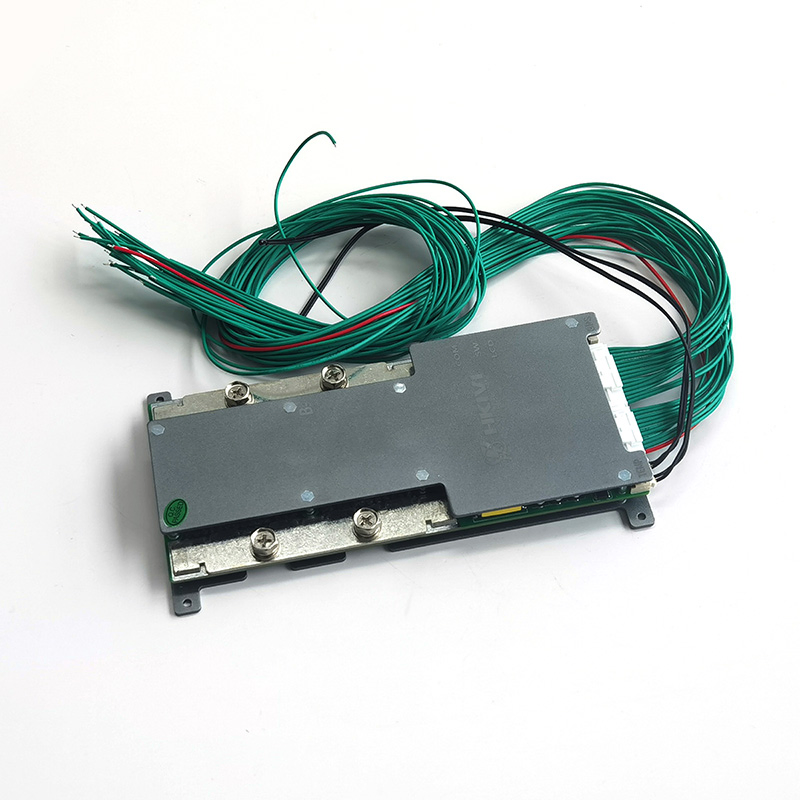

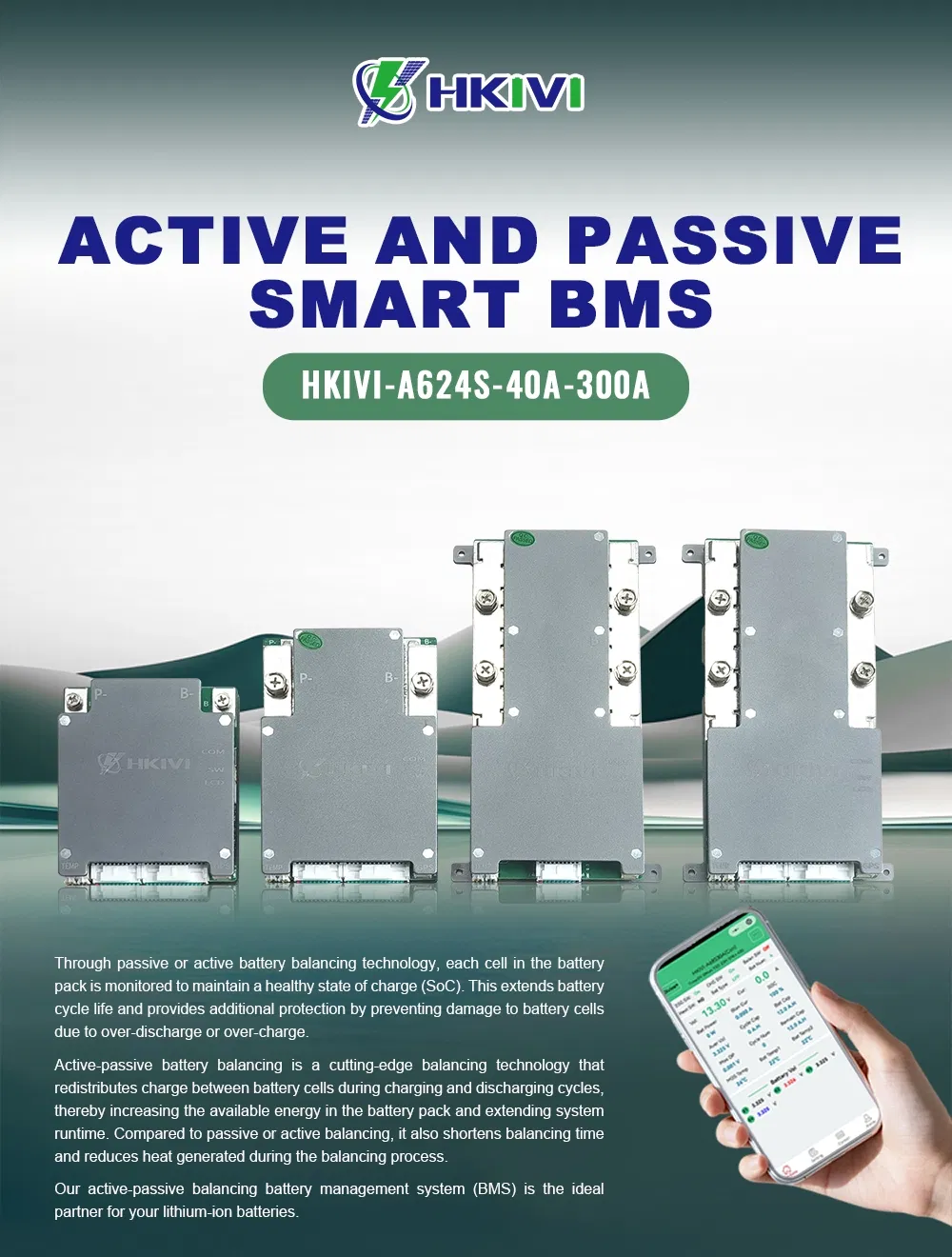

Note: Lithium battery intelligent protection board is a lithium battery management system designed for series-connected lithium battery packs. It features voltage acquisition, active voltage difference equalization management, overcharge protection, over-discharge protection, over-current protection, over-temperature protection, and Bluetooth communication.
Making Lithium Batteries Safer
The core task of our battery management systems (BMS) is to ensure the optimal use of the residual energy in a battery. BMS systems protect the batteries from deep discharge and over-voltage, which result from extreme fast charging and high discharge currents. In multi-cell configurations, the system provides essential cell balancing to ensure uniform charging and discharging across all cells.
| Technical Indicators | A624S40A | A624S60A | A624S100A | A624S200A |
|---|---|---|---|---|
| Ternary Strings | 10~22 | 10~22 | 10~22 | 10~22 |
| Iron Lithium Strings | 10~24 | 10~24 | 10~24 | 10~24 |

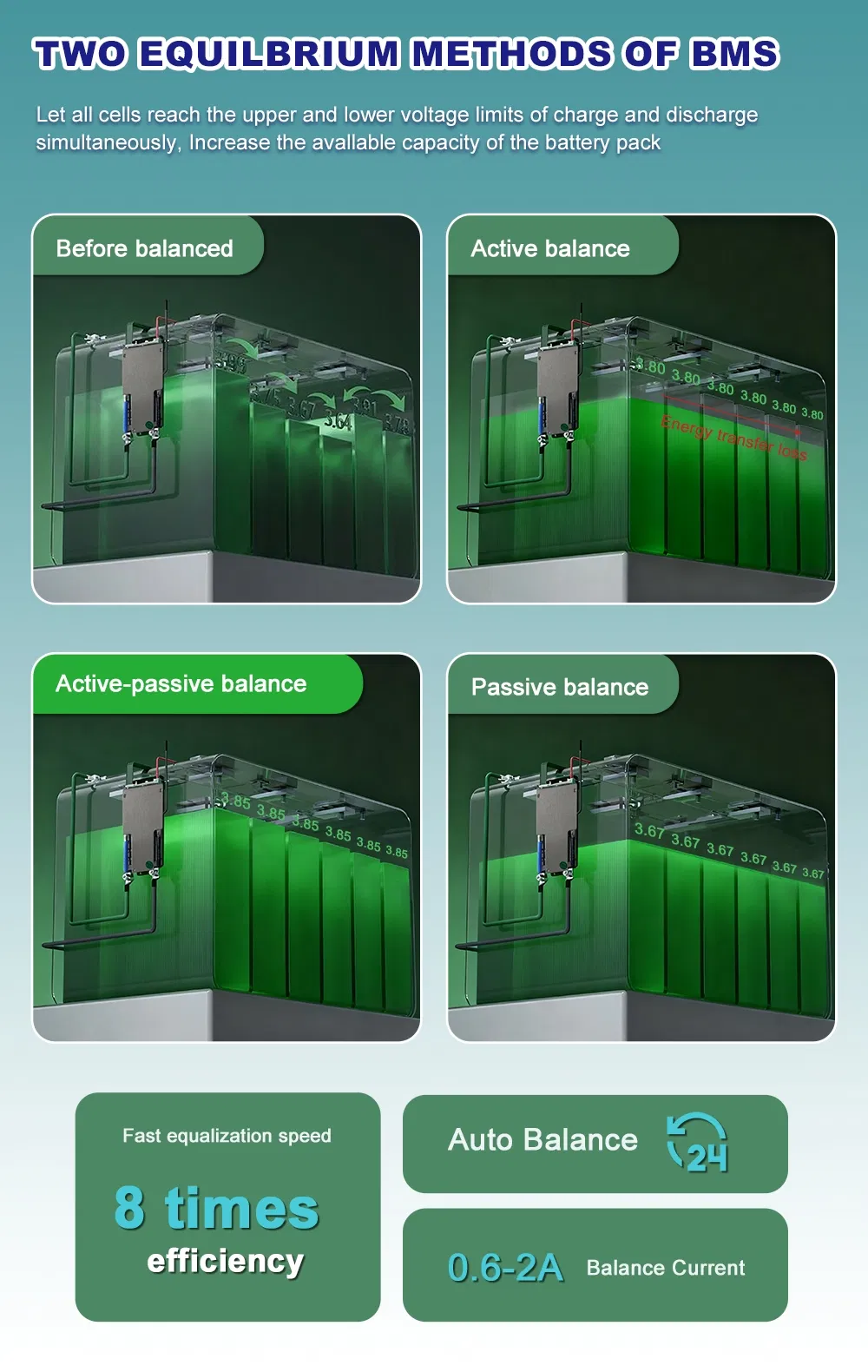

| Balance Method | Active and Passive Balance (0.6A) | |||
| Continuous Discharge | 40A | 60A | 100A | 200A |
| Overcurrent Protection | 10-40A adj. | 10-60A adj. | 10-100A adj. | 10-200A adj. |
| Voltage Accuracy | ±3mV | |||
| Bluetooth / RS485 | Yes / Integrated Support | |||
Installed and working perfectly with professional after-sales guidance.

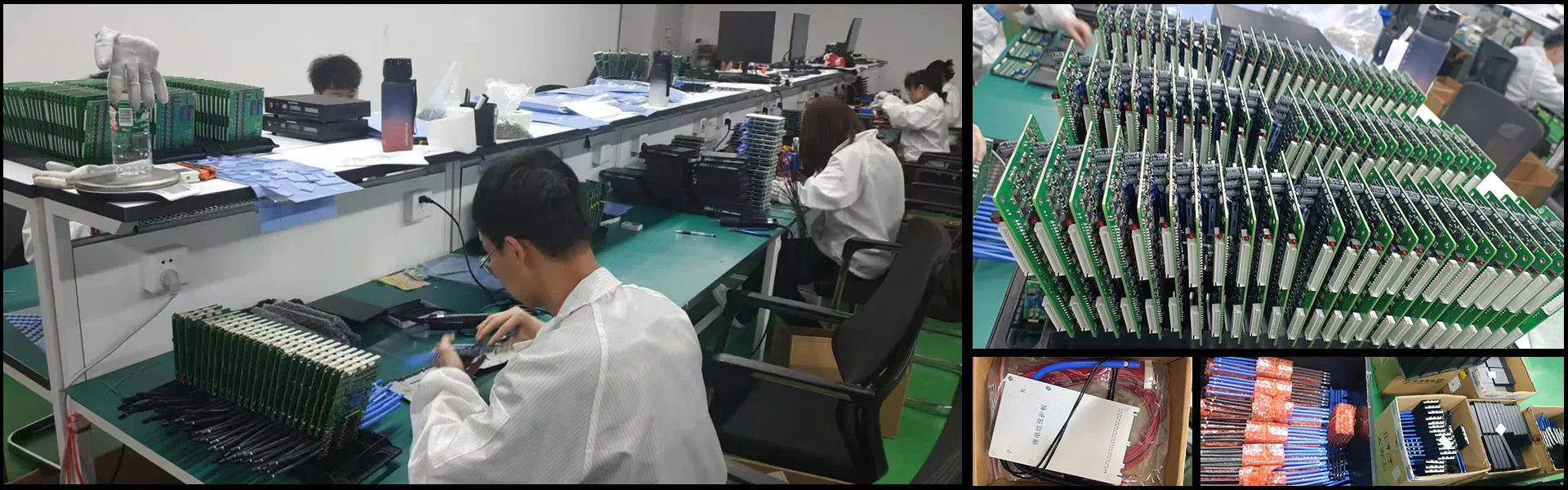

Our enterprise focuses on lighting solutions, energy systems, and core accessories. With over 12 years of experience in production, we specialize in R&D, design, and marketing of high-quality energy-saving products. Our solutions cover commercial, industrial, municipal, and solar photovoltaic systems.
