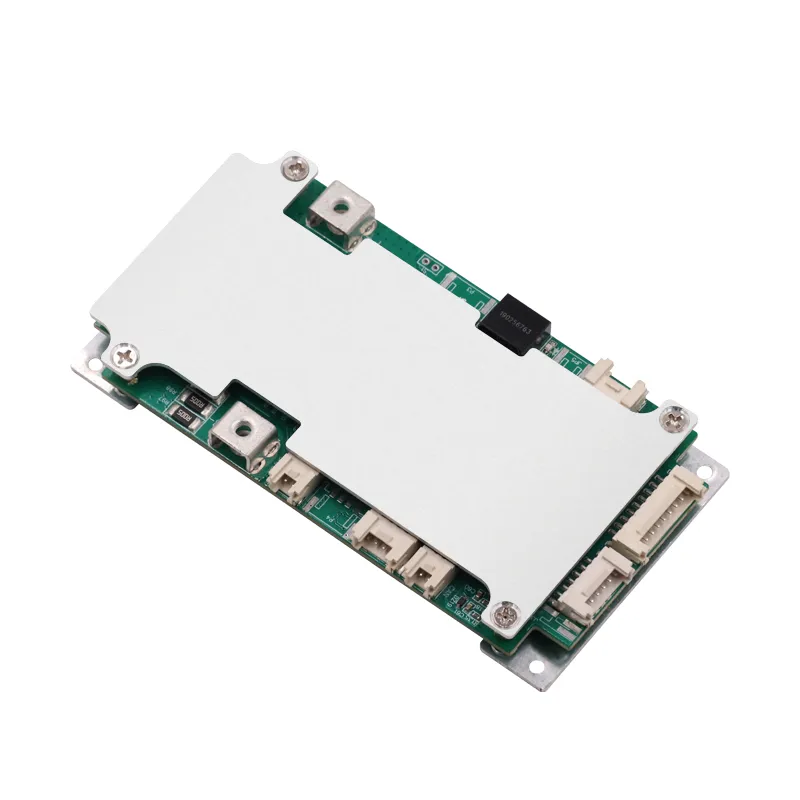

Main Features

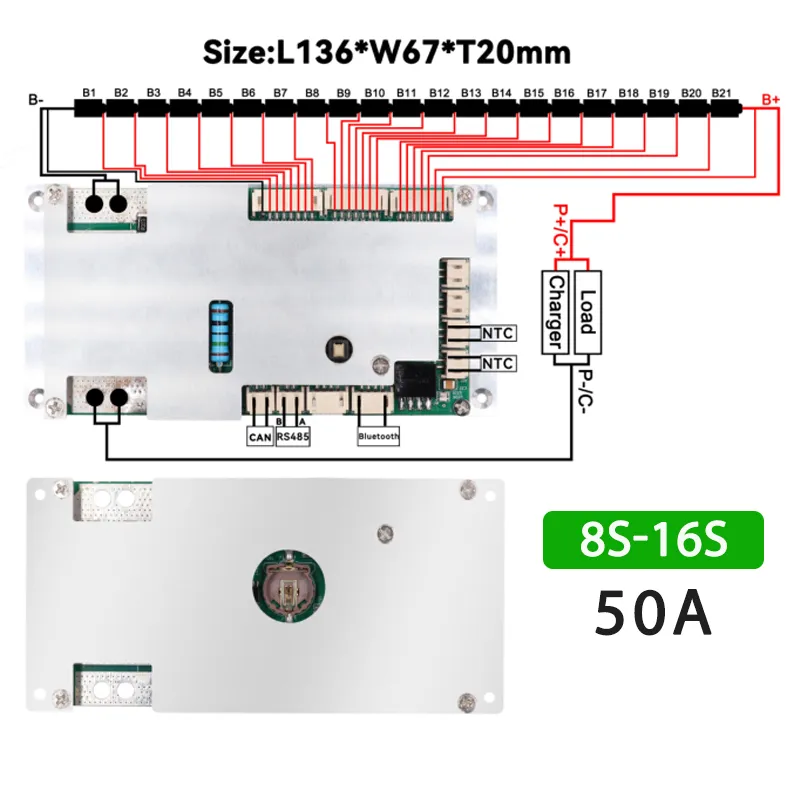

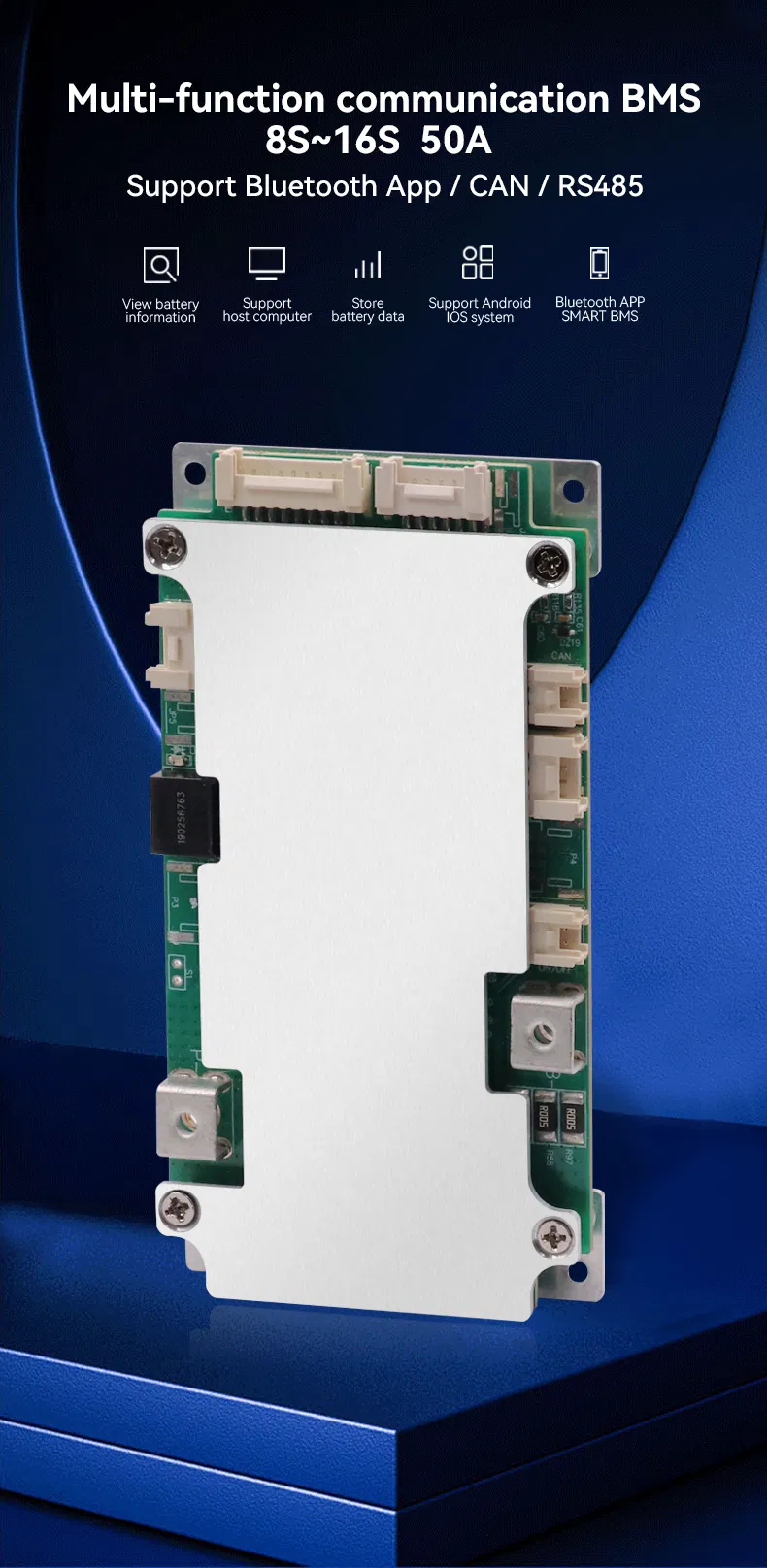

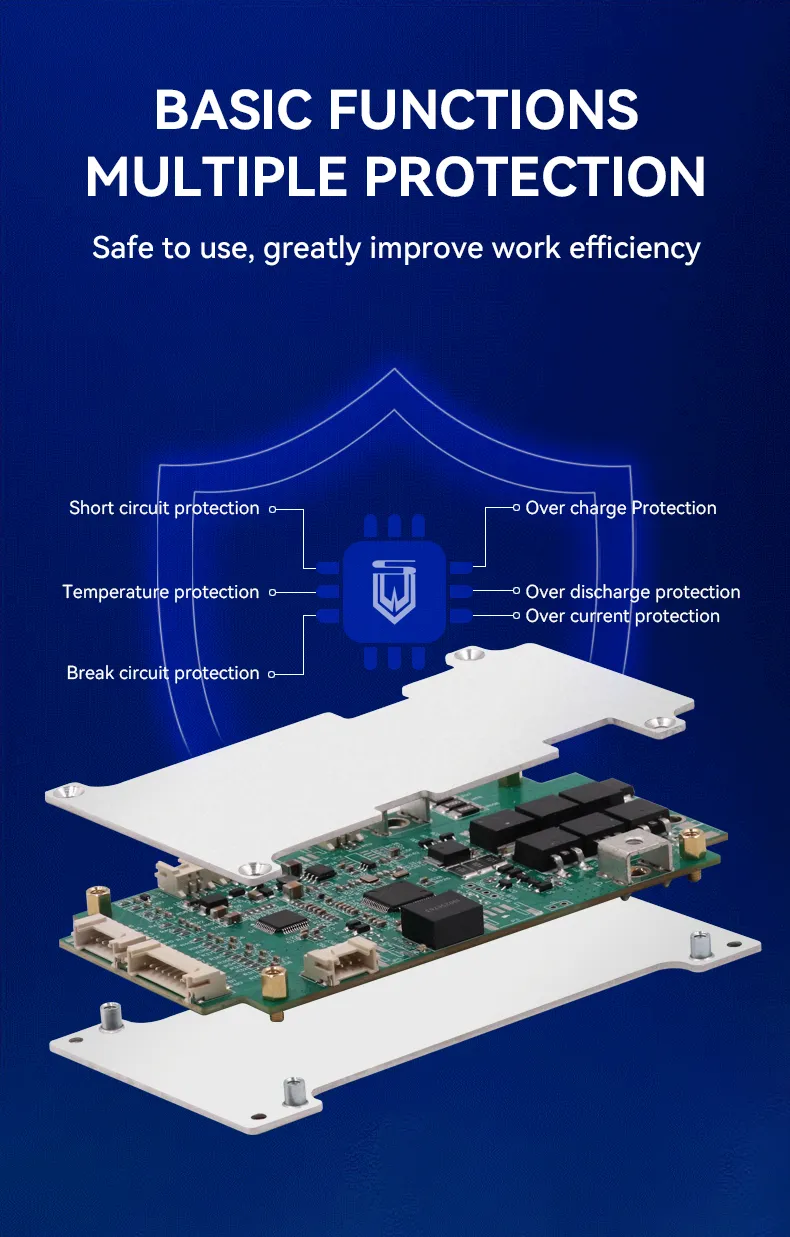

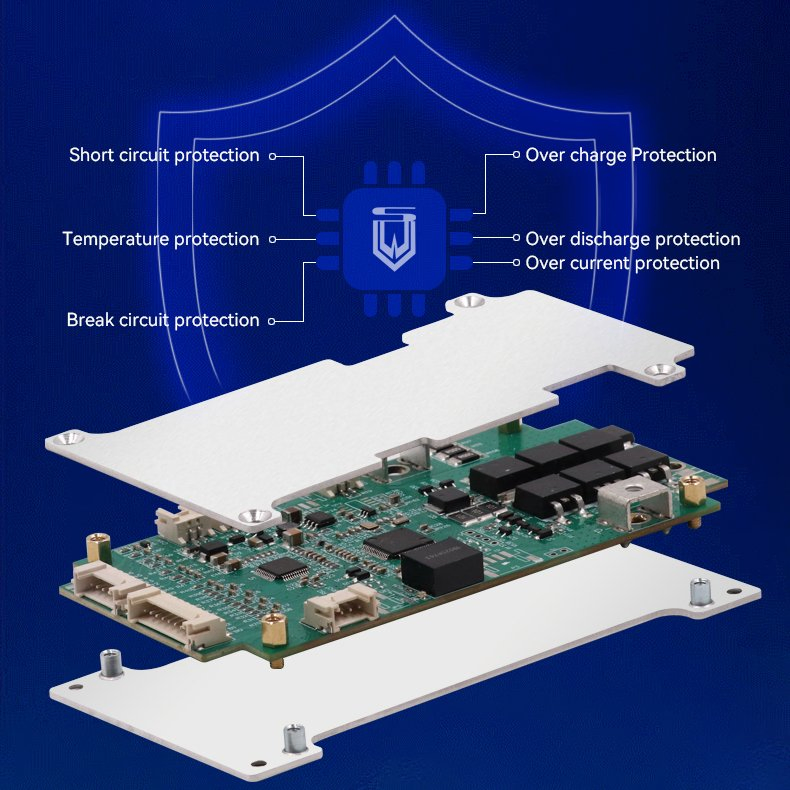

This product is suitable for battery packs with 8-16S of monomer voltage 2V-5V. It provides comprehensive protection and recovery functions, including:
| Test Item | Description | Criterion |
|---|---|---|
| Voltage | Charging voltage | DC:57.6V CC/CV |
| Balance | Balance current for single cell | 60±20mA |
| Current | Max continuous discharging current | ≤20A / 50A Available |
| Over Charge | Detection voltage for single cell | 3.75±0.025V |
| Over Discharge | Detection voltage for single cell | 2.50±0.05V |
| Short Circuit | Detection delay time | 50~800uS |
| Temperature | Operating range | -20~+60ºC |
| Resistance | Main circuit on-state resistance | ≤5mΩ |
Founded in 2013, we specialize in providing Battery PCM & BMS for Lithium ion, LiFePo4, and LTO battery packs. We offer comprehensive ODM & OEM services. To date, we have designed over 900 types of hardware and software BMS solutions, including interfaces such as HDQ, I2C, SMBUS, RS485, RS232, and Bluetooth.
Our products cover battery assembly from 1S to 35S in series, with working currents reaching up to 350A. These solutions are widely applied in power tools, electric bicycles, medical equipment, and EV applications.
