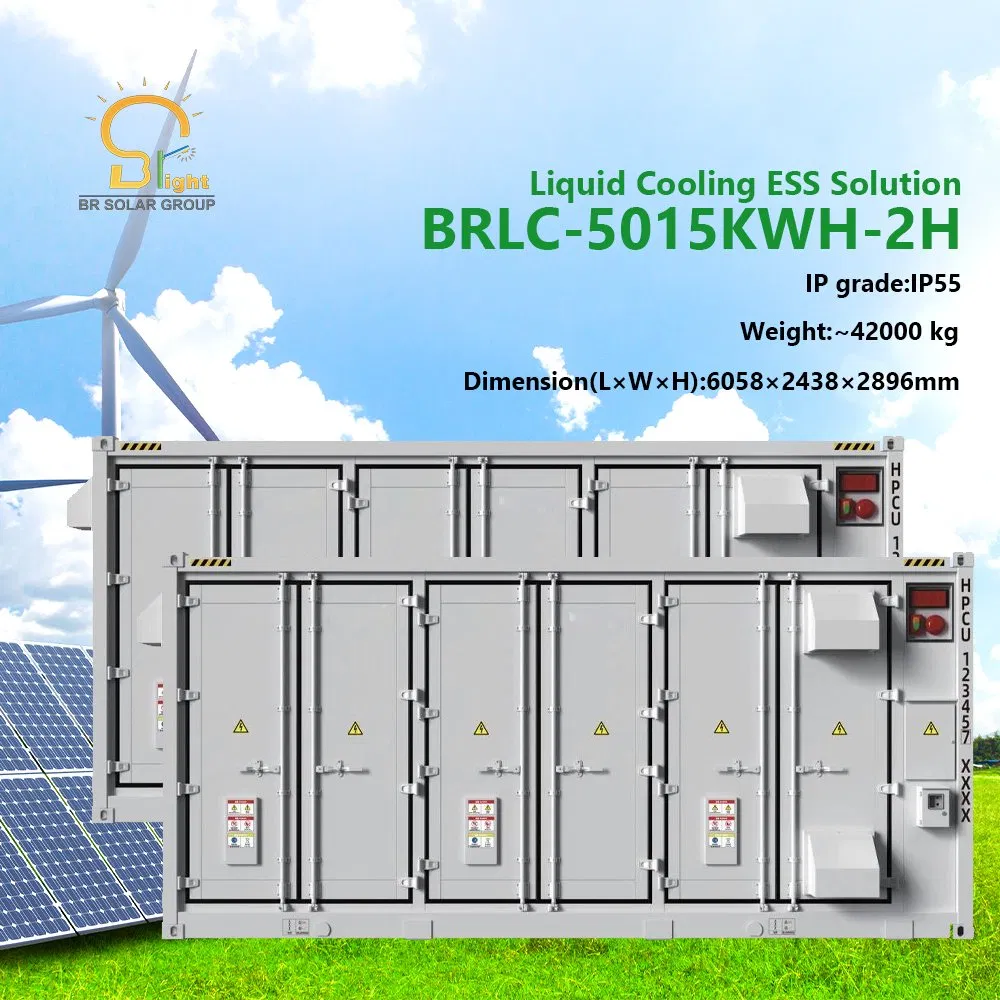

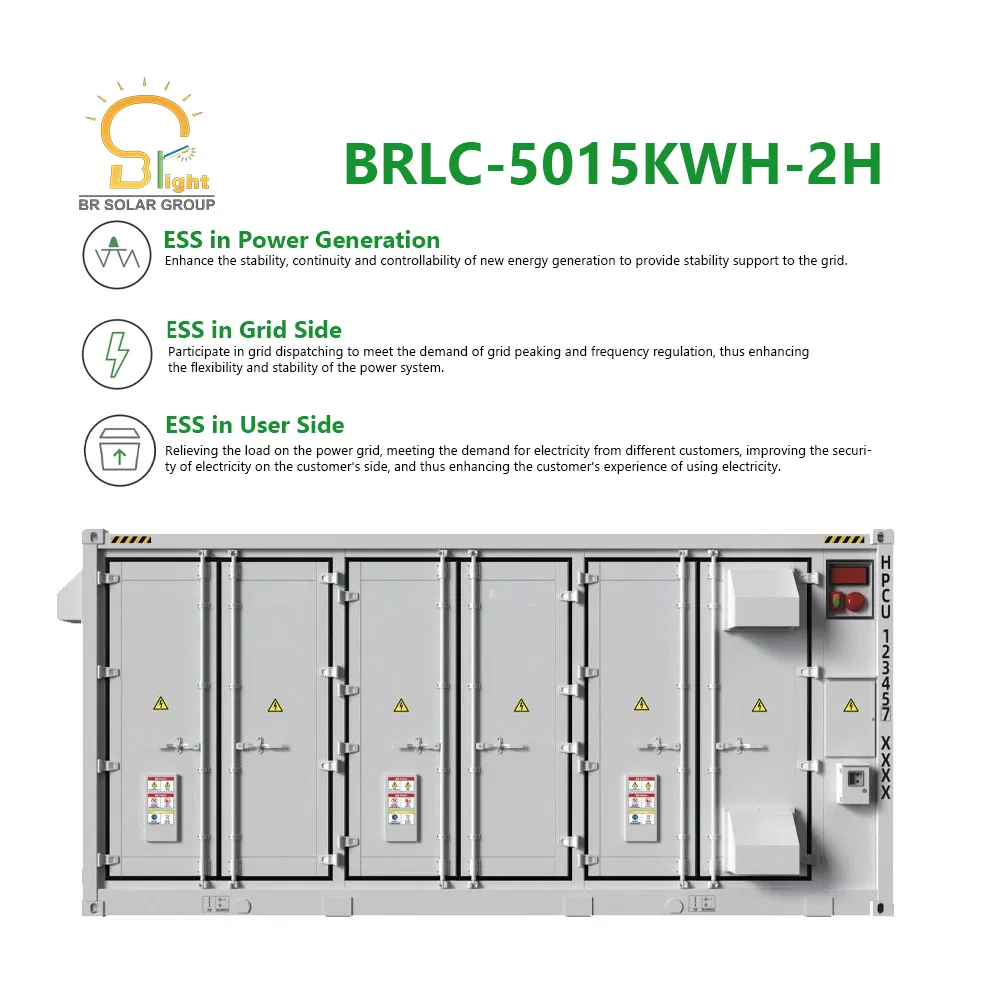

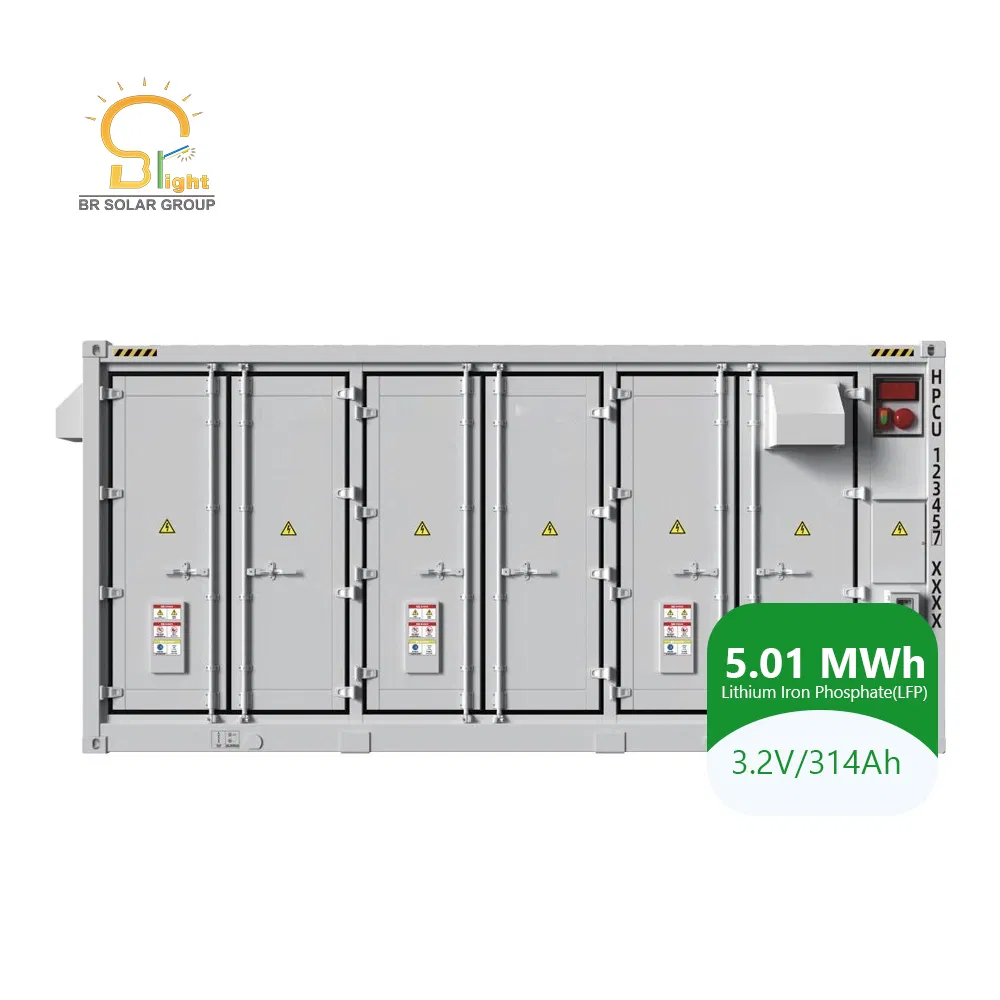

Solar Energy Battery Storage System 100kwh 200kwh 500kwh 1mwh Bess Container Battery
Solar Energy Battery Storage System 100kwh 200kwh 500kwh 1mwh Bess Container Battery
Solar Energy Battery Storage System 100kwh 200kwh 500kwh 1mwh Bess Container Battery
Solar Energy Battery Storage System 100kwh 200kwh 500kwh 1mwh Bess Container Battery
Solar Energy Battery Storage System 100kwh 200kwh 500kwh 1mwh Bess Container Battery
1 / 5
Solar Energy Battery Storage System 100kwh 200kwh 500kwh 1mwh Bess Container Battery
Solar Energy Battery Storage System 100kwh 200kwh 500kwh 1mwh Bess Container Battery
Solar Energy Battery Storage System 100kwh 200kwh 500kwh 1mwh Bess Container Battery
Solar Energy Battery Storage System 100kwh 200kwh 500kwh 1mwh Bess Container Battery
Solar Energy Battery Storage System 100kwh 200kwh 500kwh 1mwh Bess Container Battery

Solar Energy Battery Storage System 100kwh 200kwh 500kwh 1mwh Bess Container Battery

Customization: Available
After-sales Service: After- Sales Service
Warranty: 3 Years, 5 Years
Send Inquiry

Product Description

📋

Basic Information

Condition
New
Certification
ISO, CE
Application
Home, Industrial, Commercial, School, Factory
Specification
100kwh, 233kwh
Type of Cell
Lithium Iron Phosphate(LFP)
Cell Parameter
3.2V/314ah
Cooling
Liquid Cooling
Protection Class
IP55
Max. Power
0.5c
Rated Capacity
5.01 Mwh
Rated Voltage
1331.2V
HS Code
8501310000

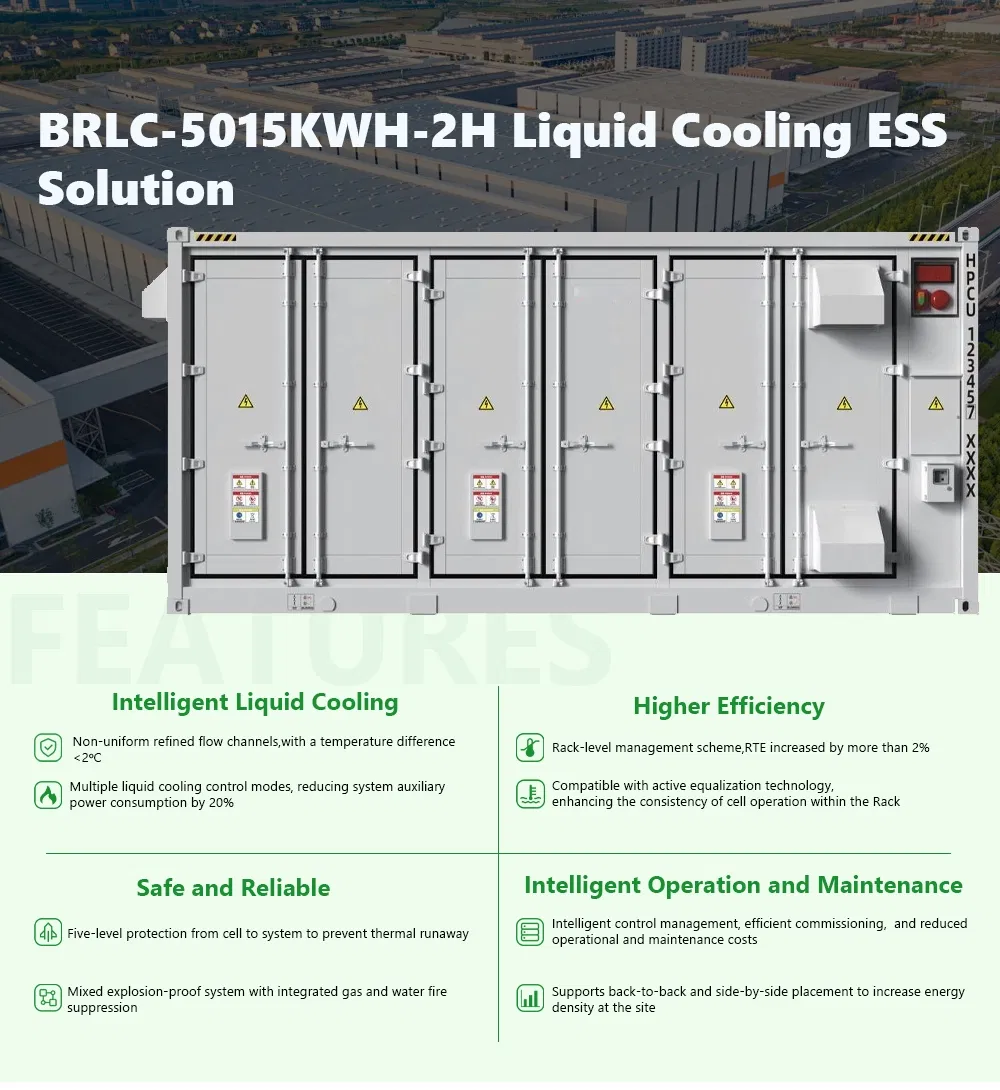

Battery Storage System
⚙️

Technical Parameters

Items Parameters
Type of cellLithium Iron Phosphate(LFP)
Cell parameter3.2V/314Ah
Max. charge/discharge power0.5C
Configuration of system1P416S×12
Rated capacity5.01 MWh
Rated voltage1331.2V
Voltage range1164.8~1497.6V
Cooling methodLiquid Cooling
Operating temperature−30~50ºC
Humidity≤95%RH, no condensation
Altitude≤3000m
Noise level≤80dB(A), @1m / 75dB(optional)
IP gradeIP55
Storage temperature−20~45ºC
Fire protectionTemperature sensor + Smoke detector + Combustible gas detector + Deflagration venting + Fire extinguishing gas + Water sprinkler
Communication interfaceEthernet/CAN/RS485
Dimension(L×W×H)6058×2438×2896mm
Weight≈42000 kg
📦

Packaging & Delivery

Package Size
110.00cm * 140.00cm * 238.00cm
Gross Weight
2000.000kg
Package Type
Carton and Pallet
🖼️

Product Gallery

Bess Container 1

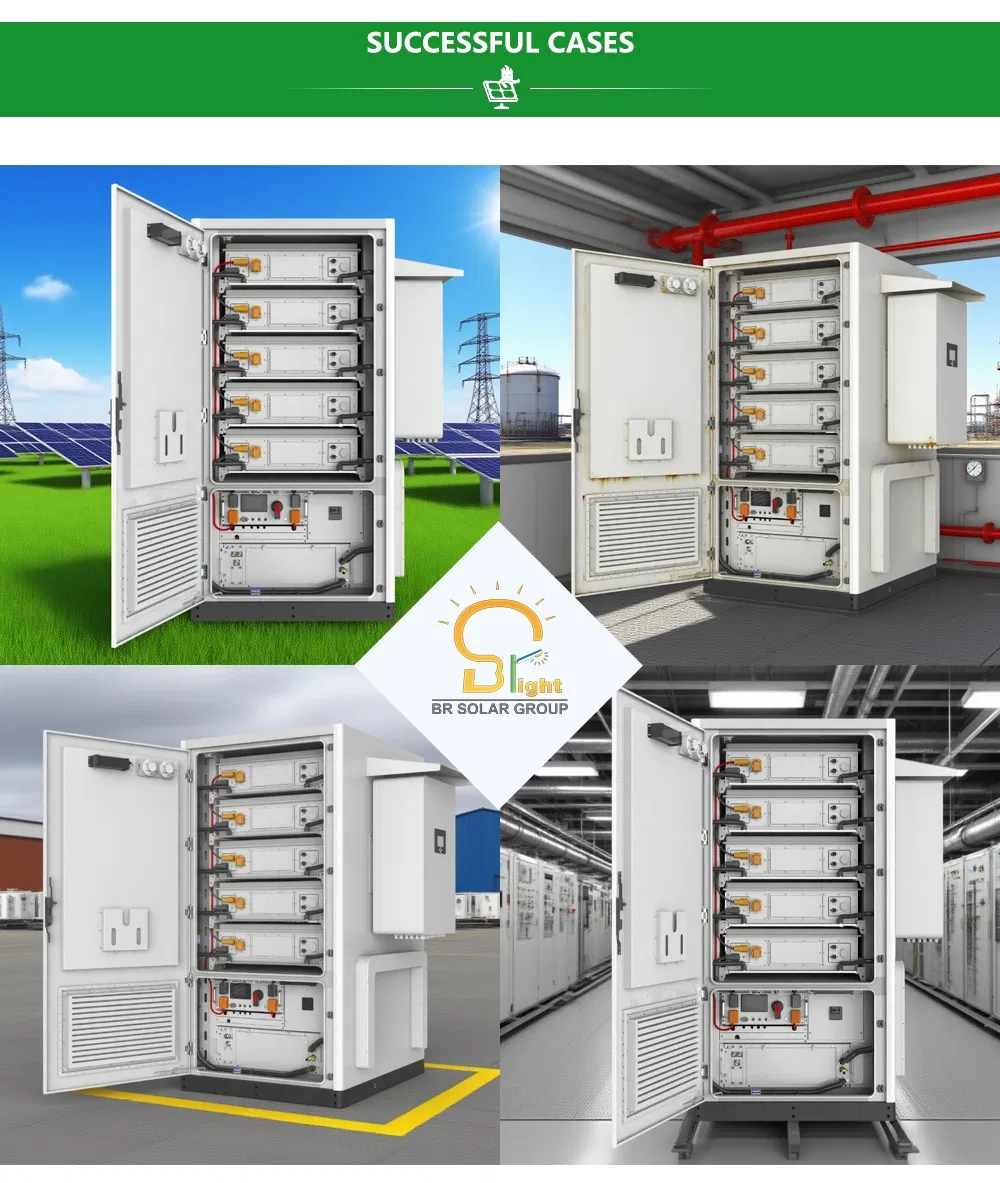

Bess Container 2
Bess Container 3
Bess Container 4
Bess Container 5

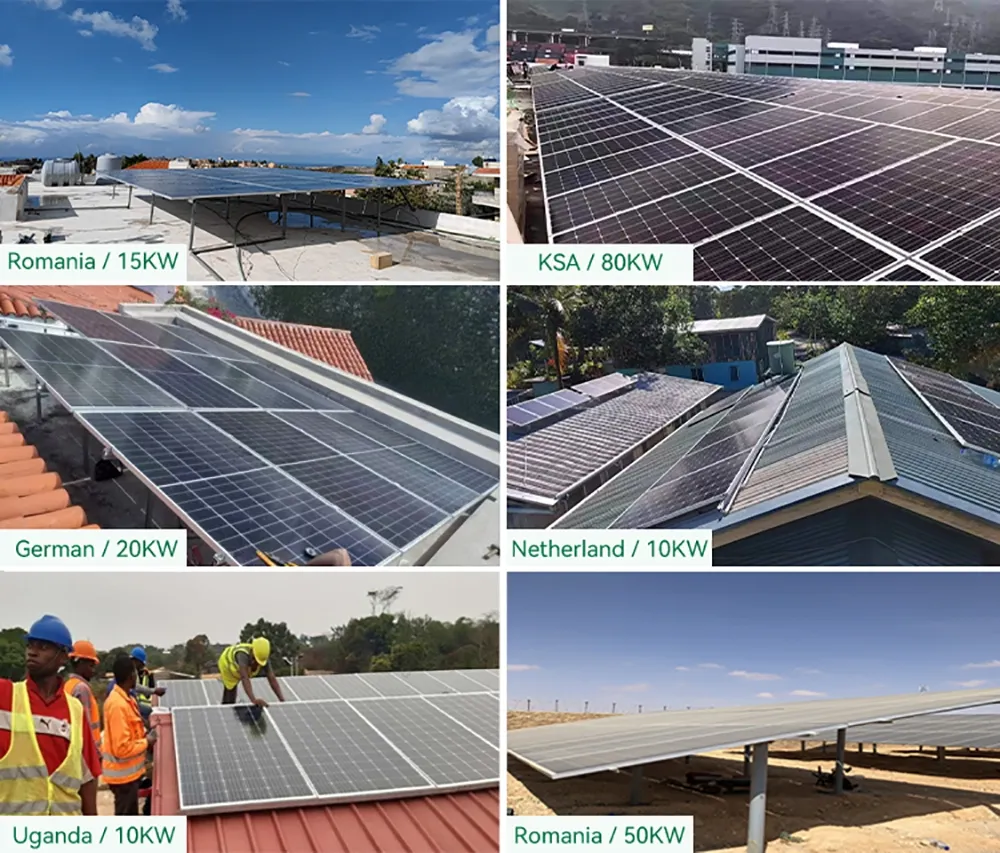

Bess Container 6
Bess Container 7
Bess Container 8
Banner
💡

Frequently Asked Questions

What type of battery technology is used in this system?
The system utilizes Lithium Iron Phosphate (LFP) cells, known for their high safety profile, long cycle life, and thermal stability.
How is the temperature managed within the container?
It uses an advanced Liquid Cooling method which provides more uniform temperature distribution compared to air cooling, ensuring cell longevity.
Is this storage system suitable for outdoor use?
Yes, the system is designed with an IP55 protection grade, making it resistant to dust and water, suitable for various outdoor environments.
What safety features are included for fire protection?
The unit is equipped with a comprehensive fire suppression system including temperature sensors, smoke detectors, combustible gas detectors, and water sprinklers.
Can the system operate in extreme weather conditions?
The operating temperature range is -30ºC to 50ºC, allowing for reliable performance in both cold and hot climates.
What are the main applications for this 5.01 MWh system?
It is ideal for large-scale energy storage in industrial facilities, commercial complexes, schools, factories, and utility-scale solar projects.
