OEM China Factory EV Assembly Automated Pouch Module Battery Pack Fabrication

Customization:	Available
Production Scores:	Multiple Varieties
Production Continuity:	Continuous

■ Overview

Basic Info.	Details
Condition	New
Automation	Automatic
After-sales Service	Engineers Available to Service Machinery Overseas
Transport Package	Wooden Box Packing
Origin	China
Production Capacity	12ppm

■ Product Description

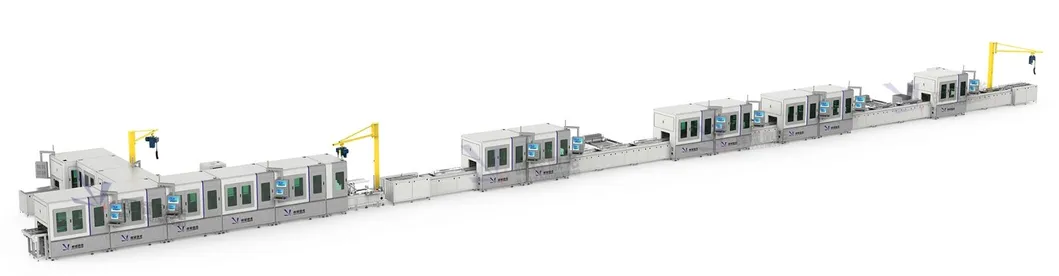

Comprehensive Solid-State Battery Module PACK Automatic Production Line for Efficient Output 12PPM is designed for the modular production of solid-state batteries, featuring high automation, flexibility, and integrated quality control (QC) systems. It ensures efficient production while maintaining strict quality standards. The line is suitable for electric vehicles, energy storage systems, consumer electronics, and more, supporting the production of various specifications of solid-state battery modules.

Key Parameters

Estimated Daily Output	500-1000 modules (adjustable)
Energy Consumption	5000-8000 kWh (based on runtime)
Included Equipment	Automatic assembly, laser welding, inspection equipment, packaging, conveyor systems, QC systems
Payment Terms	50% advance, 50% before shipment
Delivery Lead Time	2-3 months

■ Key Features & Functions

✔

High Automation: Fully automated equipment reduces manual intervention.

✔

Integrated QC: Real-time monitoring of welding, voltage, and resistance.

✔

Flexible Design: Supports multiple battery module specifications.

✔

Intelligent MES: Data monitoring, analysis, and traceability.

✔

Energy Efficiency: Energy-saving equipment for green manufacturing.

■ Technical Parameters

Specification	Parameter	Remarks
Line Efficiency	≥12PPM	Adjustable
Dimensions	60000mm8500mm3500mm	LWH
Final Yield Rate	≥99.8%	-
Failure Rate	≤2%	-
Operating Temp	10-25ºC	Ensures stability
Power Supply	380V±10%, 50Hz	Industrial standard
Warranty	2 year	Lifetime support

■ Process Flow

No.	Process Step	No.	Process Step
1	Heat Conduction Plate Loading	11	Terminal Tab Flatting
2	Terminal Tab Cutting Inspection	12	NG Cell Re-work
3	Cell Loading	13	Insulation Testing
4	Cell Glue Applying	14	Laser Welding
5	Terminal Tab Bracket Assembly	15	Post-Welding Testing
6	Cell Insulation Testing	16	Double-Sided Detection
7	Unit Glue Applying	17	Sense Lead Insulation
8	Module Stacking	18	EOL Testing
9	Busbar Installation	19	Module Off-Loading
10	Terminal Tab Bending	-	-

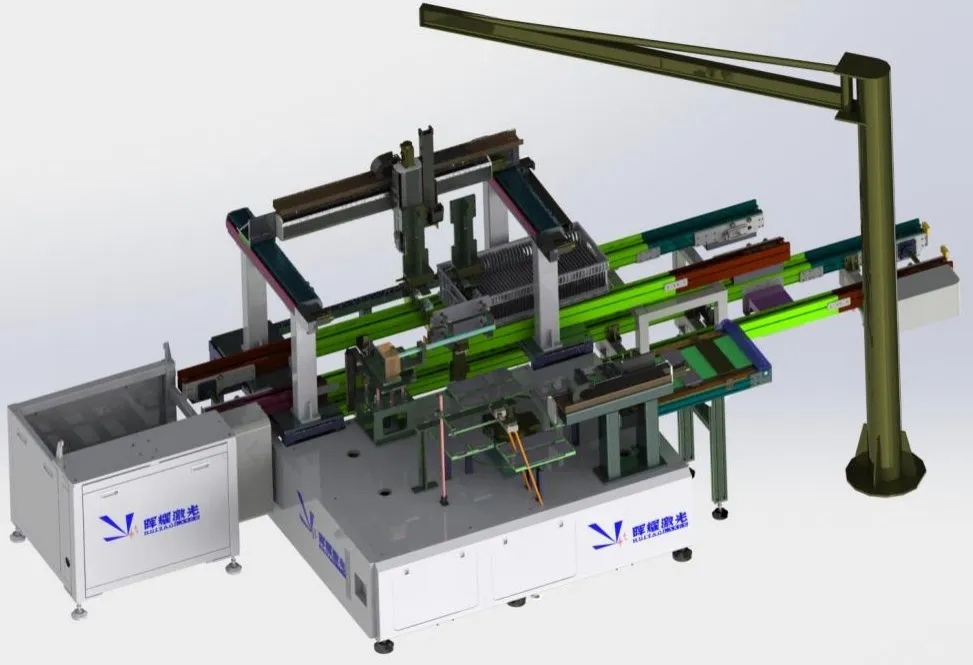

1. Cell Loading

Operator handles material frames via cantilever crane; conveyor transfers to flip station for horizontal placement.

2. Cell Process Station

Robotic transfer for weighing, thickness measurement, OCV testing, and lug cutting with NG sorting.

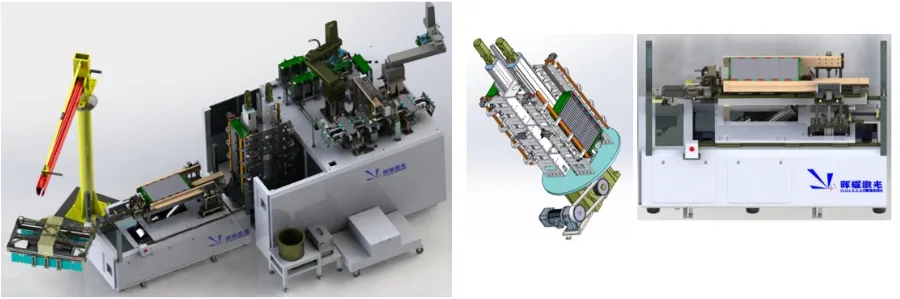

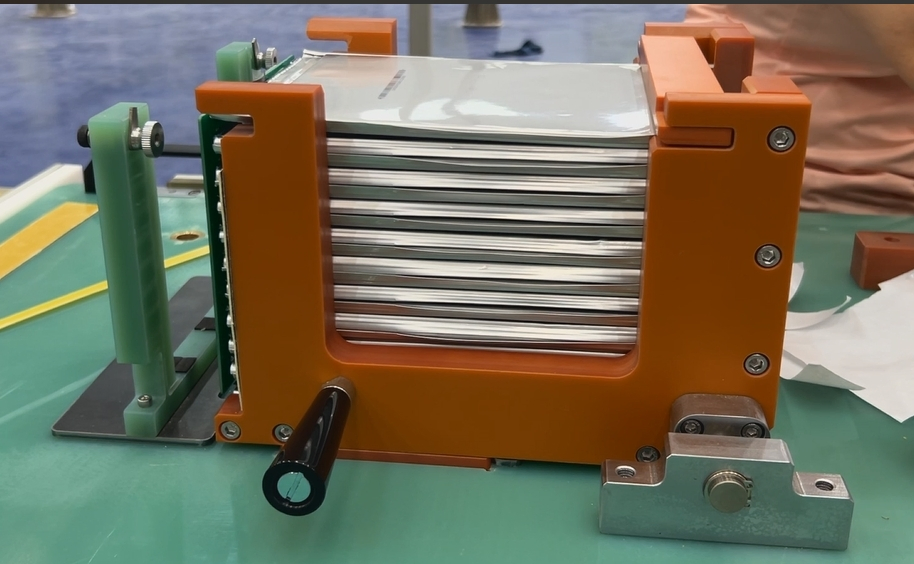

3. Module Stacking & Pressing

Double-sided tape application followed by robotic stacking, compression, and final assembly.

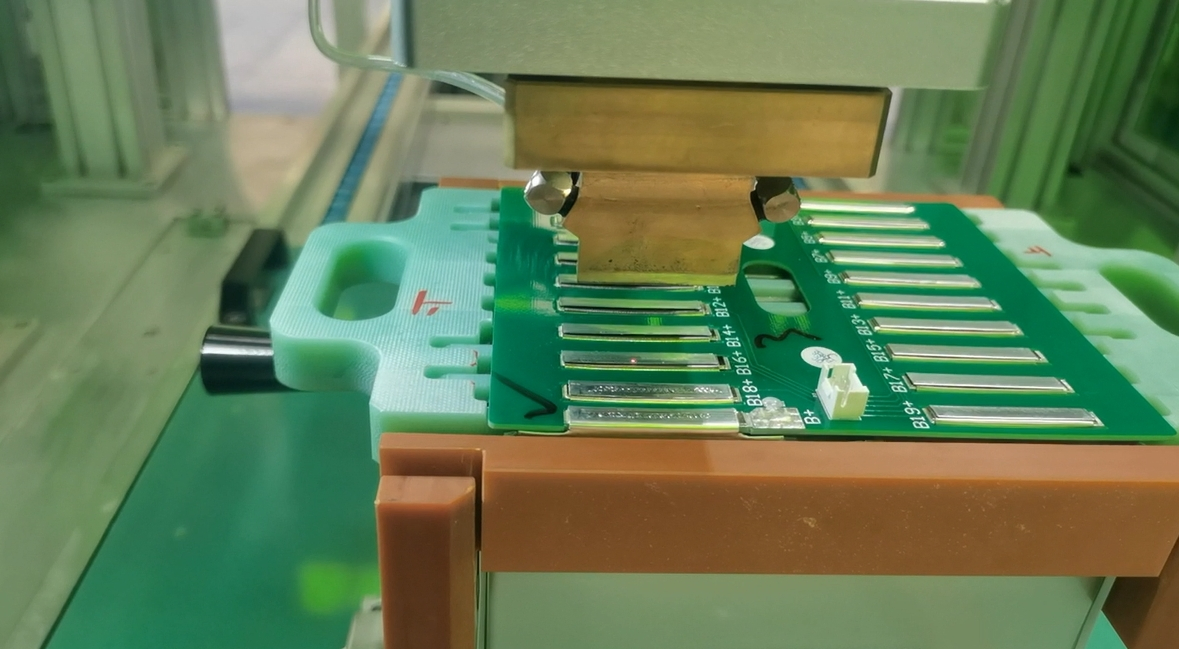

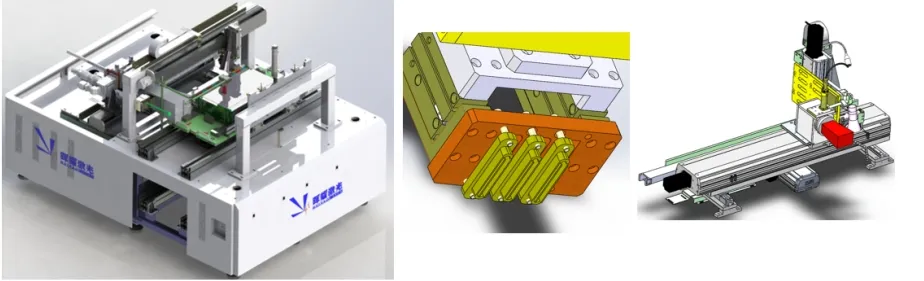

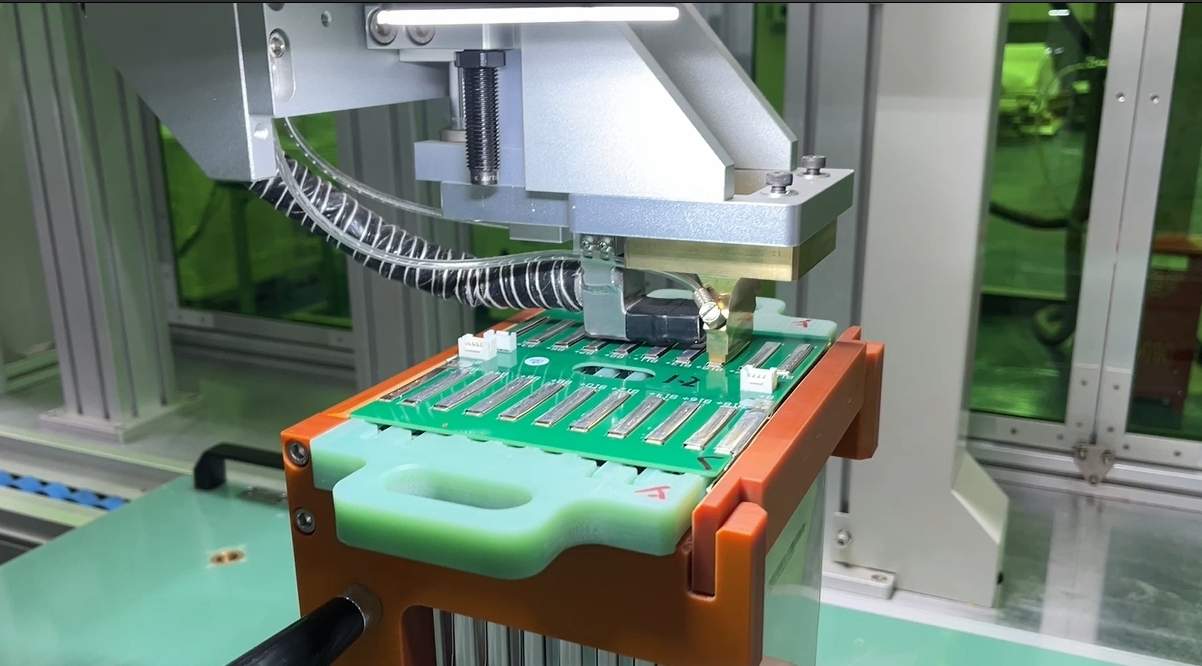

4. Terminal Tab Laser Welding

Precision laser welding with sequential addressing and ranging for high-quality connections.

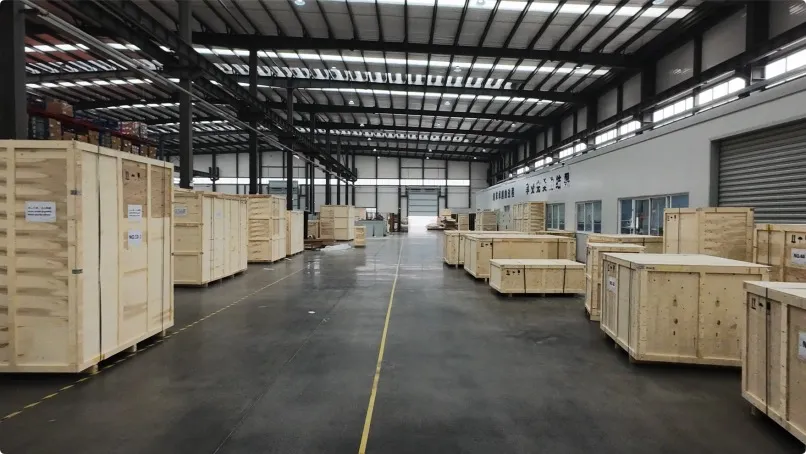

■ Application & Packaging

■ Industry Recognition & Exhibition

■ FAQ

1. How is production efficiency ensured? High automation and intelligent management systems ensure production efficiency and product quality across the entire line.

2. How is product quality controlled? The integrated QC system monitors welding quality, voltage, internal resistance, and other parameters in real-time to ensure strict product consistency.

3. Can the production line be customized? Yes, the production line can be fully customized to support different specifications and processes based on specific customer requirements.

4. What is the energy consumption of the system? We utilize energy-saving equipment to optimize power consumption and ensure compliance with modern environmental manufacturing standards.

5. What is the standard delivery lead time? The typical lead time is approximately 2 to 4 months from the signing of the contract to equipment delivery.

6. What after-sales services are provided? Our comprehensive services include professional installation, debugging, operator training, a standard warranty, and lifetime technical support.
