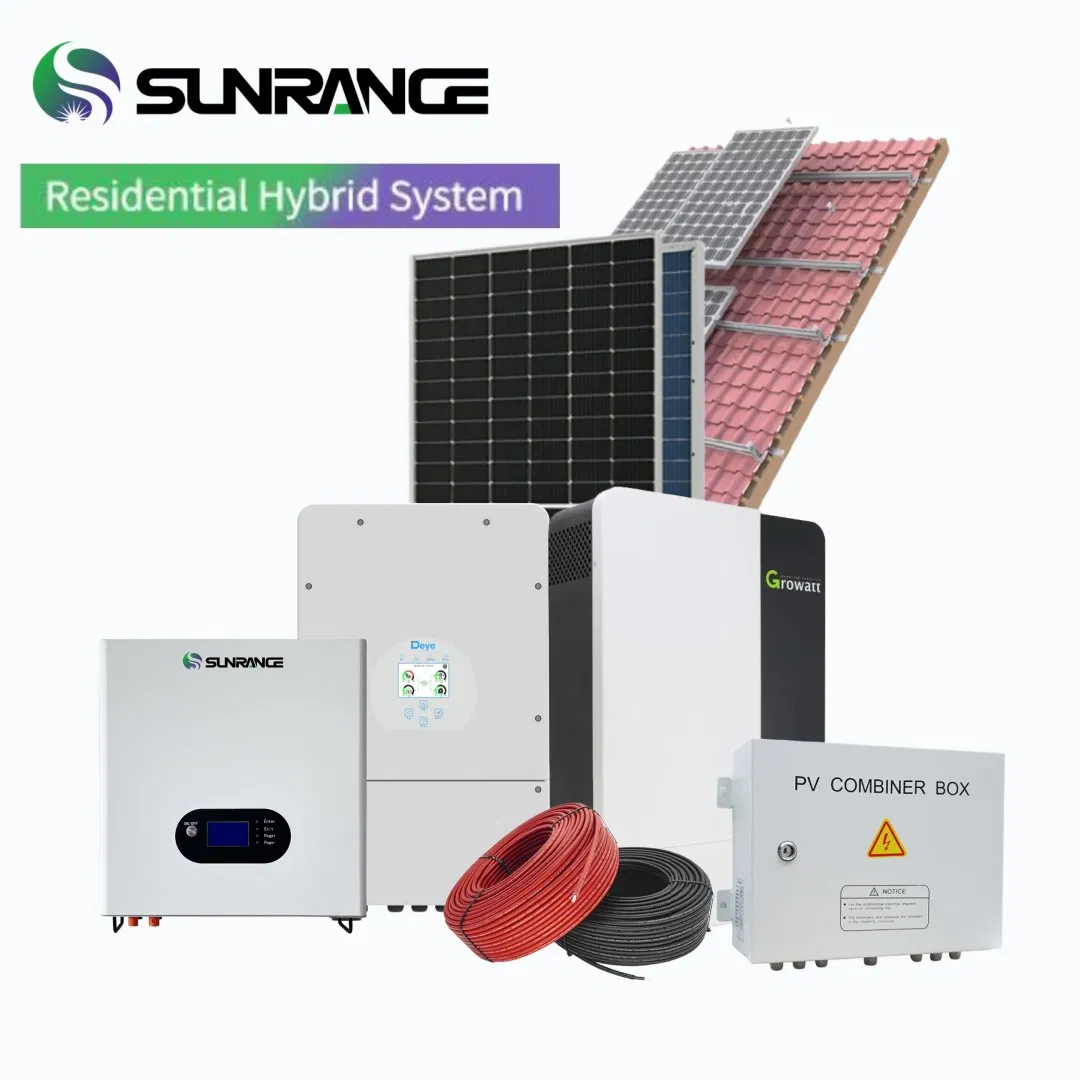

ENERGY STORAGE SYSTEM SOLUTIONS
| Model. No. | SR-5KW-HY | SR-10KW-HY | SR-15KW-3HY | SR-20KW-3HY | SR-30KW-3HY | |
|---|---|---|---|---|---|---|
| System Parameter | AC Rated Power | 5KW | 10KW | 15KW | 20KW | 30KW |
| Grid Voltage | 220/230VAC | 380/400VAC | ||||
| Max. Output (KVA) | 5.5 | 11 | 16.5 | 22 | 33 | |
| Solar Panel | Quantity | 12PCS | 21PCS | 30PCS | 42PCS | 56PCS |
| Power in total | 6.96KW | 12.18KW | 17.4KW | 24.36KW | 32.48KW | |
| Lithium Battery | Model | SR48200 | SR48280 | SR48100 | SR48200 | SR48280 |
| Bank Capacity | 10.24KWH | 14.336KWH | 30.72KWH | 40.96KWH | 57.344KWH | |

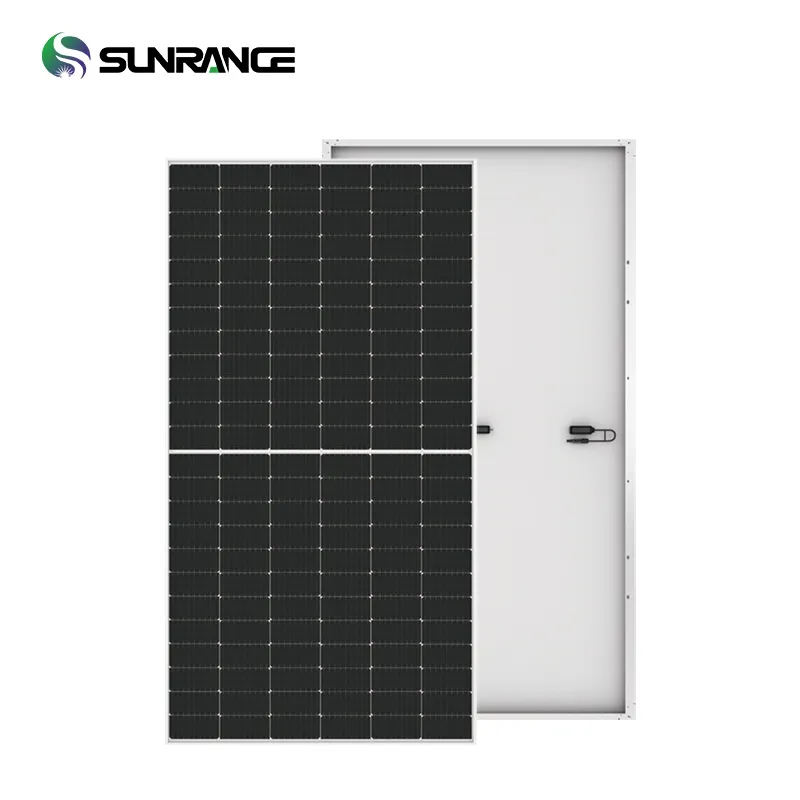

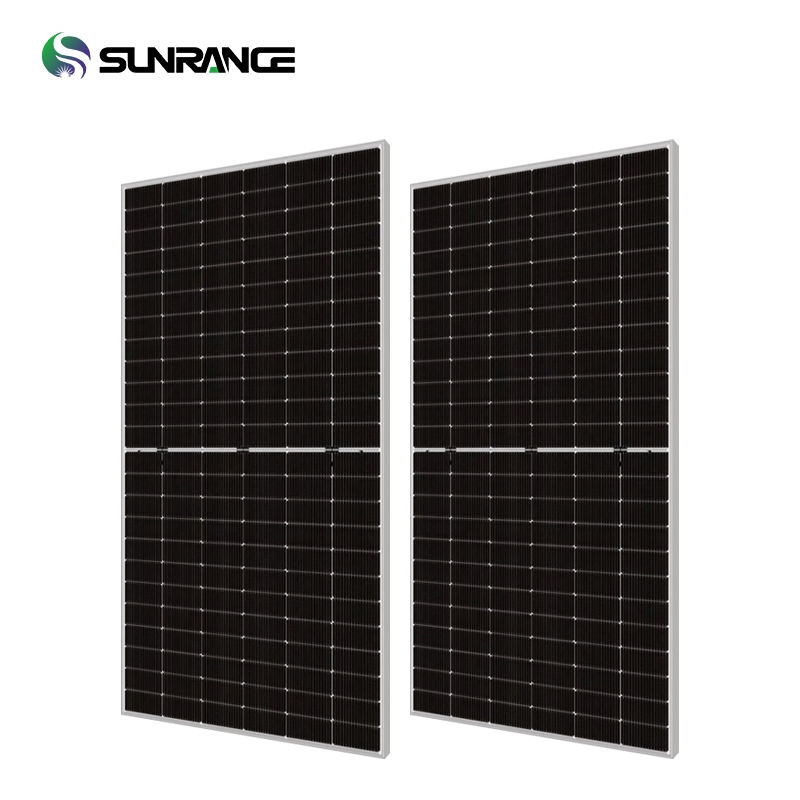

Model: SR72P-580N
Maximum power (Pmax): 580W
Open Circuit Voltage (Voc): 51.57V
Short Circuit Current (lsc): 14.33A
Module Efficiency: 22.44%

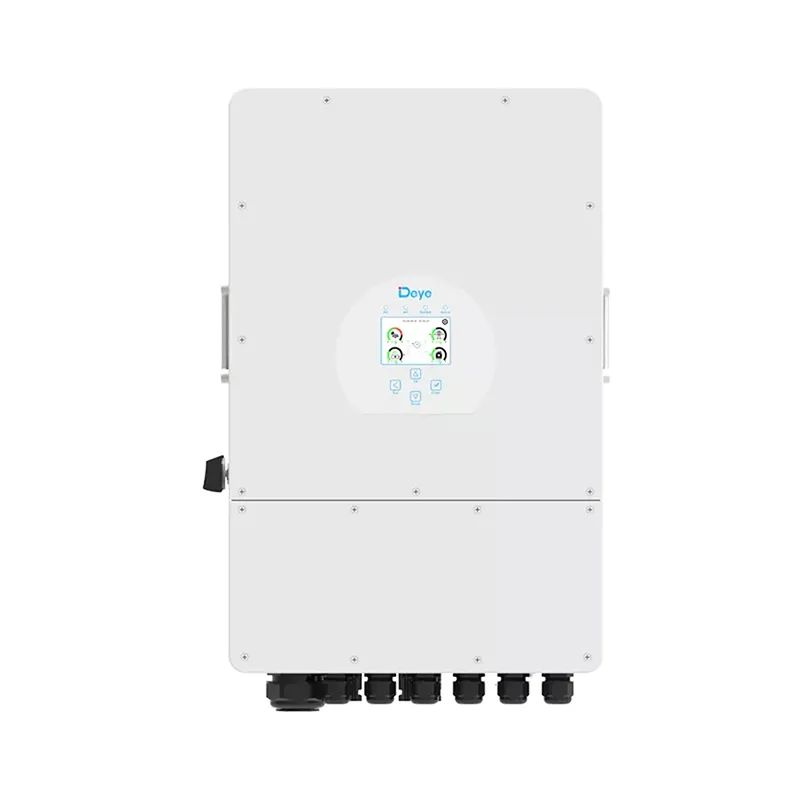

Supports PV, battery, DG, grid, and load connections.
Easy capacity expansion.
Dynamic power distribution to fulfill load demand.

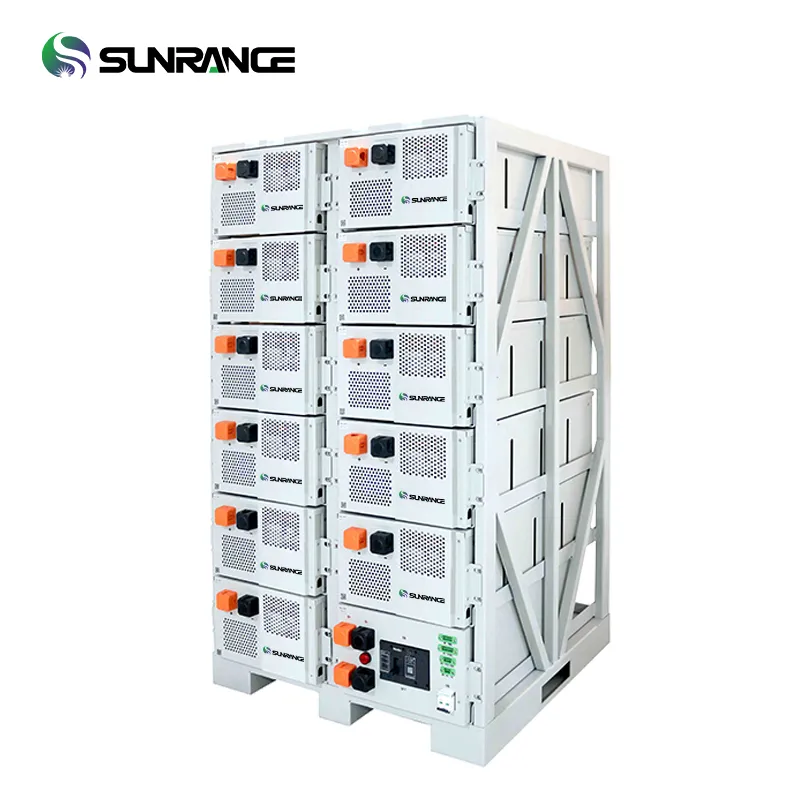

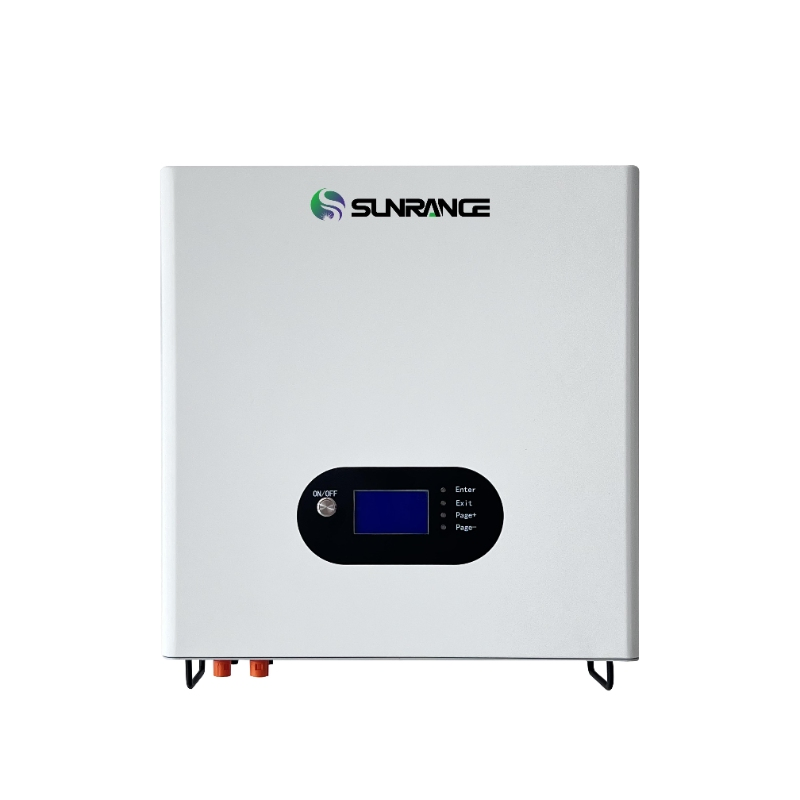

Rack mounted, Deep Cycle long lifespan.
GEL/LiFePO4 Lithium Ion options.
More than 6000 cycles, up to 90% DOD.
Maintenance-free with high discharge performance.

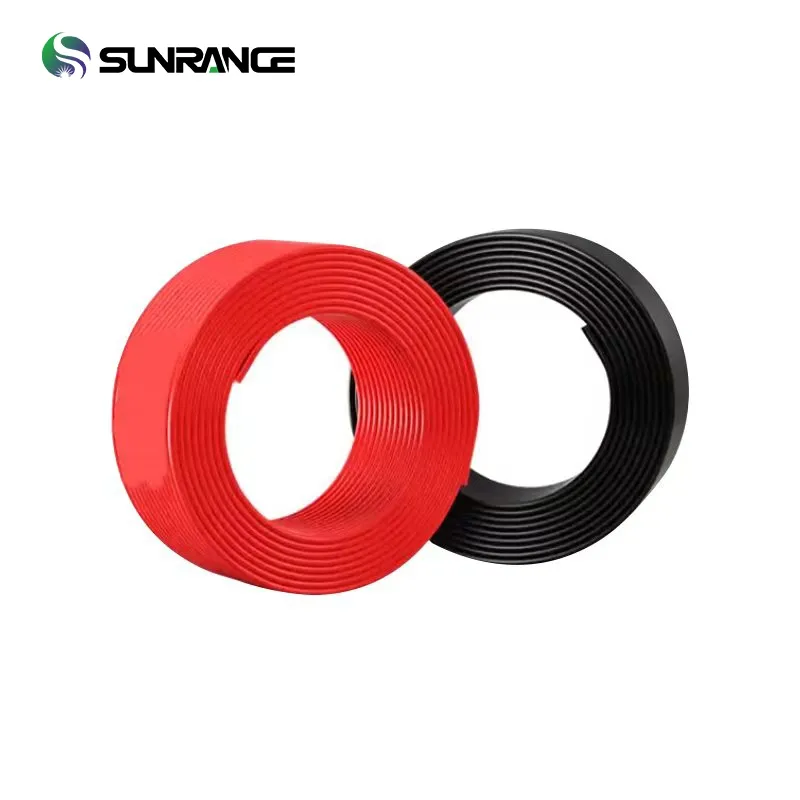

DC Cable & Connector

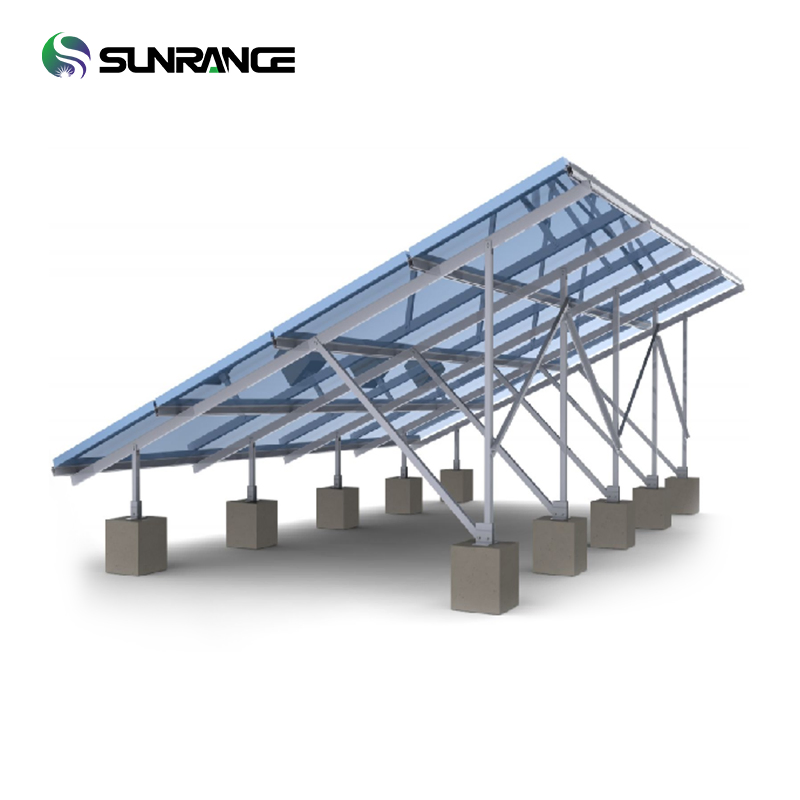

PV Mounting System
