Storage 105kw 215kwh Ess High Voltage Commercial Industrial Cabinet Battery Container 105kw System Bess Solar Energy

Customization: Available
Container Size: L1560mm*D1380mm*H2385mm
Weight: 2600kg

Product Description

i

Basic Specifications

Model NO.Corey233
Nominal Voltage230V/400V
Warranty5 years
Nominal Capacity233kWh
Cycle Life9000
Battery TypeLiFePO4
Grid ConnectionHybrid Grid
Cooling MethodIntelligent Liquid Cooling
Protection LevelIP54
Discharge Depth95% Dod
Energy Storage System
$

Profit Model

Maximize Investment Return through C&I Energy Storage

Peak-Valley Arbitrage: Buying low-cost electricity during off-peak hours and discharging during peak periods to reduce energy costs.
Load Management: Optimizing demand to minimize short-term peak loads and lower demand charges.
Demand Response: Voluntarily reducing consumption during power shortages to support grid stability and earn incentives.
Backup Power Supply: Providing emergency power to critical loads during outages, ensuring business continuity.
Spot Market & Ancillary Services: Participating in peak shaving, frequency regulation, and spot trading to boost profits.

Product Advantages

  • Safe and reliable: Emergency backup power source for continuous operation.

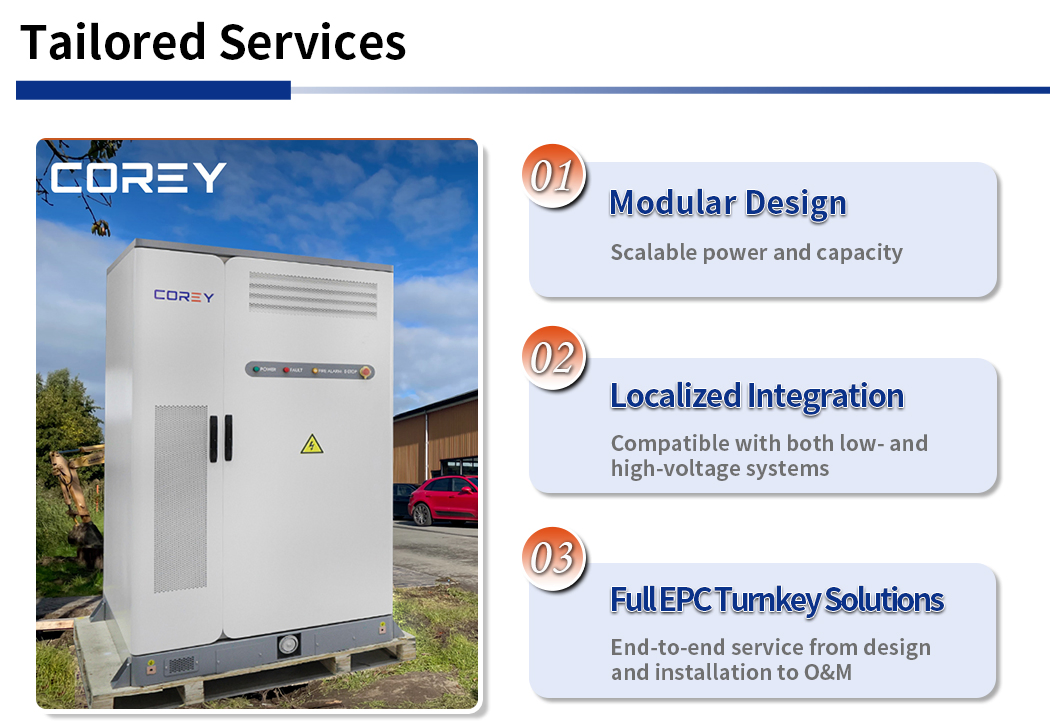

  • Flexible configuration: Modular design, expansion, customization, and convenient installation.
  • High efficiency: Optimized energy usage to reduce operational costs.
  • Intelligent O&M: Promotes green energy consumption with reduced maintenance costs.
  • Grid-friendly: Seamless on-grid/off-grid switching with multiple protection layers.

Technical Parameters

System Parameter Specifications
Battery Cell LFP (LiFePO4) 3.2V 280Ah
System Capacity 233kWh
Rated Power 105kW
Cooling Method Intelligent Liquid Cooling
Fire Fighting Aerosol + Water Fire Protection
Operating Temperature -20ºC to 50ºC (Discharge)
Size L1560mm * D1380mm * H2385mm
AC Side Value
Rated Voltage 230V/400V (±15%)
Maximum Current 167A
Switching Time 20ms (Optional)

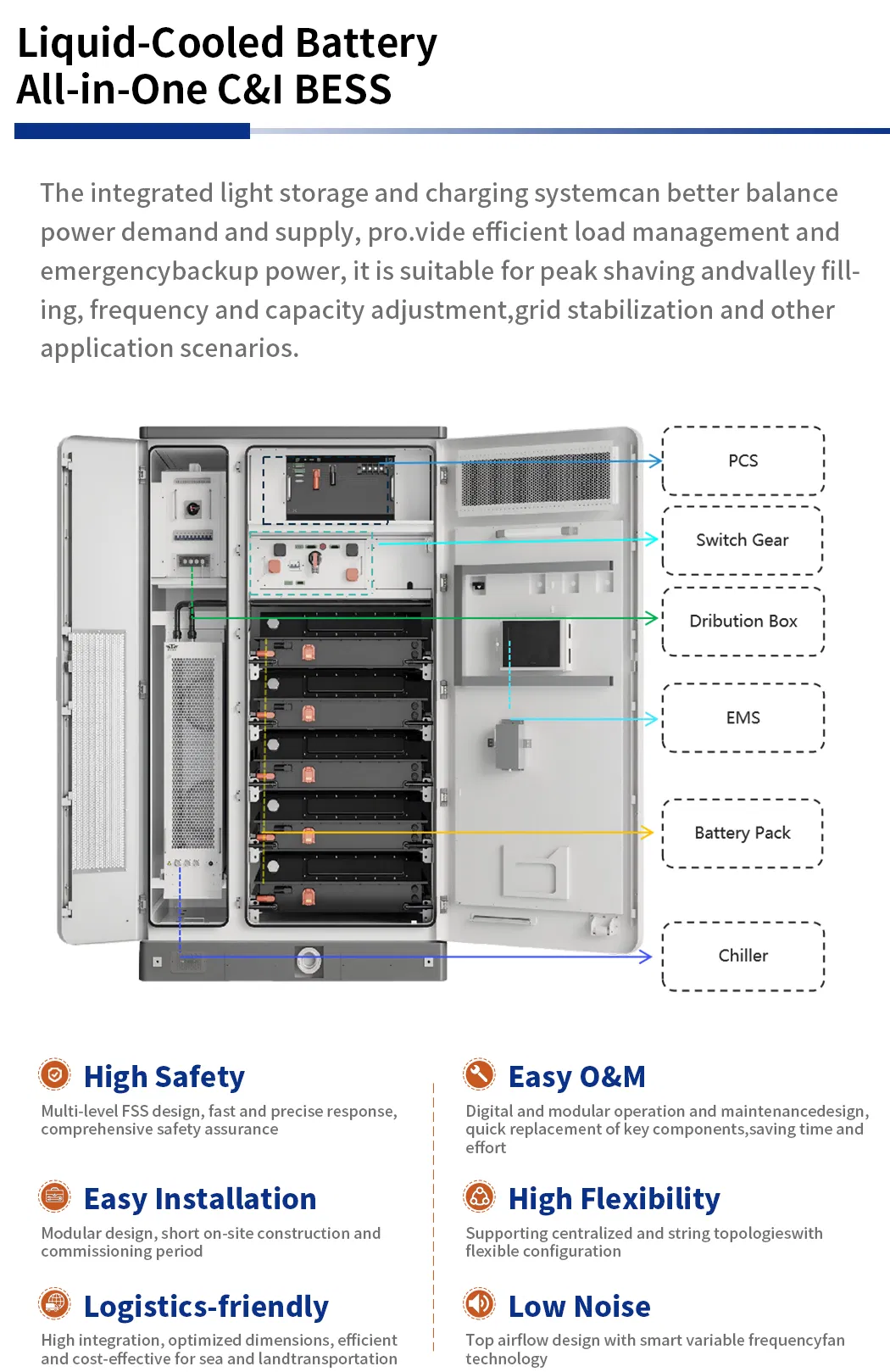

Internal Structure

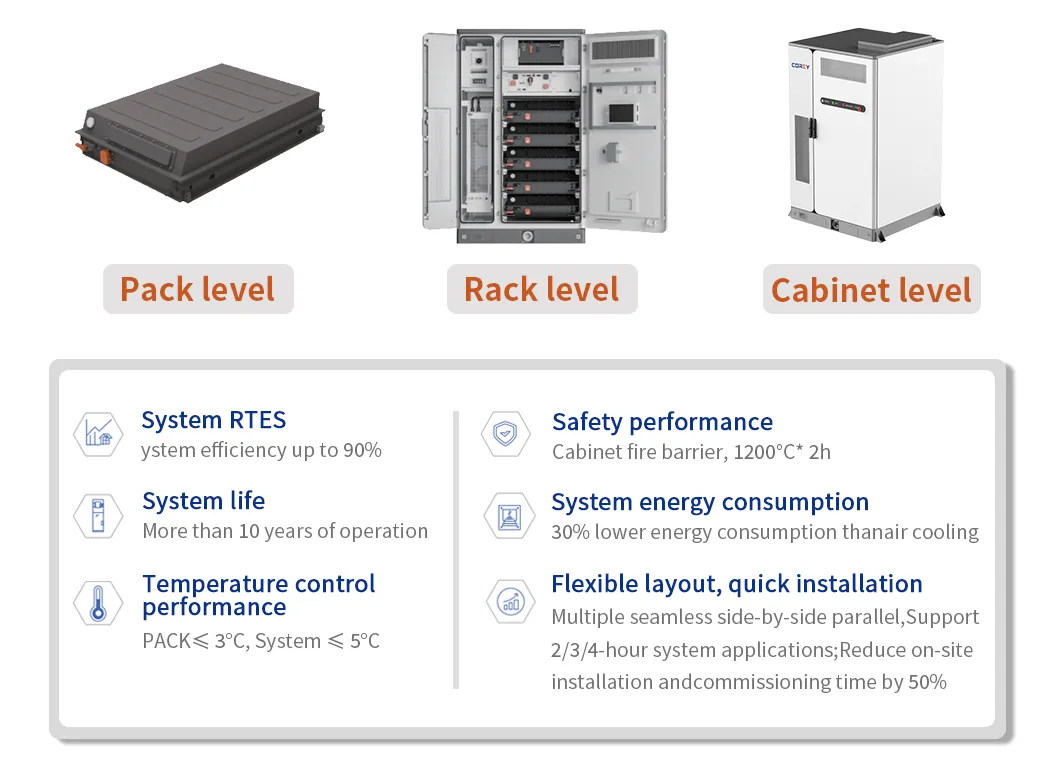

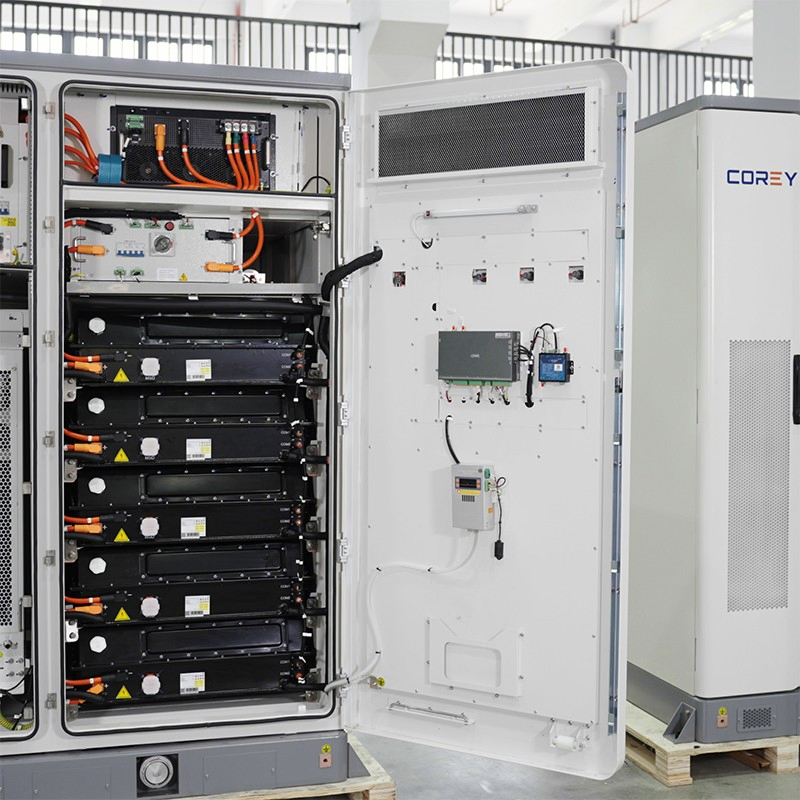

Cabinet View
Liquid Cooling System
Control Module

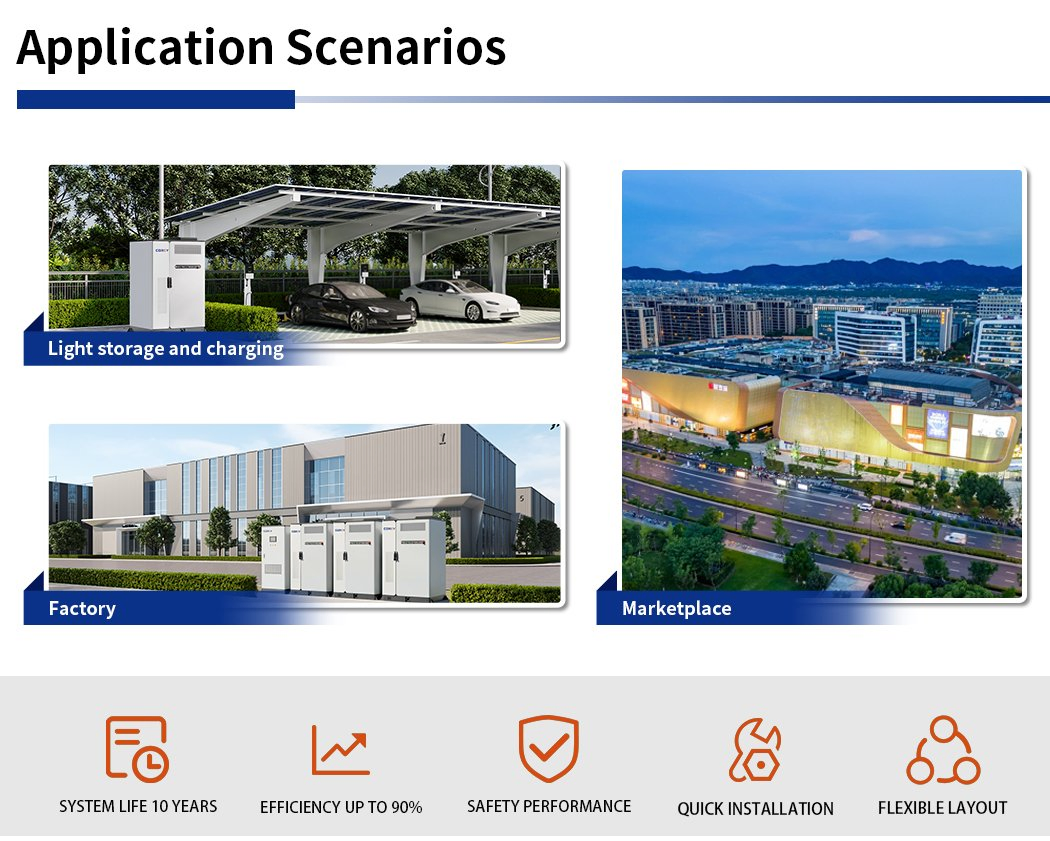

Application Areas

This system is ideal for commercial buildings, industrial factory buildings, remote off-grid areas, and regions experiencing frequent power shortages.

Project Case

Commitment to Green Energy

With a focus on automated intelligent equipment and laser welding technologies for lithium battery modules, we provide high-intelligence manufacturing solutions for energy storage system integration. Our mission is to provide one-stop green power station solutions including Turnkey Services, Microgrid Solutions, and Photovoltaic Energy Storage Projects. We are committed to promoting the transformation of clean energy, building zero-carbon power systems, and providing stable, safe, and clean power globally.

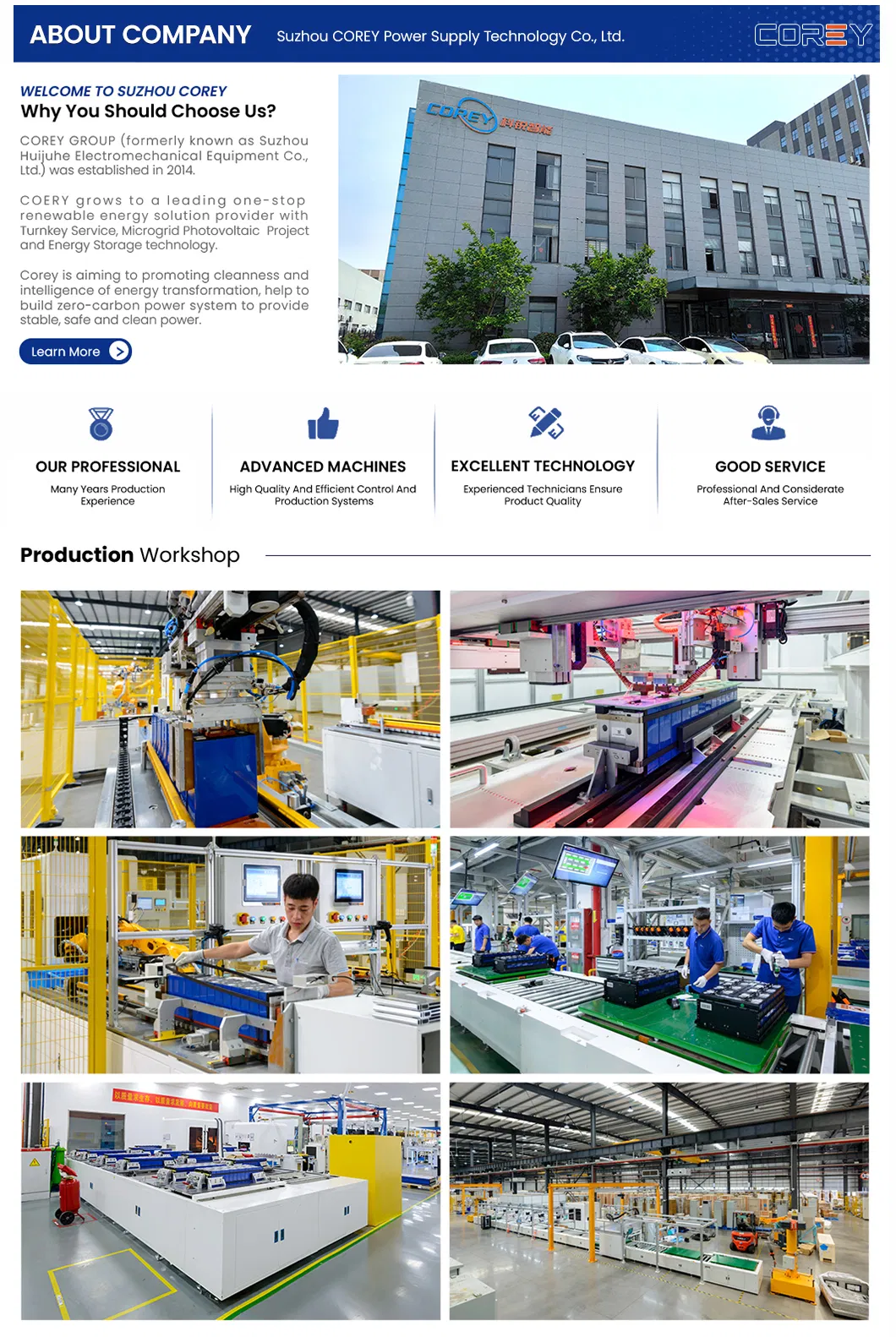

Manufacturing
Facility

Frequently Asked Questions

What is the battery chemistry and rated capacity?
The system utilizes high-safety LiFePO4 (LFP) battery cells with a total system capacity of 233kWh.
What is the expected lifespan of the battery system?
The battery cells are designed for a cycle life of approximately 9000 cycles, ensuring long-term reliability for industrial applications.
How does the intelligent liquid cooling system benefit the user?
Intelligent liquid cooling ensures precise temperature control, which extends battery life, improves safety, and maintains high efficiency even during heavy charge/discharge cycles.
Can this system switch between on-grid and off-grid modes?
Yes, the system supports hybrid grid connections and features an optional automatic on-grid and off-grid switching time of less than 20ms.
What safety features are integrated into the cabinet?
Safety is a priority, featuring aerosol fire fighting at the pack and cluster levels, plus cabinet-level water fire protection, and an IP54 protection rating.
What certifications does the product meet?
The system complies with multiple international standards including EN 62477, EN 61000, EN 50549, UN38.3, EN 62619, and VDE certifications.
