| Condition | New |
|---|---|
| Automation | Automatic |
| After-sales Service | Engineers Available to Service Machinery Overseas |
| Warranty | 2 Years |
| Degree of Automation | ≥ 95% |
| OEM | Yes |
| Certification | FDA ISO CE |
| Production Capacity | 12ppm |

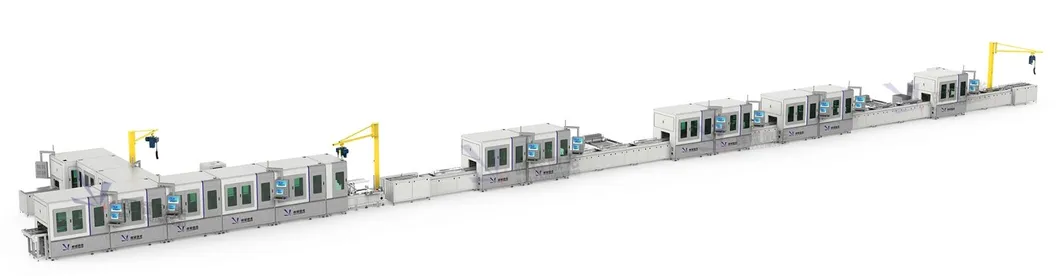

Comprehensive Solid-State Battery Module PACK Automatic Production Line for Efficient Output 12PPM is designed for the modular production of solid-state batteries, featuring high automation, flexibility, and integrated quality control (QC) systems. It ensures efficient production while maintaining strict quality standards. The line is suitable for electric vehicles, energy storage systems, consumer electronics, and more, supporting the production of various specifications of solid-state battery modules.
| Key Parameters | Description |
|---|---|
| Estimated Daily Output | 500-1000 modules (adjustable based on configuration) |
| Estimated Daily Energy Consumption | 5000-8000 kWh (based on runtime and power) |
| Included Equipment | Automatic assembly machines, laser welding machines, inspection equipment, packaging machines, conveyor systems |
| Delivery Lead Time | 2-3 months |
| Line Efficiency | ≥12PPM |
|---|---|

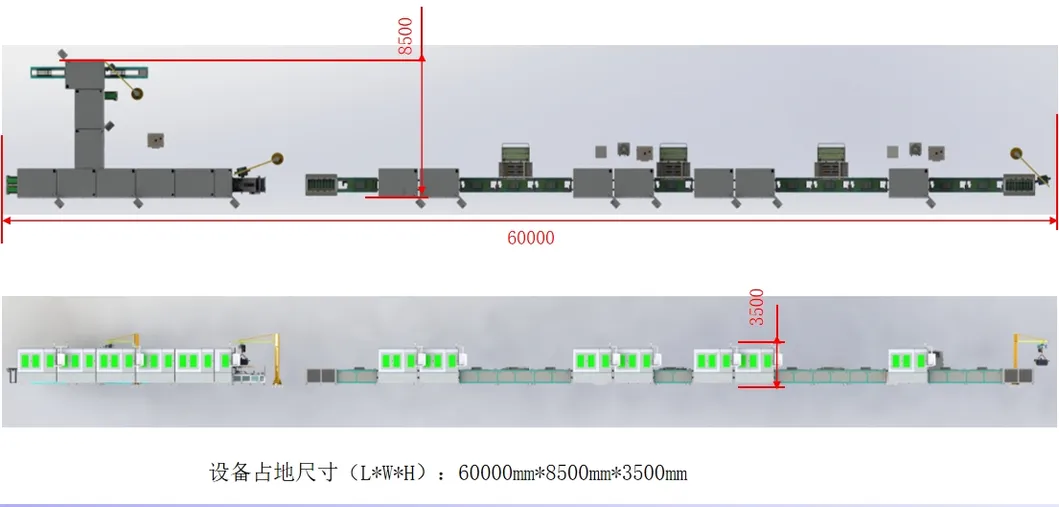

| Dimension | 60000mm * 8500mm * 3500mm (L*W*H) |
| Final Yield Rate | ≥99.8% |
| Failure Rate | ≤2% |
| Inspection Capability | Welding quality, voltage (±0.01V), Internal Resistance (±0.1mΩ) |
| Power Supply | 380V±10%, 50Hz |

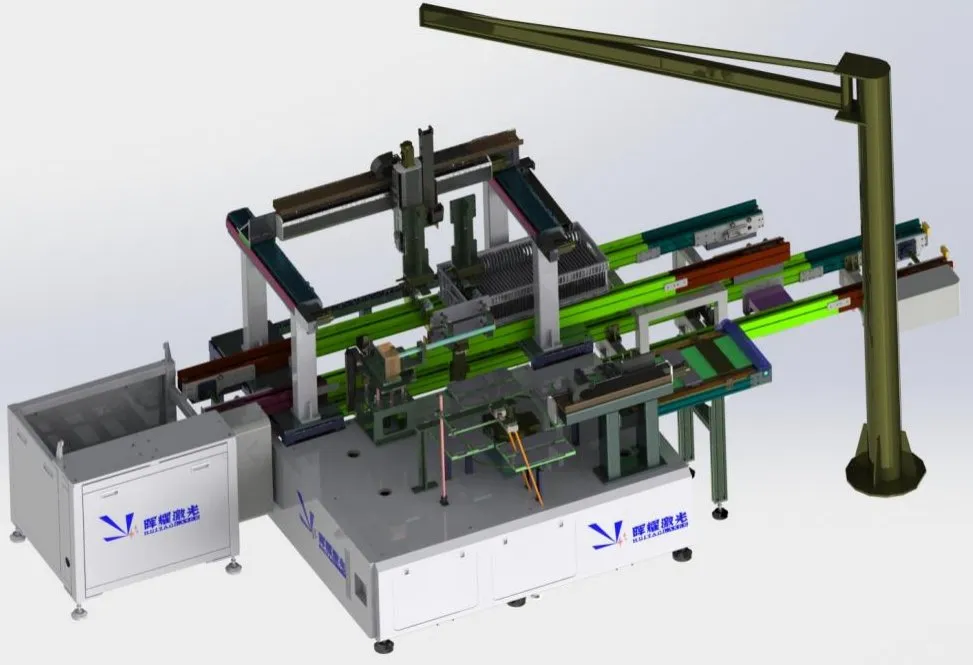

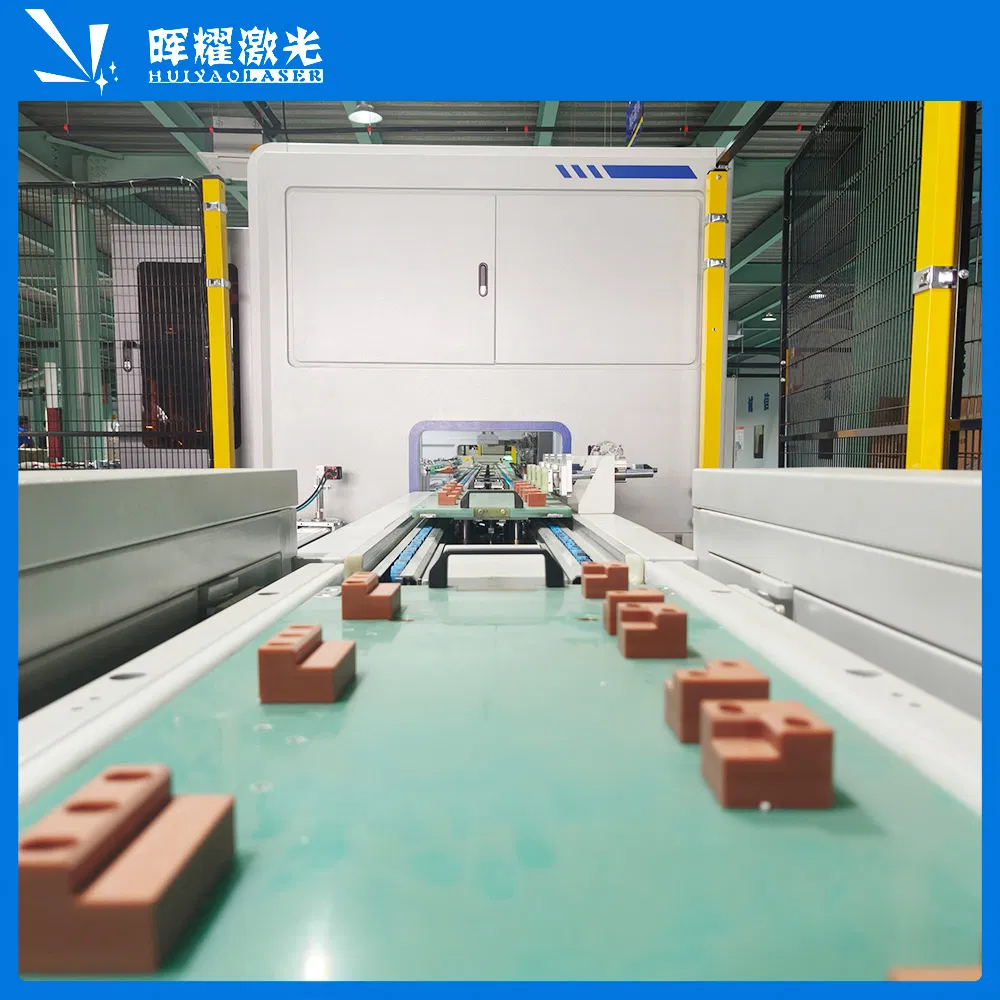

Operator handles the standard material frame through a cantilever crane. The system uses a speed line conveyor and flip station to transition products from vertical to horizontal states for the next process.

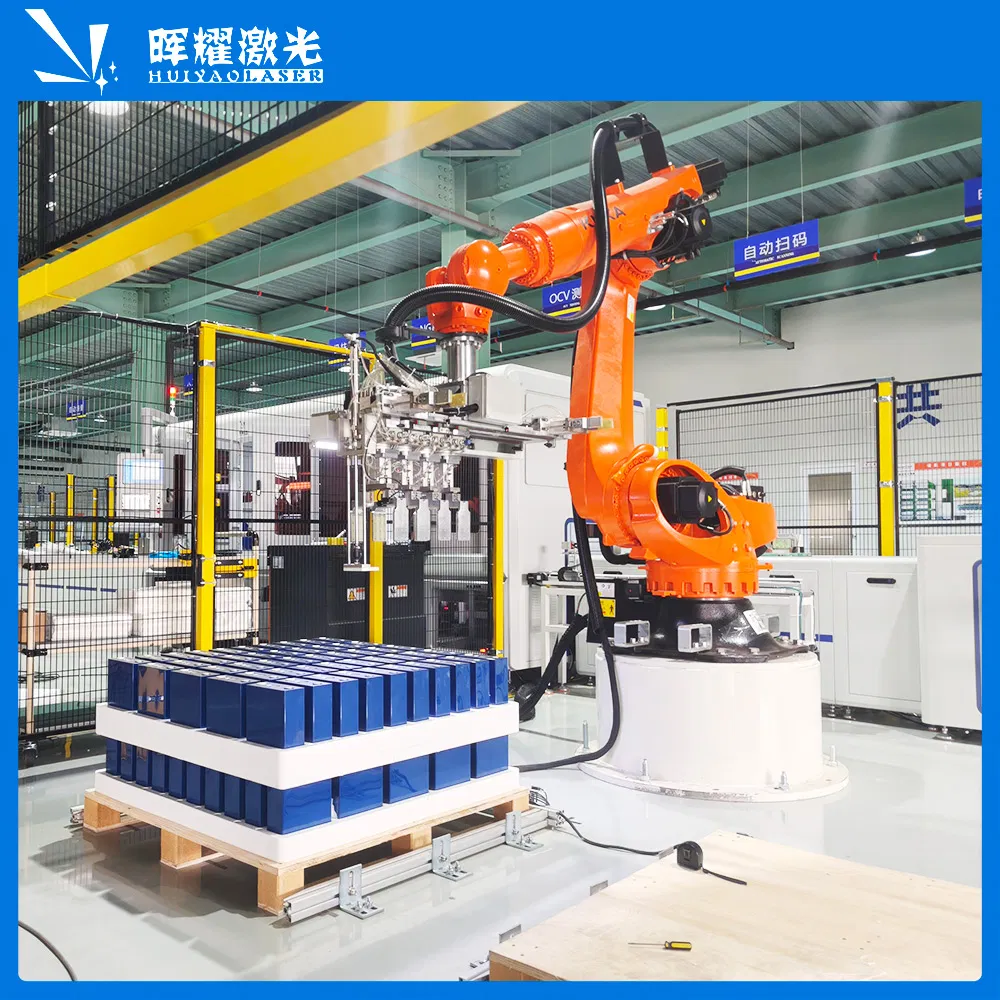

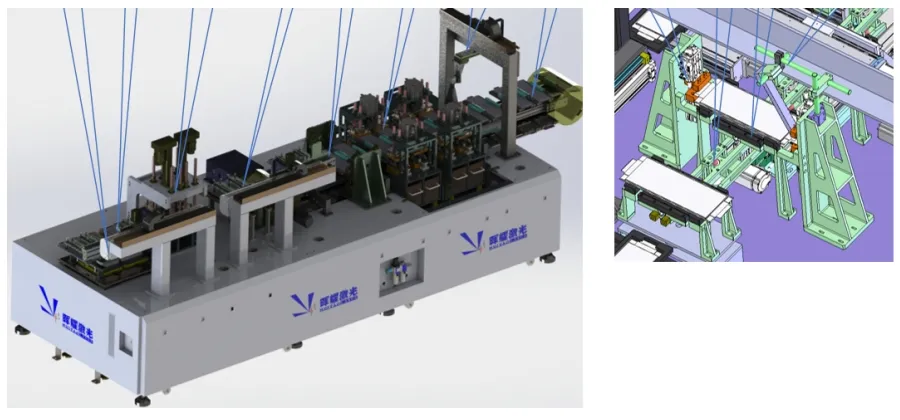

Robot transfers cells for weighing, thickness measurement, and OCV testing. Data is uploaded, and lugs are cut and inspected before sorting into OK or NG categories.

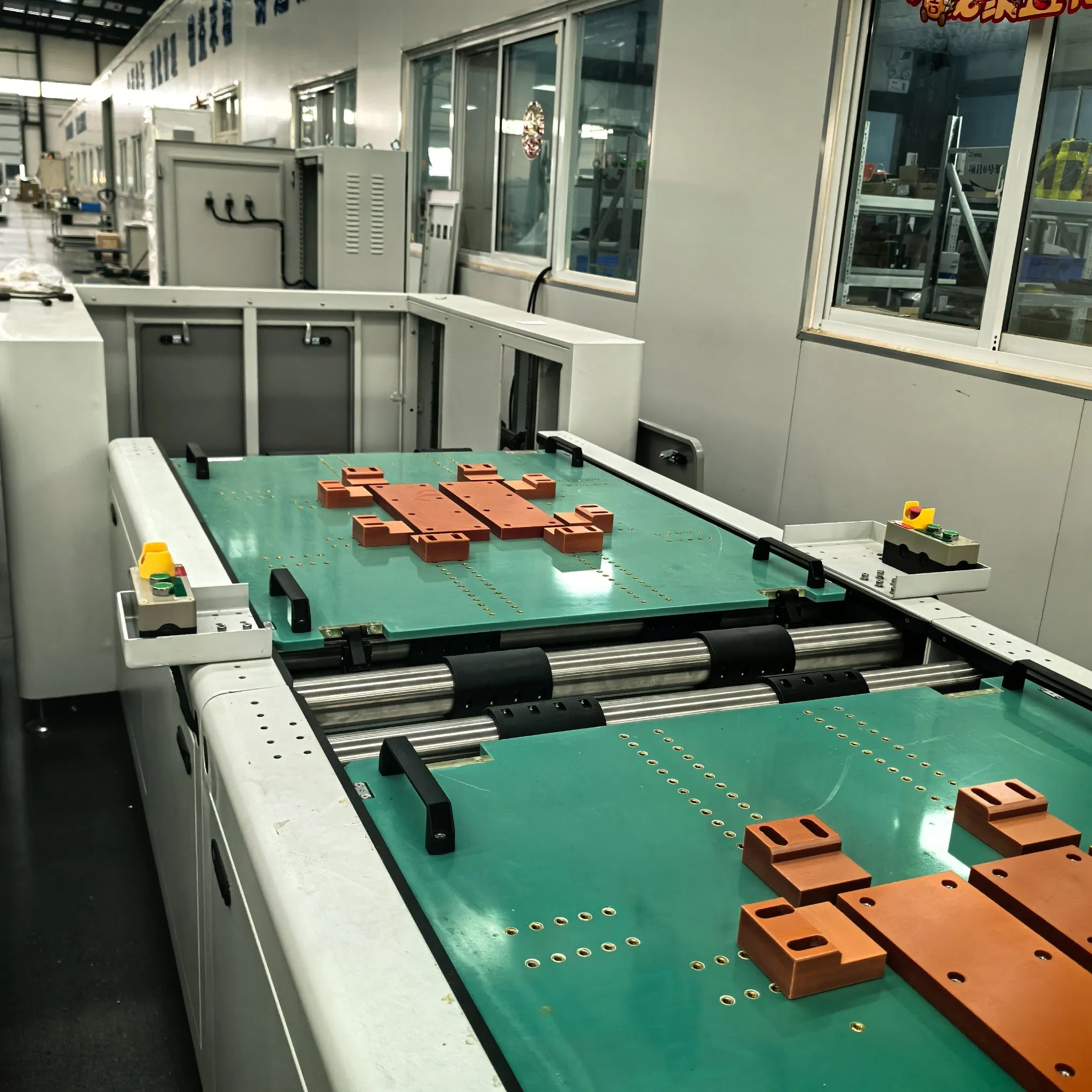

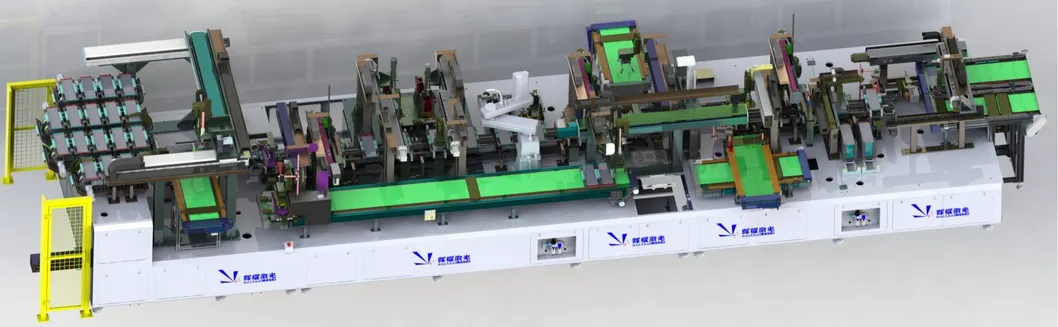

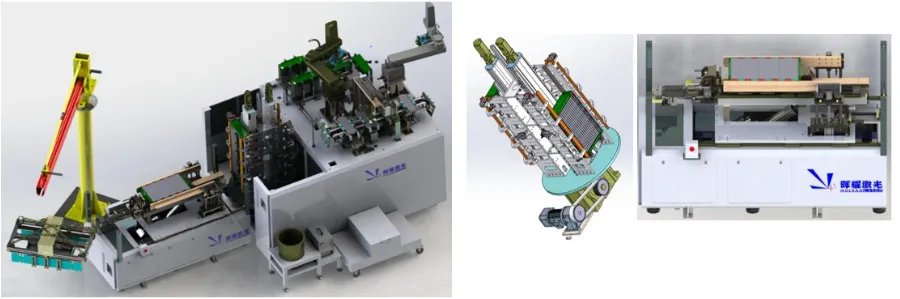

Robotic placement of double-sided tape and product stacking. Automated compression and tooling assembly ensure finished module integrity before lifting off the line.

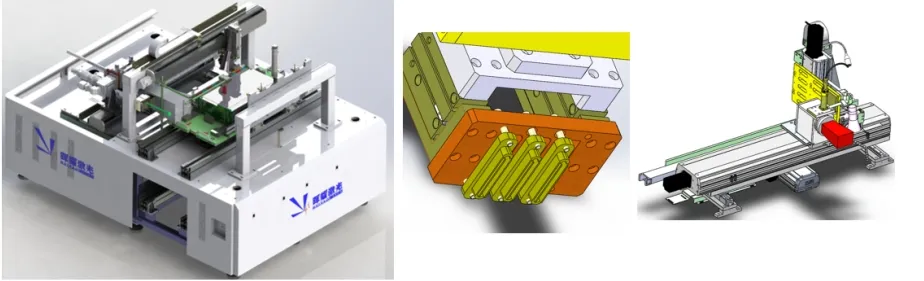

Precision welding station utilizing camera addressing and laser ranging to weld lugs according to specific dimensions, followed by automated inspection.
An industry-leading manufacturer of new energy intelligent equipment, dedicated to providing innovative turnkey solutions for Battery Module PACK Production Lines and CCS Intelligent Manufacturing Production Lines across various industries. Since establishment, the company has continuously advanced the development and application of laser technology, providing high-quality, high-performance laser equipment and automated production lines.
