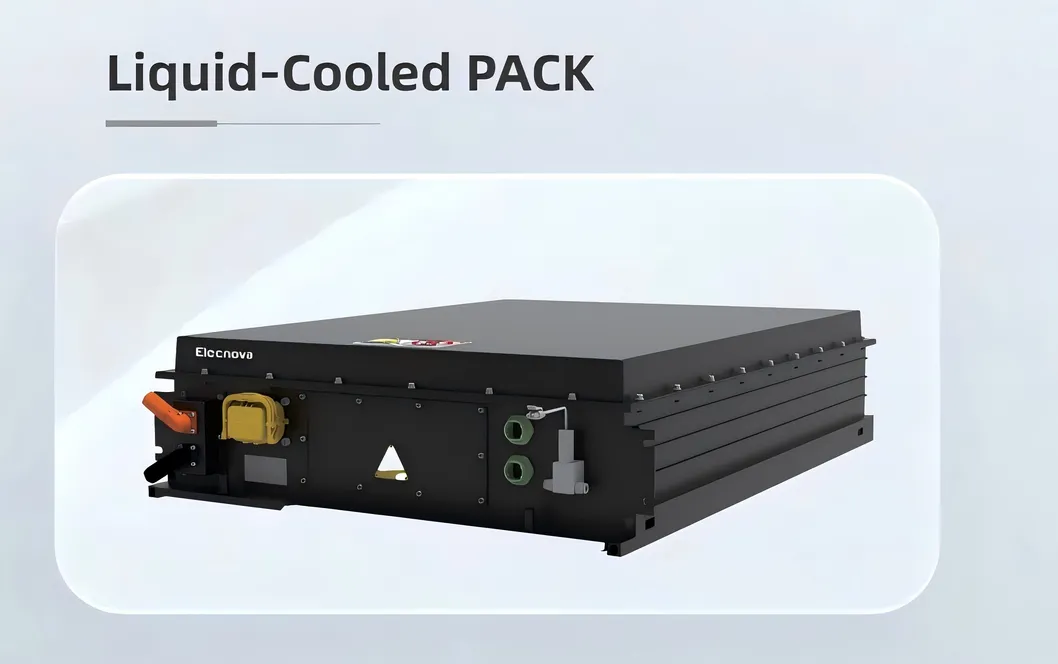

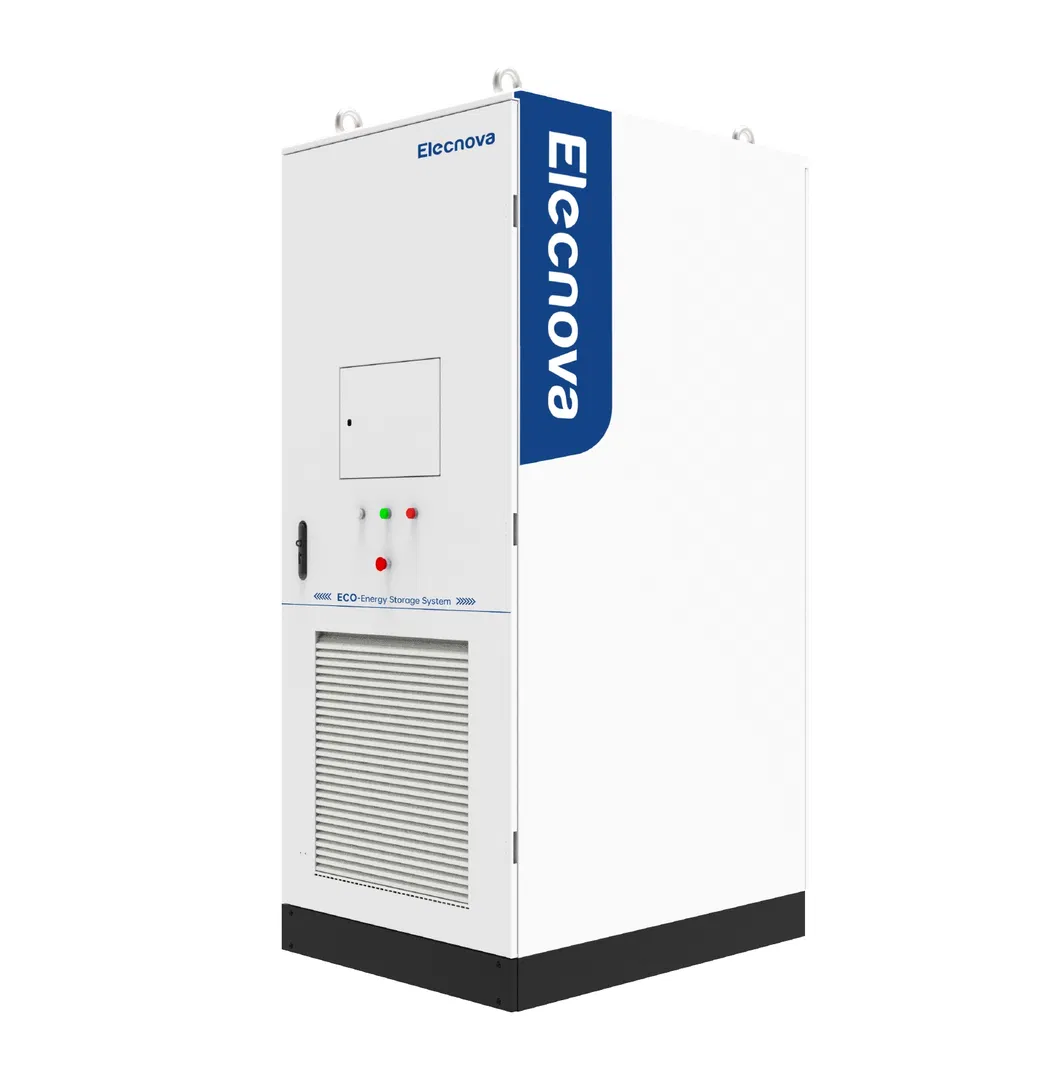

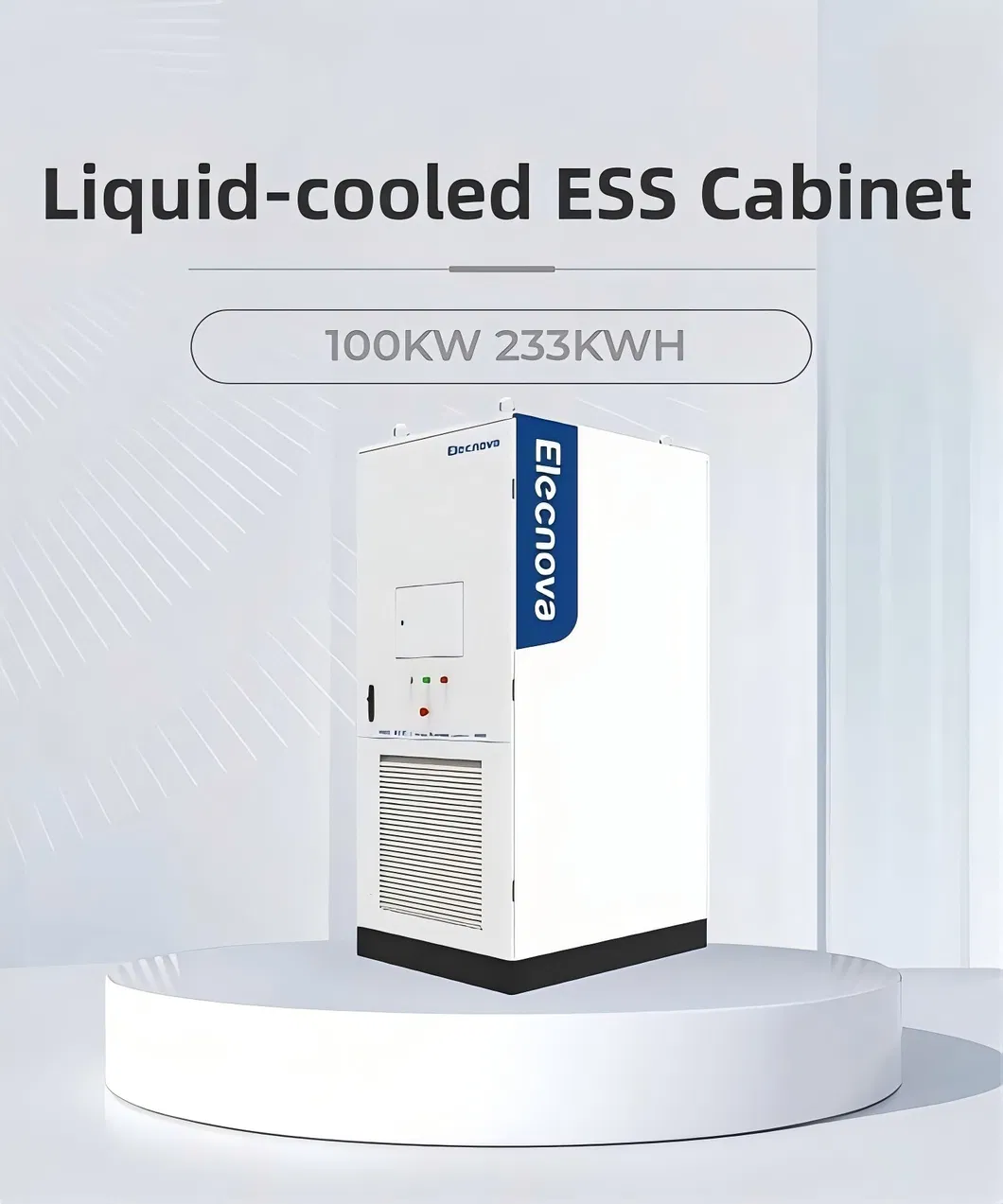

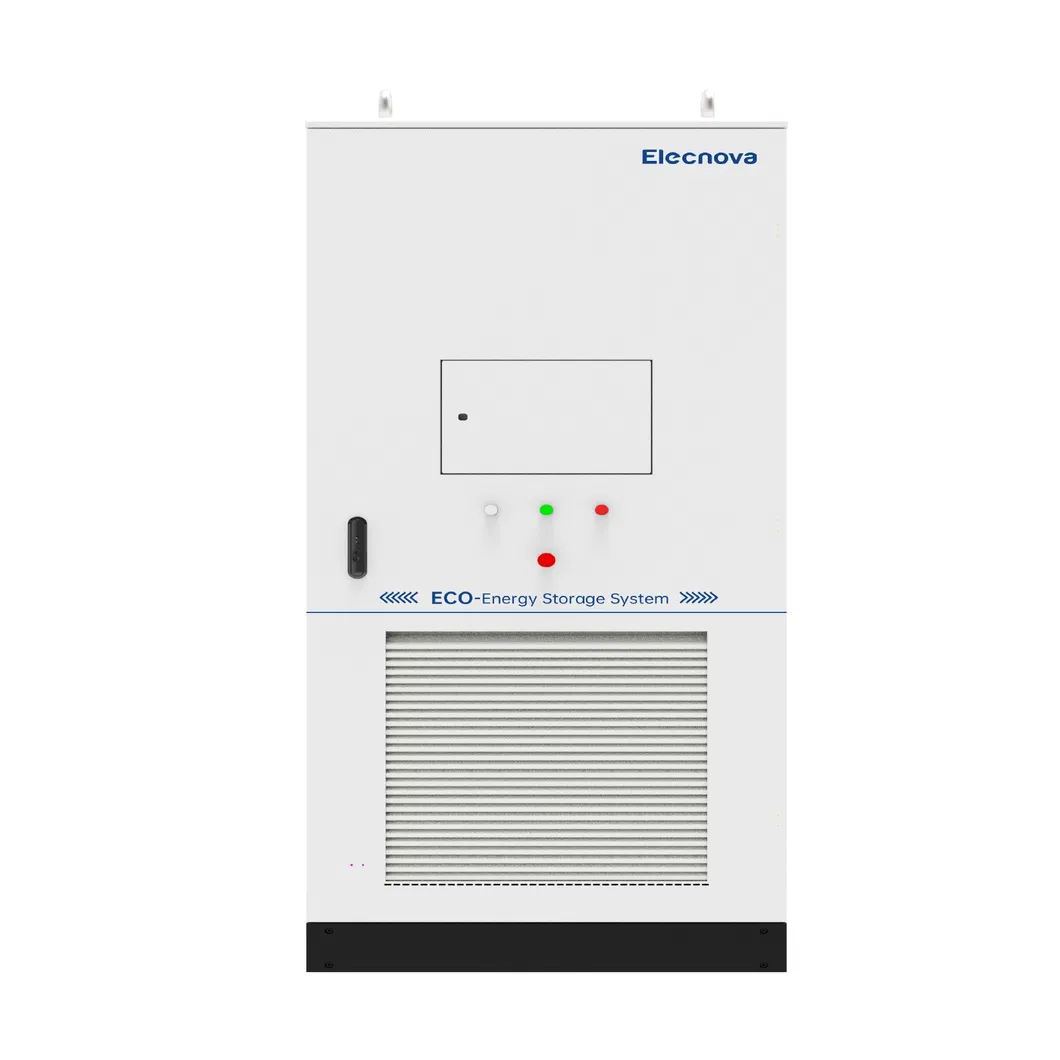

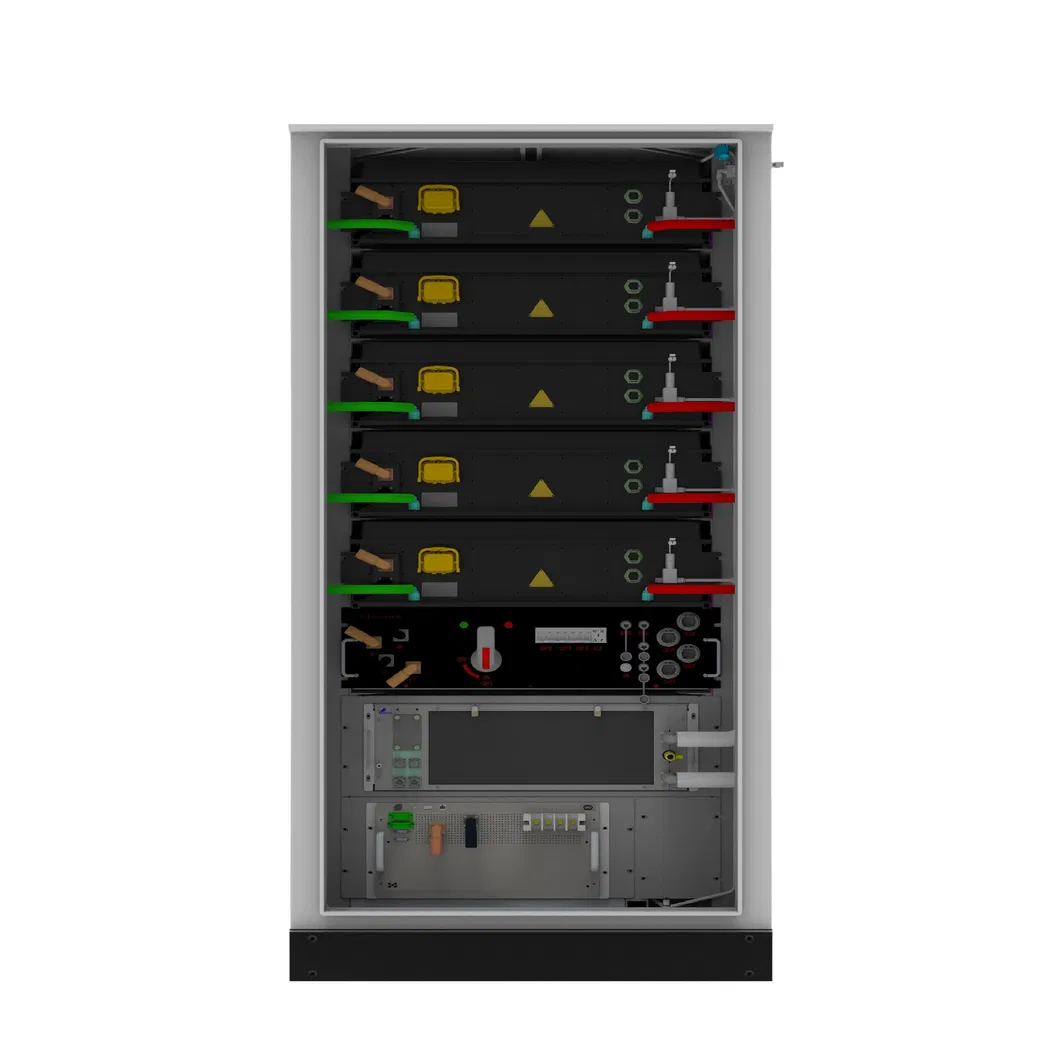

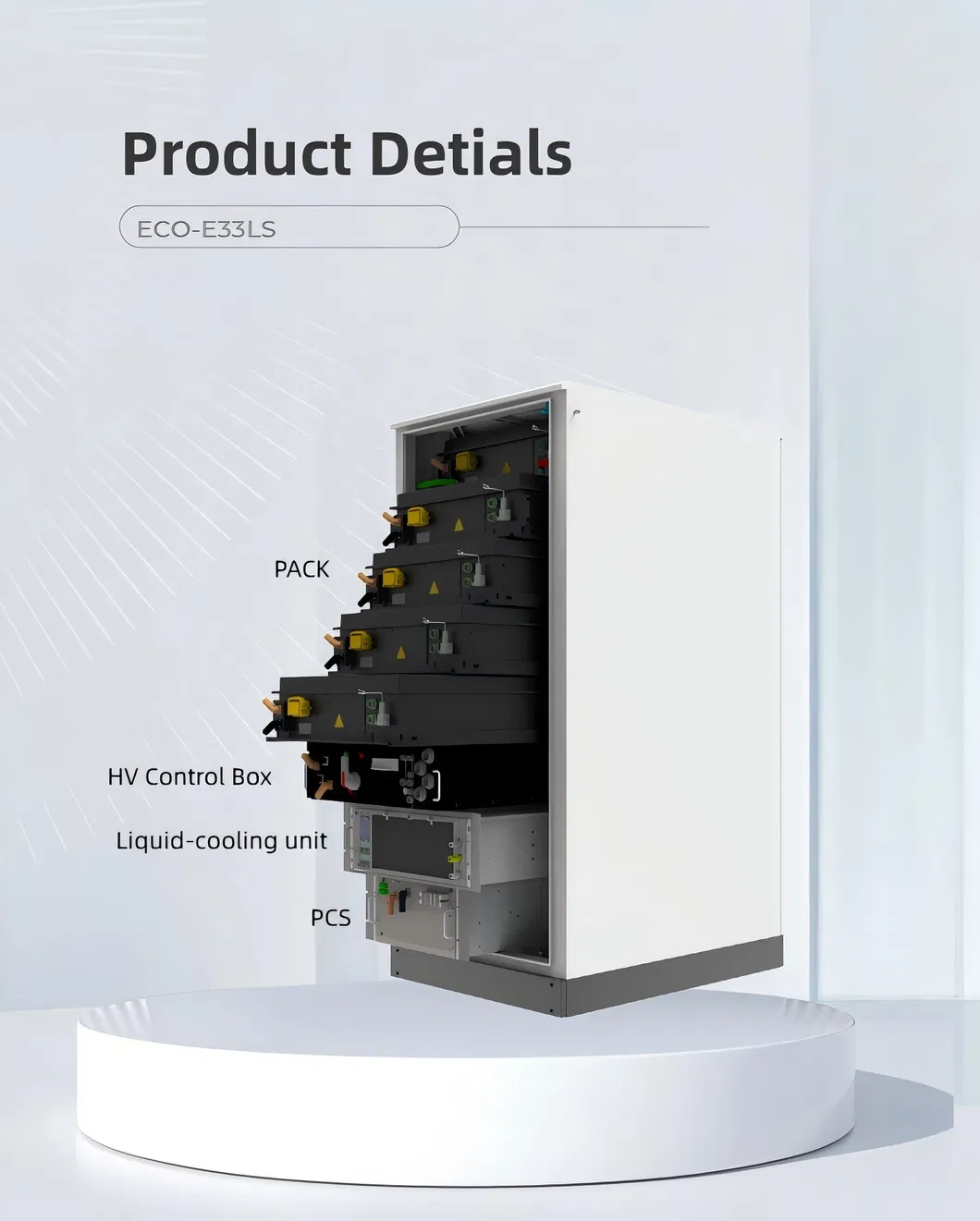

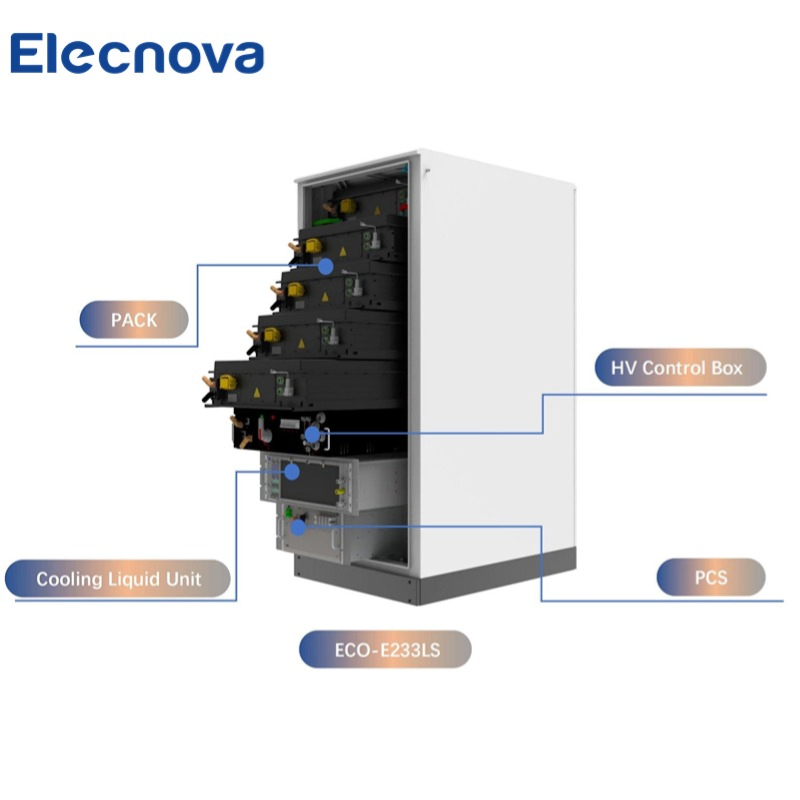

The 233KWH commercial & industrial energy storage system adopts advanced cabinet-level liquid cooling and temperature balancing strategy. The cell temperature difference is less than 3°C, which further improves the consistency of cell temperature and extends the battery life. The modular design makes the parallel solution more flexible and has higher energy density, which significantly improves the economy, safety and construction convenience of ESS projects.
| DC Side Specifications | |
|---|---|

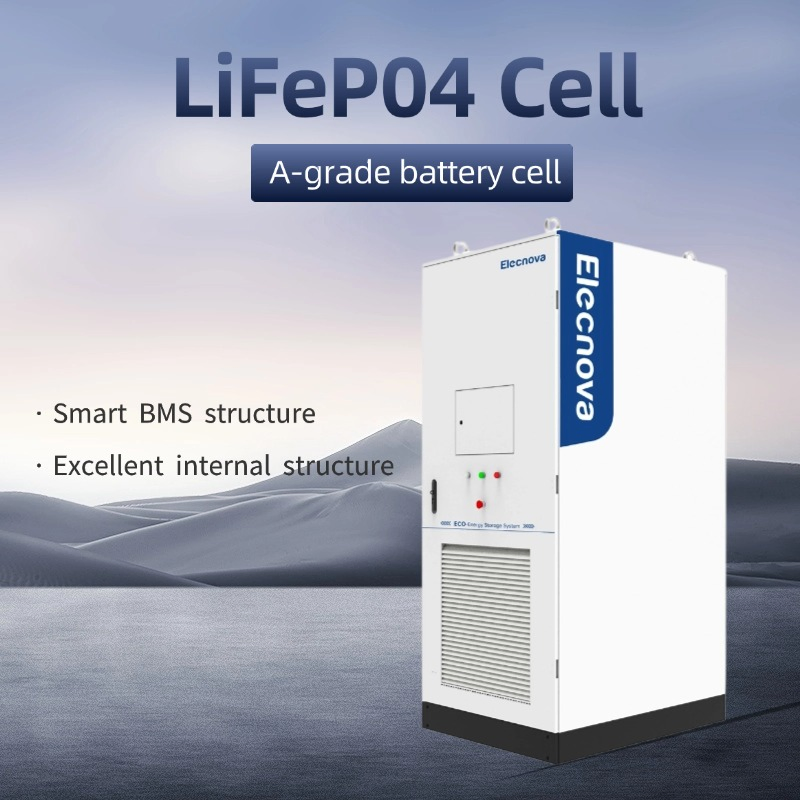

| Cell Type | LFP 280Ah |
| Battery System Capacity | 232.96kWh / 1P260S |
| Voltage Range | 728~936Vdc |
| PACK Ingress Rating | IP65 |
| AC Side Specifications | |
| Rated Power | 100kW |
| Nominal Voltage | 400Vac / 3P+N+PE |
| Nominal Frequency | 50/60 Hz |
| General Data | |
| System Efficiency | ≥90% |
| Cycle Life | ≥8,000 times |
| Operating Temperature | -25ºC~55ºC |
| Fire Safety | Aerosol / NOVEC1230 |
| Dimensions (W*D*H) | 1,050*1,350*2,400 (mm) |

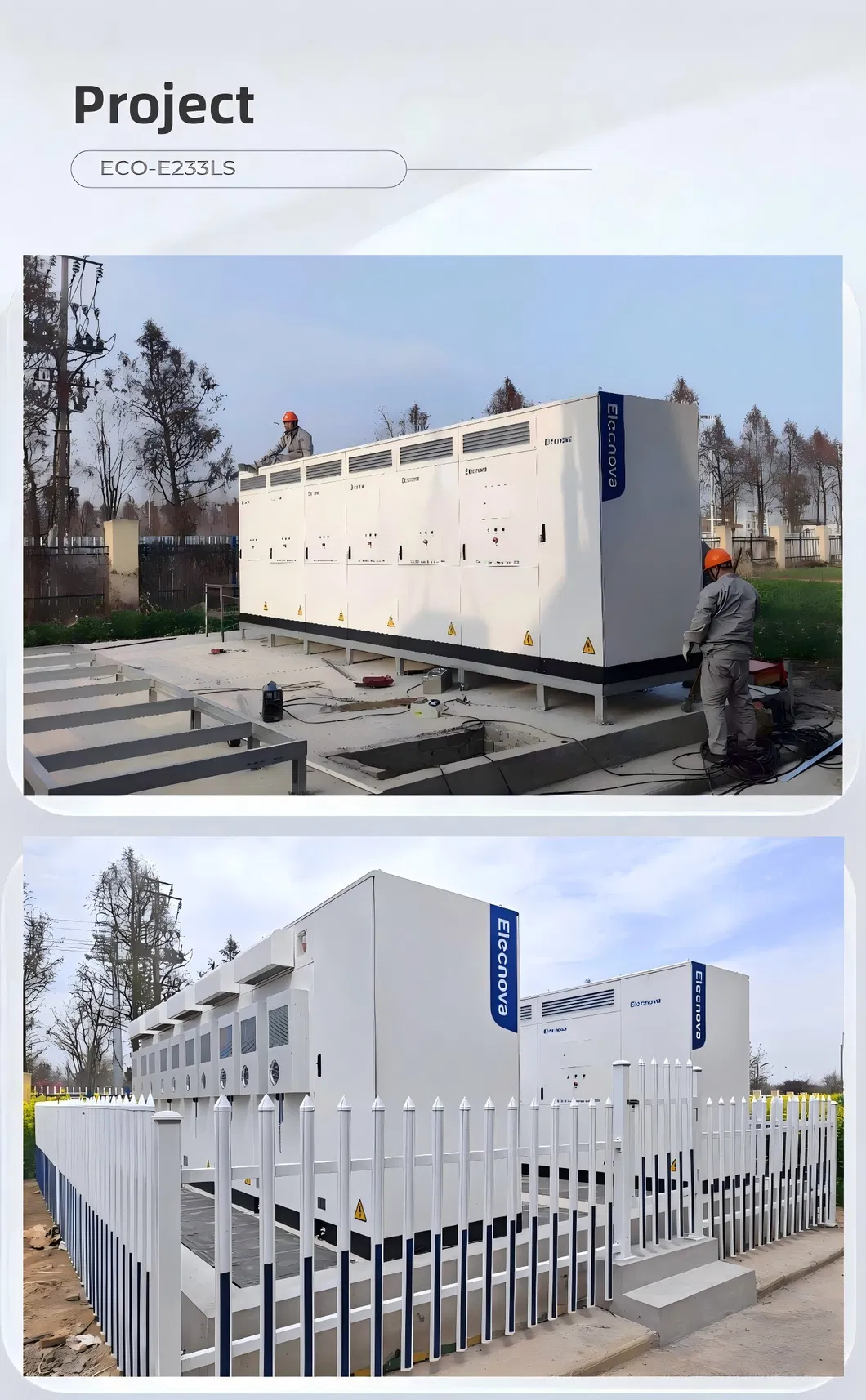

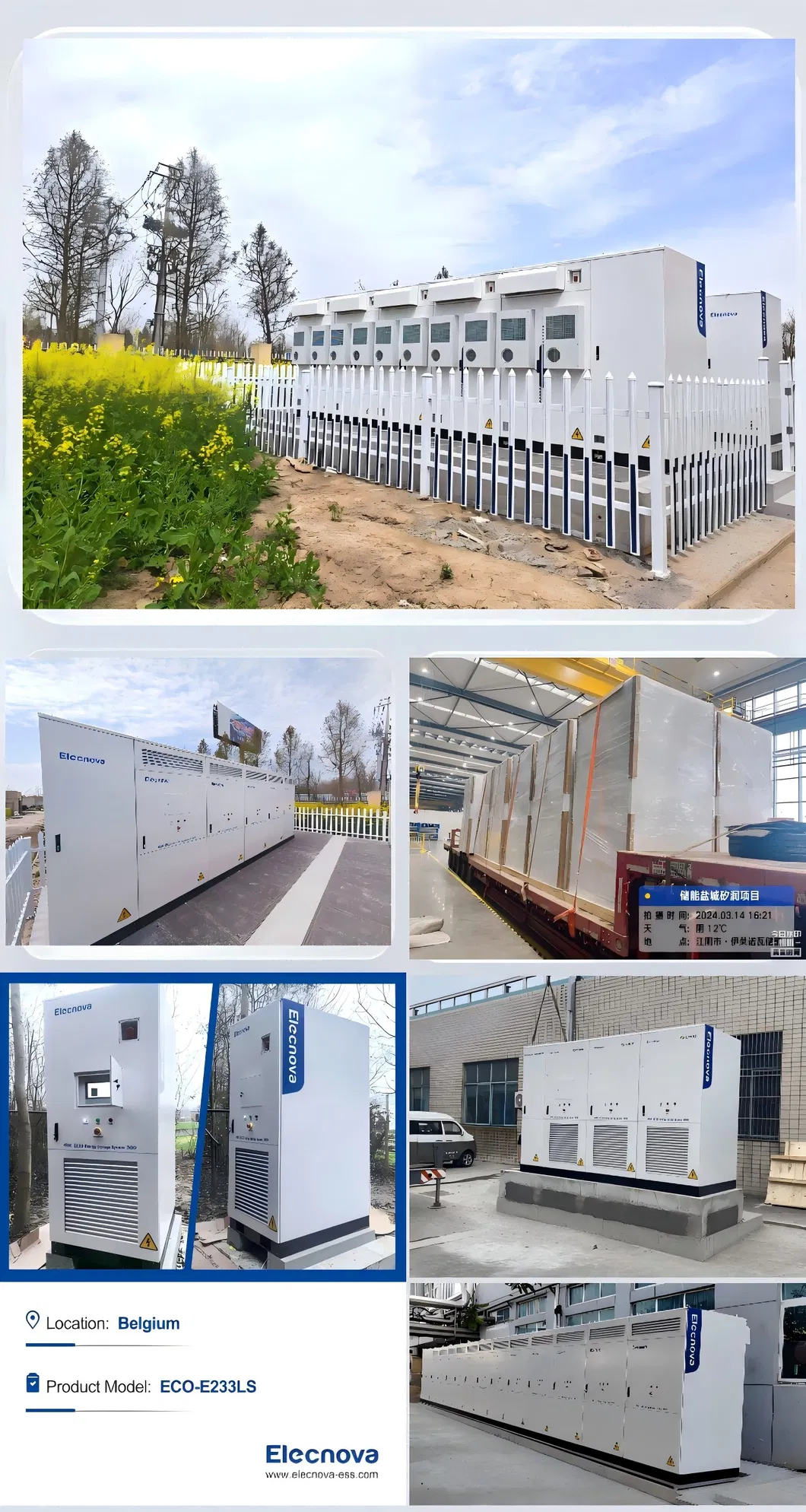

Suitable for various scenarios such as C&I ESS, microgrid energy storage, and PV-plus ESS. Projects utilize advanced technology for high efficiency, stability, and safety.
