Comprehensive Solid-State Battery Module PACK Automatic Production Line for Efficient Output 12PPM is designed for the modular production of solid-state batteries, featuring high automation, flexibility, and integrated quality control (QC) systems. It ensures efficient production while maintaining strict quality standards. The line is suitable for electric vehicles, energy storage systems, consumer electronics, and more.
Key Parameters
Description
Estimated Daily Output
500-1000 modules (adjustable based on configuration)
Daily Energy Consumption
5000-8000 kWh (calculated based on runtime)
Included Equipment
Automatic assembly, laser welding, inspection, packaging, conveyor systems
Payment Terms
50% advance, 50% before shipment
Delivery Lead Time
2-3 months
Key Features & Functions
High Automation
Fully automated assembly equipment reduces manual intervention and improves production efficiency.
Integrated QC System
Real-time monitoring of welding quality, voltage, internal resistance, and temperature.
Flexible Design
Supports multiple battery module specifications and can be easily reconfigured.
Intelligent Management
Integrated MES for real-time production data monitoring, analysis, and traceability.
Technical Parameters
Technical Specification
Parameter
Remarks
Line Efficiency
≥12PPM
Adjustable based on configuration

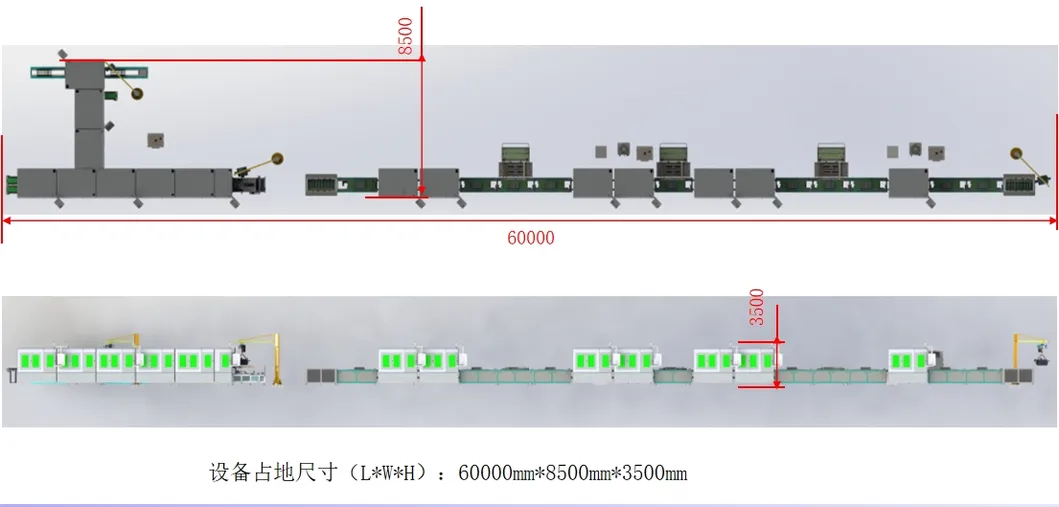

Line Dimension
60000mm*8500mm*3500mm
Customizable layout
Final Yield Rate
≥99.8%
-
Line Failure Rate
≤2%
-
Inspection Capability
Welding, Voltage, IR, Temp
High-precision inspection
Operating Temperature
10-25ºC
Stable operation environment
Power Supply
380V±10%, 50Hz
Standard industrial
Warranty
2 Years
Lifetime technical support
Process Flow
01

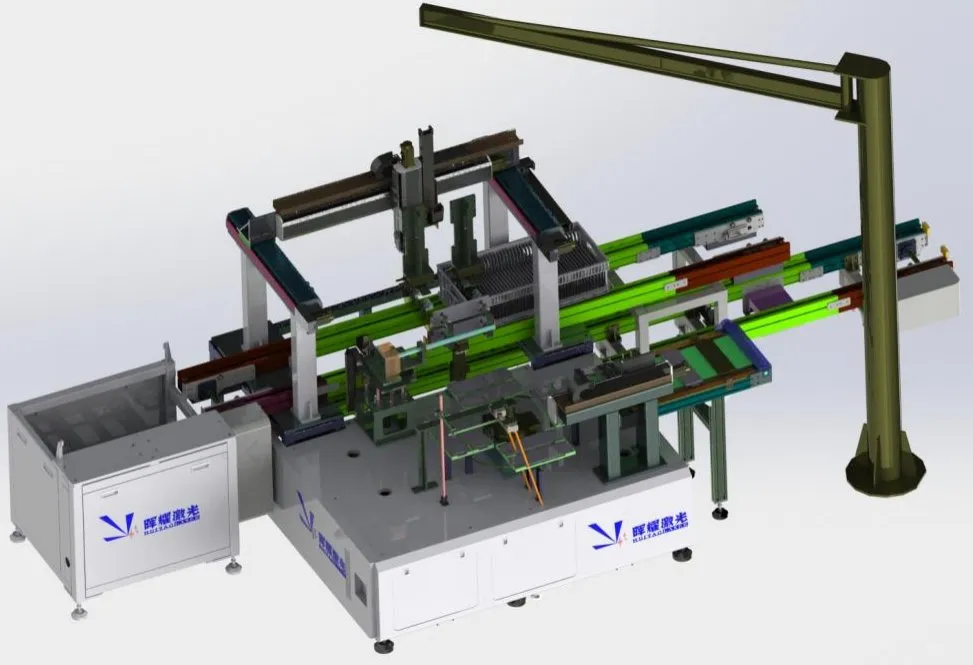

Cell Loading
Automatic handling through cantilever crane and conveyor systems.
02

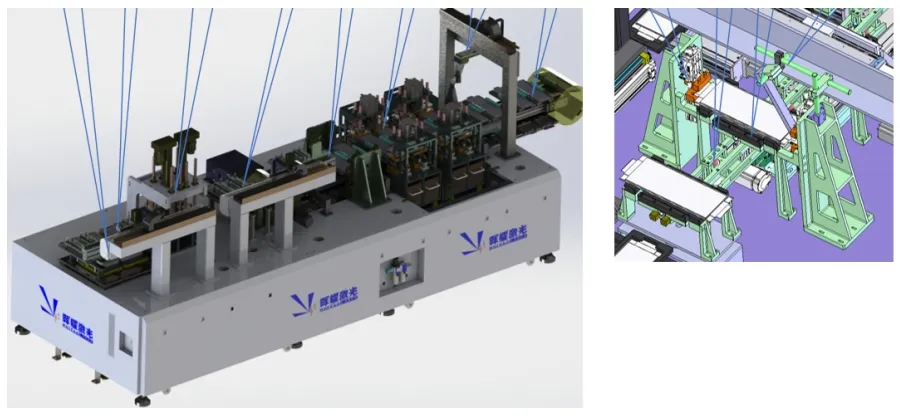

Cell Process Station
Includes weighing, thickness measurement, OCV testing, and lug cutting.
03
Module Stacking & Pressing
Robot-assisted stacking with double-sided tape application and extrusion.

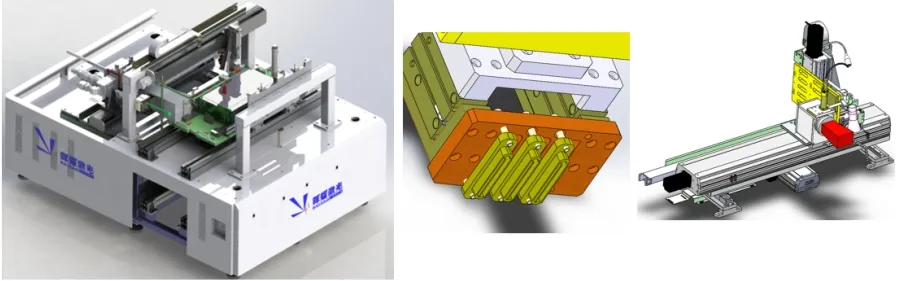

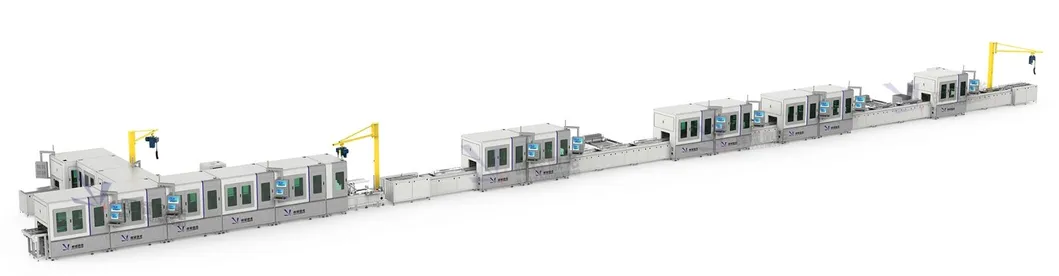

Advanced Laser Welding Station
Pallet-based flow to pole ear welding station. Integrated camera addressing and laser ranging ensure high-precision welding for multiple lugs.
Application Scenarios

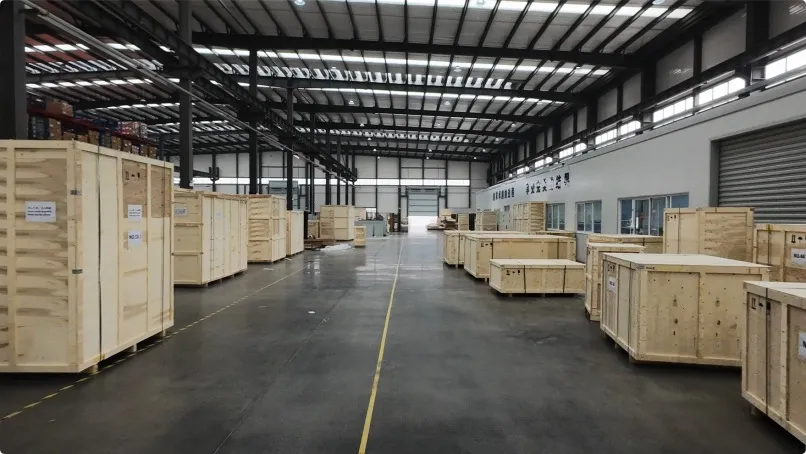

Packaging & Global Logistics
Manufacturing Excellence & Certifications
Exhibitions & Global Presence
Frequently Asked Questions
1 How is production efficiency ensured?
High automation and intelligent management systems ensure consistent production efficiency and superior product quality.
2 How is product quality controlled?
Our integrated QC system monitors welding quality, voltage, internal resistance, and other critical parameters in real-time.
3 Can the production line be customized?
Yes, the production line is fully customizable to support different battery specifications and specific manufacturing processes based on client needs.
4 What are the energy requirements?
The line utilizes energy-saving equipment designed to optimize consumption and meet international green manufacturing standards.
5 What is the typical delivery lead time?
The standard delivery lead time ranges from 3-4 months from the signing of the contract to final equipment delivery.
6 What after-sales support is provided?
We provide comprehensive services including installation, professional debugging, operator training, a 1-2 year warranty, and lifetime technical support.
