| Specification | Details |
|---|---|
| Condition | New |
| Automation | Automatic |
| After-sales Service | Engineers Available to Service Machinery Overseas |

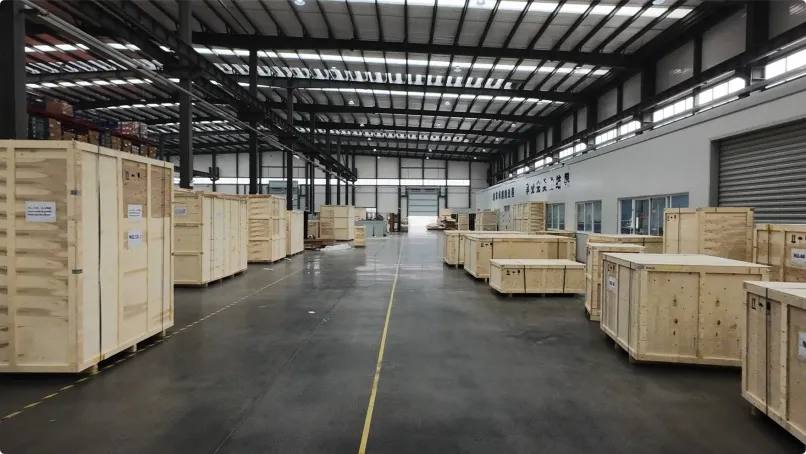

| Transport Package | Wooden Box Packing |
| Origin | China |
| Production Capacity | 12ppm |

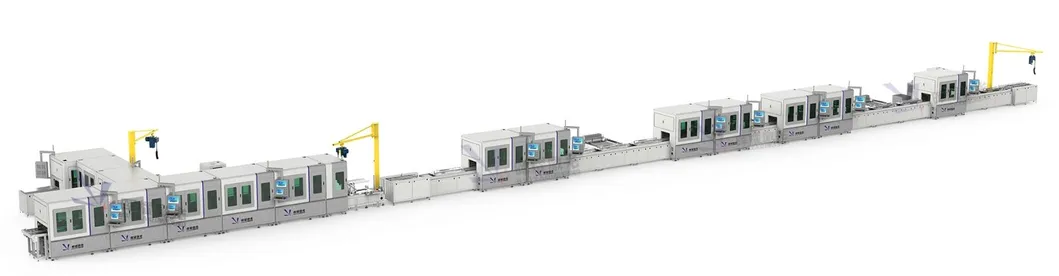

Comprehensive Solid-State Battery Module PACK Automatic Production Line for Efficient Output 12PPM is designed for the modular production of solid-state batteries, featuring high automation, flexibility, and integrated quality control (QC) systems. It ensures efficient production while maintaining strict quality standards. The line is suitable for electric vehicles, energy storage systems, consumer electronics, and more, supporting the production of various specifications of solid-state battery modules.
Fully automated assembly equipment reduces manual intervention and improves production efficiency.
Real-time monitoring of welding quality, voltage, internal resistance, and temperature ensures product consistency.
Supports the production of multiple battery module specifications and can be easily reconfigured.
Integrated MES for real-time production data monitoring, analysis, and traceability.
| Technical Specification | Parameter | Remarks |
|---|---|---|
| Line Efficiency | ≥12PPM | Adjustable based on configuration |

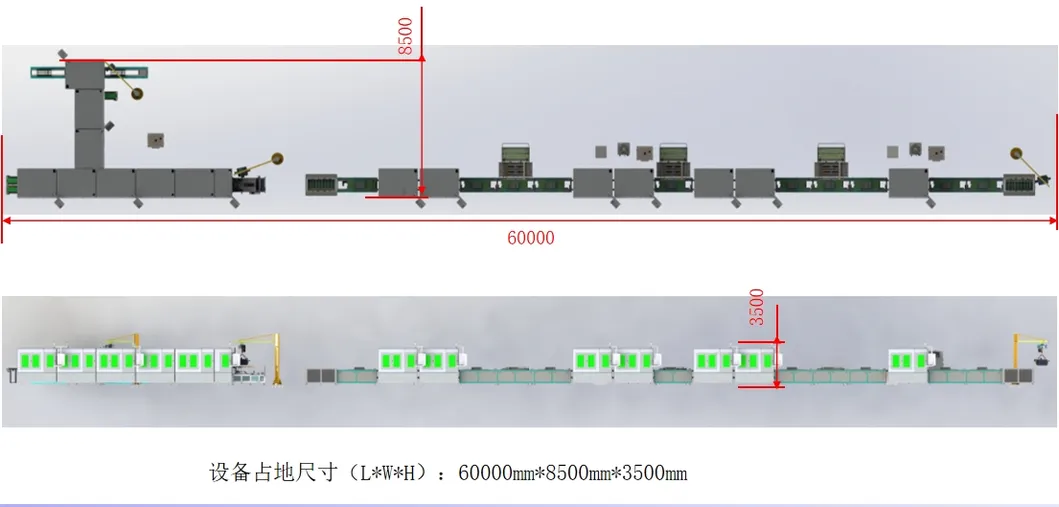

| Production Line Dimension | 60000mm*8500mm*3500mm | Layout adjustable |
| Final Yield Rate | ≥99.8% | High precision output |
| Line Failure Rate | ≤2% | Stable operation |
| Inspection Capability | Welding, Voltage, IR, Temp | Voltage: ±0.01V, IR: ±0.1mΩ |
| Power Supply | 380V±10%, 50Hz | Standard industrial power |
| Warranty Period | 2 Years | Lifetime technical support |
| 1. Heat Conduction Plate Loading | 11. Terminal Tab Flatting |
| 2. Terminal Tab Cutting Inspection | 12. NG Cell Re-work |

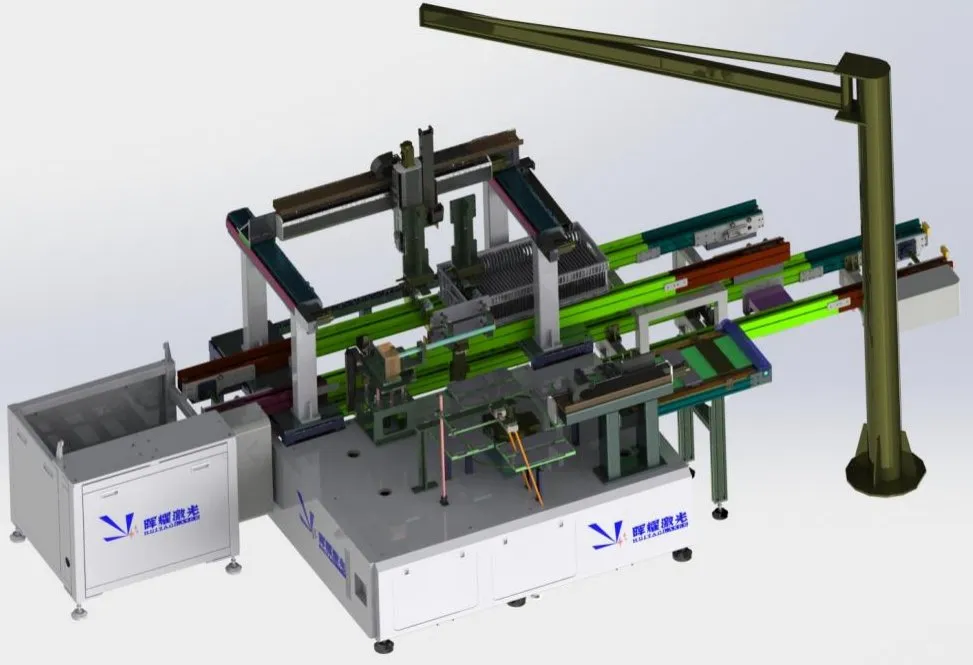

| 3. Cell Loading | 13. Insulation Testing |
| 4. Cell Glue Applying | 14. Laser Welding |
| 5. Terminal Tab Bracket Assemblying | 15. Post-Welding Testing |
| 6. Cell Insulation Testing | 16. Insulation & Voltage Detection |
| 7. Unit Glue Applying | 17. Sense Lead Insulation |

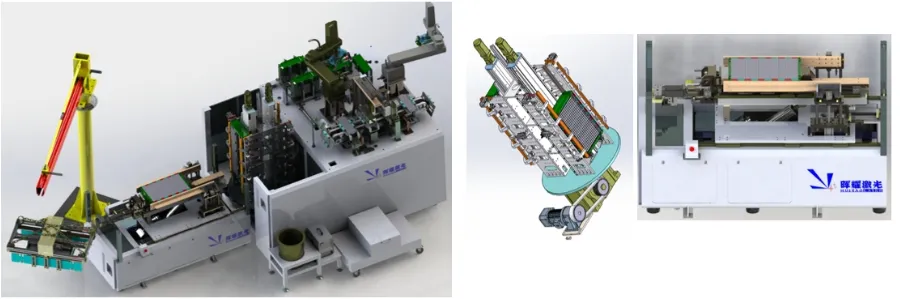

| 8. Module Stacking | 18. EOL Testing |
| 9. Busbar Installation | 19. Module Off-Loading |
| 10. Terminal Tab Bending | - |
As an industry-leading manufacturer of new energy intelligent equipment, we are dedicated to providing innovative turnkey solutions for Battery Module PACK Production Lines and CCS Intelligent Manufacturing Production Lines across various industries. With deep expertise in laser technology development, we provide high-quality, high-performance automated production lines to major global energy partners.
