Advanced 1mwh and 2mwh Lithium LiFePO4 Energy Storage Solutions

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Specifications

Model NO.

ES-ESS-40ft

Nominal Voltage

400V/380V 3phase

Warranty

10 Years

Nominal Capacity

800kwh

Cycle Life

6000 Times

Battery Type

Lithium Ion Battery

Communication Interface

Can, RS485

Grid Connection

Hybrid Grid, on Grid, off Grid

Cooling

Air Cooling or Liquid Cooling

Product Name

Integrated Energy Storage System Bess

PCS Power

250kw/500kw/1MW

Battery Capacity

500kwh/1mwh/2mwh

Isolated Transformer

Include

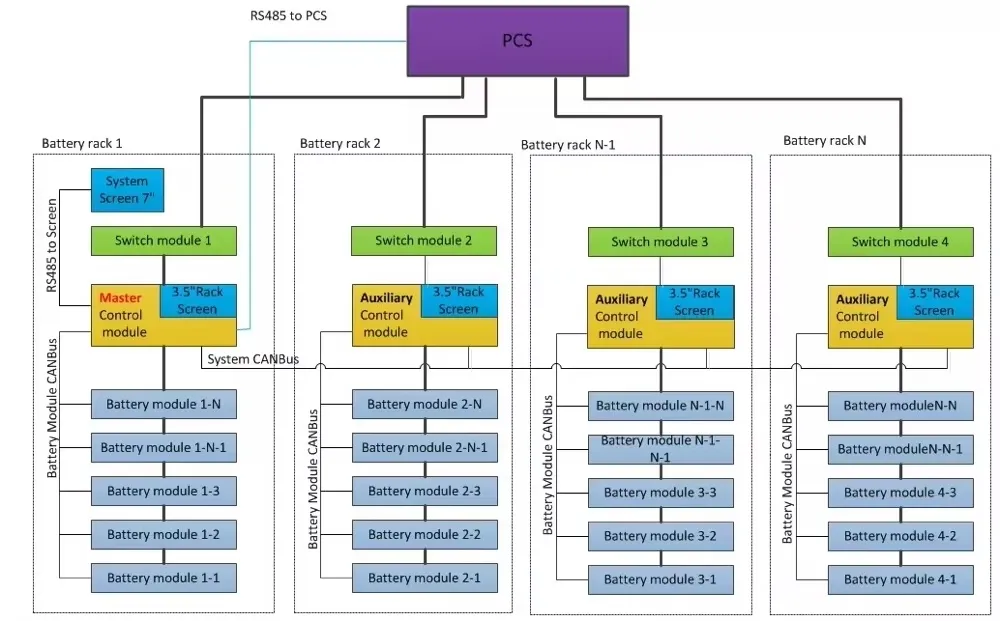

BMS

3 Levels Active BMS

Application

Peak Shaving, Energy Storage, Mobile Energy

Safety

Built-in Fire Protection System

Package Size

1219.20cm * 1038.00cm * 243.80cm

Gross Weight

4000.000kg

Product Description

Solutions Design

20FT System Configuration

Item	Model/Spec	Quantity	Description
PV Panel	600W	420	12pieces/string, total 35 strings. Capacity: 252kw
PV Combiner Box	Combiner Box	5	7 inputs 1 output for PV strings
Inverter	PBD250 / PCS250 / Bypass	1 each	250kW Charge Controller, Battery Inverter, and Grid Switch
Enerlog	Monitor	1	System Monitoring Unit
Battery	51.2V 280AH Module	60	14.3kWh per module with BMU
Container	20ft IP54	1	Includes fire protection, AC, and rack system

40FT System Configuration

Item	Model/Spec	Quantity	Description
PV Panel	600W	840	12pieces/string, total 70 strings. Capacity: 504kw
PV Combiner Box	Combiner Box	10	7 inputs 1 output for PV strings
Inverter	PCS500 / Isolation Trans	1 each	500kW battery inverter & 500KVA Transformer
Enerlog	Monitor	1	System Monitoring Unit
Battery	51.2V 280AH Module	150	14.3kWh per module with BMU
Container	40ft IP54	1	Outdoor installation, lighting, fire-resistance, AC

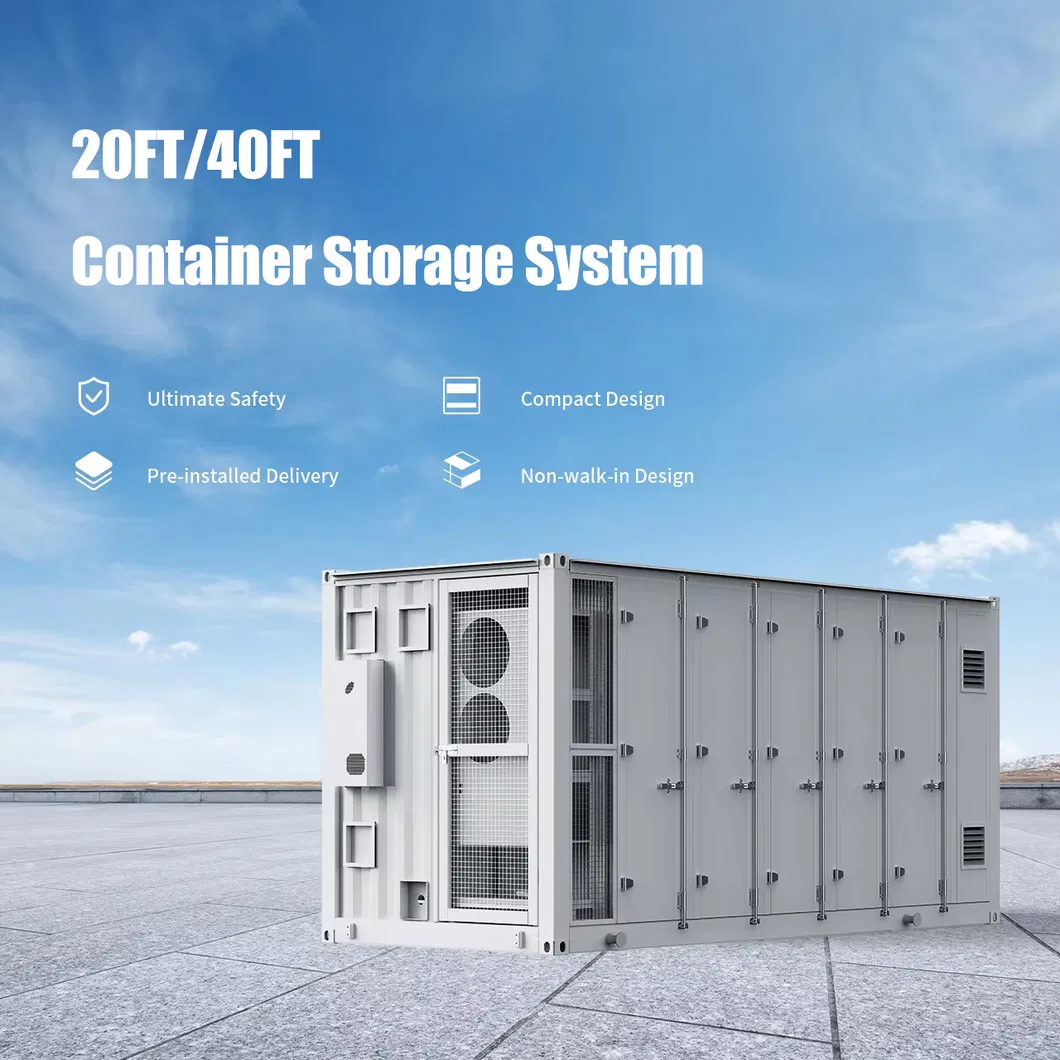

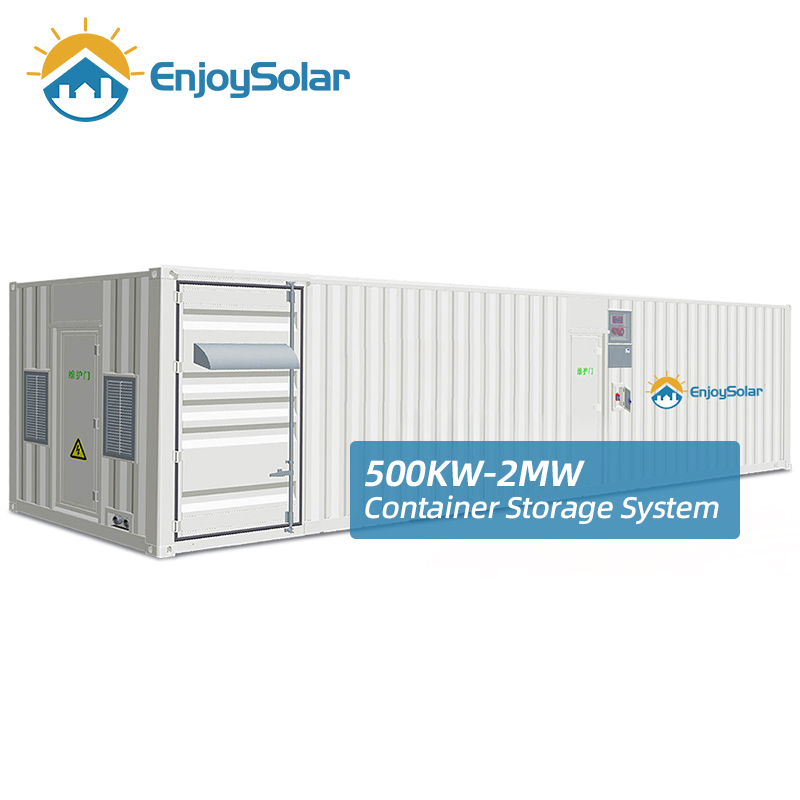

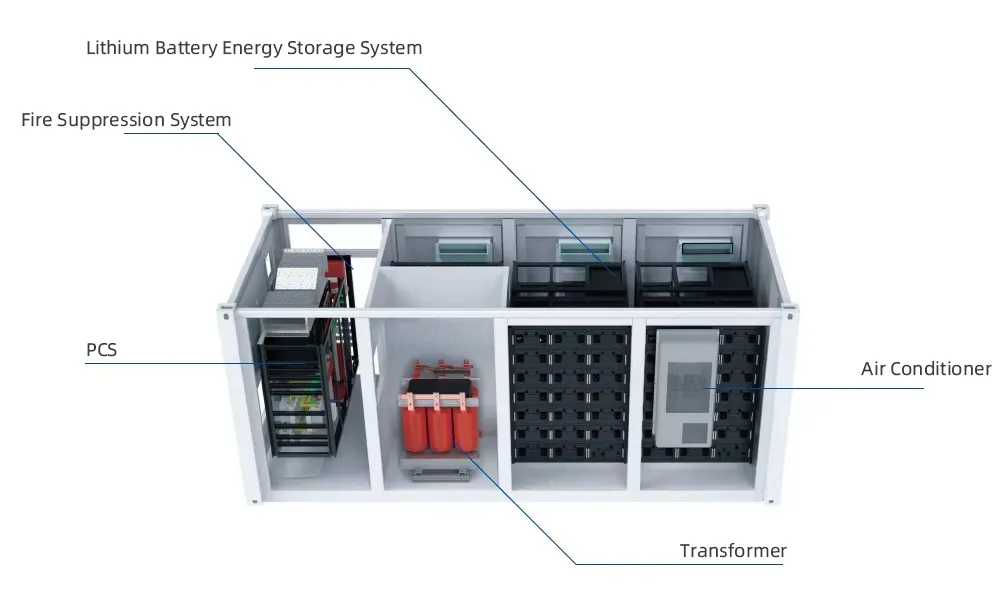

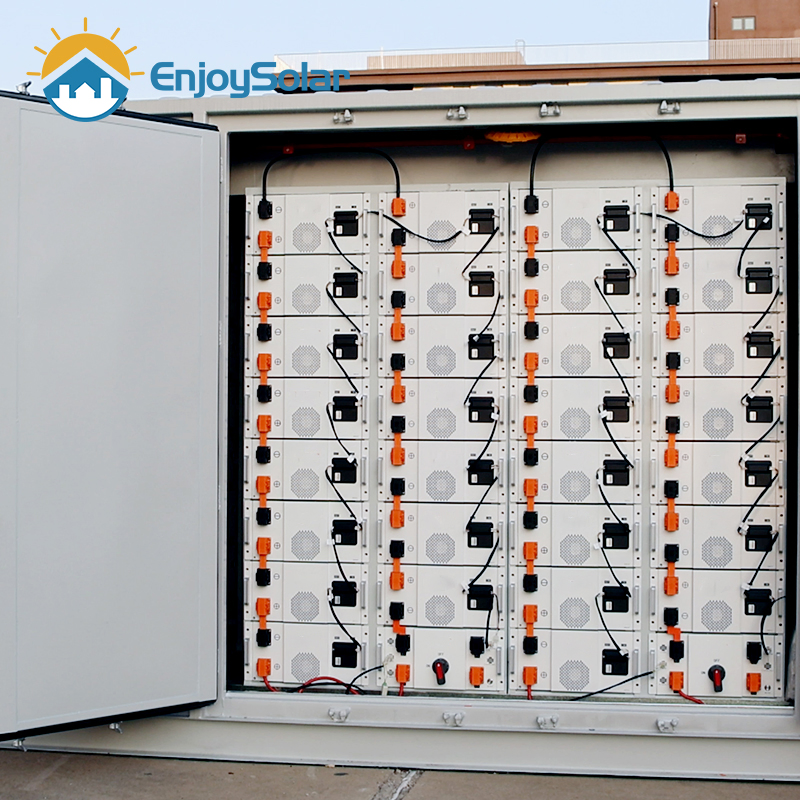

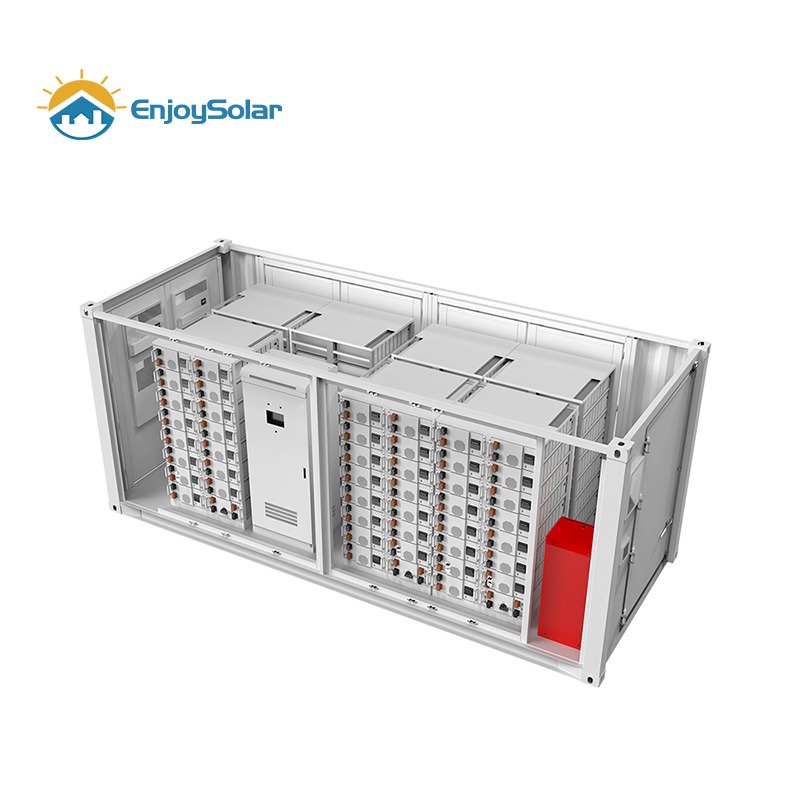

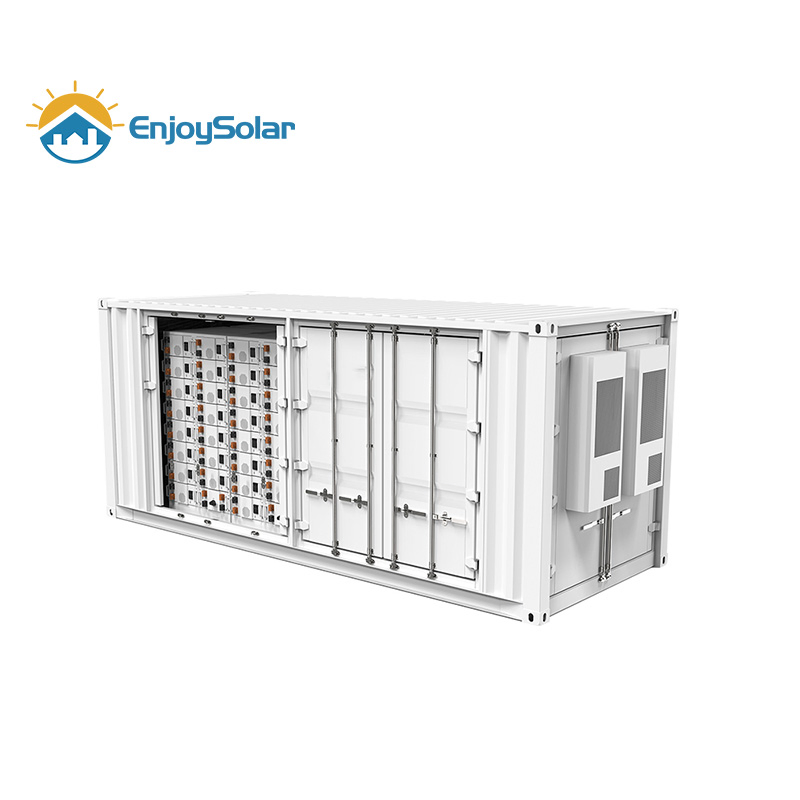

System Visuals

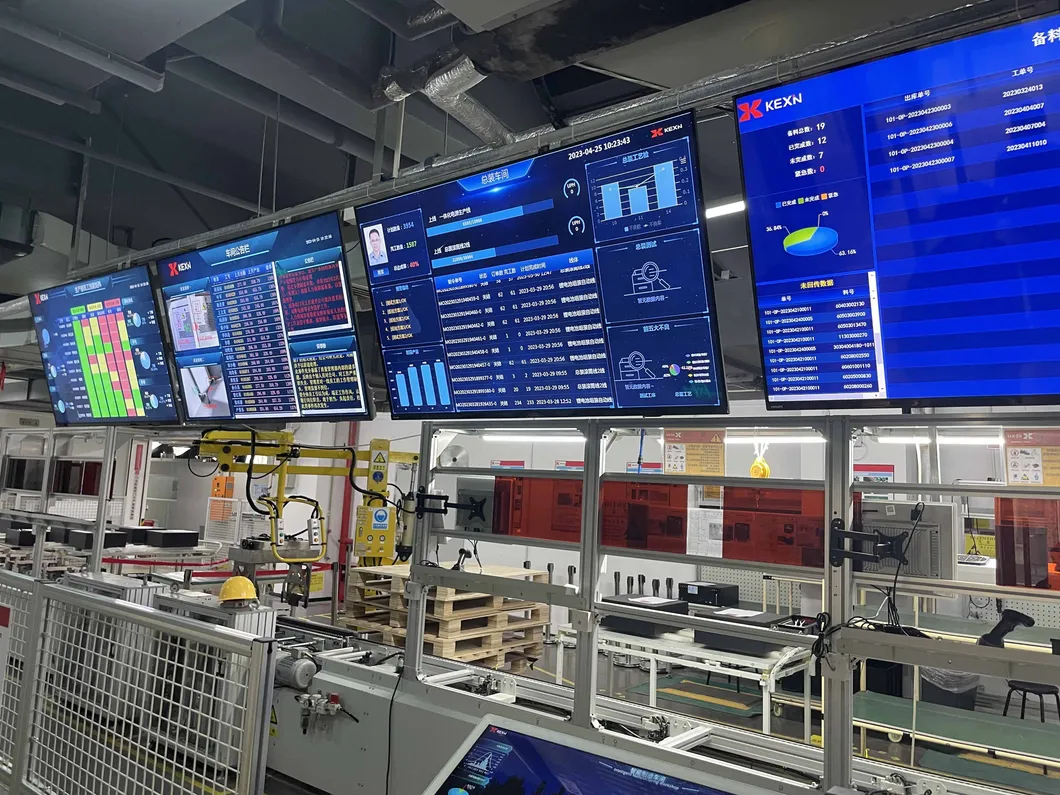

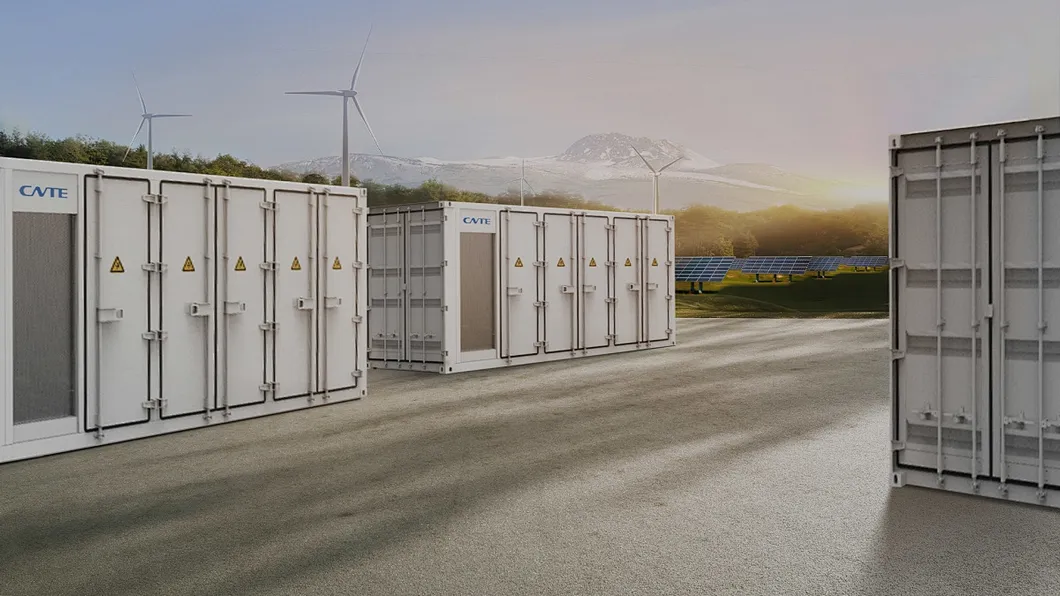

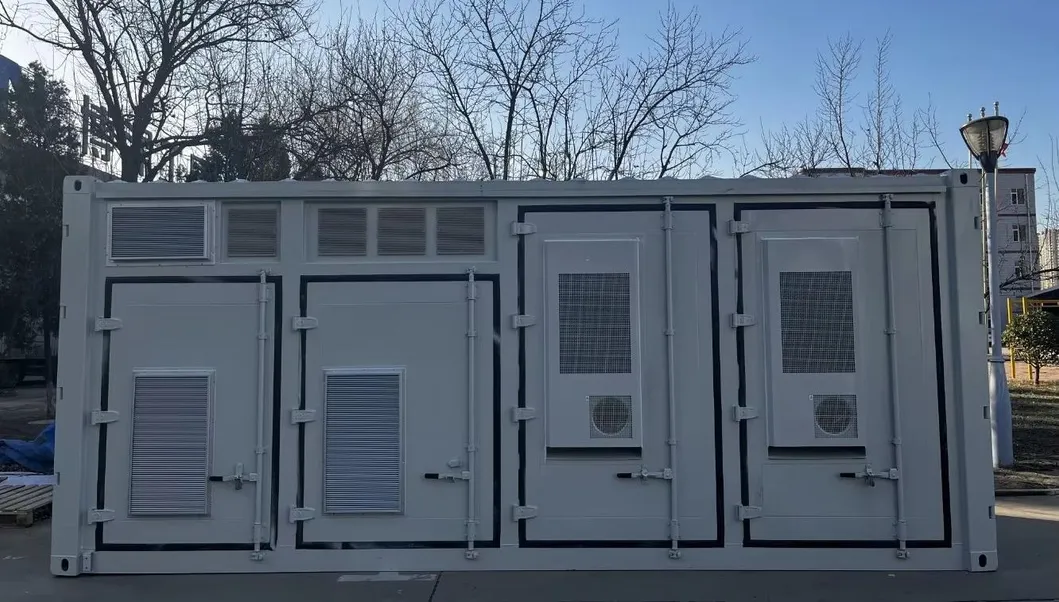

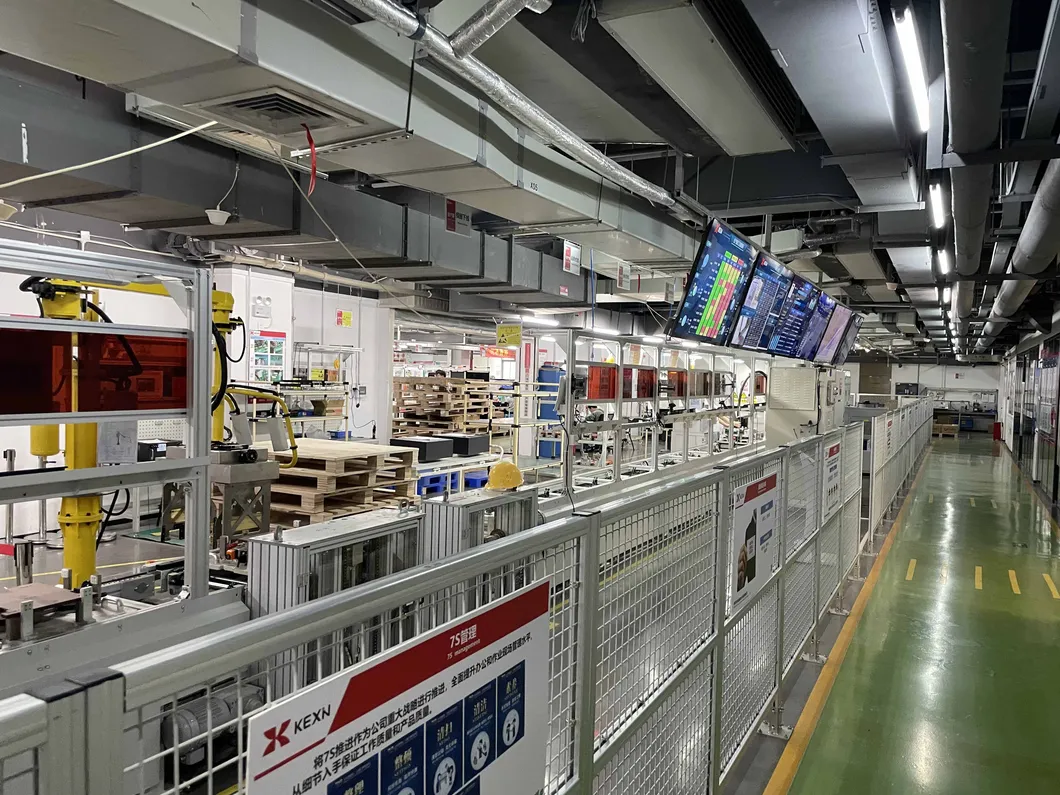

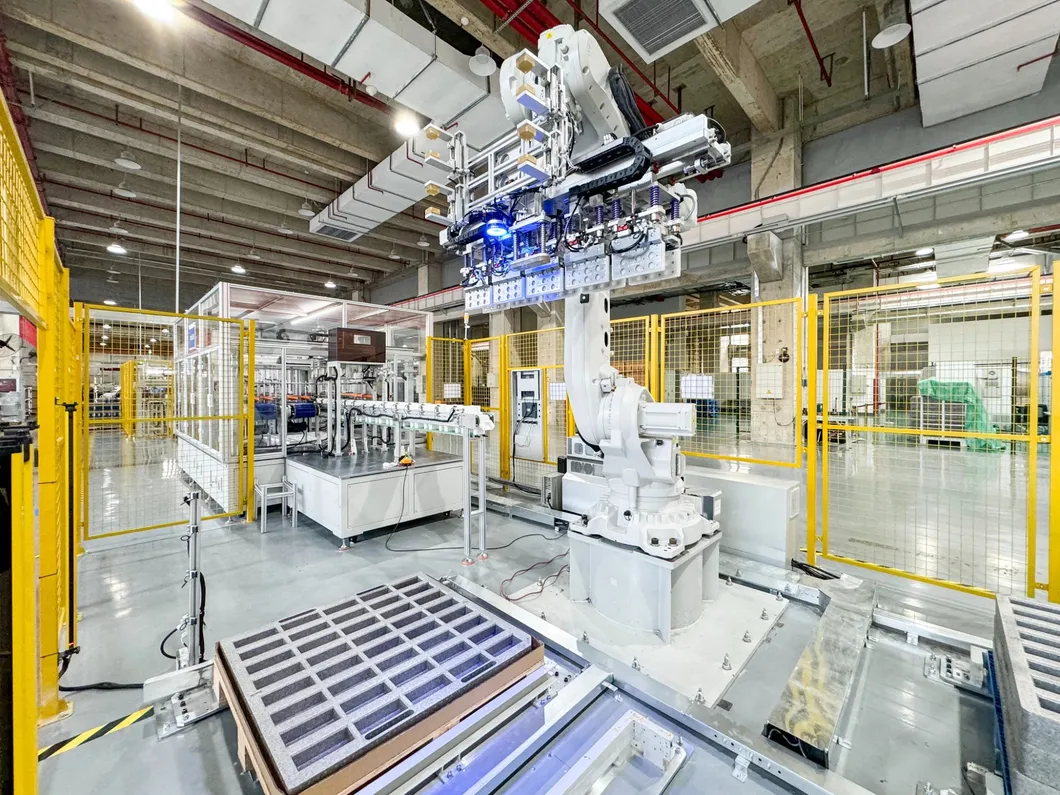

Our Factory & Projects

Frequently Asked Questions

What is the expected lifespan of the battery system?

The system utilizes high-quality Lithium Ion cells designed for a cycle life of approximately 6000 times, offering reliable performance for many years.

Can this system operate off-grid?

Yes, the Integrated Energy Storage System (BESS) supports hybrid grid, on-grid, and off-grid connections for maximum flexibility.

What safety features are included in the container?

The system is equipped with a built-in fire protection system, a 3-level active BMS, and an IP54-rated outdoor enclosure for enhanced safety.

How is the temperature regulated inside the unit?

Depending on your requirements, the system can be configured with either air cooling or liquid cooling solutions, integrated with an industrial air conditioner.

What is the warranty period for this energy storage solution?

We provide a comprehensive 10-year warranty for the energy storage system, ensuring long-term operational peace of mind.
