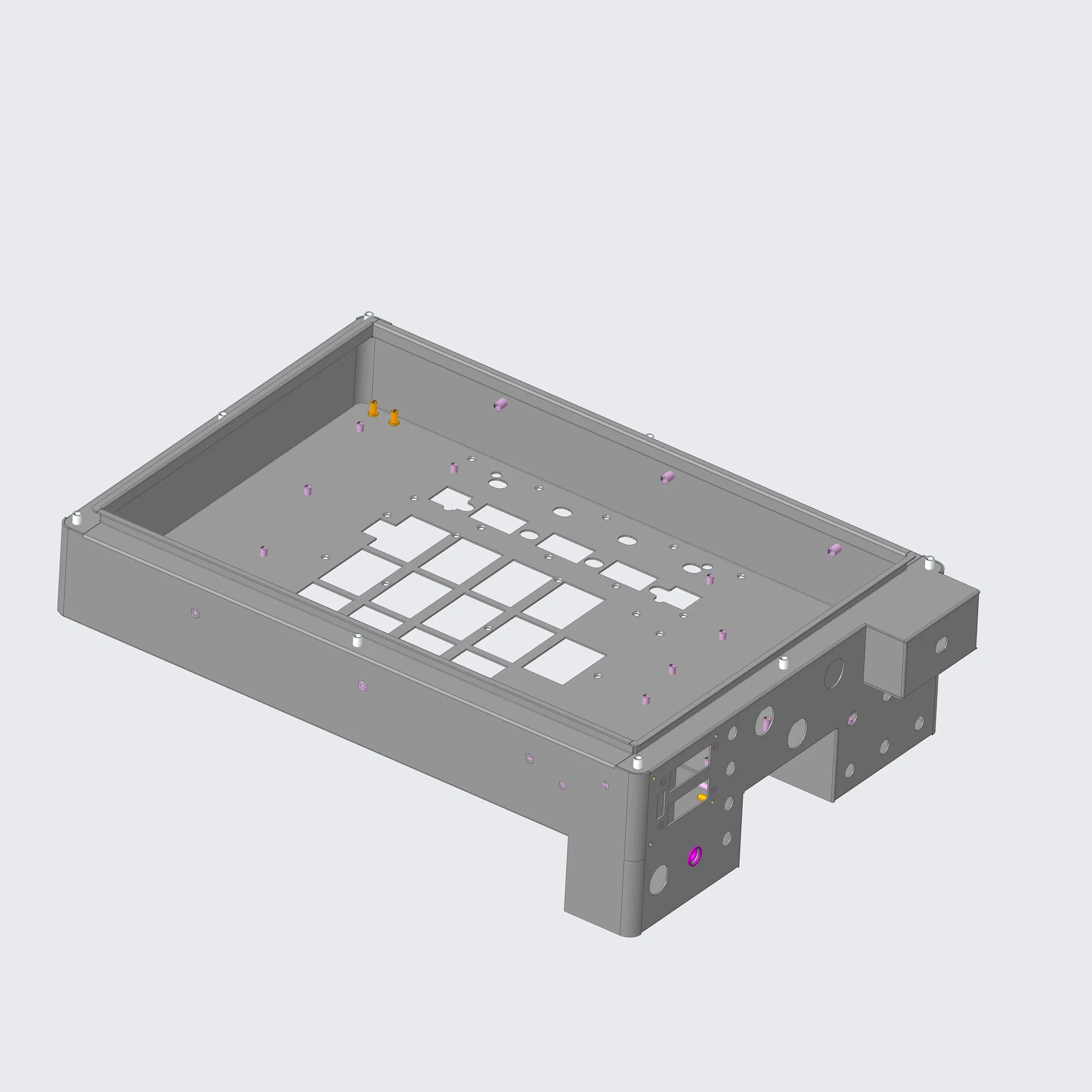

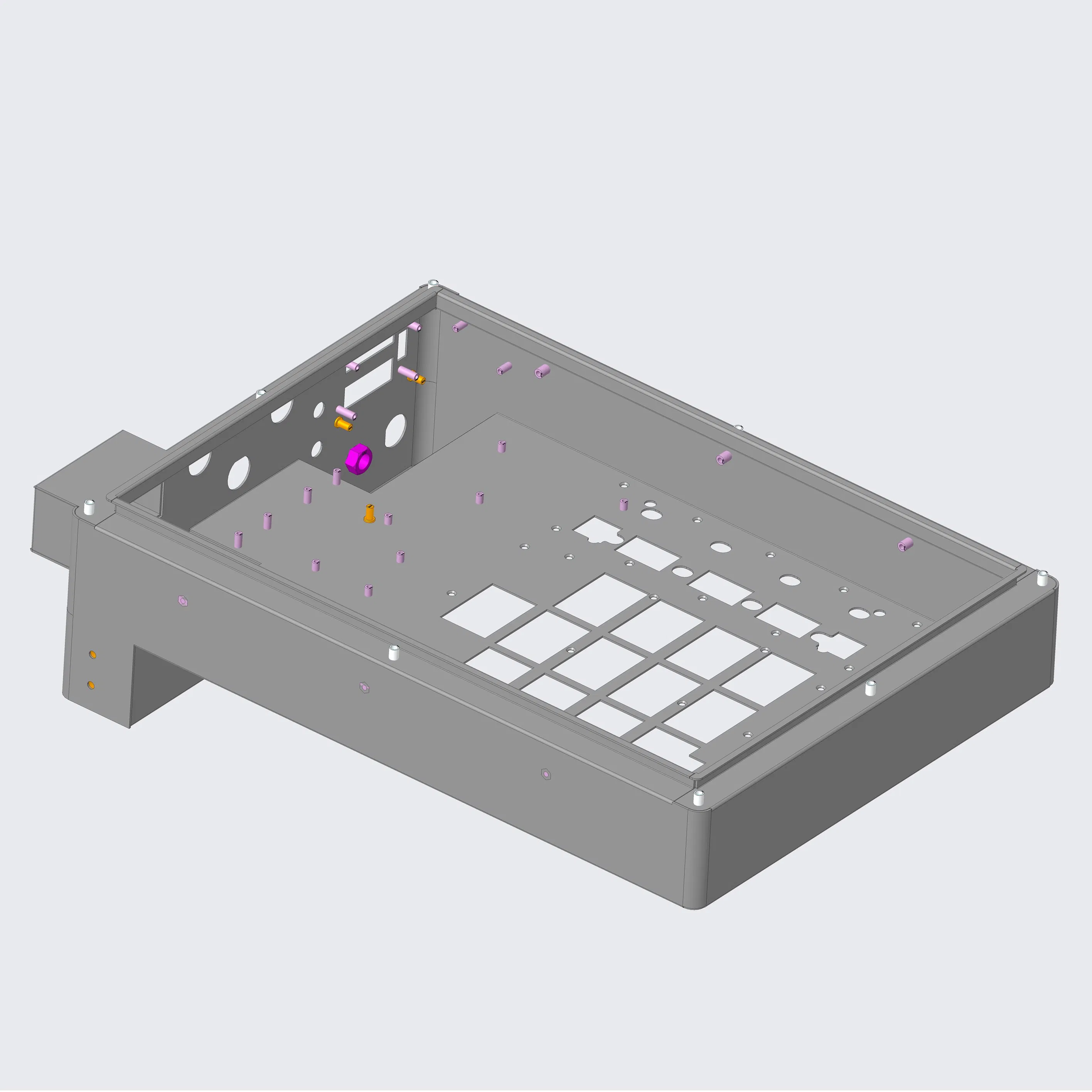

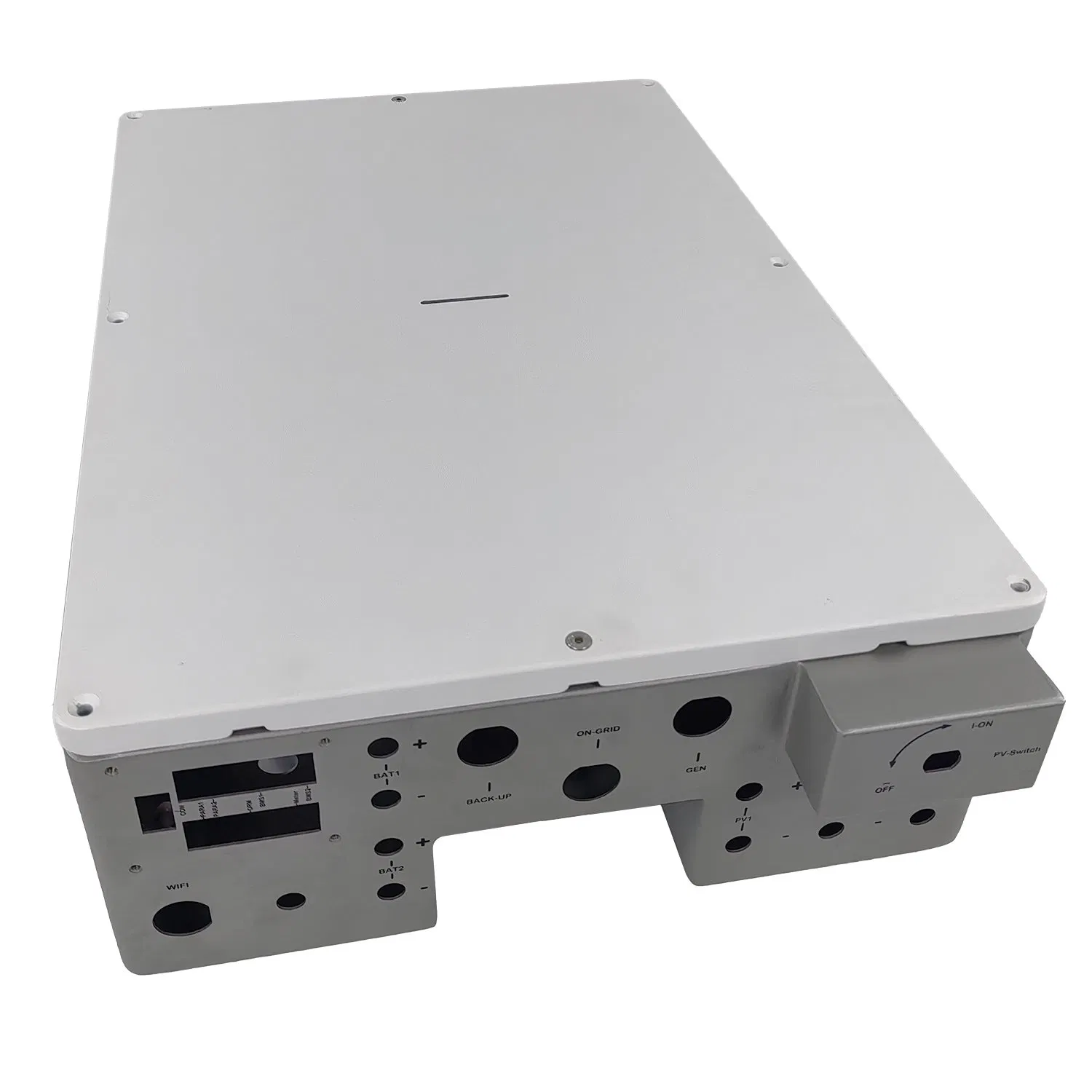

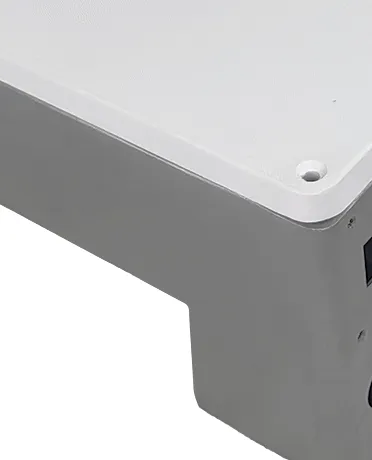

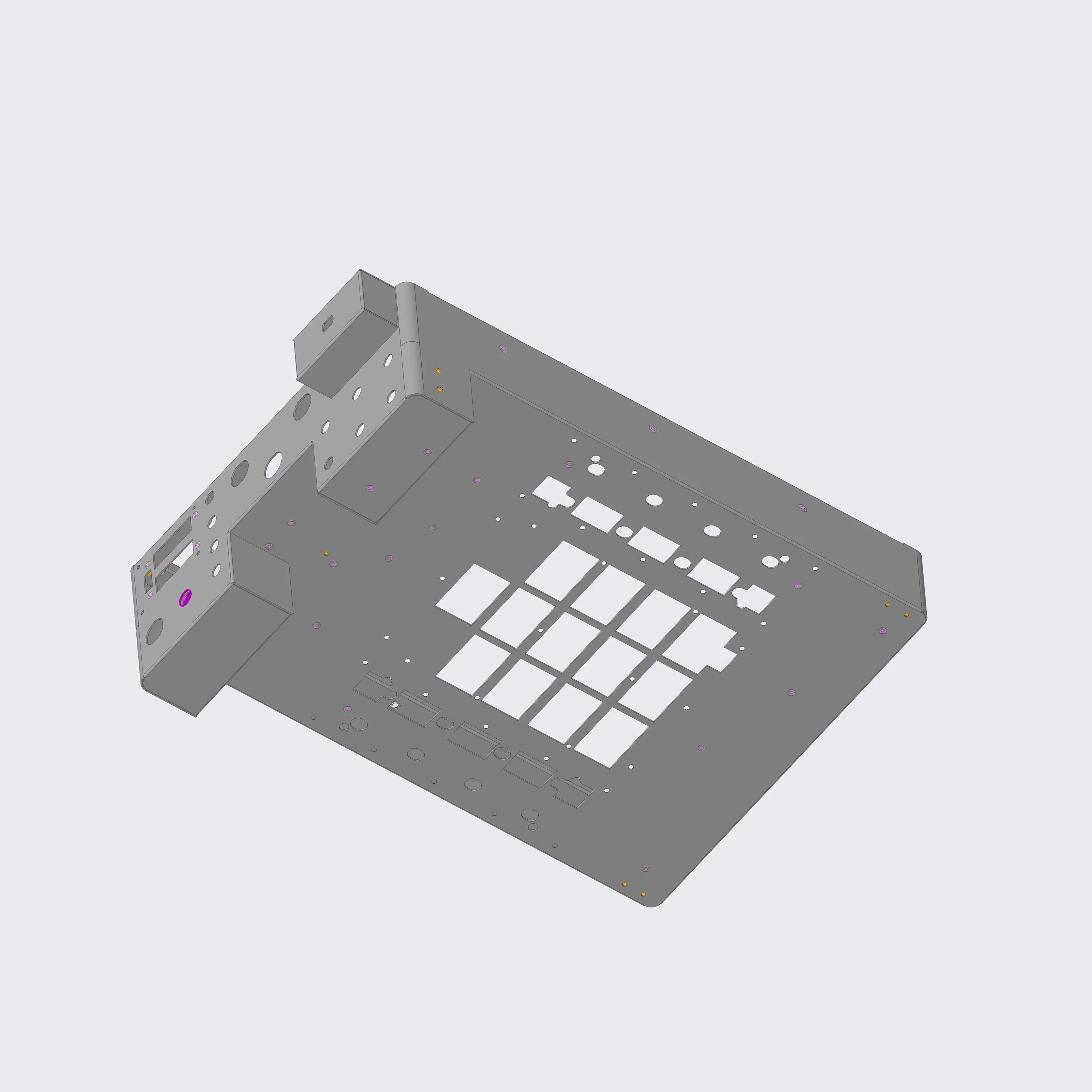

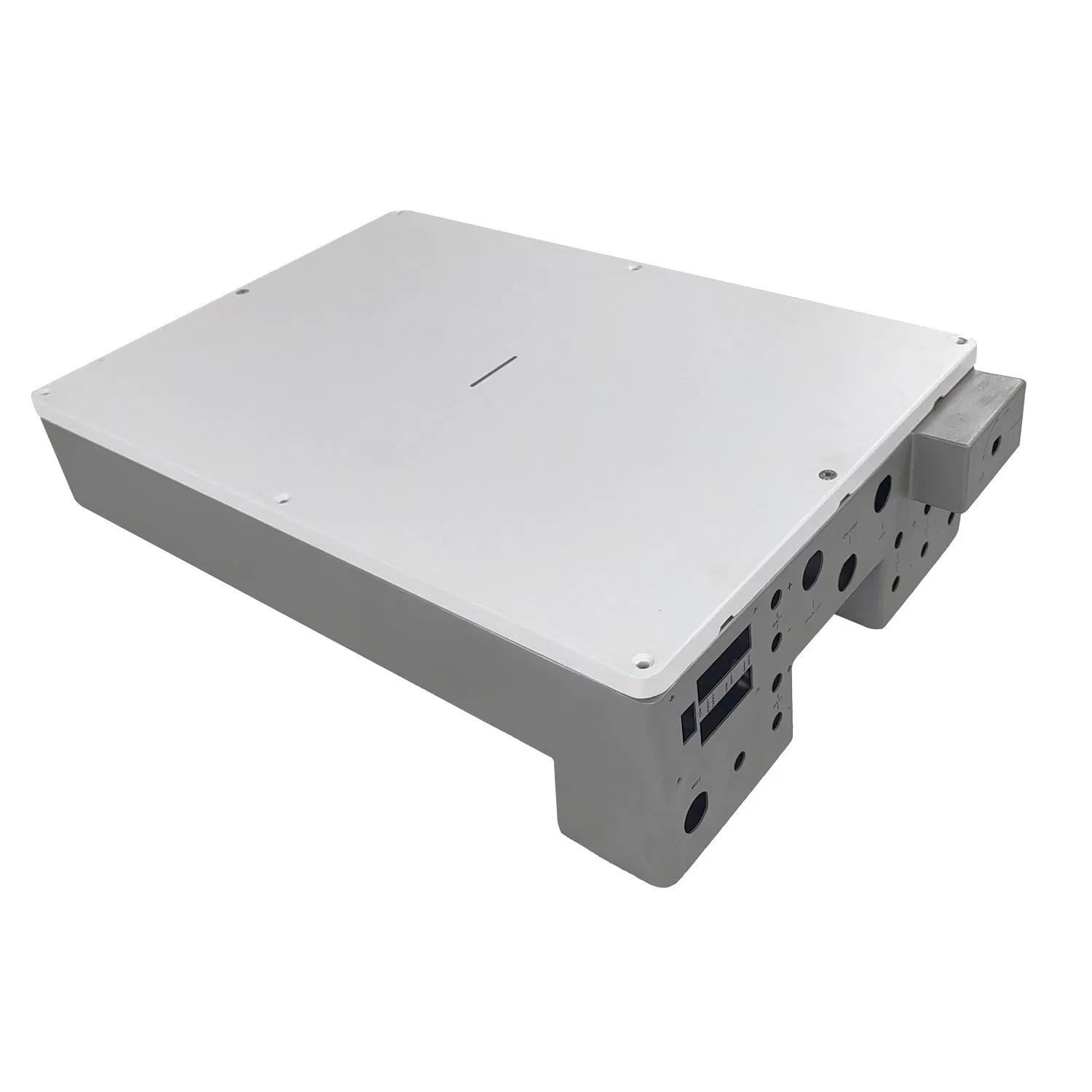

This enclosure is engineered for residential energy storage, where protection from moisture is as critical as performance. Designed with a waterproof structure, it achieves an IP54 rating to safeguard internal electronics against dust and water splashes.
Crafted from lightweight 1.5mm 5052 aluminum, it reduces system weight without compromising the robust, sealed integrity required for garages or outdoor installations. Precision welding and distortion control are paramount to maintaining sealing surfaces and ensuring a perfect fit of all gaskets and components.
| Attribute | Description |
|---|---|
| Product Model | AL15-5052-IP54-ESS-01 |
| Physical Specs | 598*400*165 mm |
| Protection Rating | IP54 |
| Primary Material | 5052-H32 Aluminum, 1.5mm |
| Fasteners | Numerous Custom PEM Rivets (Stainless Steel) |
| Welding | TIG for watertight seams |
| Surface Finish | Textured (Sandy) Powder Coating |
| Coating Thickness | 60-80 μm |
| Testing | Dimension, Visual, IP54 Sealing, Cross-Cut Test |
| Compliance | RoHS & REACH Compliant |
